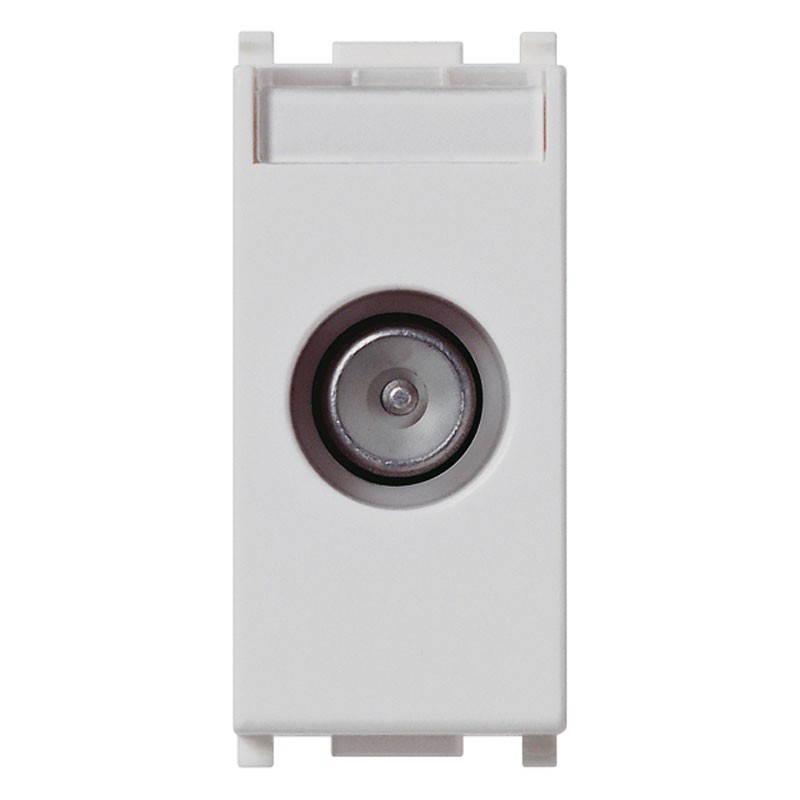

Vimar Plana TV-RD-SAT Feed-through Coaxial Socket Silver 14300.10.SL
VIW 14300.10.SL
8007352309944
Vimar Plana TV-RD-SAT feed-through socket is a high-quality component for TV, radio and satellite installations. With a male connector and an operating frequency from 5 to 2400 MHz, it ensures a stable signal and optimized attenuation. The lacquered Silver design perfectly complements the Vimar Plana civilian series, with the following features:
-
Operating frequency: 5-2400 MHz, ideal for TV, radio and SAT signals
-
Tap attenuation: 10 dB for a stable signal
-
Installation: Snap-in, quick and easy
-
Finish: Silver lacquered, elegant and durable
-
Compatible: Vimar Plana switch range
€16.04
Items Available: 96
: 40
Vimar Plana Socket Reliability and Optimized TV-SAT Signal
Reliable performance for TV and SAT installations
The Vimar Plana Silver pass-through socket ensures excellent TV, radio and satellite signal distribution, thanks to its low pass-through attenuation and ability to operate over wide frequencies (5-2400 MHz).
Optimized attenuation for a stable signal
- Tap attenuation: 10 dB
- Through attenuation: 2.20 dB at 860 MHz - 3.40 dB at 2150 MHz
These values ensure minimal signal degradation and efficient transmission, ideal for installations with multiple TV sockets.
TV-RD-SAT Receptacle Easy Installation and Elegant Design Silver
Easy and secure installation
Snap-in mounting system allows quick installation without the use of screws, ensuring a strong and durable seal.
Silver lacquered design for seamless integration
The lacquered silver finish gives a modern and refined touch, perfectly matching the Vimar Plana series and adapting to any environment.
Technical Specifications TV-RD-SAT Feed-Through Socket
| Feature | Value |
|---|---|
| Type of socket | TV-RD-SAT passthrough |
| Operating frequency | 5-2400 MHz |
| Tap attenuation | 10 dB |
| Pass-through attenuation | 2.20 dB at 860 MHz - 3.40 dB at 2150 MHz |
| Number of outputs | 1 |
| Fixing | Snap-on |
| Material | Plastic |
| Finish | Silver lacquered |
There are no reviews
Data sheet
- Main Commands: TV sockets
