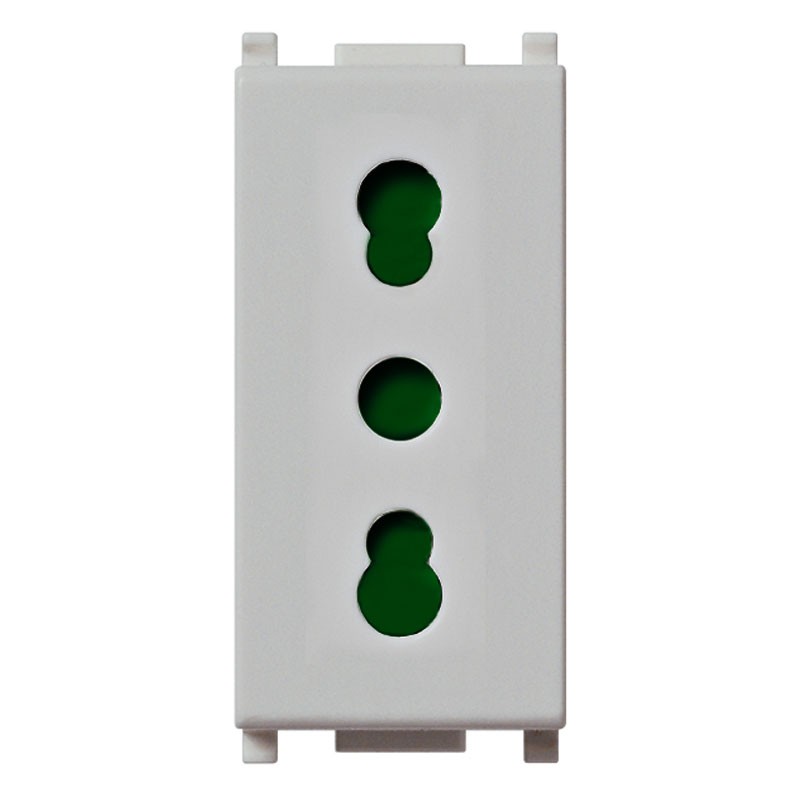

Vimar Plana Two-Pin Socket 2P+E 16A Type P17/11 250V IP20 Silver 14203.SL
VIW 14203.SL
8007352311008
Vimar Plana Two-Pin socket, safety, compatibility and reliability in a glossy white flush-mounted module with the following features:
-
Rated current: 16A
-
Rated voltage: 250V
-
Number of modules: 1 module
-
Type of mounting: Recessed
-
Connection: Screw terminal
-
Degree of protection: IP20
-
Color: Silver
Module for frames 14613, 14614, 14617, 14601, 14602, 14620.
€6.43
Items Available: 533
: 180
Frequently bought together
SICURY socket outlet Italian type P17/11 for every domestic installation
The white 2P+E 16A P17/11 socket, belonging to the SICURY range, is designed to meet the requirements of safety, reliability and compatibility with Italian standards. It is the ideal choice for civil electrical installations where a versatile and functional socket outlet with simple and safe installation is required.
Compact design and simple installation
With a 1-module fruit format, the socket is compatible with the main civil flush-mounted plates. Installation is via screw terminals, ensuring a stable and durable connection. The thermoplastic plastic body provides good wear resistance, while the absence of halogens makes it suitable even in environments where low smoke emission in case of fire is required.
Increased safety for the user
Equipped with increased contact protection, this socket provides increased safety for the user during plug insertion and removal, reducing the risks of accidental contact with live parts. It conforms to IP20 rating, suitable for dry and protected indoor installations.
Compatibility with Italian 10A and 16A plugs
The two-pin configuration type P17/11 allows the insertion of 10A and 16A Italian plugs, making it versatile for use with numerous electrical appliances, home appliances and everyday electronic devices. Its rated voltage is 250V, with an operating frequency of 50-60 Hz, ideal for European power grid standards.
Aesthetics and elegant finish
The high-gloss white finish offers a neutral, modern aesthetic that easily complements any decor style. The untreated surface maintains the natural effect of the plastic material, ensuring a clean and uncluttered appearance over time.
Technical characteristics Vimar Plana two-pin socket outlet
General information
| Parameter | Value |
|---|---|
| Socket type | 2P+E Italian type P17/11 |
| Number of modules | 1 |
| Mounting type | Recessed |
| Connection | Screw terminal |
| Increased contact protection | Yes |
| Lockable / with switch | No |
| Marking | Not present |
Electrical data
| Parameter | Value |
|---|---|
| Rated current | 16 A |
| Rated voltage | 250 V |
| Operating frequency | 50/60 Hz |
| Protection class | IP20 |
Materials and finish
| Parameter | Value |
|---|---|
| Material | Thermoplastic, halogen-free |
| Color | Silver |
| Finish | Glossy |

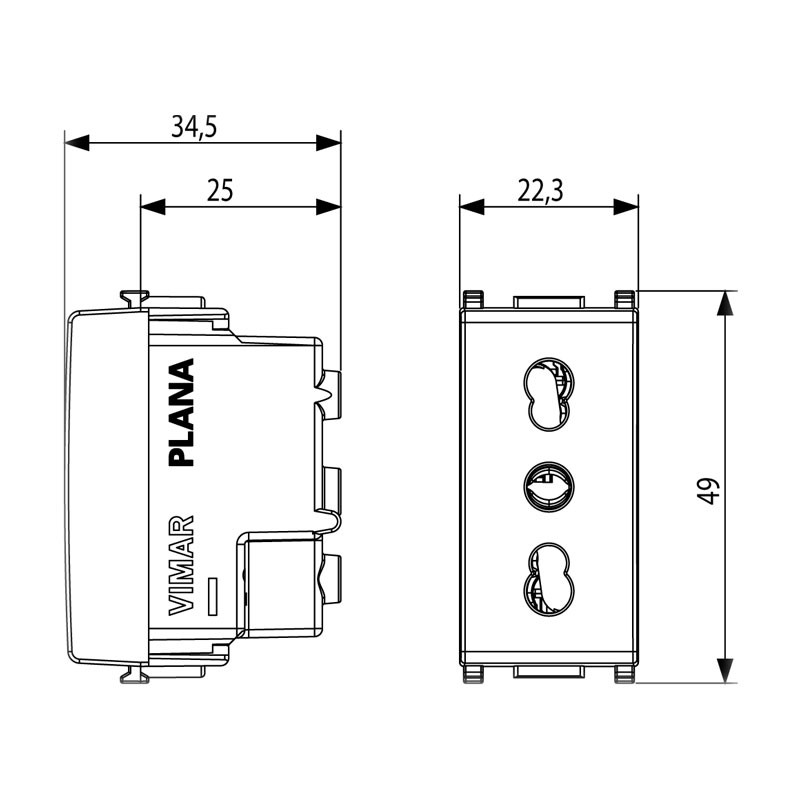

Dimensions
| Parameter | Value |
|---|---|
| Width | 22.3 mm |
| Height | 49 mm |
| Depth | 34.5 mm |
