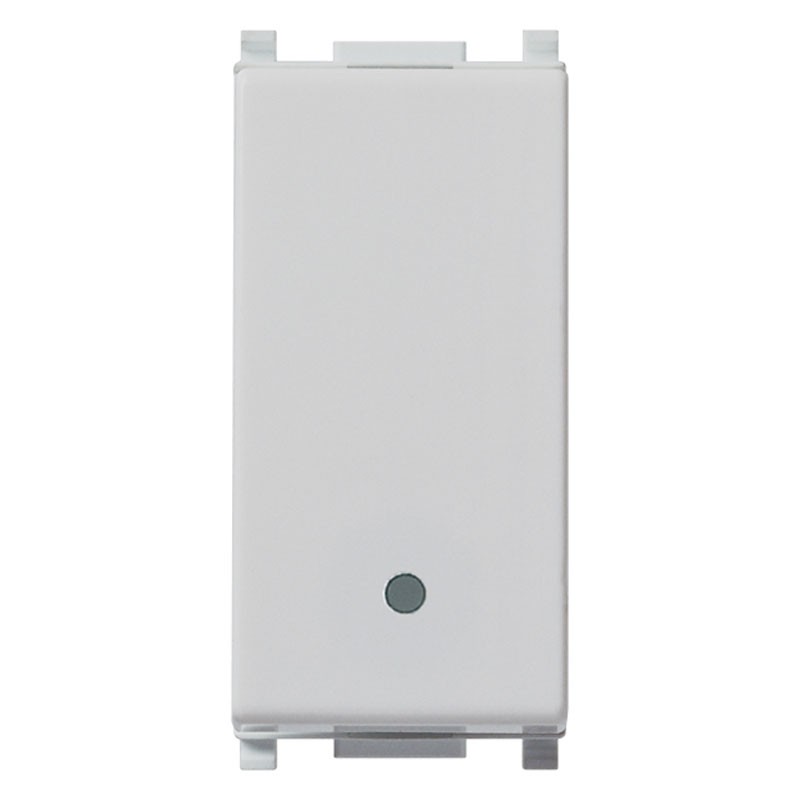

Vimar Plana Multiway Switch 1P 10AX 250V Silver 1M 14004.SL
VIW 14004.SL
8007352319059
Vimar Plana Multiway switch, illuminable and with replaceable button. Modern design in polished silver finish, ideal for civil and residential installations, with the following features:
-
Rated current: 10 AX
-
Rated voltage: 250V
-
Modules: 1
-
Illuminable: Yes, with replaceable LED
-
Color: Silver
-
Material: Thermoplastic, halogen-free
-
Control type: Tilt button
-
Mounting: Recessed, snap-in mounting
€4.51
Items Available: 188
: 66
Frequently bought together
Multiway switch 1P Silver: elegance and functionality signed Vimar Plana
The 1P 10AX Silver Multiway switch from the Vimar Plana series represents the perfect combination of functionality, safety and modern design. With a glossy silver finish, it is ideal for contemporary environments and is perfectly suited to both residential and professional settings.
Illuminable and with replaceable button
This Multiway switch can be equipped with LEDs for the orientation or status lighting function, making it easier to spot in the dark. The LED is replaceable, providing flexibility according to the needs of the facility. In addition, the button is interchangeable, allowing the appearance of the light point to be customized with other colors or textures from the Vimar range.
Maximum compatibility and ease of installation
Compatible with Plana series plates and brackets, the diverter is a flush-mounted, snap-in module that ensures simple and secure installation. It can be installed in new installations or to replace existing devices, adapting to common standards.
Reliable performance and up-to-date standards
With a current rating of 10AX at 250V, it is also suitable for use with LED or low-power lamps up to 100W with integrated ballast, according to IEC 60669-1:2017. It is designed to ensure long life and accurate switching over time, even with electronic loads.
Safety and quality materials
The body of the diverter switch is made of halogen-free thermoplastic material that complies with safety standards. The IP40 degree of protection makes it suitable for indoor use while maintaining good dust resistance.
Technical Specifications Vimar Plana Multiway Switch
| Parameter | Value |
|---|---|
| Rated current | 10 AX |
| Rated voltage | 250 V |
| Modules | 1 |
| Control type | Tilting button |
| Illuminable | Yes, with replaceable LED |
| Color | Silver |
| Finish | Glossy, lacquered |
| Material | Thermoplastic, halogen-free |
| Mounting | Recessed |
| Mounting Type | Snap-in |
| IP Protection | IP40 |
| Recessed depth | 24 mm |

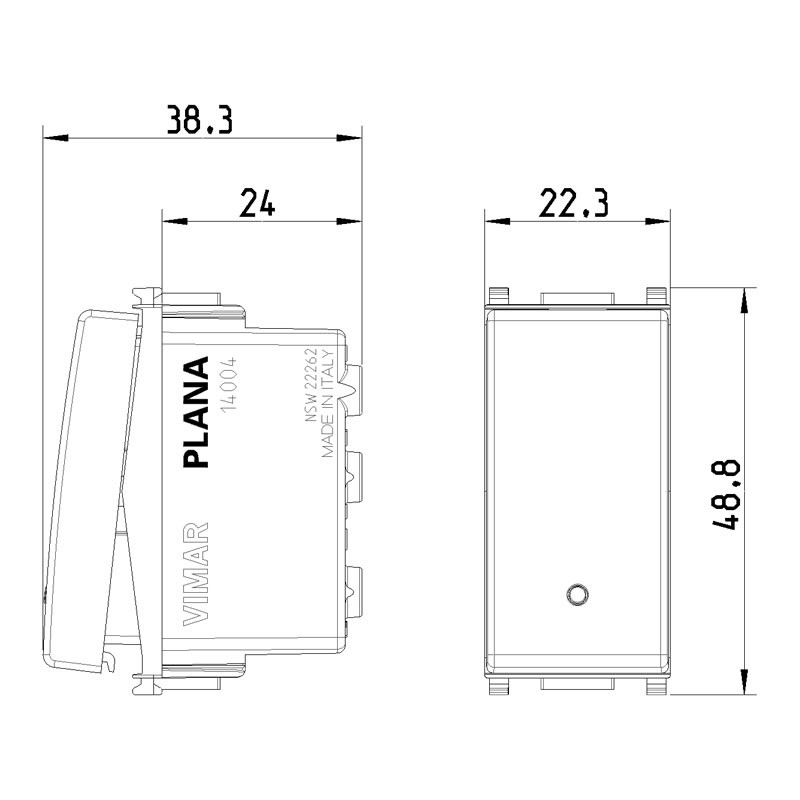

| Dimensions (W x H x D) | 22.3 × 39 × 38.4 mm |
qualità del prodotto come da casa madre
Buono in rapporto al prezzo : è un deviatore
nessun commento----------------------------------
Materiale conforme alle aspettative
Data sheet
- Main Commands: Multiway switches
