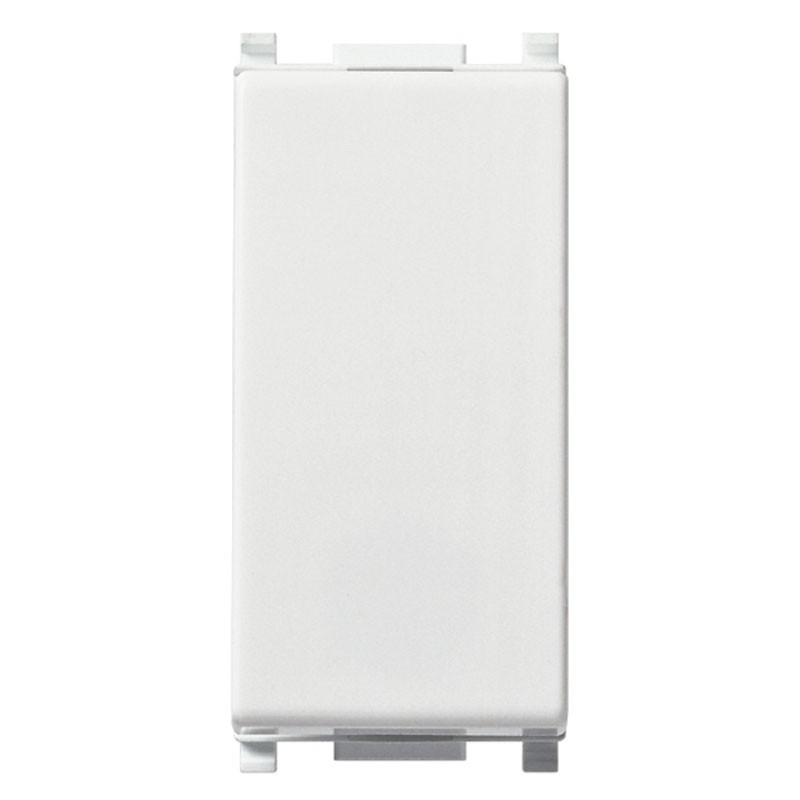

Vimar Plana Button 1P NO 10A 250V 1 Module White 14008
Vimar Plana normally open (NO) pushbutton, with replaceable button and illuminable function, designed for civil installations and professional environments. Glossy white design compatible with modular flush mounts, with the following features:
-
Contact: NO (normally open)
-
Rated current: 10A
-
Rated voltage: 250V
-
Number of modules: 1
-
Mounting: Recessed
-
Fixing: Snap-in (lock in place)
-
Material: Thermoplastic plastic
-
Color: White
-
Degree of Protection: IP40
Frequently bought together
Versatile Vimar Plana pushbutton for modern electrical installations.
Ideal for activating chimes, timed lights, relays or home automation scenarios, this 10A - 250V pushbutton is designed for use in civil and tertiary installations. The illuminated version allows easy detection even in dimly lit environments.
Elegant and modular design
Made of high-quality thermoplastic plastic, the button features a glossy surface that is resistant to dirt. The button can be replaced to suit different aesthetic or functional requirements.
Simple and secure installation
The device is designed to be installed on flush mounts with snap-on fasteners, ensuring quick and solid installation. Compatibility with standard modular systems allows easy integration into existing installations.
Technical Specifications Vimar Plana Button
| Contact | NO (normally open) |
| Rated current | 10 A |
| Rated voltage | 250 V~ |
| Integrable lighting | Yes (via LED) |
| Number of modules | 1 |
| Replaceable key | Yes |
| Mounting | Recessed |
| Fixing | Snap-in (lock in place) |
| Material | Thermoplastic plastic |
| Halogen-free | Yes |
| Surface | Glossy, untreated |
| Color | White (RAL 9003) |
| Degree of protection | IP40 |

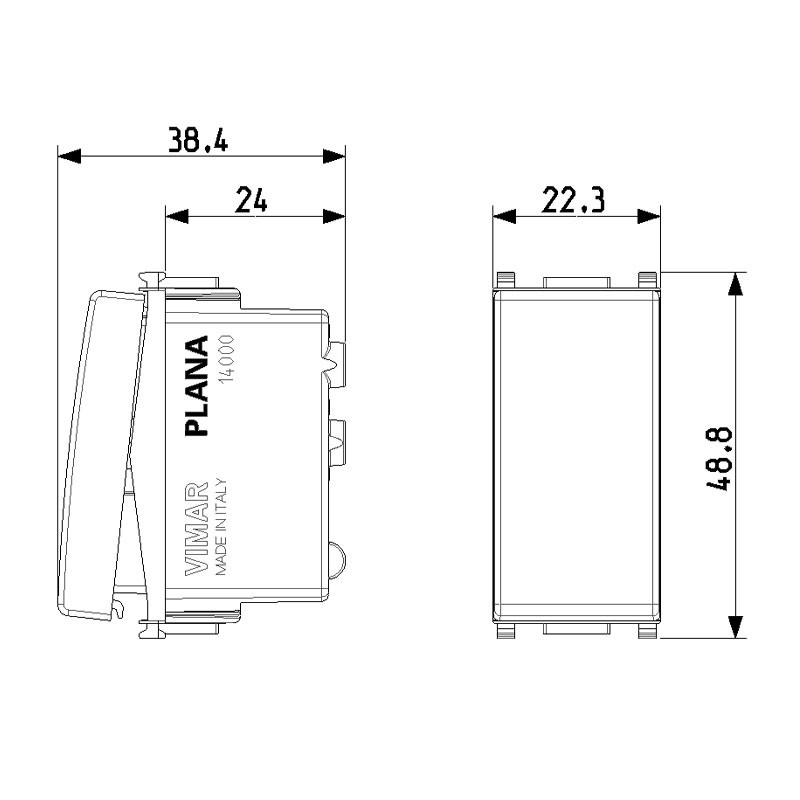

| Dimensions (W × H × D) | 22.30 × 49.00 × 38.40 mm |
Data sheet
