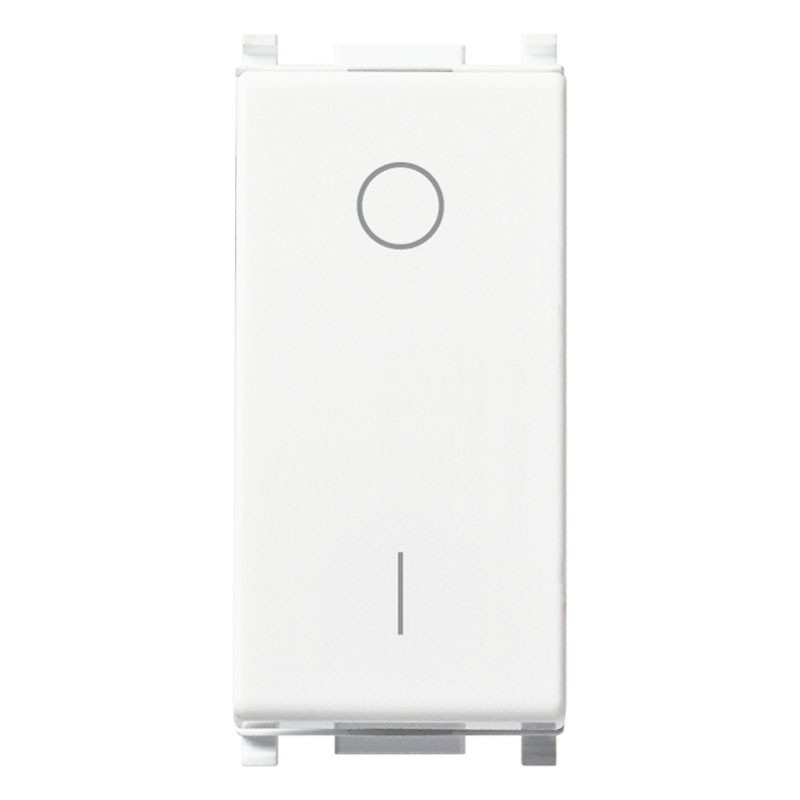

Vimar Plana 2P 16AX 250V 1M Two-pole Switch White 14015
VIW 14015
8007352106581
Vimar Plana two-pole switch, illuminable with optional Led, ideal for sectioning both poles in circuits up to 250V, with the following features:
-
Number of Poles: 2P
-
Rated voltage: 250V
-
Rated current: 16AX
-
Modules: 1
-
Material: Thermoplastic, halogen-free
-
Color: White
-
Mounting Type: Recessed
-
Degree of protection: IP40
€9.97
Items Available: 4327
: 559
Frequently bought together
2P 16AX Switch: double-pole safety and control
The 2P 16AX double-pole switch is designed to provide safe and reliable control in all those contexts where it is necessary to simultaneously interrupt the phase and neutral, thus improving the safety of the electrical system. This makes it ideal for controlling sensitive loads or in environments where regulations require complete disconnection, such as kitchens, technical rooms or outdoor areas.
Compact design and elegant finish
Made of glossy white thermoplastic material, the device integrates easily into any aesthetic context, from residential to tertiary. The 1-fruit modularity and pressure-lock fastening enable quick and secure installation on standard holders.
Illuminable function and versatility of use
The rocker switch is interchangeable and compatible with a replaceable LED for the illumination function. This allows the switch to also be used as a night orientation button or to highlight the on/off status of the load. Supports loads up to 200W with integrated power supply, in line with IEC 60669-1:2017.
Reliability and regulatory compliance
With a current rating of 16A and a voltage rating of 250V, the switch complies with IEC regulations for safe and durable use in civil and commercial electrical installations. The IP40 degree of protection makes it suitable for use in dry indoor environments.
Technical Specifications Vimar Plana Two-pole Switch
| Parameter | Value |
|---|---|
| Poles | 2P |
| Rated voltage | 250 V |
| Rated current | 16 AX |
| Modules | 1 |
| Command | Tilt button |
| Lighting | With replaceable LED |
| Color | White |
| Material | Thermoplastic, halogen-free |
| Mounting Type | Recessed |
| Fixing | Press-fit |
| Connection type | Screw terminal |

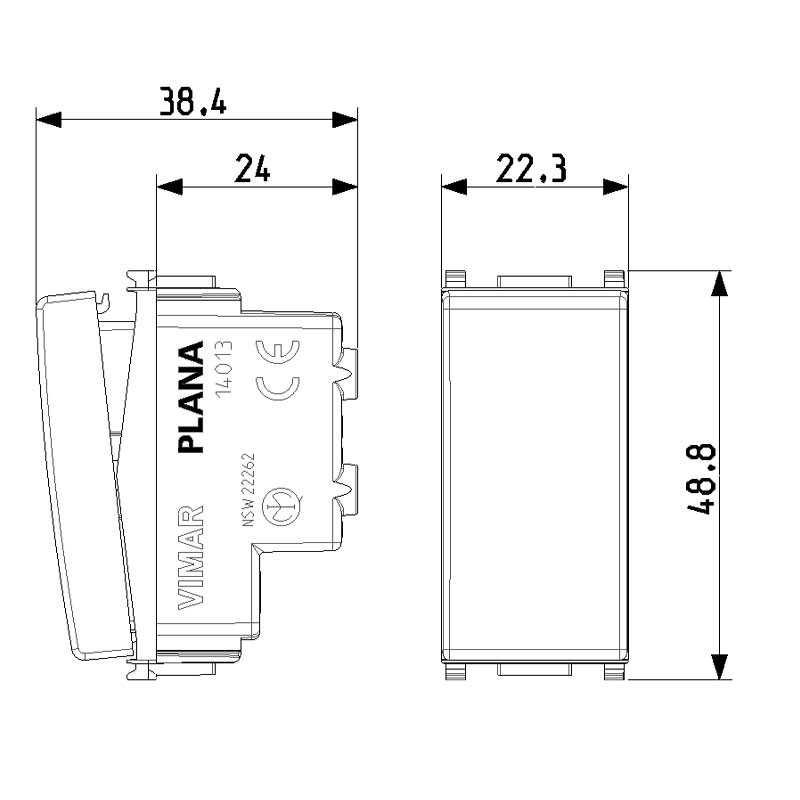

| Recessed depth | 24 mm |
| Luminaire dimensions (W x H x D) | 22.3×49×38.7 mm |
| IP protection class | IP40 |
| Washing machine switch function | Yes |
| Reference standard | IEC 60669-1:2017 |
PRODOTTO DI OTTIMA QUALITA' BEN CONFEZIONATOED INTEGRO
buona fattura la consiglio, costruttivamente sono nella norma
Tutto spettacolare,la qualità Vimar è impareggiabile,attualmente i migliori sul mercato,la serie plana un must qualità/prezzo
Dispositivo ben fatto e di facile installazione.
Qualità prezzo imbattibili un buon prezzo
Soddisfatto del acquisto prodotto eccellente
Soddisfatto del acquisto prodotto eccellente
Interruttore massiccio ottimo per interrompere flusso energetico
La qualità della vimar è ottima grazie
Buon prodotto qualità prezzo arrivato nei tempi previsti affidabile
Data sheet
- Main Commands: Switches
