Vimar Plana 1P NO 10A 250V doorbell button with nameplate 14050
VIW 14050
8007352108622
Vimar Plana doorbell button with illuminable nameplate, functionality, aesthetics and customization in one device, with the following features:
-
Configuration: 1 pole (1P)
-
Contact: NO (normally open)
-
Rated current: 10A
-
Rated voltage: 250V
-
Color: White
-
Material: Plastic
-
Mounting: Recessed
-
Number of modules: 2
Module for 14613, 14614, 14617 frames.
€15.60
Items Available: 650
: 113
Frequently bought together
Vimar Plana button with nameplate: functional and customizable design
The Vimar Plana button is the ideal solution for those who wish to combine aesthetics, functionality and practicality in signaling and access control. Designed to be used primarily as a doorbell button, it offers a clear and customizable interface thanks to the nameplate, ideal for residential or professional settings where it is useful to identify the name of the resident or office.
Illuminable system for optimal visibility
One of the distinctive aspects of this model is the illuminable nameplate, compatible with E10 10x28 mm lamps of maximum 1W. By purchasing the LED separately, it is possible to make the name visible even in low-light conditions, increasing the functionality of the device especially in apartment buildings, building entrances or offices.
Easy installation and guaranteed compatibility
Mounting is done in recessed mode, and is compatible with Vimar Plana series holders (models 14613, 14614 and 14617). This ensures seamless integration into the existing system, maintaining the aesthetic harmony of the lighting point and ensuring solidity and safety in installation.
Durable materials and elegant design

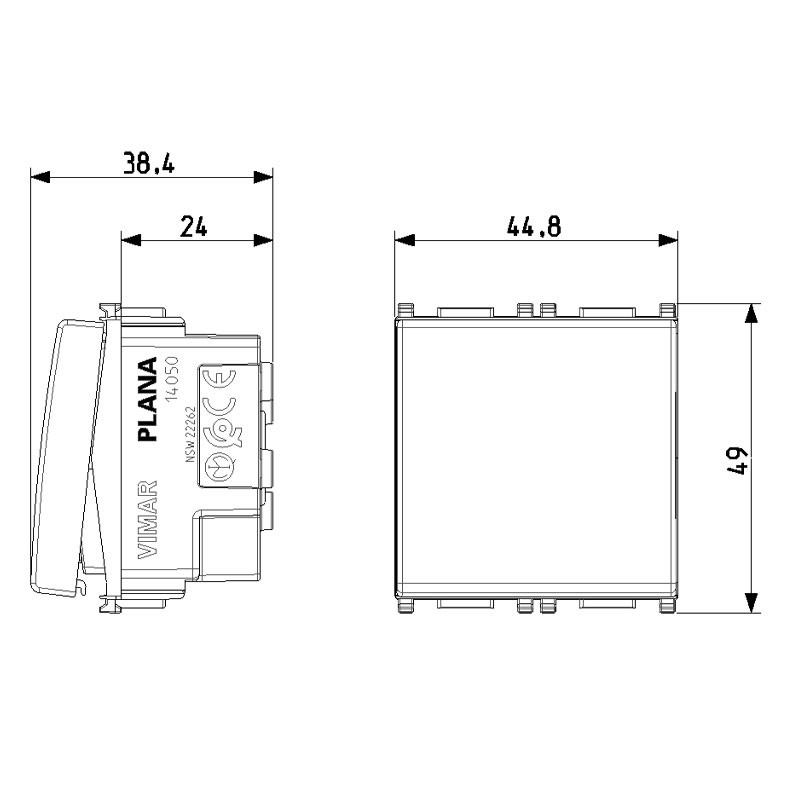

Made of high-quality plastic, the button comes in white color, perfect for any architectural context, whether modern or classic. Its height of 49 mm and recessed depth of 24 mm make it compact yet easily accessible, contributing to a neat and professional result.
Applications and uses of the Vimar Plana button
The button is perfect for use as an entrance bell in homes, apartment buildings, professional offices, or commercial spaces. The ability to write a name inside the nameplate also makes it extremely useful for identifying individual housing units, business departments or public offices.
Technical Specifications Vimar Doorbell Button
| Parameter | Value |
|---|---|
| Type | Doorbell button with nameplate |
| Configuration | 1 pole (1P) |
| Contact | NO (normally open) |
| Rated current | 10A |
| Rated voltage | 250V |
| Lighting | Yes (E10 10x28 mm lamp - max 1W, LED optional) |
| Color | White |
| Material | Durable plastic |
| Mounting | Recessed |
| Number of modules | 2 |
| Media compatibility | Vimar 14613, 14614, 14617 |
| Wireless | No |
| Recessed depth | 24 mm |
| Height | 49 mm |
