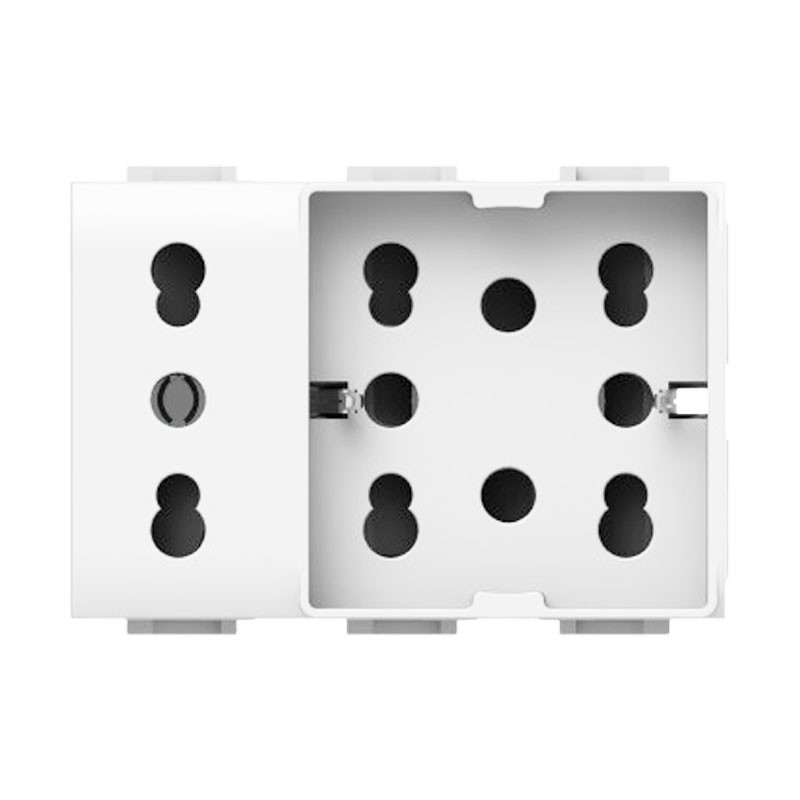

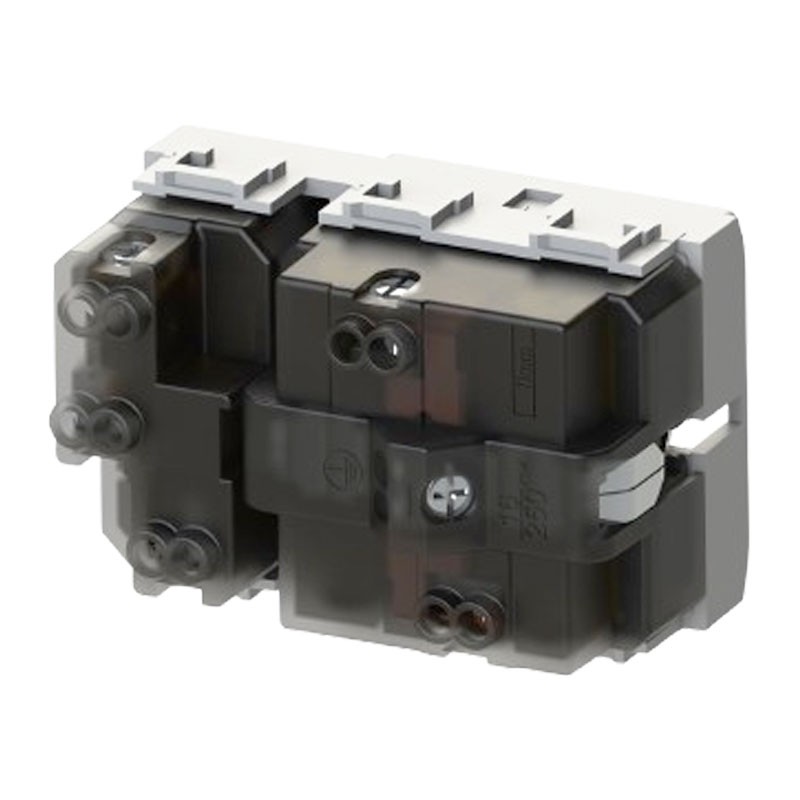

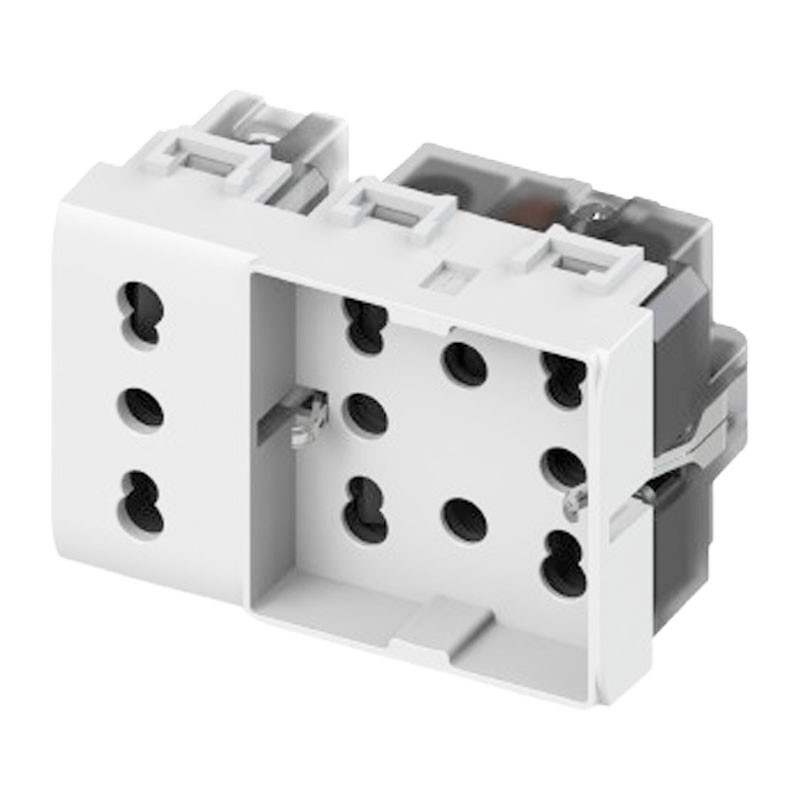

Universal socket 10/16A 3 modules Side 4Box Unica for Vimar Plana 4B.V14.H21.XL
4BX 4B.V14.H21.XL
8057741998099
Side XL 4Box universal electrical socket for Vimar Plana, two-way and Schuko in one fruit, total compatibility and versatility of use, with the following features:
-
3 modules compatible with Vimar Plana frames and plates.
-
White color, modern and functional design
-
Rated voltage 250V
-
Shielded and differentiated active cells
-
High durability: over 5,000 cycles of use
€9.98
Items Available: 11
Frequently bought together
Side XL 4Box, one socket, all the connections you need
The Side XL 4Box Unica universal outlet is the perfect solution for those seeking maximum compatibility and functionality in small spaces. With a single 3-plug module, it offers the possibility of using one Schuko and one two-pin socket or three two-pin sockets, adapting to any domestic or professional need.
Compatible with Vimar Plana: perfect integration
This model is designed to be fully compatible with Vimar Plana series holders and plates, making it easy to install even in existing installations. The white color and minimalist design perfectly complement the style of the series.
Safe and reliable electrical performance
The socket is suitable for a power supply of 250 V at 50/60 Hz, with a current rating of 10/16A, making it suitable for powering household appliances, mobile lamps and other electrical devices. With active shielded and differentiated elastic alveoli, it provides greater safety and resistance to on/off cycles.
Strength and durability
With an electrical life of more than 5,000 cycles and an interrupting power tested on 50 cycles at 275V ~ (cos φ 0.6), Side XL is designed to withstand heavy use while maintaining high standards of operation and reliability at all times.
Ideal for any environment
Whether in a home, office or professional environment, Side XL offers versatility and convenience in one device. With the ability to accommodate small, large and Schuko plugs, it reduces the use of adapters and simplifies energy management.
Technical Specifications Universal 4Box Socket
| Parameter | Value |
|---|---|
| Compatibility | Vimar Plana |
| Type | Universal two-wire + Schuko socket |
| Modules | 3 |
| Color | White |
| Mounting | Recessed, on Vimar Plana supports |
Electrical data
| Parameter | Value |
|---|---|
| Rated voltage | 250 V~ 50/60 Hz |
| Rated current | 10/16 A |
| Wafers | Shielded, active, elastic differentiated |
| Interrupting power | 50 cycles at 275 V~ cos φ 0.6 (12.5A and 20A) |
| Electrical life | > 5,000 cycles at rated conditions |
Come da descrizione. Tutto perfettamente funzionante
Tutto come da descrizione. Prodotto di ottima fattura!
Buon prodotto e idea intelligente per salvare spazio
perfetto ottimo venditore e materiale ottimo
Buon prodotto qualità prezzo arrivato nei tempi previsti affidabile
Tutto ok prodotto come da descrizione e foto
entra con un po' di difficoltà nella placca
Ottimo prodotto, i moduli vanno connessi tra di loro
Al momento sembrano buoni,bisogna vedere dopo un uso di qualche anno....
Un solo prodotto, tante possibilità di connessione. Ottimo rapporto qualità\prezzo.
Data sheet
- Main Commands: Power Sockets
