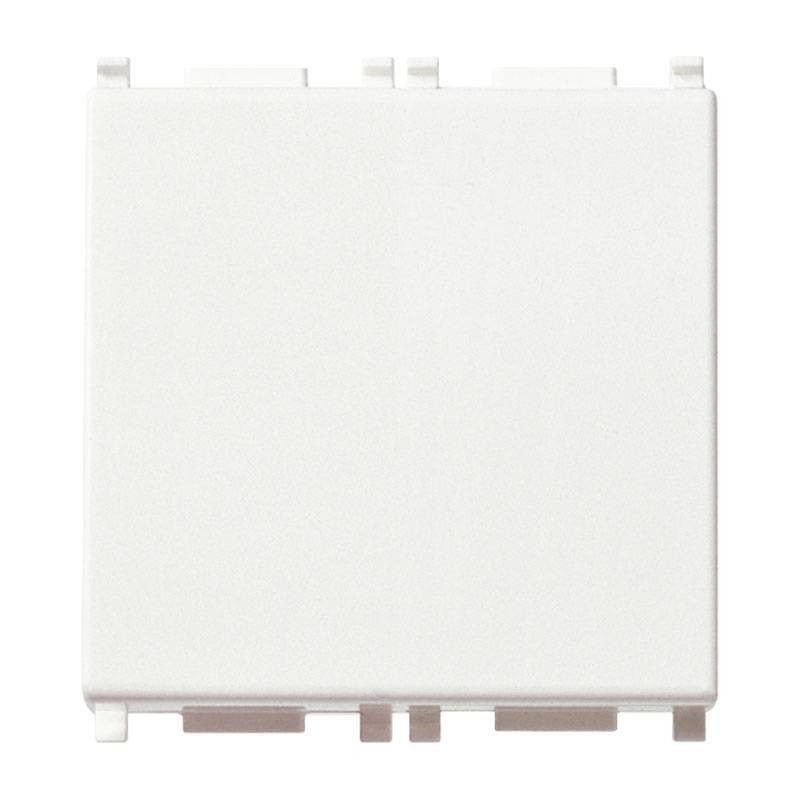

Vimar Plana Switch 1P 10AX 250V 2M Illuminable White 14000.2
VIW 14000.2
8007352119819
Vimar Plana switch, represents an elegant and functional solution for lighting control in civil electrical systems. It is distinguished by its reliability, quality of materials, and features oriented to practicality of use, with the following characteristics:
-
Rated current: 10 A (10AX)
-
Rated voltage: 250 V
-
Number of modules: 2
-
Mounting: Recessed, with screw terminals
-
Suitable for: Lamps with integrated ballast (max 100 W)
-
Material: Plastic
-
Colour: White
€4.61
Out of stock
Incoming
Vimar Plana LED 2M switch, safe, compact and clean design
Clean design and modular compatibility
This switch is part of the modular Plana line, compatible with all standard flush-mounting boxes and designed for quick and neat installation. The glossy finish and white color make it suitable for any residential or professional setting, enhancing the aesthetics of the environment.
LED lighting for control and orientation
One of the main advantages is the built-in illumination function, which is useful for both locating the switch in the dark (orientation) and checking its status (control). The LED is replaceable, offering simple and cost-effective maintenance over time.
Maximum functionality in small spaces
The device is equipped with a replaceable rocker switch, enabling quick customizations or replacements when needed. The integrated marking surface enables clear identification of the switch's function, which is useful in environments with multiple controls.
Safety and electrical compatibility
With a current rating of 10A and voltage of 250V, the switch is also suitable for large loads such as lamps with integrated ballasts (up to 100W). Protection is guaranteed for use in IP40-rated environments, and connection is via screw terminals for safe and durable contact.
Technical Specifications Vimar Plana Switch
| Feature | Value |
|---|---|
| Type of operation | Single-pole switch |
| Command | Toggle/key |
| Modules | 2 |
| Rated voltage | 250 V |
| Rated current | 10 A (10AX) |
| Illumination type | LED replaceable |
| Lighting function | Control and orientation |
| Material | Plastic, halogen-free |
| Surface finish | Glossy |
| Colour | White |
| Mounting | Recessed |
| Connection Type | Screw Clamp |
| Box/Surface marking | Yes |

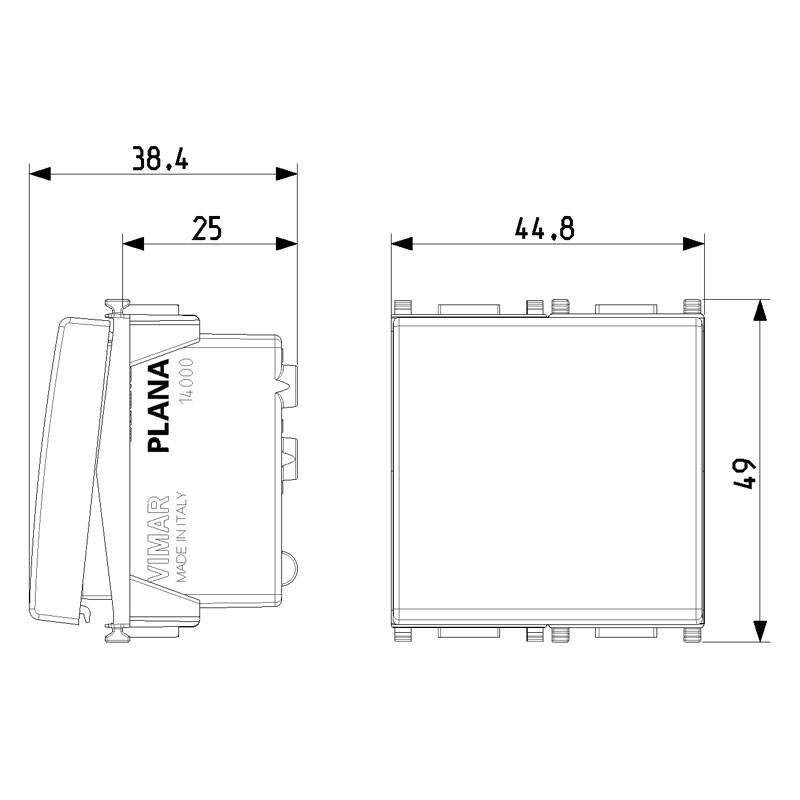

| Dimensions | W 44.8 mm × H 49 mm × D 38.4 mm |
| Recess depth | 24 mm |
| Protection class | IP40 |
