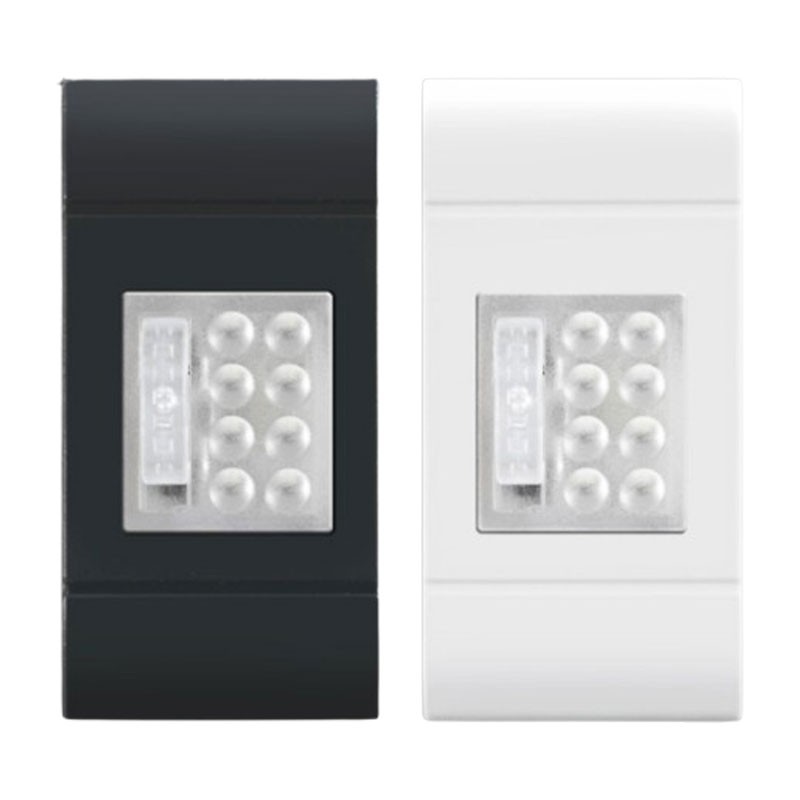

Linergy Keystone emergency step-down lamp SA/SE 6000K KL01N20ABS
LEN KL1001
8021046042481
Led Linergy emergency lamp, provides safety and orientation even in power failure, with simple installation in 503 box, with the following features:
-
Dual function: Always On (SA) / Emergency Only (SE)
-
Autonomy: 2 hours with rechargeable battery
-
Installation: Flush-mounted on 503 box, ideal as a step marker
-
Switch range plates compatibility: BTicino (Living, Matix), Vimar (Plana, Arké)
-
Color temperature: cold light 6000K
-
Battery: Ni-MH 4.8V 80mAh - recharge in 3h
-
Degree of protection: IP20
-

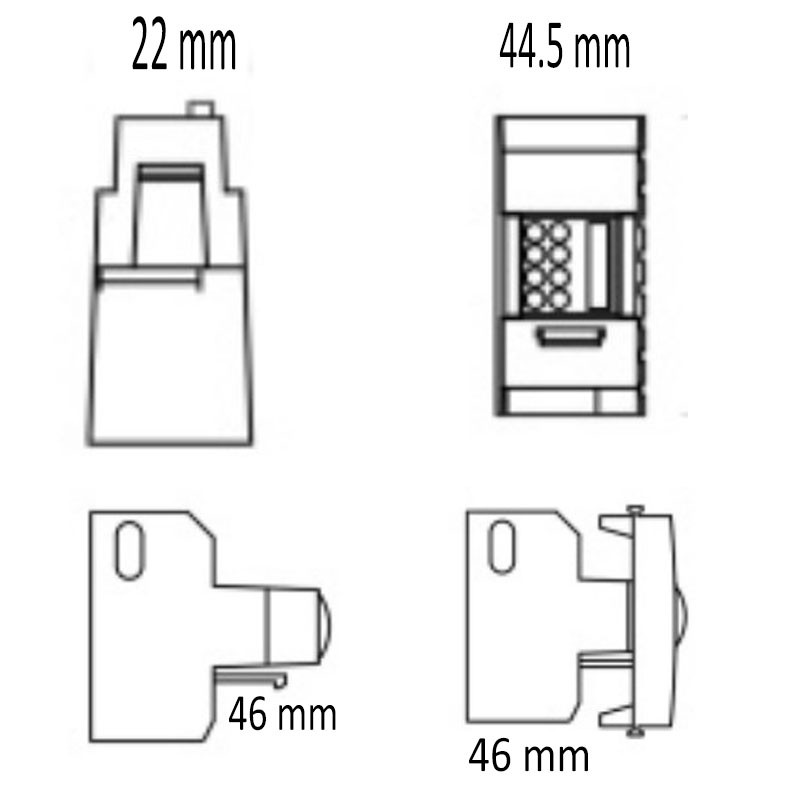

Dimensions: 22x44.5x46mm
€50.24
Items Available: 2
Linergy Emergency Lamp Intelligent and integrated emergency lighting
The Linergy KEYSTONE is designed to provide immediate visibility during power outages and act as an LED pathway marker under normal conditions. An effective solution for homes, offices, corridors and public places.
Universal design for plates
Included in the package, dedicated adapters allow aesthetic integration with major switch ranges standards:
-
BTicino Living Light (white/black)
-
BTicino Matix
-
Vimar Plana / Arké (white/black)
Technical characteristics Linergy emergency lamp
| Parameter | Value |
|---|---|
| Function | SE/SA (emergency + step marker) |
| Light source | 1 LED |
| Color temperature | 6000K (cool white) |
| Autonomy | 2h |
| Battery type | Ni-MH 4.8V 80mAh |
| Charging time | 3h |
| Power supply | 230V AC |
| Installation | Built-in 503 |
| Insulation class | II |
| Degree of protection | IP20 |
| Operating temperature range | -10°C / +40°C |
| Dimensions | 22 x 44.5 x 46 mm |
| Glow wire | 850°C |
| Standards | EN 60598-1 / EN 60598-2-22 / RoHS2 |
Data sheet
- Type: Emergency lights
- Installation: Built-in 503
- Integrated Led: YES
- Endurance: 2 hours
