4Box Uniko control for Vimar Plana series white 4B.V14.CU
4BX 4B.V14.CU
8053839320537
Uniko 4Box for Vimar Plana: switch, multiway switch, intermediate switch and button in one module. Versatile, compact and always ready to use, with the following features:
-
4 functions in 1: switch, multiway switch, intermediate switch, push button (NO/NC)
-
Compatible with: Vimar Plana frames and plates
-
Modules: 1
-
Color: White
-
Selectable mechanism: Toggle or push button
-
Rated voltage: 250V AC - 16AX
€2.67
Items Available: 75
Frequently bought together
Uniko 4Box: one control for every need
The Uniko 4Box control, represents a revolution in electrical control management. In a single 1-module device, compatible with Vimar Plana, it encompasses the functions of switch, diverter, inverter and push-button (NO/NC), adapting perfectly to every plant engineering need, both in the domestic and professional sphere.
Maximum flexibility of use

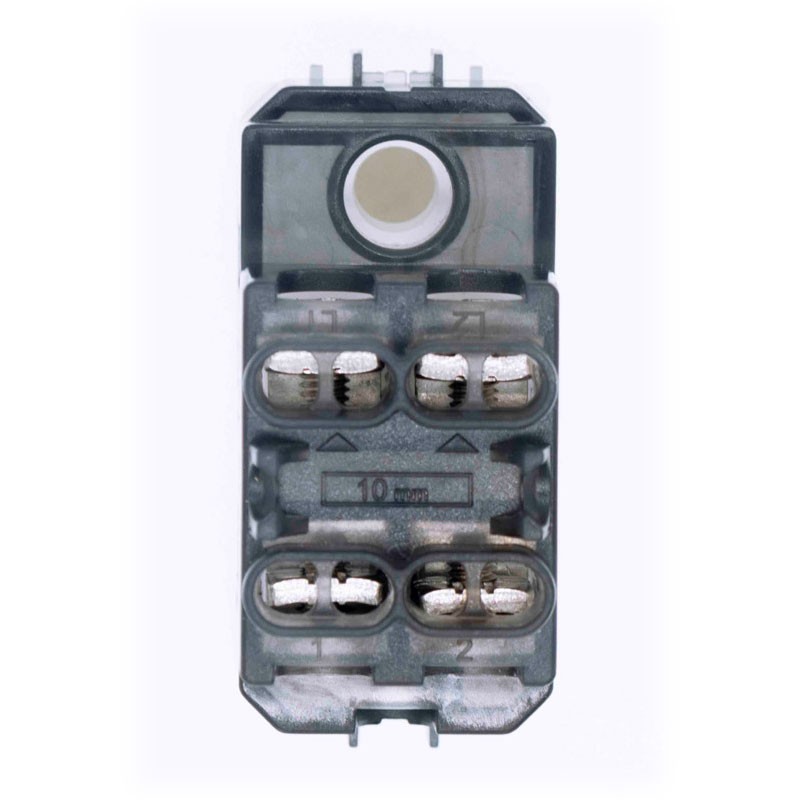

Thanks to its intelligent architecture, Uniko allows you to choose the desired function directly at the time of installation, simply by connecting the cables to the terminals on the back. It is the perfect solution for quick interventions, replacements or installations where the required function is not known in advance.
Rocker or push-button control
A unique internal mechanism allows the user to select, through the use of a simple screwdriver, whether to use the control as a rocker switch or a momentary pushbutton, simply by activating or deactivating the internal spring.
Ready for lighting

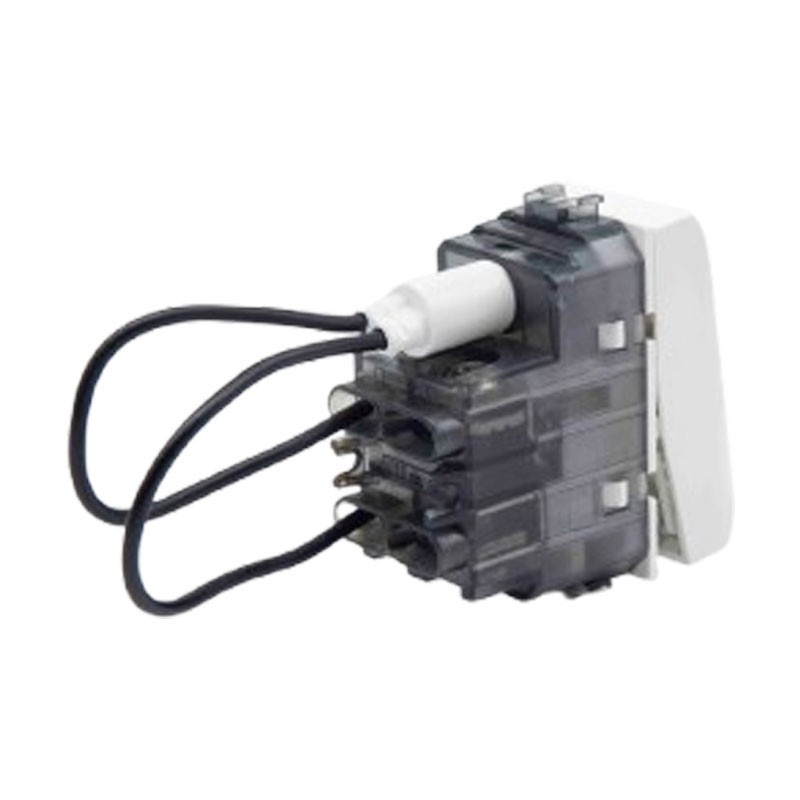

Uniko can be backlit by inserting a standard bulb into the rear housing, improving visibility in dark environments or for functional needs.
Technical Specifications Control 4Box Uniko
Compatibility and installation
| Parameter | Value |
|---|---|
| Compatibility | Vimar Plana Series |
| Installation | On Vimar Plana frames and plates |
| Number of modules | 1 |
| Fixing | Snap-in with rear clamps |
Functions and control
| Parameter | Value |
|---|---|
| Built-in functions | Switch, multiway switch, intermediate switch, Pushbutton (NO/NC) |
| Command type | Selectable (rocker or push button) |
| Backlit | Yes (bulb optional) |
Electrical data and materials
| Parameter | Value |
|---|---|
| Rated voltage | 250V AC |
| Rated current | 16AX |
| Color | White |
| Material | Durable technopolymer |
Perfettamente funzionante!!!molto versatile!!!!
prodotto veramente utile per la sua versatilitá, ottimo
Tutto ok prodotto come da descrizione e foto
Tutto con un solo comando, oltretutto economico
Al momento sembrano buoni,bisogna vedere dopo un uso di qualche anno.....
Praticissimo e perfettamente funzionante lo consiglio
idea innovativa materiale ok descrizione perfetta
Data sheet
- Main Commands: Universal controls
