4Box Bundle Kit for Vimar Plana White with USB 4BUSBP503KIT.BN

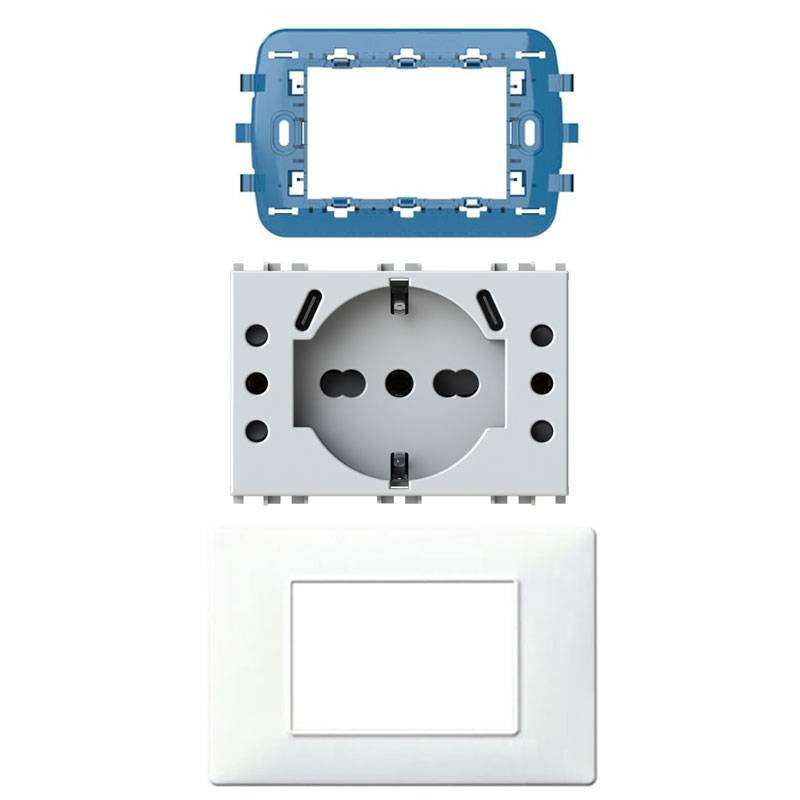

Kit Bundle 4Box for Vimar Plana series, white colour ready to be installed, the kit consists of:
-
1 Free Frame 3 modules (4B.BV.3M)
-
1 P503 socket with 2 USB compatible with Vimar Plana (4BUSBP503.V14)
-

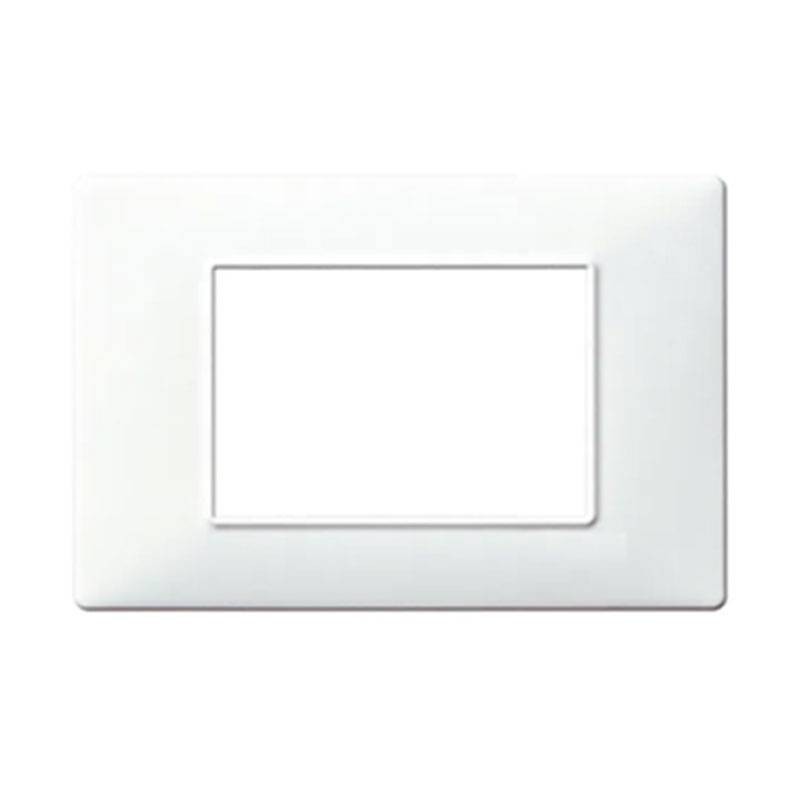

1 White colour plate (4B3MBN.V14).
4Box Bundle Kit for Vimar Plana white with USB 4BUSBP503KIT.BN
Specifications of the components in the Kit:

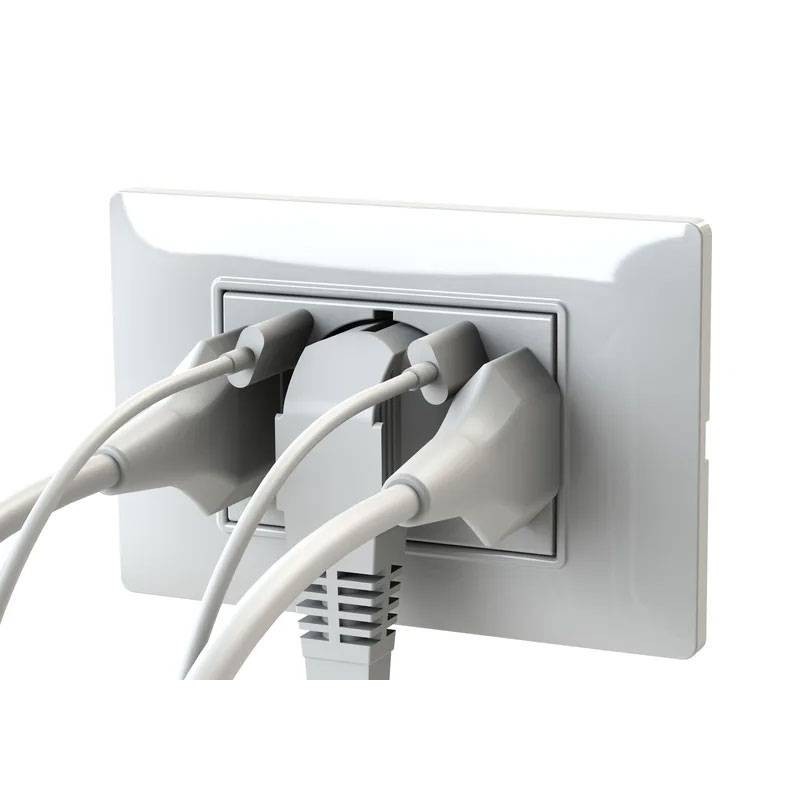

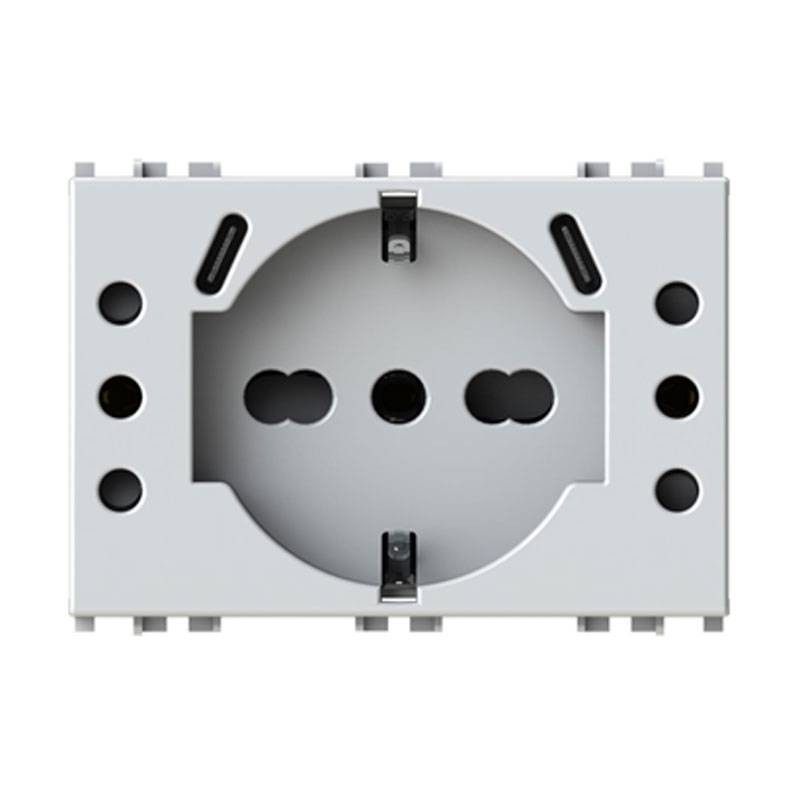

USB Socket 4Box P503 5 sockets compatible Vimar Plana White
USB Socket 4Box P503 compatible Vimar Plana White series with 5 sockets and a single power terminal, consisting of 2 USB 3A Type C sockets, 1 schuko, 2 10A sockets and 1 10/16 A socket.
USBP503 is the first universal flush-mounted charging station. a powerful 3-amp USB power supply with two Type C outlets and three power outlets in just 3 modules, USBP503 represents the ultimate in 4box-branded versatility and simplicity.
Featuring a single wiring terminal for quick and easy installation. 230 V~ 50-60 Hz 16A power supply.
USBP503 socket main features:
- USB Output C: 5 VDC 3 Amps
- Rated voltage: 230 V
- Rated current: 10A - 16A
- Active shielded receptacles
- Interrupting power: 50 cycles (plug insertion and disconnection) 275 V ~ cos 0.6 (12.5A and 20A)
- Electrical life: > 5,000 cycles (plug insertion and disconnection) with rated current and voltages at cos 0.8
- Differentiated elastic cavities

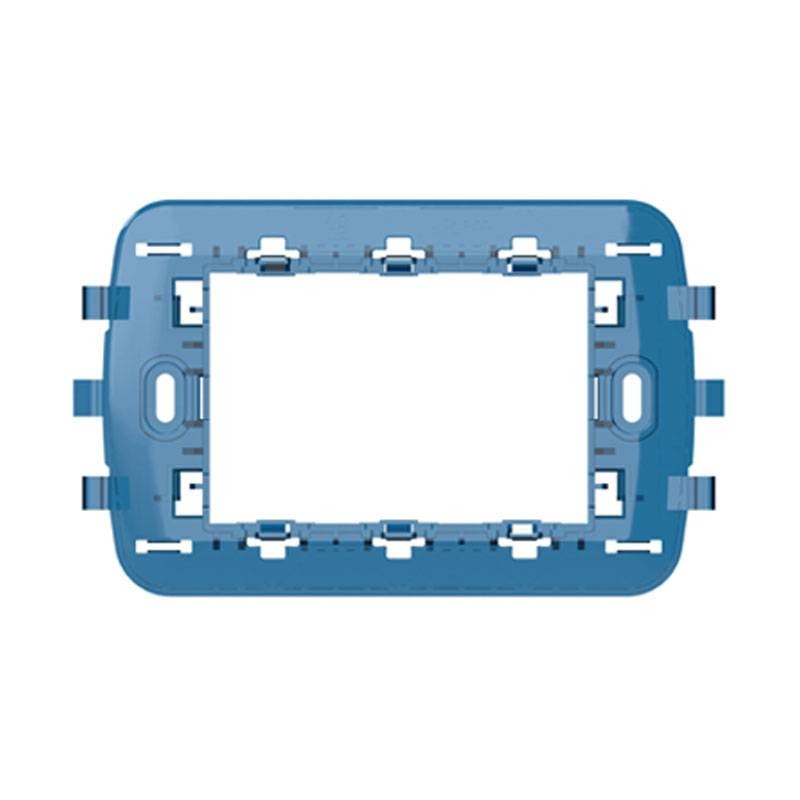

Vimar-compatible multiseries frame
Libero is the multi-series frame that revolutionizes the way switch ranges are installed. With Libero you can choose finishes and plates from other series and other brands for total customization of the lighting point. Compatible with Vimar series: Plana, Arkè, Eikon, Bticino Living International.
Data sheet
- Main Commands: Power Sockets
USB Sockets
: 3
