Hiltron IP 4MP Video Surveillance Kit with NVR 4 Ports 2 Cameras 1TB THK4IP
C1A THK4IP

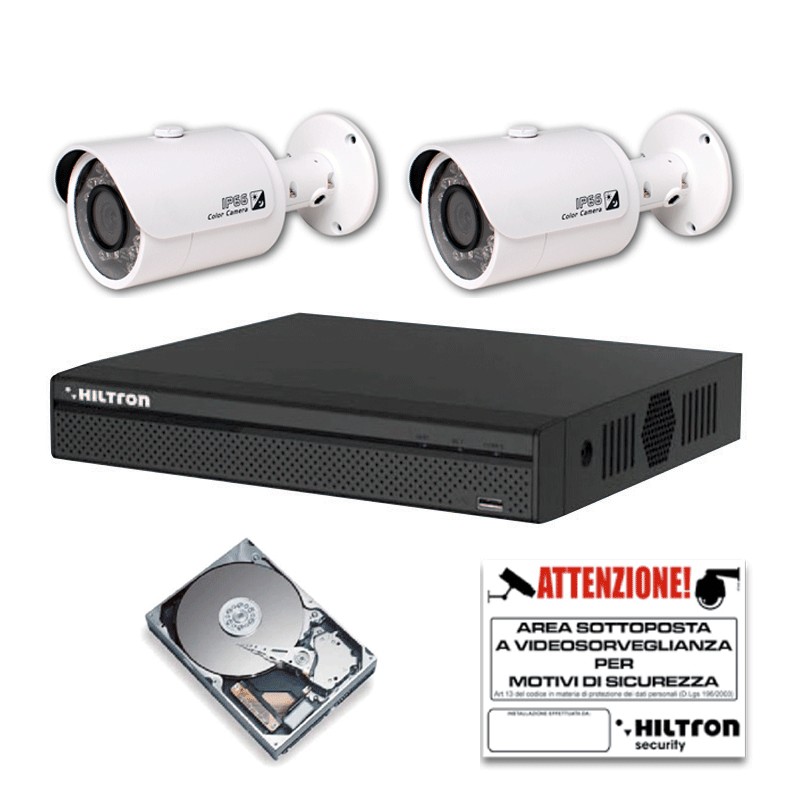

Hiltron Video Surveillance Kit consisting of:
- 1 THV4K4IPS NVR 4 channel POE (<50W) up to 8MP, Max 80MBPS, VGA+HDMI, 1/1AUDIO, 48VDC <7.5W
- 2 THC4IPB 4MP IP bullet cameras with 3.6mm fixed lens
- 1 THD1TBP Hard Disk 1TB Sata 3 3.5 professional specific for CCTV
- 1 ET002 PVC adhesive label VIDEOSURVEILLED AREA"
€475.86
Items Available: 2
Kit component specifications:
NVR 4ch IP 4K @8Mp video recorder, 4 PoE ports, VGA HDMI, pred. 1HDD Sata 6TB each, 2USB, Onvif 2.4, <7.5W:
- Video inputs 4 IP
- Video output 1 HDMI, 1 VGA
- Audio outputs 1 (bidirectional), 1 input, 1 output, RCA
- Backup USB device /Network
- USB ports 2 USB 2.0 ports
- Network protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (DVR, NVS,etc.), Easy4ip
- Ethernet 1 RJ-45 port (10/100Mbps)
- Manual Recording, Scheduled
- Storage 1 SATA III Port, up to 6 TB capacity per HDD
- Dimensions (W) 260mm - Dimensions (H) 225mm - Dimensions (D) 48mm
- Main Processor Quad-core processor built-in
- Embedded LINUX operating system
- IP camera input 4 channels
- Two-way audio 1 input, 1 output, RCA
- Video outputs 1 HDMI, 1 VGA
- Video resolution 3840×2160, 1920×1080, 1280×1024, 1280×720,1024×768
- Display modes 1/4
- H.265/H.264 compression
- Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
- Recording speed 80Mbps
- Recording Mode Manual, Scheduled
- Backup USB Device /Network
- Ethernet 1 port RJ-45 (10/100Mbps)
- PoE 4 ports (IEEE802.3at)
- Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS,etc.), Easy4ip
- Internal HDD 1 SATA III Port, up to 6 TB capacity per HDD
- USB 2 USB 2.0 ports
- DC48V/1.5A power supply
IP bullet camera 4Mp @25Fps, CMOS1/3?, 3.6mm, basic video analysis, 3D WDR ICR, 30mt led, 12Vdc/PoE <6W, IP67, wall bracket included:
- 1/3 4Megapixel progressive scan CMOS sensor
- Number of leds 18
- Video resolution 2688(H)x1520(V)
- Minimum illumination 0 lux
- Optics 3.6mm
- Function night day Auto (ICR) / Color / B/W
- Maximum power consumption <6W
- Signal to noise ratio >50 dB
- Rated supply voltage DC12V PoE (802.3af)
- Protection rating IP67
There are no reviews
Data sheet
- KIT: Video surveillance kit
- Degree of protection: IP67
- System: IP
- Optical: 3.6 mm
- Resolution: 8MP (4K)
- Channels: 4
