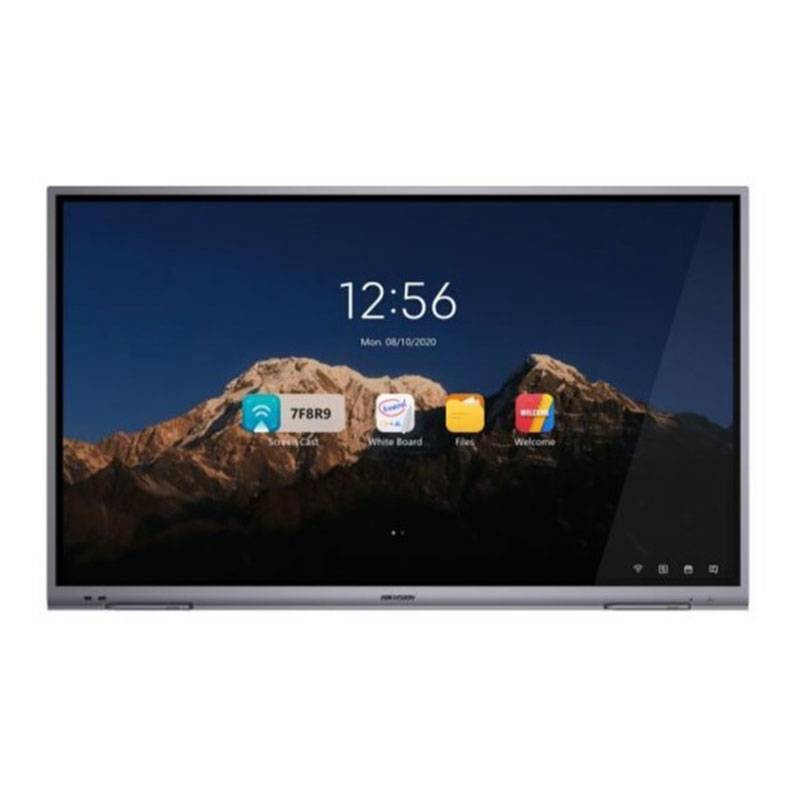

Hikvision Monitor 4K images and professional touch responsiveness
The Hikvision DS-D5B65RB/A Interactive Display combines outstanding 4K UHD (3840×2160) visual quality with a precise and responsive infrared touch system. With ultra-fine writing and up to ±1 mm accuracy, it is perfect for presentations, video conferencing, collaboration and interactive training.
Built-in Android system for smart performance
With the built-in Android 8.0 operating system, the display can run applications on its own without the use of an external PC. Includes 3 GB of RAM and 32 GB of internal storage, ideal for managing multimedia content, educational apps and business tools.
Full interactive experience with Wi-Fi and Bluetooth
With built-in Wi-Fi, the monitor enables wireless mirroring from mobile devices or PCs without cables. Bluetooth 5.0 expands connection possibilities with external peripherals such as keyboards, mice or speakers.
High connectivity for every need
Equipped with numerous audio/video ports (HDMI IN/OUT, front and rear USB, LINE IN/OUT, RS-232, RJ45), the display supports connection with PCs, media players, AV systems and OPS devices.
Sturdy construction and elegant design
Ultra-thin design with aluminum frame provides elegance and sturdiness. Anti-reflective glass improves visibility and protection, making the monitor suitable even for heavy use in public environments.
Ideal applications
-
Interactive whiteboards for classrooms
-
Corporate meeting rooms and video conferencing
-
Educational, training and brainstorming environments
-
Exhibition or retail spaces for interactive presentations
Hikvision Monitor Technical Specifications
Displays
| Screen Size. |
65-inch LED backlight |
|---|
| Backlighting |
DLED |
|---|
| Pixel pitch |
0.124(H) × 0.372(V) mm |
|---|
| Resolution |
3840 × 2160 at 60 Hz |
|---|
| Brightness |
350 cd/m² |
|---|
| Color depth |
10 bits |
|---|
| Contrast ratio |
1200:1 (typical) |
|---|
| Response time |
6 milliseconds |
|---|
| Color gamut |
90% NTSC (CIE1931) (typical) |
|---|
| Refresh rate |
60 Hz |
|---|
| Viewing angle |
178°(O)/178°(V) |
|---|
Touch
| Type |
Infrared touch screen |
|---|
| Glass |
AG smooth glass |
|---|
| Touch point |
20-point multi-touch |
|---|
| Touch response time |
< 10 ms |
|---|
| Touch accuracy |
±1 mm (? 90% of touch area) |
|---|
| Touch craftsmanship |
Whole Paste |
|---|
Integrated System
| Operating System |
Android 8.0 |
|---|
| Processor |
4 cores A73 × 2 + A53 × 2, 1.5 GHz |
|---|
| Memory |
3 GB |
|---|
| Built-in storage |
32 GB |
|---|
| NIC |
Built-in 100 Mbps NIC, with support for routing |
|---|
Internal Function
| Speaker |
Built-in speaker 2 × 16 W |
|---|
| Bluetooth |
Built-in BLE module, supports Bluetooth 5.0 and earlier versions |
|---|
Interface
| Video and audio input |
HDMI IN × 2, MAX 4K at 60 Hz, LINE IN × 1 |
|---|
| Video and audio output |
HDMI OUT × 1, MAX 4K at 60 Hz; LINE OUT × 1 |
|---|
| Control interface |
RS-232 × 1 |
|---|
| Network interface |
RJ45 (100 Mbps ports) × 2 |
|---|
| Data transmission interface |
2 front USB, 2 rear USB |
|---|
Energy
| Power consumption |
< 250 W (full load) |
|---|
| Standby consumption |
0,5 W |
|---|
| Power supply |
AC 100 V?240 V, 50/60 Hz |
|---|
Working Environment
| Working temperature |
0 ?~40 ? |
|---|
| Working humidity |
10%~90% relative humidity |
|---|
General
| Product dimensions |
1507 × 905 × 86 mm |
|---|
| Package dimensions |
1687 × 1061 × 234 mm |
|---|
| Net weight |
39.86 kg |
|---|
| Gross weight |
50.19 kg |
|---|
