Comelit Smart IP Video Surveillance Kit 6MP IP67 4 Channel IPKIT004N05PB

Comelit
Comelit
COE IPKIT004N05PB 8023903460537

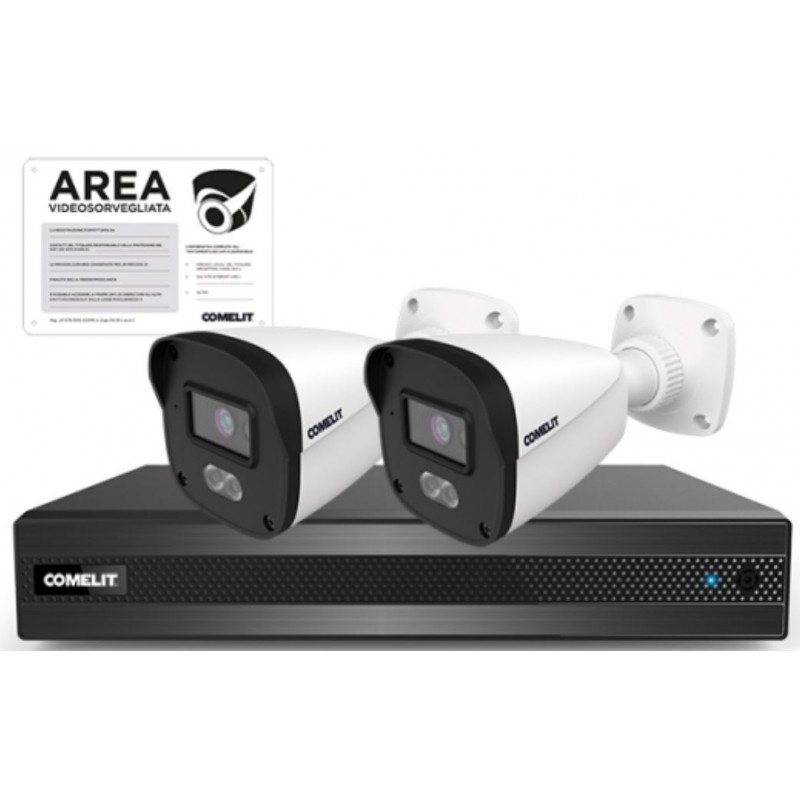

Comelit Video Surveillance Kit consisting of:



  • 1 piece network video recorder NVR 4CH POE, NEXT SERIES, NDAA, HDD 1TB (code NIPNVR004N06PA)
  • 2 pieces mini IP BULLET cameras 4MP 2.8MM COLOR UP (code IPBCAMN04F01CUA)
  • 1 piece indicative sign (video surveillance area)
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit Smart IP Video Surveillance Kit 6MP IP67 4 Channel IPKIT004N05PB
€340.23
€340.23

€340.23
Tax included
Calculate shipping cost
Items Available: 15
Further availability of the manufacturer
€340.23

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical specifications of individual components of the Kit:

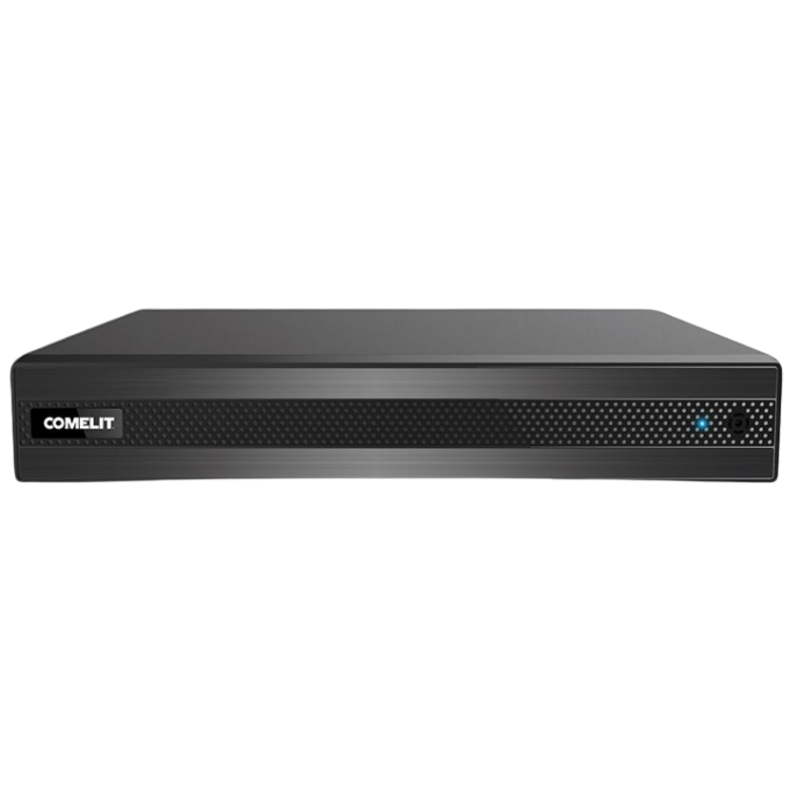

1 piece NVR 4CH POE network video recorder, NEXT SERIES, NDAA, 1TB HDD (part number NIPNVR004N06PA):

  • 4 IP channels (4 PoE)
  • NDAA compliant, 6MP max resolution
  • H.265S / H.265+ /H.265 /H.264 video compression
  • Dual streaming, bandwidth 40Mbps
  • Supports all DVA video analysis functions of connected cameras
  • Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari
  • Remote control via Comelit CCTV APP and Comelit CCTV Manager software
  • 48V power supply included
  • This NVR connects to Comelit's servers protected by AWS services
  • Video inputs 4 (4PoE) @6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
  • Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
  • Video compression H.265S / H.265+ / H.265 / H.264
  • Frame rate in playback / recording 30fps@6MP
  • Included hard disk capacity 1TB (10TB max)
  • Maximum number of channels played back simultaneously 1@6MP, 4@Full HD
  • Supported protocols DDNS, DHCP, HTTP, HTTPS, SMTP, TCP/IP, ONVIF
  • DHCP IP assignment, manual
  • Max bandwidth (Mbps) 40
  • Remote control by browser Internet Explorer, Firefox, Chrome, Safari
  • Remote control from Comelit CCTV Manager software
  • Remote control from mobile APP Comelit CCTV Users connected simultaneously 32
  • Main functions Video analysis (only with dedicated cameras)
  • Alarm system function
  • Motion detection function (zones) Yes
  • Type of connections/ports 1xEthernet 10/100 Mbit/s, 2xUSB 2.0, 4 x Ethernet PoE 10/100 Mbit/s
  • Fanless Yes
  • Machine power consumption (no HDD) (W) 5
  • Maximum power consumption per port
  • POE (W) 30 POE total power (W) 40
  • Maximum distance in long range mode (m) 100
  • Supply voltage (VDC) 48
  • Dimensions: Height (mm) 42 Width (mm) 255 Depth (mm) 222
  • Product weight (g) 1.6
  • Type coating materials Metallic
  • Product color Black
  • Operating temperature (°C) -10 to 50
  • Operating humidity (RH max) (%) 25 ÷ 90
  • Included Accessories Power Supply, Mouse

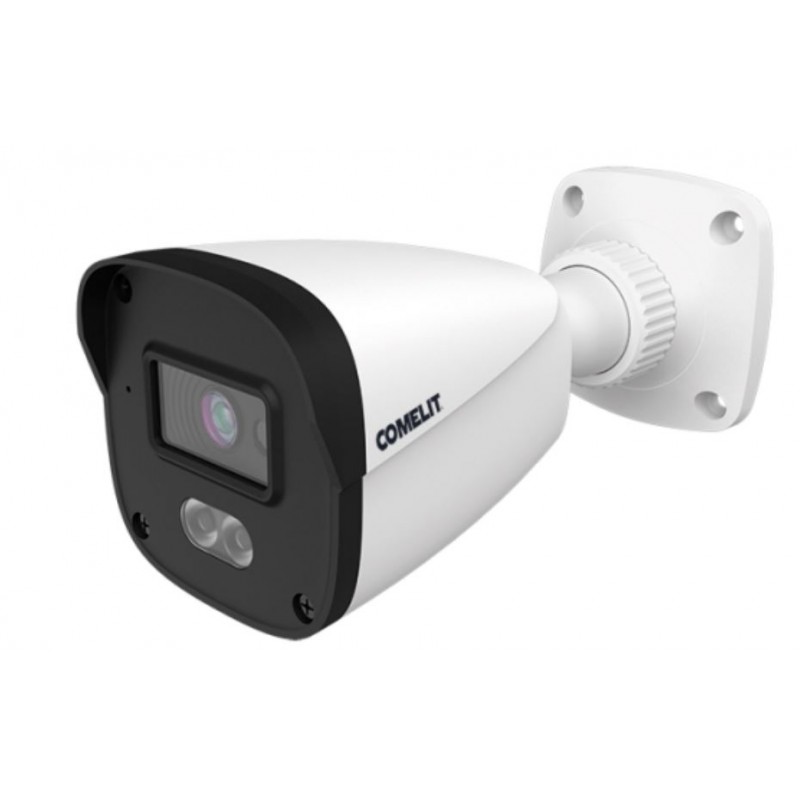

2 pcs mini IP BULLET cameras 4MP 2.8MM COLOR UP (code IPBCAMN04F01CUA): Next series ColorUP compact bullet IP camera, fixed 2.8mm lens, 4MP@30 fps resolution, Light LED with 20m range, IR LED with 20m range (Smart IR), ColorUp (Light LED), Dual Light (IR+Light LED) and IR LED function. ONVIF compatible. Video analysis functions: Cross line detection, Area intrusion detection. video compression H.265+ / H.265 / H.264 + / H.264 / MJPEG. Audio: built-in microphone. IP67 waterproof die-cast aluminum enclosure, 12VDC/ PoE IEEE802.3af power supply. Browser compatible: IE/Google Chrome/Edge/Firefox/Safari. Compatible accessories to be purchased separately: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.



Specifications:

  • 1/3" CMOS Ultra Starlight camera sensor
  • Lens size fixed lens (mm) 2.8
  • Effective pixels (H x V - pixels) 2592x1520
  • Horizontal field of view (°) 95
  • Vertical field of view (°) 53
  • Diagonal field of view (°) 115.2
  • Electronic shutter (s) 1/3 ÷ 1/100000
  • Sensitivity 0.03 (color), 0 (black and white, IR led ON)
  • Signal-to-noise ratio (dB) >50
  • Video transmission Triple streaming
  • Comelit CCTV Manager management software
  • Video compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
  • Frame rate 30fps Supported protocols ONVIF (Profile-S)
  • Special features Dual light
  • Firmware update via network Yes
  • Simultaneously connected users 3
  • Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
  • Remote control by mobile APP Comelit CCTV
  • Main functions 3D-DNR, BLC, Defog, HLC Motion detection (zones) Yes
  • Video analysis Line crossing, area entry
  • Privacy zones (no.) 4
  • Wide Dynamic Range (WDR) D-WDR
  • 3D-DNR Control
  • White balance adjustment AWB, Indoor, Manual, Outdoor
  • Exposure control Automatic
  • Brightness adjustment Yes
  • Camera Titration Yes
  • IR LED illumination distance 20m
  • White LED illumination distance 20m
  • Vandal-proof degree of protection IK IK10
  • IP protection rating IP67 Audio inputs/outputs 1 (microphone) /
  • LAN output type Ethernet 10/100 Mbit/s (RJ45)
  • Supply voltage 12VDC
  • Power consumption max (W) 5
  • PoE Power Supply IEEE 802.3af Standard
  • PoE power supply type
  • External power supply
  • Dimensions: Height (mm) 74.8 Width (mm) 73.8 Depth (mm) 162.1
  • Product Weight (g) 300
  • Type coating materials Die-cast aluminum
  • Case Type Bullet
  • Product color White
  • Operating temperature (°C) -30 to 60
  • Operating humidity (RH max) (%) 25 ÷ 95

There are no reviews

Data sheet

KIT:
Video surveillance kit
Degree of protection:
IP67
System:
IP
Optical:
2.8 mm
Resolution:
6MP
Channels:
4
