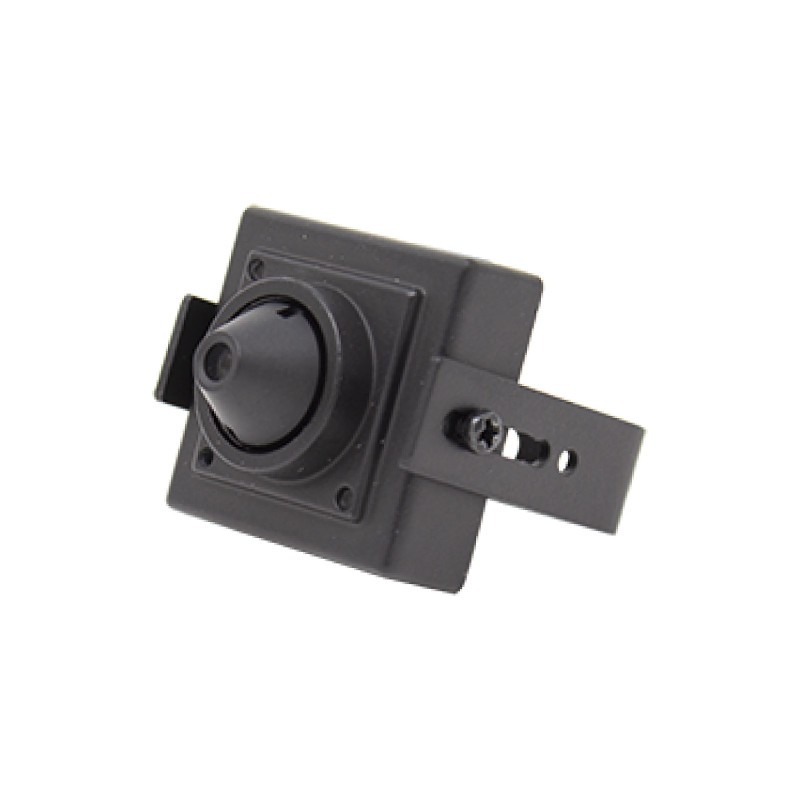

Micro Camera Comelit AHD 2MP fixed lens Pinhole 3.7 mm AHSCAMS02F03A
COE AHSCAMS02F03A
8023903390575
Micro Camera Comelit AHD/CVI/TVI/CVBS (960H), color, fixed lens pinhole 3.7 mm, FULL HD resolution (1080p), container, miniature, suitable for use in indoor environments.
€58.24
Items Available: 25
: 11
Features:
- The camera sensor is 1/2.9" CMOS Progressive Scan
- Camera lens 3.7 mm Pinhole
- Horizontal field of view 87°
- Vertical field of view 46°
- Field of view diagonal 104°
- Electronic Shutter (s) AUTO - Sensitivity (lux) 0.01 (colour)
- Signal/noise ratio (dB) >50 (AGC OFF)
- Video output AHD/TVI/CVI, CVBS (960H)
- Video resolution (H x V pixels) 1920 x 1080 (Full-HD 1080p)
- Frame rate 25fps
Compensation against the light BLC
- Digital effect OSD
- Wide Dynamic Range (WDR) (50dB)
- Check the DNR 3DNR
- Adjusting white balance AWB, Manual
- Automatic gain control (AGC)
- Titling the camera
- Maximum distance with RG59 coaxial cable / UTP cable (m) - 300 / 100
- Analog video output CVBS (BNC - 1 Vpp/75 ohm)
- Power supply voltage 12VDC.
Data sheet
- Type: Cameras special
- System: AHD
- Optical: 3.7 mm
- Resolution: 2MP (1080P)
