Individual kit component specifications:

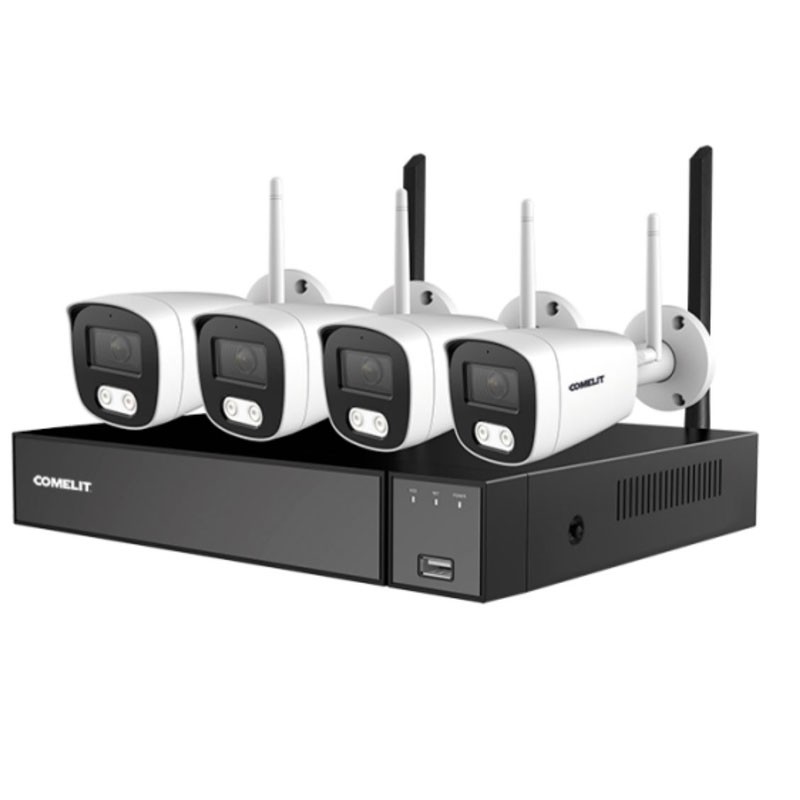

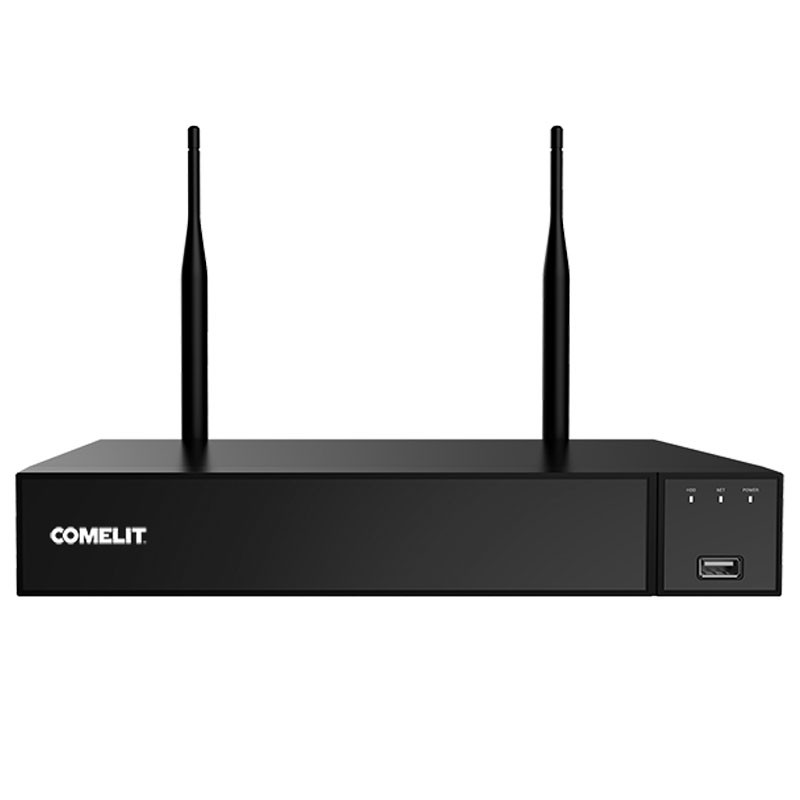

1 piece NVR video recorder with 1TB hard disk specifically for video surveillance code WINVR008S05NASP: Wi-Fi NVR 8 channels, 5MP resolution, 1TB hard disk specifically for video surveillance, H265 compression, 4K HDMI output. Remote control via Comelit View Smart APP.



NVR features:

• Video inputs 8 Wi-Fi (5MP)
• Main video outputs 1 (HDMI), 1 (VGA)
• Audio inputs/outputs 0 / 1
• H.265 video compression
• Playback/recording frame rate 15fps@5MP
• Provided hard disk capacity 1TB (8TB max)
• Recording methods Automatic, manual, scheduled, motion
• Recording type Dual streaming Supported protocols DHCP, HTTP, RTSP, SMTP, TCP/IP, P2P
• IP assignment DHCP, manual
• Remote control from browser Internet Explorer, Firefox, Chrome, Safari
• Remote control from mobile app Comelit View Smart (Android, iOS)
• Simultaneously connected users 10
• Motion detection (zones) Yes
• System log Yes
• Email notification Yes
• Type of connections/ports 1xEthernet 10/100 Mbit/s, 2xUSB 2.0
• Fanless Yes
• Supply voltage (VDC) 12
• Dimensions: Height (mm) 46 Width (mm) 260 Depth (mm) 230
• Product Weight (g) 1540
• Type coating materials Metallic
• Product color Black
• Operating temperature (°C) -10 to 50
• Operating humidity (RH max) (%) 25 ÷ 90
• Included Accessories Power Supply, Mouse Backup system USB 2.0

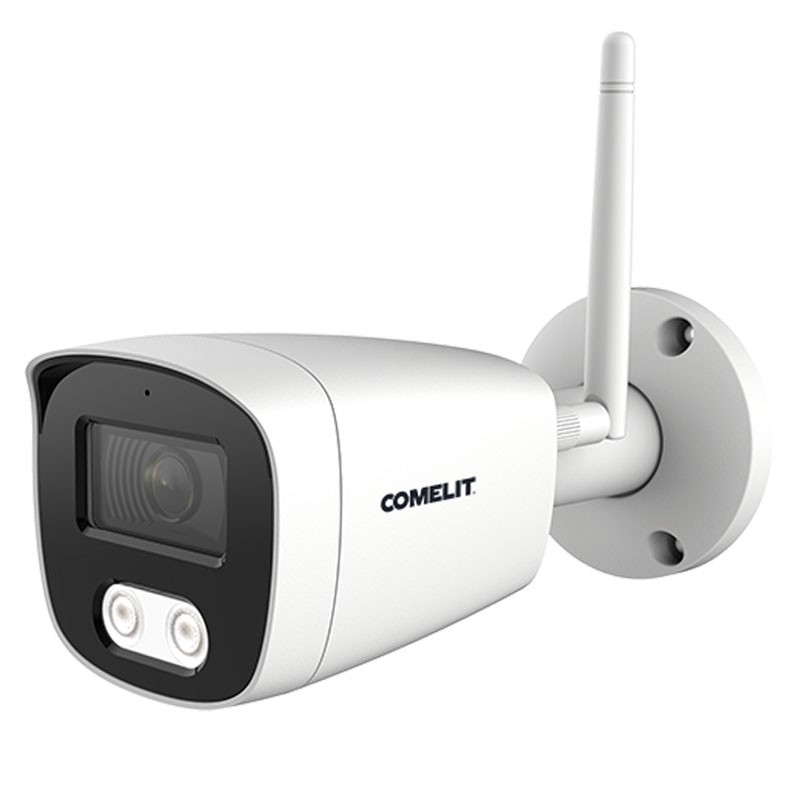

4 piece cameras 5MP fixed optics 2.8mm, IP66 protection rating and integrated microphone code WIBCAMS05FASP: 5MP resolution bullet Wi-Fi camera, 2.8mm fixed lens, IP66 full metal housing, built-in microphone. ColorUp (Light LED), Dual Light (IR+Light LED) and IR Led function. 12VDC power supply included. Compatible accessories to be purchased separately: JBSFIX66A, JBS01PA, PMS01A.



Camera features:

• 5MP resolution
• 2.8mm fixed lens
• IP66 degree of protection
• Built-in microphone
• Features: ColorUp (Light LED), Dual Light (IR+Light LED) and IR Led
• 12VDC power supply unit included
• Compatible accessories to be purchased separately: JBSFIX66A, JBS01PA, PMS01A
• 1/3" CMOS camera sensor
• Lens size fixed lens (mm) 2.8
• Horizontal field of view (°) 105
• Vertical field of view (°) 56
• Diagonal field of view (°) 120
• Electronic shutter (s) 1/25÷1/10000
• Signal-to-noise ratio (dB) >52 (AGC OFF)
• Video resolution 2592x1944 (5MP)
• H.265 video compression Frame rate 15fps
• Special features Dual light
• Firmware upgrade via network Yes
• Remote control by mobile app Comelit View Smart (Android, iOS)
• Motion detection (zones) Yes
• Privacy zones (no.) 3
• Digital effects Corridor mode (90° / 180° / 270° rotation)
• IR LED lighting distance 30m
• White LED lighting distance 20m
• IP rating IP66
• Audio inputs/outputs 1 (microphone)
• Supply voltage 12VDC
• Max. power consumption (W) 12
• Power supply type External power supply
• Dimensions: Height (mm) 70 Width (mm) 67.5 Depth (mm) 170
• Product weight (g) 517
• Type coating materials Die-cast aluminum
• Case Type Bullet
• Product color White
• Operating temperature (°C) -10 to 50
• Operating humidity (RH max) (%) 25 ÷ 90
