AHD Comelit XVR Kit 4 Inputs 5MP Camera Power Supply Shield AHKIT004N05B
COE AHKIT004N05B
8023903467543

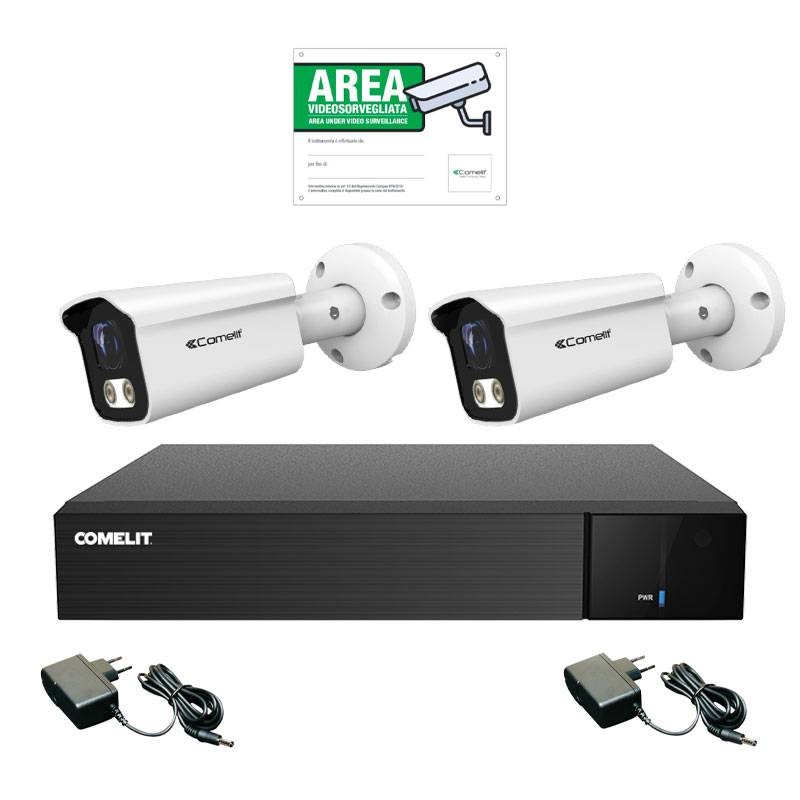

Comelit AHD Kit is a complete solution for video surveillance systems, ideal for small residential or commercial environments. The kit consists of:
-
1 XVR 4 inputs 5MP (cod. AHDVR004N05A) for camera recording and management
-
2 AHD Bullet 5MP cameras with 3.6 mm fixed optics (cod. AHBCAMS05FB)
-
2 Power supplies for the cameras
-
1 Video surveillance area sign for compliance with regulations
€343.21
€332.91
Lowest price in 30 days:
€343.21
Save 3%
Offer expires in
Items Available: 17
Comelit XVR AHD kit 4 inputs 5MP Camera, Power Supply, Shield
This kit includes everything needed to install and start a video surveillance system, without the need for additional components. With 5MP resolution, the system ensures detailed monitoring and high-quality images, perfect for identifying faces or license plates.
LXVR supports remote viewing via app, allowing you to control the system wherever you are. Bullet cameras are designed to operate in all weather conditions, ensuring continuous security.

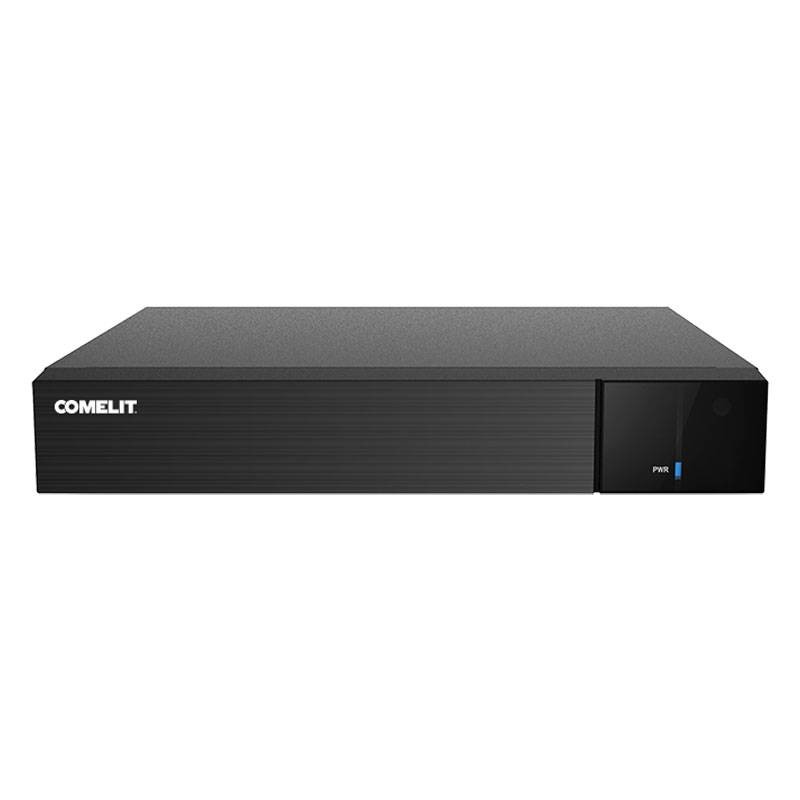

4-input 5MP XVR video recorder with AI and 1 TB HDD
The Comelit AHDVR004N05A digital video recorder is an advanced solution for video surveillance. With 5-hybrid technology, it supports AHD, TVI, CVI, CVBS and IP signals, making it compatible with a wide range of cameras.
Technical Specifications
Main Features
| Video Inputs | 4 (BNC) 5MP/4MP/1080P/720P/WD1 + 2 (IP) 5MP. Max IP: 0 (BNC) + 6 (IP) 5MP |
|---|---|
| Main video outputs | 1 (VGA), 1 (HDMI), 1920x1080 |
| Spot video outputs | 1 (BNC) |
| Video compression | H.264, H.265 |
| Included hard disk drive capacity | 1TB |
Software/Firmware Features
| Recording methods | Automatic, manual, scheduled, event |
|---|---|
| Recording type | Dual streaming |
| Maximum number of live channels | 4 |
| Supported protocols | DHCP, HTTP, HTTPS, ONVIF |
| Assignment | IP DHCP, manual |
| Max. bandwidth | 16 Mbps |
| Simultaneously connected users | 5 |
Functions
| Motion detection zones | 396 |
|---|---|
| Privacy zones | 4 |
| Type of connections/ports | 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 1xRS485 |
General Data
| Max. power consumption | 5W |
|---|---|
| Supply voltage | 12 VDC |
| Dimensions | 42x255x222 (H-L-P) |
| Type coating materials | Metallic |
| Color | Black |
| Operating temperature | -10/+50 degrees |
Comelit 5MP AHD Bullet Camera with 3.6mm Fixed Lens
The bullet camera offers high video quality and reliability for AHD, TVI, CVI and CVBS video surveillance systems. With 5MP resolution, fixed optics and IP67 rugged construction, it is ideal for indoor and outdoor environments.
Technical Specifications
Main Features
| Camera Sensor | 1/3'' CMOS Progressive scan |
|---|---|
| Lens size fixed optics | 3.6mm |
| Lens type | F2.0 |
| Horizontal field of view | 76 degrees |
| Vertical field of view | 43 degrees |
| IR filter | Mechanical |
| Video output | AHD/TVI/CVI/CVBS (960H) |
| Video Resolution | 1920x1080 (Full-HD 1080p), 2592x1944 (5MP), 4MP |
Features
| Backlight compensation | BLC |
|---|---|
| Digital Effects | Mirror (Horizontal, Vertical, 180° Rotation), OSD |
| Wide Dynamic Range (WDR) | D-WDR (50dB) |
| Control | 3DNR |
| White balance adjustment | Automatic, Manual |
| Automatic gain control (AGC) | Yes |
| Camera titration | Yes |
General Data
| Supply voltage | 12VDC |
|---|---|
| Max power consumption | 6W |
| Power supply type | External |
| Dimensions | 66x72x175 (H-L-P) |
| Coating material type | Aluminum |
| Degree of protection | IP67 |
| Color | White |
| Operating temperature | -10/+50 degrees |

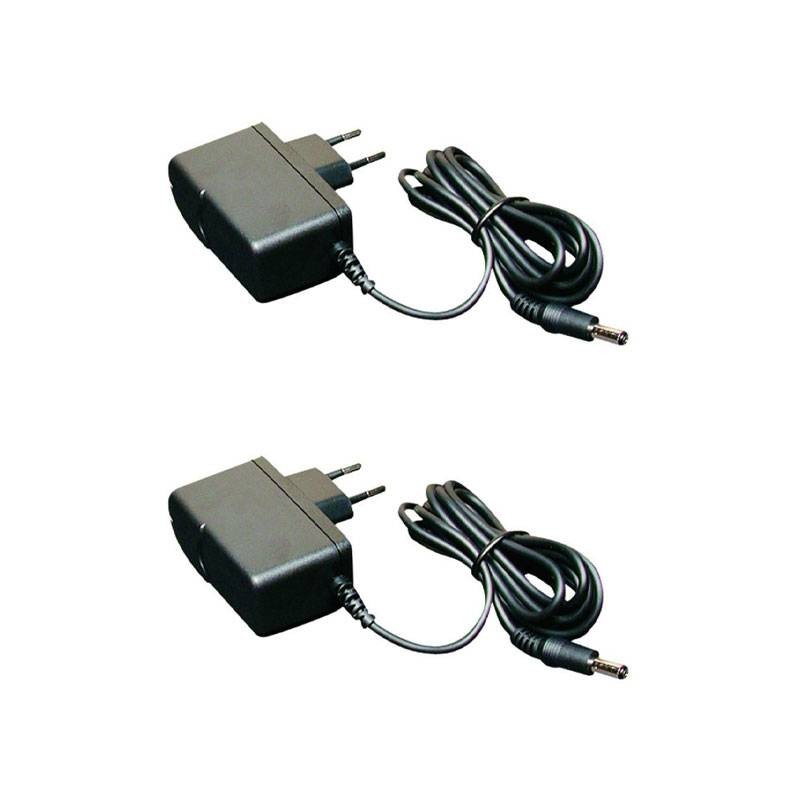

Comelit Plug-in Power Supply with Jack Connector 12VDC/0.7A
Designed to provide a stable power supply, this power supply ensures proper operation of devices without interruptions or power surges. With its universal input, it can be used in different geographical areas with varying voltages, making it ideal for global applications.
The jack connector facilitates direct connection with compatible devices, reducing setup time and simplifying use.

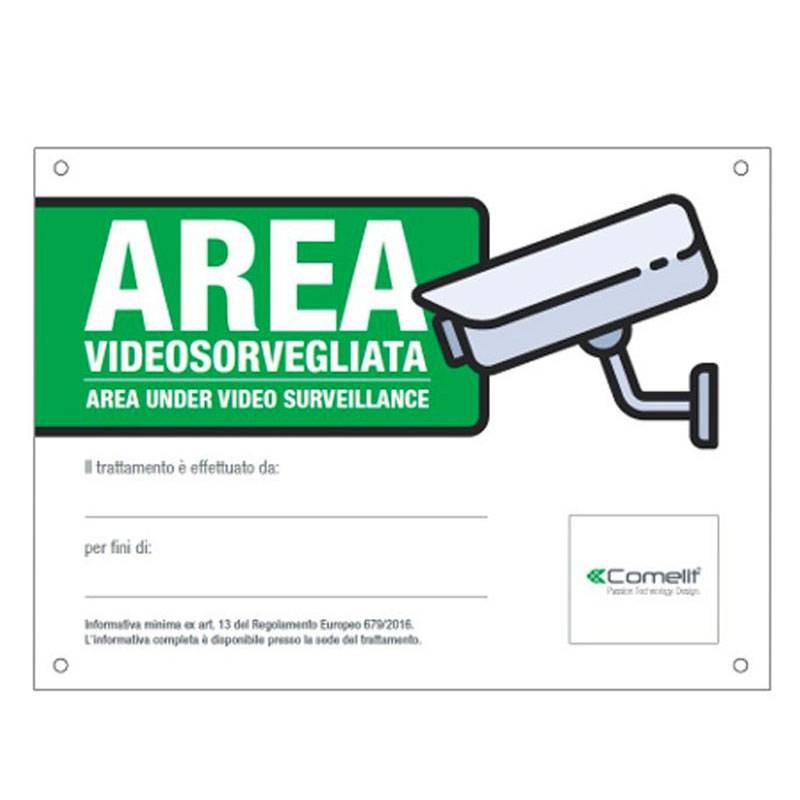

Comelit Italian Video Surveillance Area Sign.
Thanks to its steel casing, the sign is weatherproof, ensuring long life even in outdoor conditions. Compact size and light weight make it easy to mount on walls, fences or other supports. The simple design and clear text ensure effective communication, contributing to a professional appearance of the security installation.
There are no reviews
Data sheet
- KIT: Video surveillance kit
- Degree of protection: IP67
- System: AHD
- Optical: 3.6 mm
- Resolution: 5MP
- Channels: 4
