Ajax JunctionBox for IP Cameras 118X59 Black
08T 88882
4823114053474

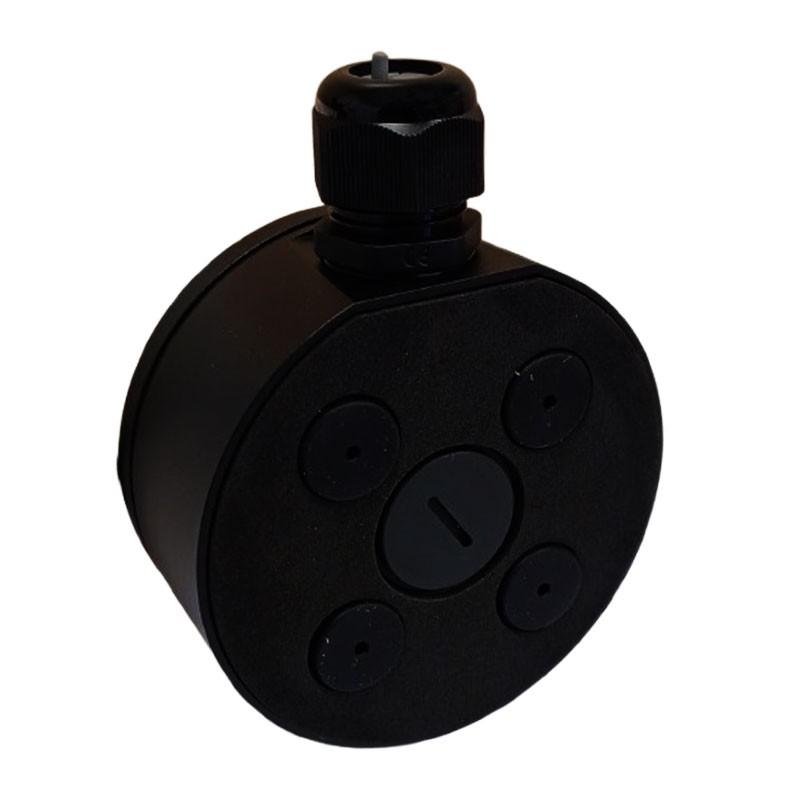

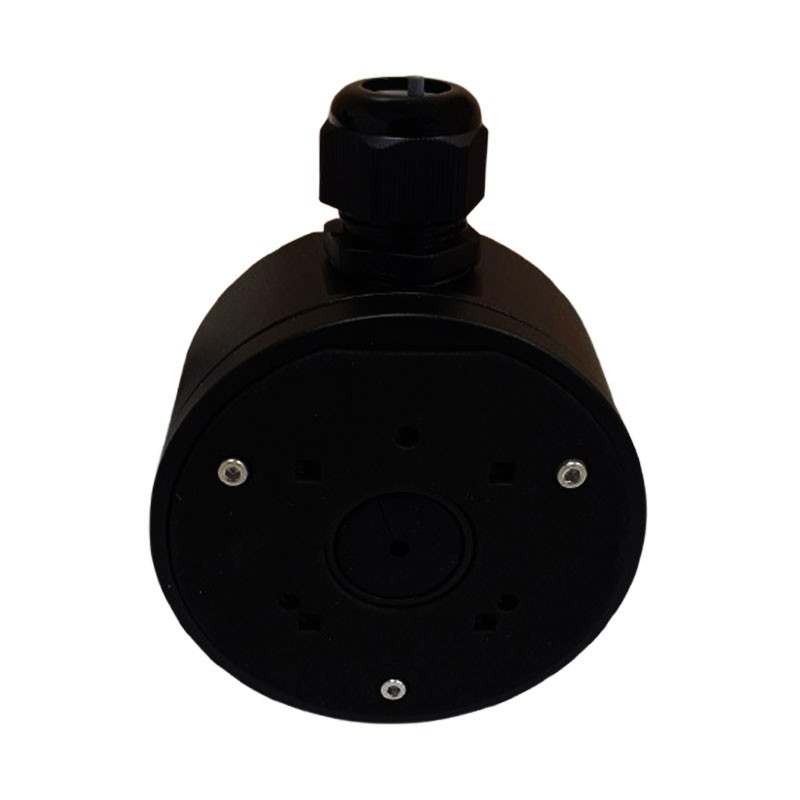

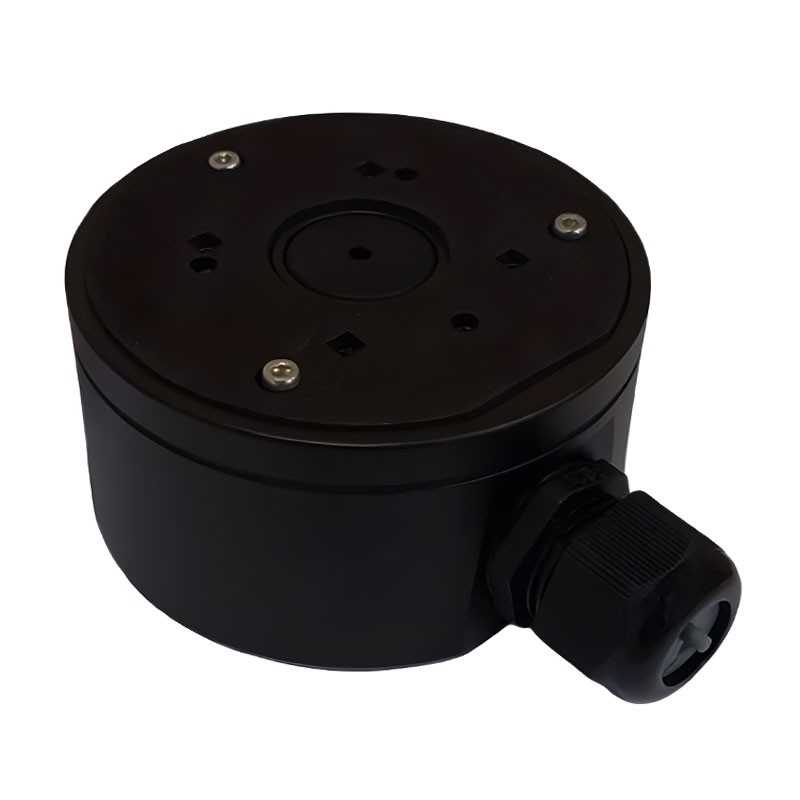

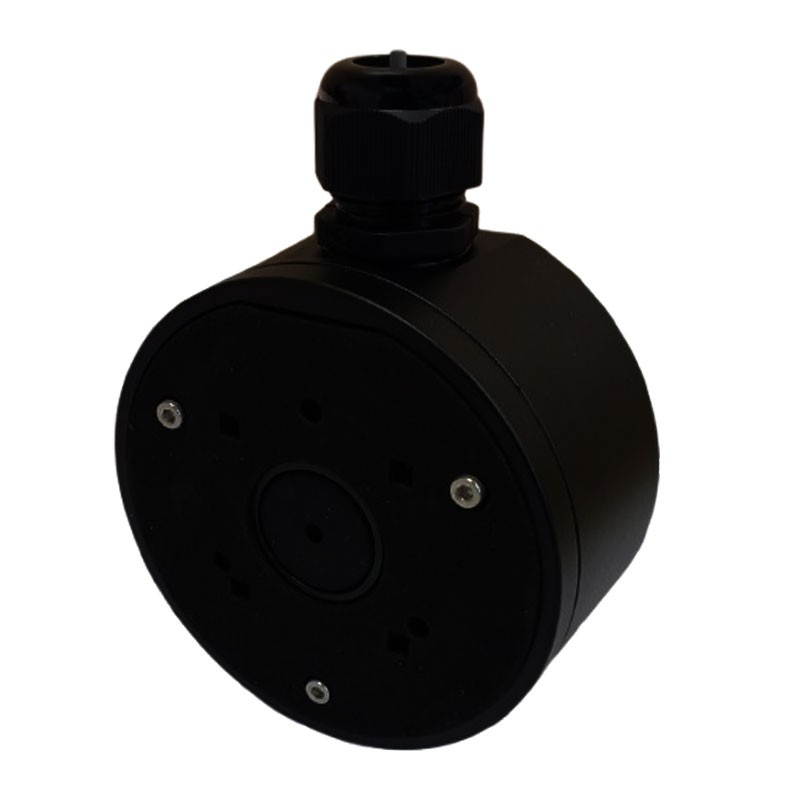

The JunctionBox (118×59) is a waterproof aluminum, black-colored mounting box designed for safe and tidy cable management of Ajax IP cameras. With IP66 protection, it offers maximum weather resistance, protecting cabling from water, dust and mechanical damage. Ideal for indoor and outdoor installations, it can be easily mounted on walls, ceilings and concrete columns.
-
IP66 aluminum housing for water and dust protection
-
PG21 cable gland to prevent cable damage and ensure safe installation
-
Two-wire sealing ring for waterproof connection
-
Grounding terminal to prevent short circuits and electrical shock
-
Compatible with Ajax TurretCam, BulletCam and DomeCam Mini cameras
-
Rugged and durable construction for stable installation over time.
€37.08
Items Available: 11
Frequently bought together
JunctionBox Ajax the best solution for IP camera mounting
IP66 waterproof protection for secure installations
The JunctionBox mounting box is designed to withstand the most extreme weather conditions. With its IP66 certification, it protects wiring from rain, dust and moisture, ensuring maximum performance in all environmental conditions.
Secure cable management with PG21 cable gland
The integrated PG21 cable gland prevents excessive bending, preventing damage to wire insulation. This ensures a stable and reliable connection, reducing the risk of failure and malfunction.
Waterproof connections with two-wire sealing ring
The sealing ring provides optimal protection for the wires, keeping the insulation watertight and preventing water, dust and dirt infiltration.
Electrical safety with grounding terminal
The grounding terminal protects the system from surges and short circuits, reducing the risk of accidental electric shock and ensuring safe operation.
Compatibility with Ajax IP Cameras
| Feature | Compatible Models |
|---|---|
| BulletCam Cameras |
|
| DomeCam Mini Cameras |
|
| TurretCam Cameras |
|
Technical Specifications JunctionBox Ajax
| Feature | Description |
|---|---|
| Cable gland | PG21 Protects cable from damage, insulation loss, and excessive bending during installation and operation. |
| Seal Ring | Compatible for 1 or 2 cables Prevents water, dust and other contaminants from entering the camera mounting box. |

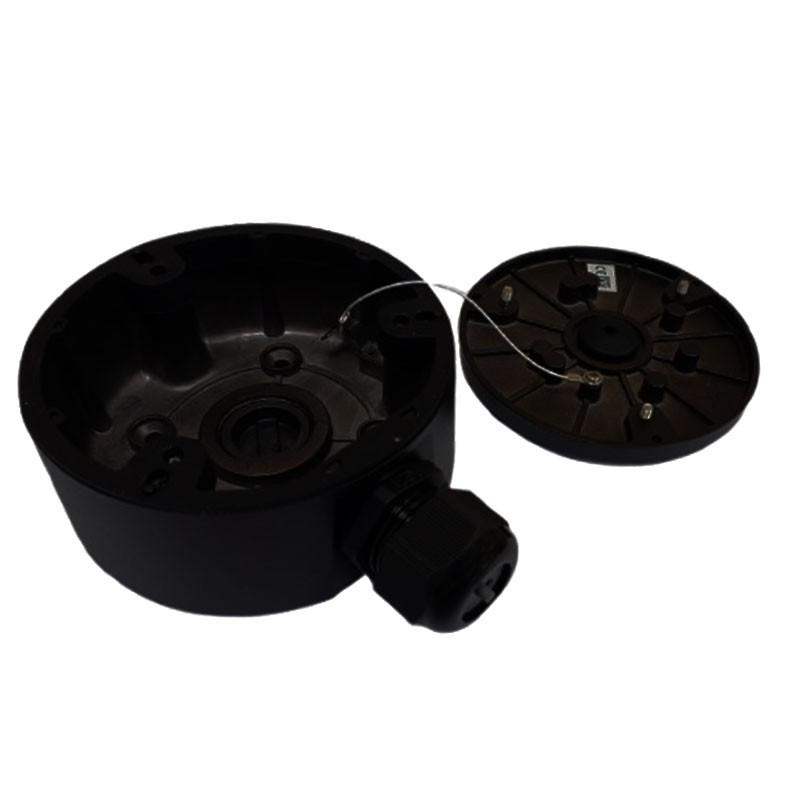

| Mounting wire | Allows the cover to be secured during installation. Prevents the cover from falling out of the camera mounting box until it is secured with screws. |
| Grounding terminal | Grounding must be performed by a specialist in accordance with local electrical safety rules and regulations. |

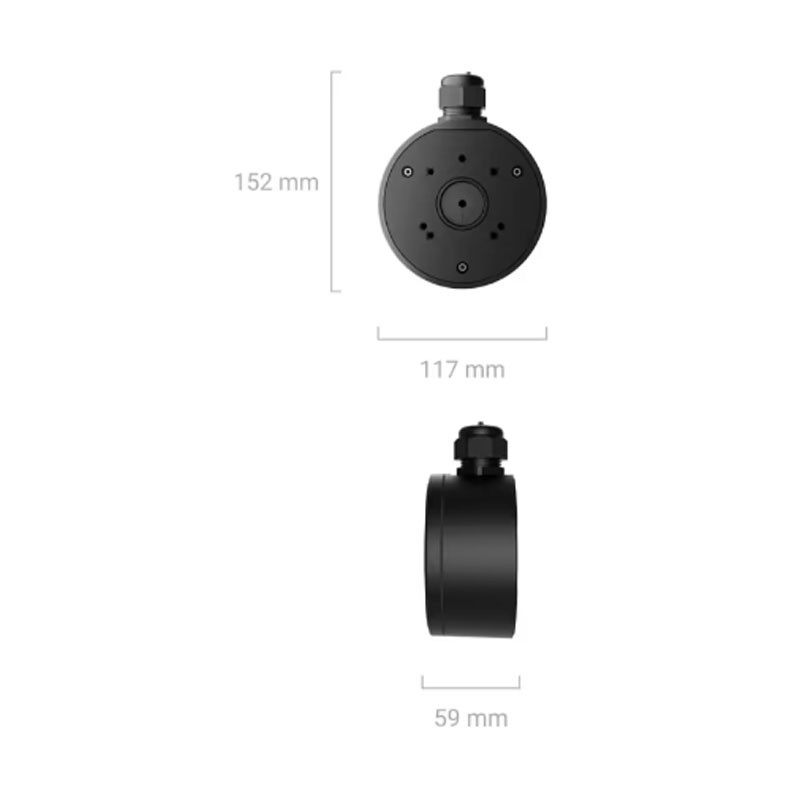

| Dimensions | 152 × 117 × 59 mm |
| Weight | 468 g |
| Material | Aluminum ADC12 |
| Operating temperatures | -40 °C to +60 °C |
| Maximum allowable humidity | 90% |
Package Contents JunctionBox Ajax
| Element | Description |
|---|---|
| JunctionBox | Dimensions: 118 × 59 mm |
| Drilling jig | Included for precise installation |

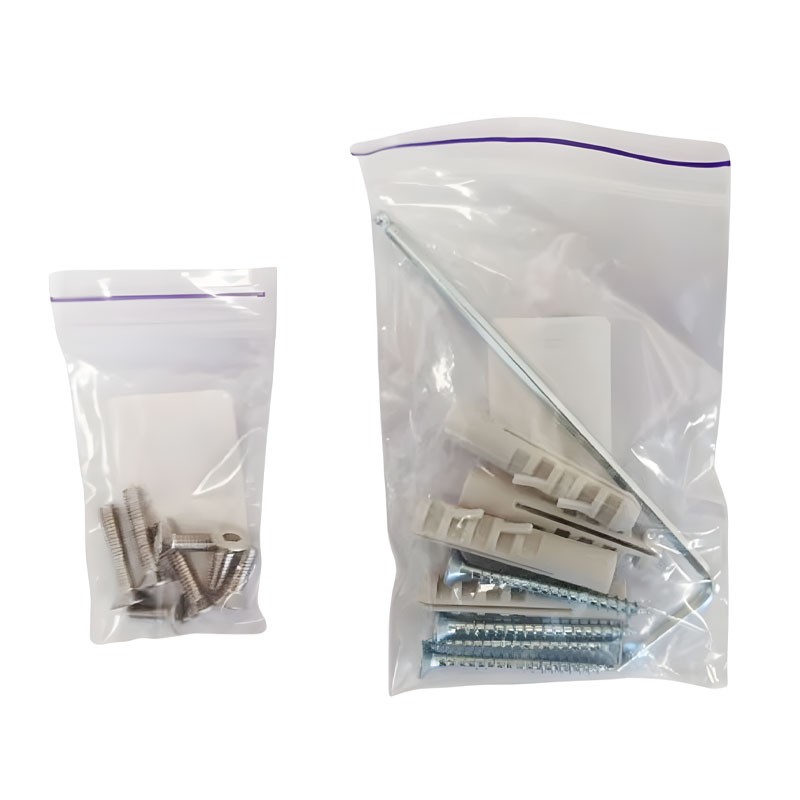

| Installation kit | Complete with screws and mounting hardware |
| Quick guide | Included for easy installation |
There are no reviews
Data sheet
- Type: Camera boxes
