BPT Came FREE-DVC video intercom system base kit 2-wire system 62621030
CMC 62621030
8004487057801
BPT Came FREE-DVC video door phone system basic kit, 2-wire system expandable up to 98 indoor stations, complete with Thangram button panel and VA/01 power supply.

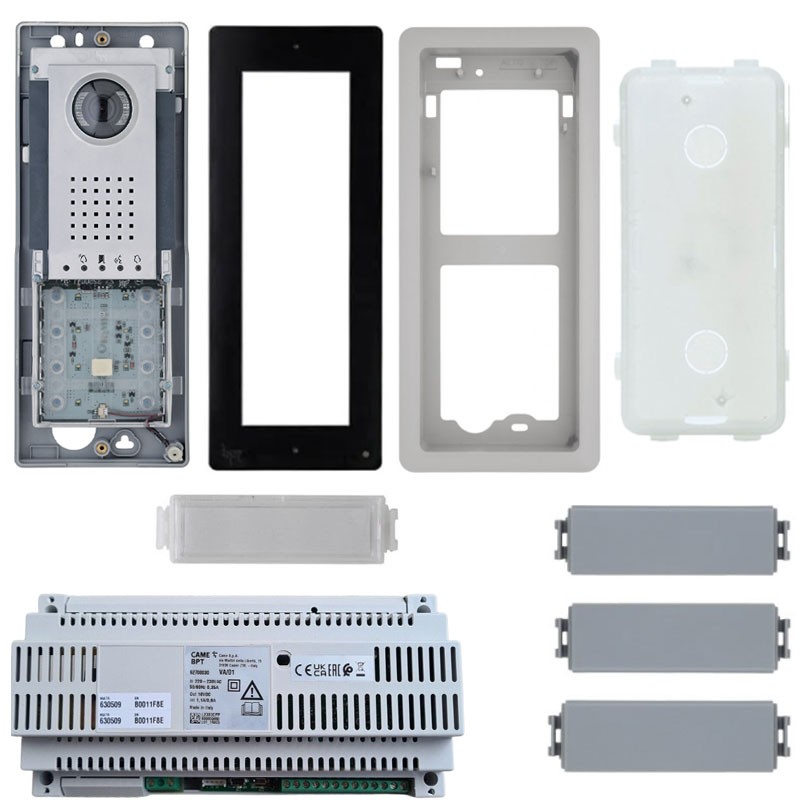

The kit consists of:
-
1 Monolithic video outdoor intercom panel for X1 system (DVC/01 ME 62020020)
-
1 Anodized aluminum front plate (DPF NF 60090070)
-
1 Frame for installation of door stations, Thangram series (DCI ME 61800020)
-
1 Box for flush-mounted door station installation, Thangram series (DSI 60090050)
-
1 Single button with name tag (DPS 61800030)
-
3 Single caps (DTS ME 61800070)
-
1 18V DC power supply for X1 video intercom systems (VA/01 62700030)
€372.29
Items Available: 7
: 1
Frequently bought together
FREE-DVC video door phone kit perfect basis for a professional system
The BPT FREE-DVC video door phone kit is the ideal solution for building a modern, reliable and easily expandable video door phone system up to 98 internal extensions. Based on 2-wire X1 technology, this system allows secure transmission of audio, video and power over a single simplified line, making wiring quick and economical.
Technical Specifications of the Kit Components

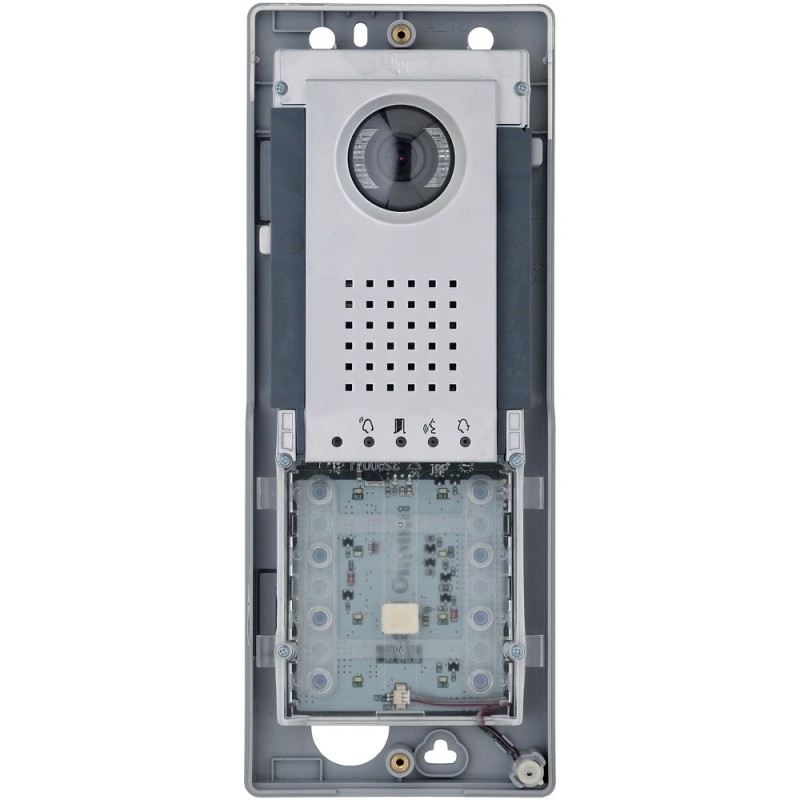

DVC/01 ME semi-modular monolithic video door entry panel
The DVC/01 ME video entry door station from the Thangram line of BPT - Came represents the technological evolution for residential, commercial or condominium access control. With a modern and compact design, it combines high video performance, advanced functionality and expansion possibilities, offering a flexible and customizable platform for every installation requirement.
Technical Specifications Monolithic outdoor station
| Parameter | Value |
|---|---|
| System | X1 - 2-wire |
| Type | Monolithic semi-modular door station |
| Body material | Technopolymer |
| Finish | Metal (satin chrome) |
| Plate | Interchangeable anodized aluminum (9 colors available) |
| Camera | Resolution: 680 x 512 pixels Standard: PAL/NTSC Optics: Wide eye 100° H / 82° V Zoom: Digital Minimum illumination: 1 lux |
| Illumination | High efficiency LEDs, adjustable |
| Signaling | Built-in acoustic and visual |
| Access control | Digital keypad with display (optional), code/key |
| Calls Supported | Up to 108 button calls (with DP/0 module) Up to 1250 digital calls (DCOMBO module) Up to 2600 digital calls (DNA module) |
| Power supply | 14-18 VDC local or PoE |
| Power consumption | Stand-by: 130 mA / Max: 320 mA |
| Programming | miniUSB, Web interface |
| Installation | Recessed (accessories sold separately) |
| Protection | IP54 - for outdoor use |
| Dimensions | 99 x 254 x 25 mm |
| Operating temperature | -15 °C TO +50 °C |
| Storage temperature | -25 °C ÷ +70 °C |

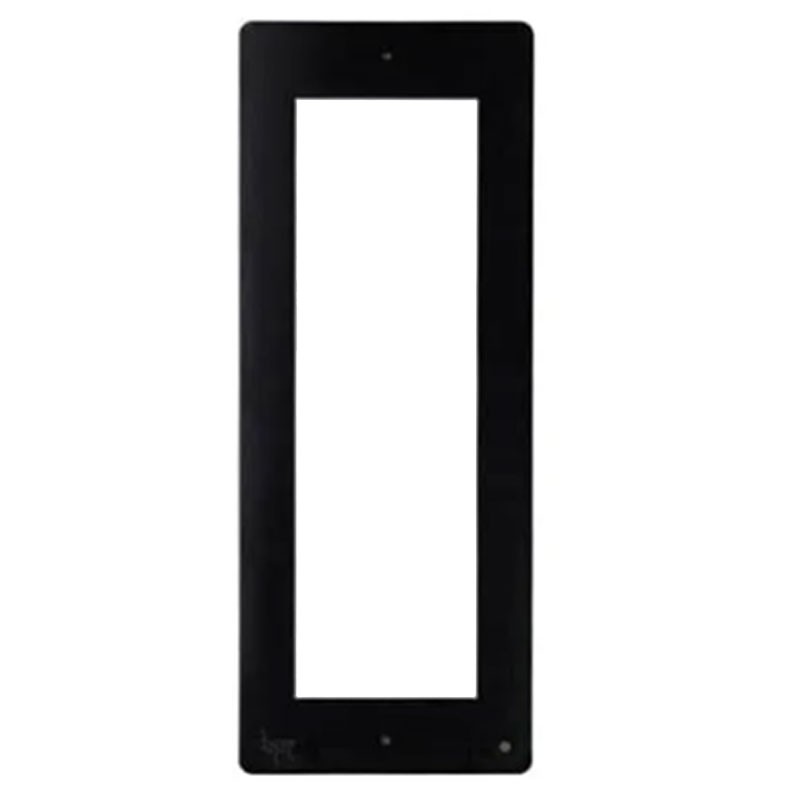

Front plate DPF NF
The DPF NF front plate is an indispensable accessory to complete and finish the installation of Thangram series video door entry panels. Made of anodized aluminum with a matte black finish, it combines mechanical strength, weather protection and a refined design suitable for any type of facade or entrance.
Technical Specifications DPF NF Plate
| Parameter | Value |
|---|---|
| Model | DPF NF |
| Material | Anodized aluminum |
| Finish | Matt black |
| Compatibility | Thangram series door stations, DP/0 additional pushbutton panel |
| Stand included | Yes, in technopolymer |
| Use | Protection and front finish of outdoor module |

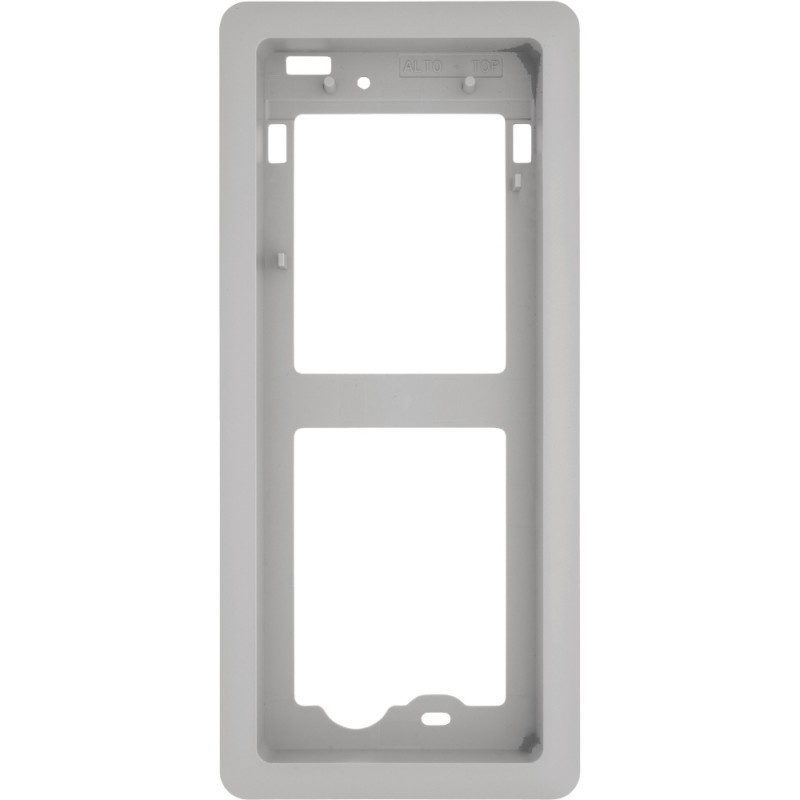

Flush-mounted frame for door stations
The DCI ME frame is designed to complement the flush-mounted installation of Thangram series video door entry panels or the DP/0 add-on panel, offering an elegant and uniform finish. Thanks to the satin chrome coating, it perfectly complements the devices of the Thangram line Metal finish, ensuring a professional aesthetic appearance.
Technical Specifications Door Station Frame
| Parameter | Value |
|---|---|
| Type | Flush-mounted picture frame |
| Material | Plastic with satin chrome finish |
| Finish | Metal |
| Compatibility | Thangram video intercom door stations (Metal finish) Additional keypad DP/0 DSI flush-mounted box (code 60090050) |
| Mounting | Flush-mounted |

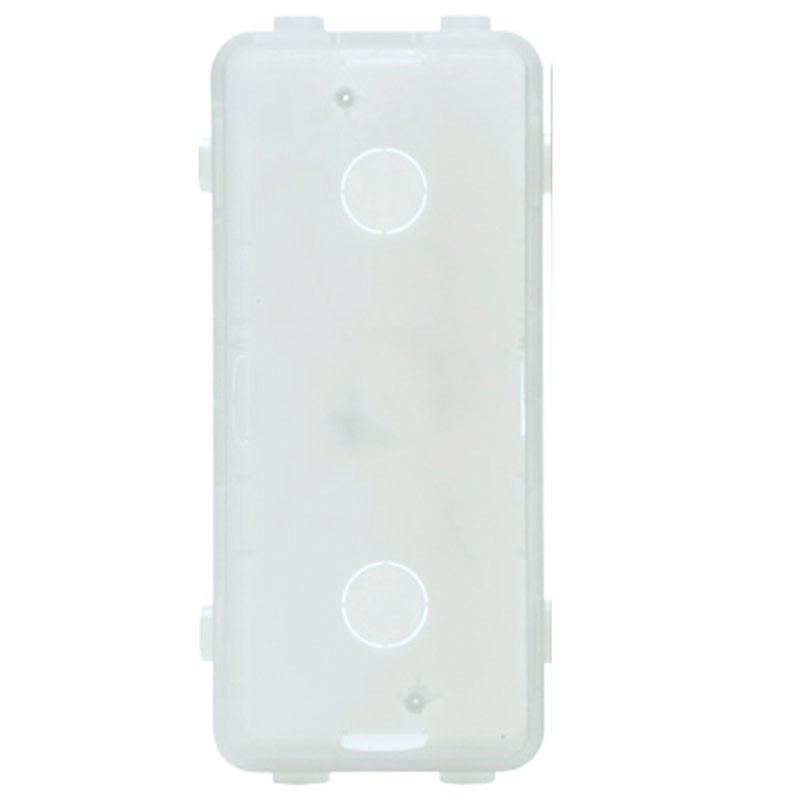

Flush-mounted box for door stations and keypads
The BPT DSI flush-mount box is an essential component for mounting Thangram series video door phone modules or accessories. Designed to be installed on the wall, it allows devices to be securely housed, ensuring tidy and protected wiring.
Technical Specifications Flush-mounted Box DSI
| Parameter | Value |
|---|---|
| Model | DSI |
| Type | Built-in container |
| Material | Durable plastic |
| Compatibility | Thangram series door stations Additional keypad DP/0 DCI and DCI ME frames |
| Technical features | Self-locking joints Breakthrough holes for cables |
| Installation | Flush-mounted on wall |

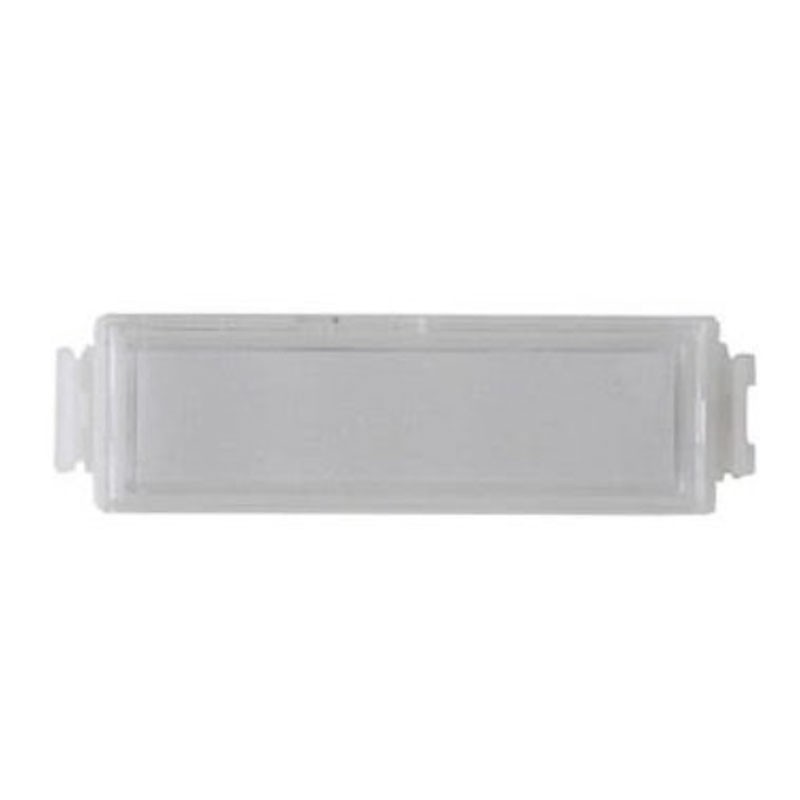

Single button with name tag
The DPS single button is an essential component for BPT Came's Thangram series of video door phone modules. Designed to allow the call of the specific user, it integrates a highly visible and protected name tag, ideal for condominium or multi-user installations.
Technical Specifications Push button with name tag
| Parameter | Value |
|---|---|
| Model | DPS |
| Type | Single button with tag |
| Compatible Series | Thangram |
| Identification tag | 53 x 13 mm |
| Protection Material | Transparent anti-UV polycarbonate |
| Included | Base + name tag cover |
| Installation | Thangram module front |

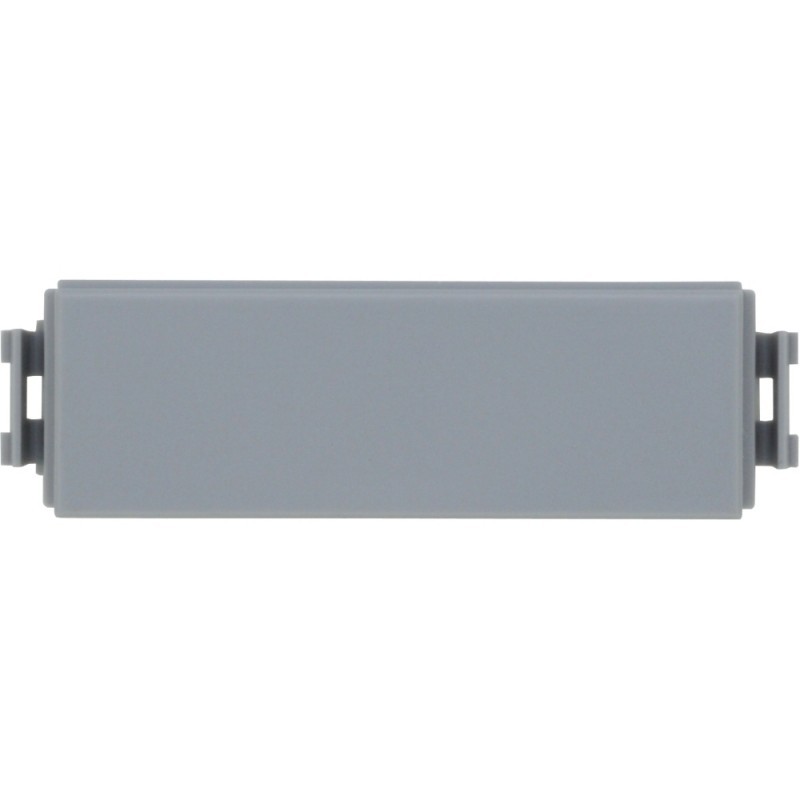

Frosted caps for Thangram modules
Designed to close and finish unused spaces in Thangram series modules, providing a consistent and professional aesthetic result. Satin chrome (Metal) finish perfectly matches the video intercom modules and accessories of the same series, maintaining uniformity and style in the installation.
Technical Specifications Plug for Thangram modules
| Parameter | Value |
|---|---|
| Model | DTS ME |
| Type | Single cap for Thangram modules |
| Material | Technopolymer |
| Finish | Satin chrome (Metal) |
| Compatibility | Thangram outdoor units with Metal finish DP/0 digital keypad |
| Function | Aesthetically closing unused modules |

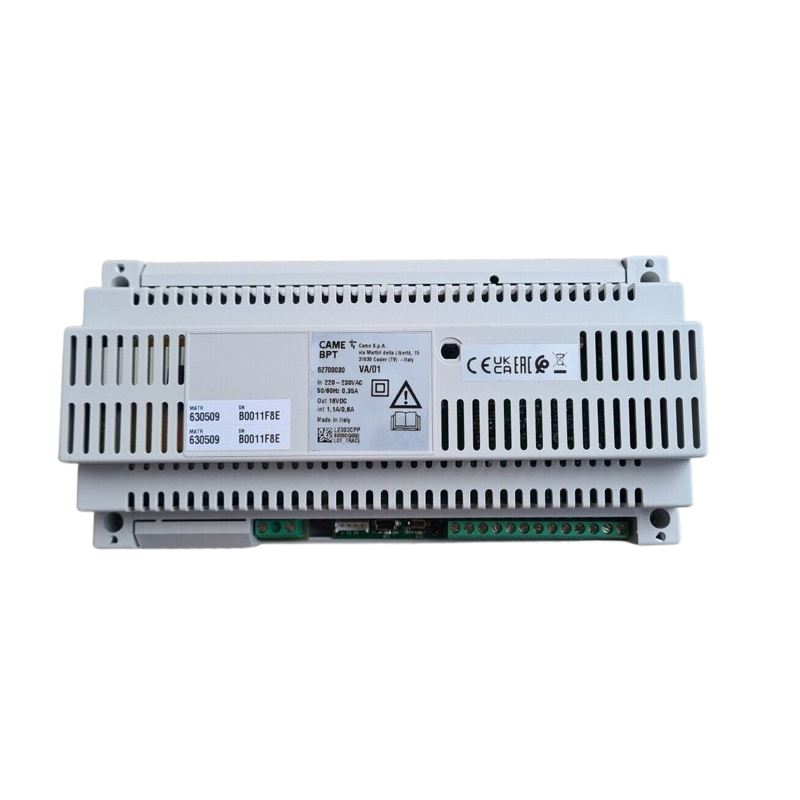

Power supply unit for X1 video intercom systems
VA/01 power supply unit is designed for powering and controlling BPT video door phone systems on 2-wire X1 system, providing high performance, electronic protection and flexibility of use. Its architecture allows management of both video door entry panels and the system riser, while also supporting multiple access configuration and intelligent auxiliary functions.
Technical Specifications Video door phone power supply unit
| Parameter | Value |
|---|---|
| Mains power supply | 230 V AC - 50/60 Hz |
| Maximum current consumption | 350 mA AC |
| Power dissipation | 25 W |
| Output for outdoor stations | 18 V DC - 1100 mA (1.1 A), peak 1.6 A |
| Output for video door entry post | 20 V DC - 800 mA (1 min) / 200 mA (3 min) |
| Protection | Electronic against overloads and short circuits |
| Auxiliary outputs | AUX1 and AUX2 open collector |
| Built-in functions | Intercom switch / Intercom selector switch |
| Programming | Manual or via mini-USB from PC |
| Container | 12 DIN modules - EN50022 |
| Degree of protection | IP30 |
| Operating temperature | 0 ÷ +35 °C |
| Storage temperature | -25 ÷ +70 °C |
