Abb Star video intercom base kit for apartments WLK206X
ABB WLK206X
6955891822597
Abb VIDEO START KIT video intercom base kit, consisting of:
- 1 piece video module (code WLM300X)
- 1 piece audio module (code WLM100A)
- 1 piece power supply unit controller 1200mA OK (code WLD104X)
Used for apartment buildings with multi-family houses.
€341.06
Items Available: 16
Frequently bought together
Technical specifications of individual components of the kit:
1 piece video module (code WLM300X): Video module with adjustable camera orientation, anti-fog heater and IR for night images. It has an input for connecting an additional analog camera.
- Operating voltage: 28V
- Type of input voltage: DC
- Number of buttons: 0
- Number of users: 0
- Casing material: plastic
- Color: Black
- Number of batteries: 0
- RoHS Declaration: According to EC Directive 2011/65/EC
- Width: 0.097 mm
- Height: 0.041 mm
- Depth: 0.072 mm
- Net weight: 0.11 kilograms

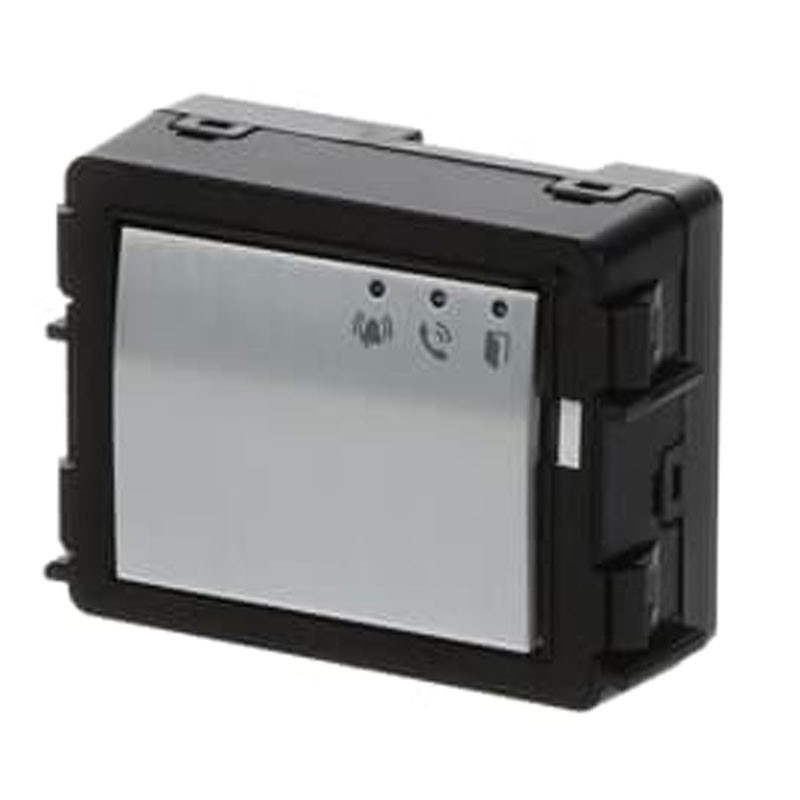

1 piece sound module (code WLM100A): Aluminum sound module without on-board buttons, with status LED. Features one live contact (e.g., for electric lock) and one volt-free contact (NO or NC, e.g., for automatic gate), with input for connecting a local door opener button that controls the priority between the two. Closing/opening time and on-call volume can be adjusted. Allows detection of the closing state of a door by connection of an NC contact.
- Operating voltage: 28V
- Type of input voltage: DC
- Number of buttons: 0
- Number of users: 0
- Casing material: plastic
- Color: silver
- Number of batteries: 0
- RoHS Declaration: According to EC Directive 2011/65/EC
- Width: 0.097 mm
- Height: 0.038 mm
- Depth: 0.072 mm
- Net weight: 0.178 kilograms
1 piece 1200mA controller power supply OK (part number WLD104X): 1200mA controller power supply. Occupies 8 modules. The switch allows you to select ALL ON mode (all indoor stations in an apartment ring and show the image from the outdoor station if someone has buzzed) or ONE ON mode (only the MASTER indoor station rings and shows the image, the others ring only. PLEASE NOTE: the apartment station that answers the call will see the image, even if it is not the MASTER).
- Current type: DC
- Input voltage 230V
- Maximum output current: 1200 mA
- Frequency: 50 to 60 MHz
- Mounting type: DIN-Rail
- Numbers of batteries: 0
- Degree of protection: IP20
- RoHS declaration: According to EC Directive 2011/65/EC
- 8 modules
- Width: 0.144 mm
- Height: 0.065 mm
- Depth: 0.09 mm
- Net weight: 0.437 kilograms
There are no reviews
Data sheet
- KIT: Video Intercom Basic Kits
- System: 2-Wire
