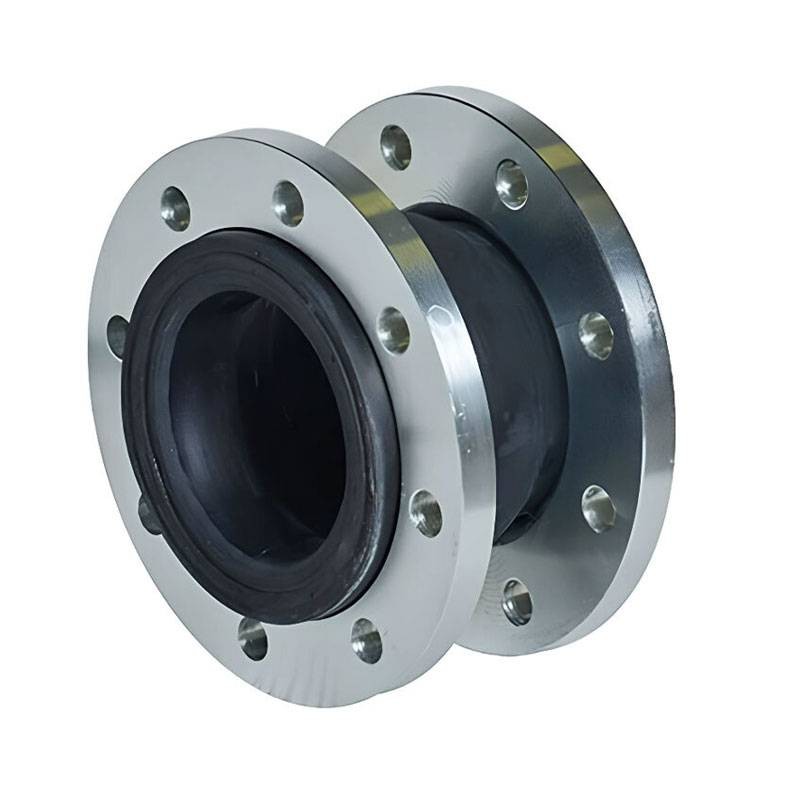

Valvorobica Flanged anti-vibration joint D 150 mm PN16 in EPDM
26M 6002150
Valvorobica Flanged anti-vibration joint in EPDM with galvanized steel flange offers excellent vibration absorption and leak-tightness up to PN16, ensuring reliability and durability in industrial and civil systems, with the following features:
-
Made of high-quality EPDM rubber for energy saving and vibration resistance
-
Galvanized carbon steel flanges, compatible with EN 1092-2 PN-10-16
-
Nominal pressure up to PN-16
-
Operating temperature range from -10 to +80 degrees
-
Diameter 150 mm
-
Simple flanged design easy to install, ideal for reducing stress on piping
€108.35
Items Available: 4
: 2
Valvorobica joint high-quality materials
The joint body is made of EPDM, a rubber with excellent elastic properties and chemical resistance. This material ensures prolonged durability, good flexibility, and effective attenuation of vibrations and noise in systems. The galvanized carbon steel flanges ensure mechanical strength and protection against corrosion, extending the component's service life.
Performance and compatibility with EN-1092-2 standards
The joint complies with the EN 1092-2 PN-10-16 standard, allowing integration with standard flanges. The nominal pressure resistance PN16 makes it suitable for industrial and civil applications, even in pressurized systems, ensuring safety and leak-tightness.
Operating temperature range
Designed to operate between 10°C and +80°C, the joint can be used in a wide range of environmental conditions, offering dimensional stability and consistent performance, even in the presence of thermal fluctuations.
Ease of installation and vibration management
The EN1092-2 flanging allows intuitive mounting in systems with flange piping, simplifying installation, maintenance, or replacement activities. The anti-vibration design reduces mechanical and acoustic stresses within the systems, improving the efficiency and longevity of the piping.
Typical applications
-
Heating and air conditioning systems (HVAC): reduces vibrations from pumps and fans
-
Industrial plants: in liquid or gas pipelines to increase operational reliability
-
Civil and commercial systems: as an anti-vibration connection between flange pipes
There are no reviews
Data sheet
- Diameter: 150mm
- Type: Anti-vibration joints
- Model: Flanged
- Material: Steel
