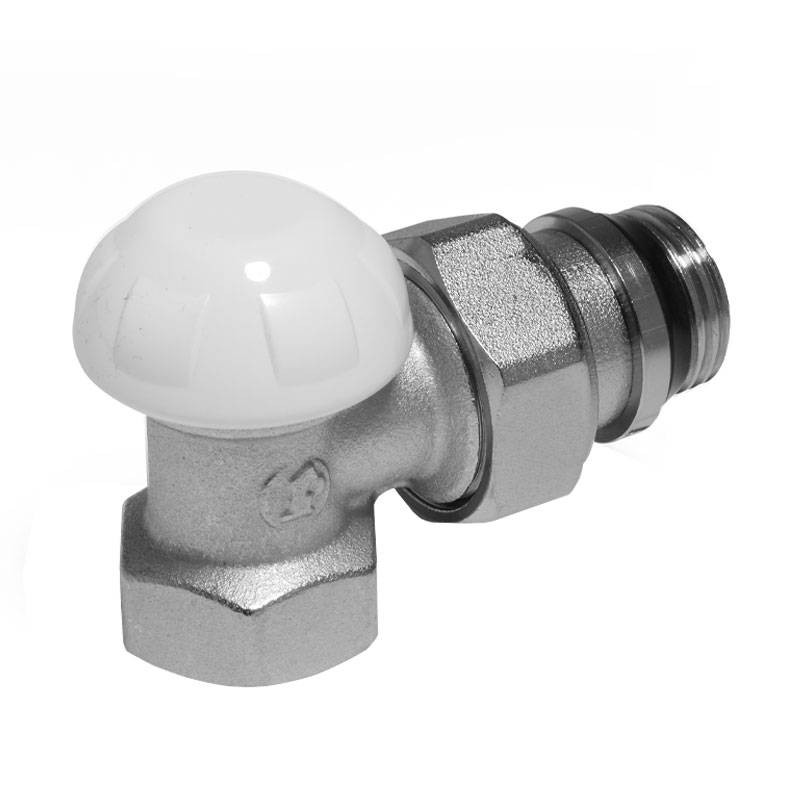

Giacomini Lockshield-valve for radiators M/F 3/4 R14X034
GIA R14X034
8009902171544
Square lockshield-valve for Giacomini radiators with iron pipe connection with the following features:
- Connection: Male/Female
- Fittings: 3/4
- Finish: Chrome-plated brass
- Cap type: Plastic cap
- Nozzle type: Nozzle without self-holding

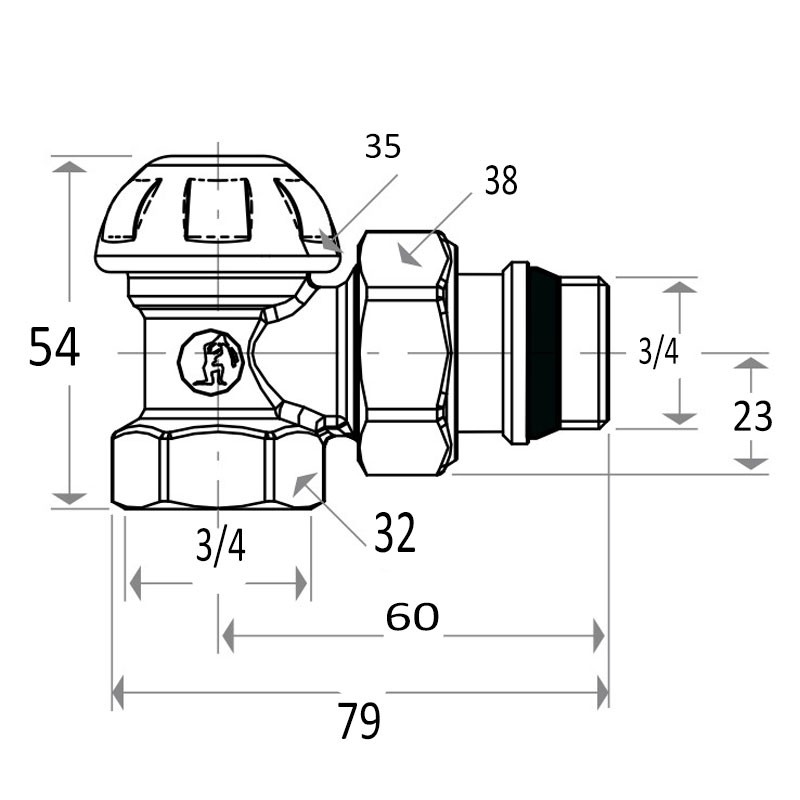

- Dimensions: 54x60x23x32x79x35x38 (H-I-J-K-L-Y-W)
Giacomini Lockshield-valve for radiators M/F 3/4 R14X034
€14.54
€14.54
Tax included
Tax included
Pay in installments with Klarna
Items Available: 60
In order to allow the installer to be able to have a complete installation system, within the TG, F Giacotech series there are also lockshields, which are indispensable elements to be able to carry out the correct balancing of the installation. This operation turns out to be of basic importance to ensure the proper functioning of the installation. Removing the upper cap provides easy access to the adjustment rod, which must be maneuvered with the aid of a specific Allen wrench (R73). Starting from the all-closed position, the shutter is opened according to what the installation design stipulates.
Characteristics:
- Operating fluids: water and glycol solutions (max. 30 %)
- Temperature range: 5÷110 °C
- Maximum operating pressure: 16 bar
- Body and main components: brass UNI EN 12165 CW617N
- One-piece control rod: brass UNI EN 12164 CW617N
- Protective cap: ABS or brass, depending on codes
- Seals: EPDM
Data sheet
- Type:
- Lockshield valves
- Connection:
- M/F
- Connections:
- 3/4 inches
