Teco Gas shut-off tap recessed K2.1 U connection K201BC10100

Teco
Teco
1TC K201BC10100 8050880185825

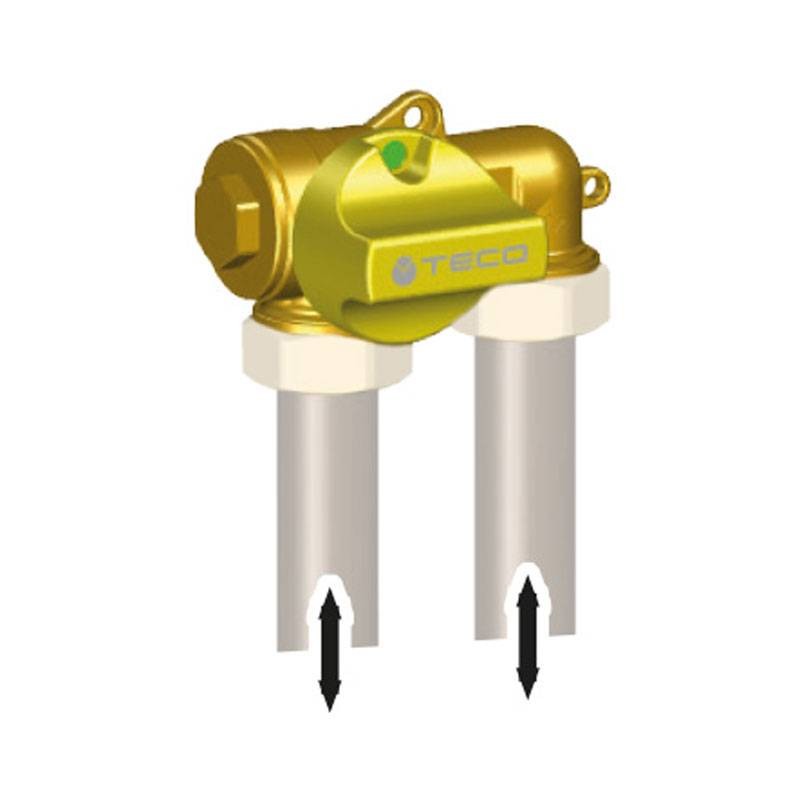

Recessed gas tap Teco K2.1 DN15 with downward "U" connection HTB safety and compact installation with conical seal TC 3/4 inch

  • Model: Teco K2.1 code K201BC10100

  • Type: Recessed gas ball valve with downward "U" connections

  • Connection: Conical Seal TC 3/4, compliant with DIN 3439

  • HTB Certification: guaranteed sealing at 650°C for 30 minutes

  • Operating temperature: from 20°C to +60°C

  • MOP: 5 (Maximum operating pressure 5 bar)

  • Included in the package: Gas valve DN15 - Inspectable box (155 x 115 x 75 mm) - Fixing brackets - Construction site protection

Do you have questions about this product or did you not find what you were looking for? Ask us!
Teco Gas shut-off tap recessed K2.1 U connection K201BC10100
€43.11
€43.11

€43.11
Tax included
Calculate shipping cost
Items Available: 106
Further availability of the manufacturer
€43.11

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Gas tap recessed Teco K2.1: Certified safety and vertical installation

The recessed tap Teco K2.1 with downward outlet represents a technical and reliable solution for methane or LPG gas systems, designed for compact installations in confined spaces. The vertical U connections facilitate the downward connection of the gas pipe, making it ideal for floor installations or in wall niches. Compliant with DIN 3439 standard, the tap ensures absolute tightness, while the HTB (High Temperature Body) certification guarantees sealing up to 650°C for 30 minutes, an essential requirement for fire safety in gas systems.

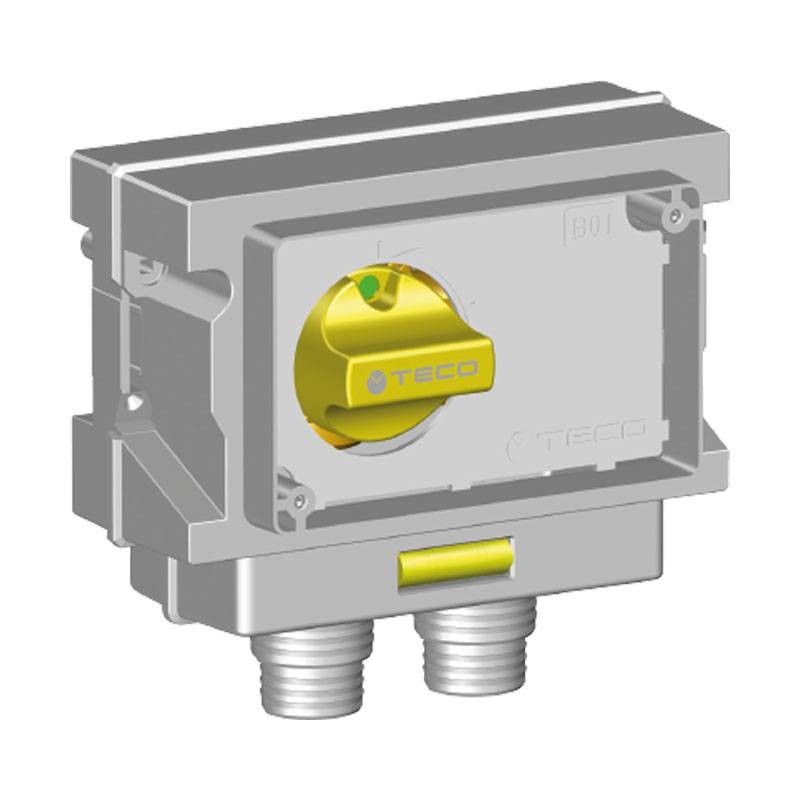

Sandwich box sealed and inspectable

The recessed box included is ventilated towards the environment, as required by regulations for gas systems, and is equipped with a manually openable front plate, available in five colours (plate sold separately). This allows quick inspection or maintenance interventions, even after installation, without masonry work. The structure is completed by fixing brackets for stable installation and a construction site protection, which preserves the system during processing phases.

Easy control and safe installation

The front handle allows immediate opening and closing of the gas, even in case of emergency. The system is ideal for domestic, residential, or commercial installations, where safety and compactness are priorities.

MAIN FEATURES
Series Teco K2.1
Type Recessed gas ball valve
Nominal diameter DN15
Connections Downward – “U” Shape

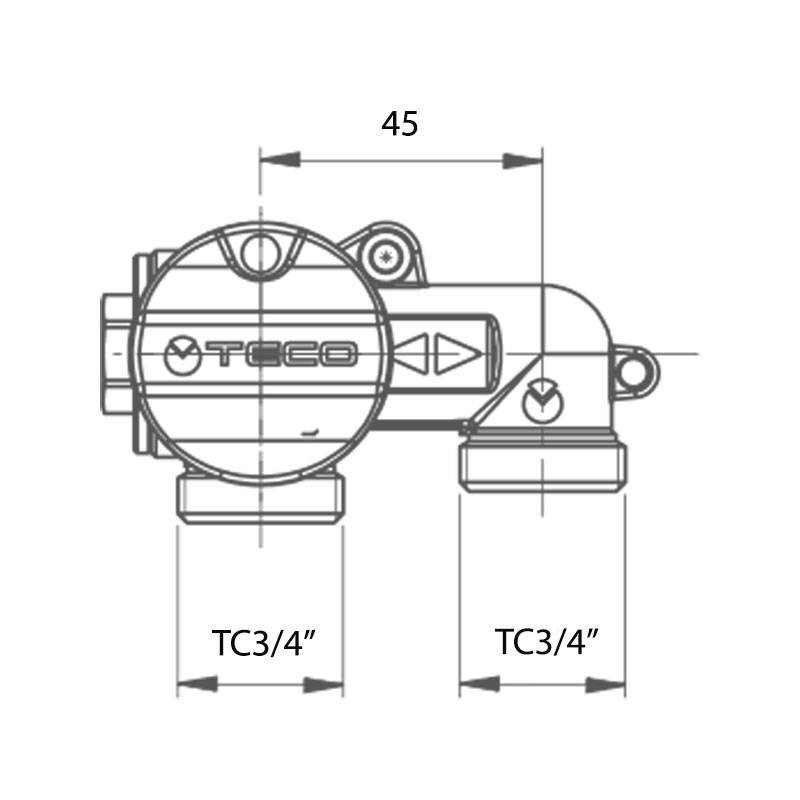

Connection TC 3/4” – Conical seal (DIN 3439)
Operating temperature –20°C ÷ +60°C
Maximum pressure (MOP) 5 bar
Body material Brass
BOX

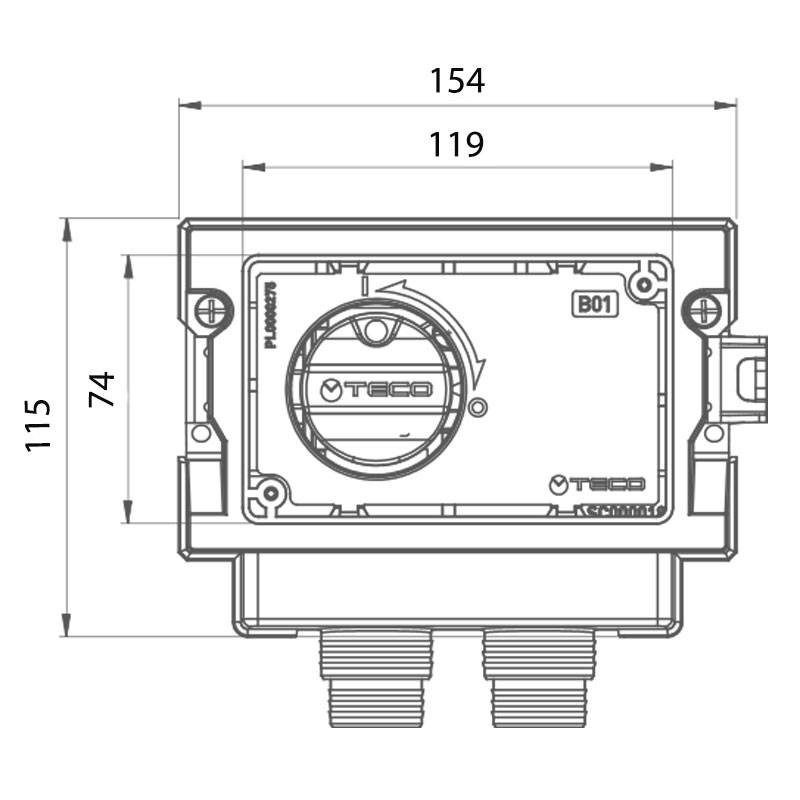

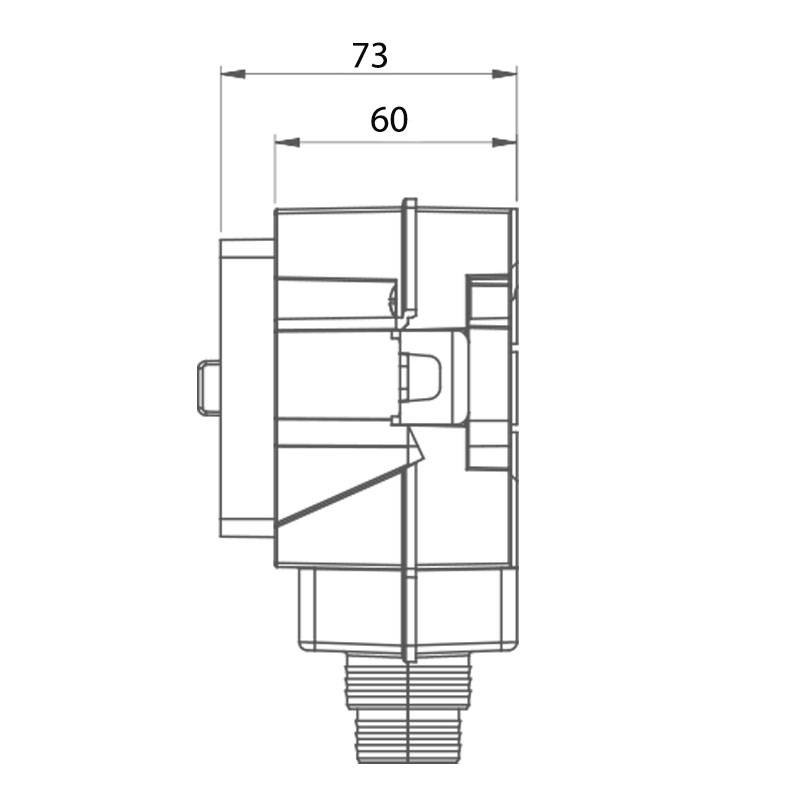

Box dimensions 155 × 115 × 75 mm
Plate Manually openable
CERTIFICATIONS
Standards DIN 3439
HTB resistance 650°C × 30’
EQUIPMENT
Included components Gas valve
Ventilated sandwich box
Fixing brackets
Construction site protection

There are no reviews

Data sheet

Type:
Faucets
System:
Gas
Installation:
Recessed
Connections:
3/4 inches
