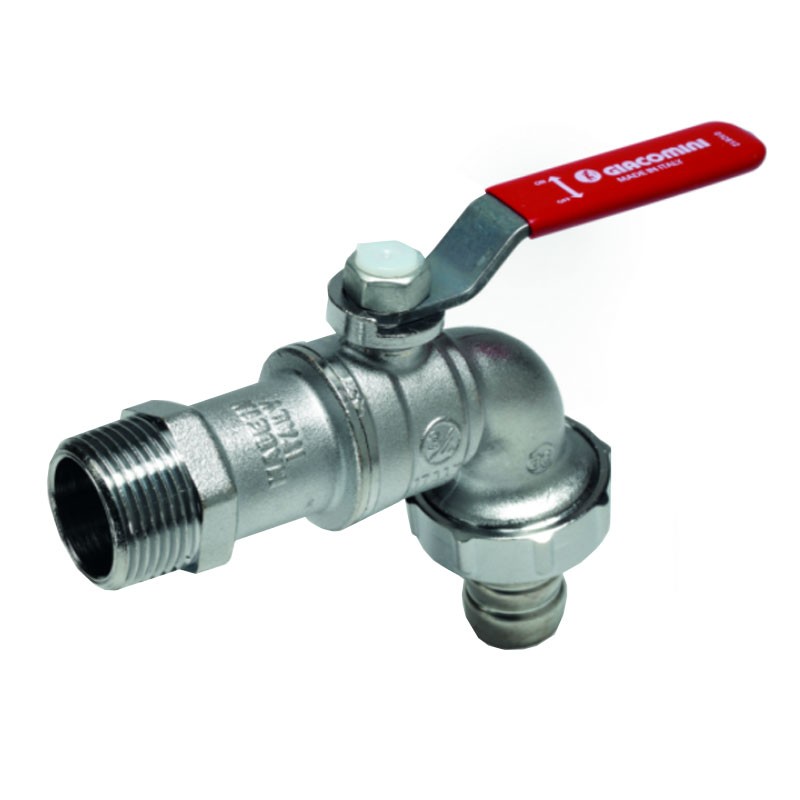

Giacomini hose tap lever handle R621X014
GIM R621X014
8009902303518
Giacomini dispensing tap series R621, in chromed brass, with male connection and hose nozzle. Connection size 3/4" - mouth 1".
€8.92
Items Available: 145
: 9
Features:
- Giacomini series
- Standard passage
- Taps in chrome plated brass UNI EN 12165 CW617N
- Control rod with double O-Ring seal
- Finish: Chromed brass
- Handle type: short lever
- Handle colour: red
- Lever handle in steel with anti-corrosion treatment and red PVC coating (R621)
- Minimum operating temperature: 5 °C
- Maximum working temperature: 90 °C
- Maximum working pressure at 20 °C with water: 1,0 MPa (10 bar)

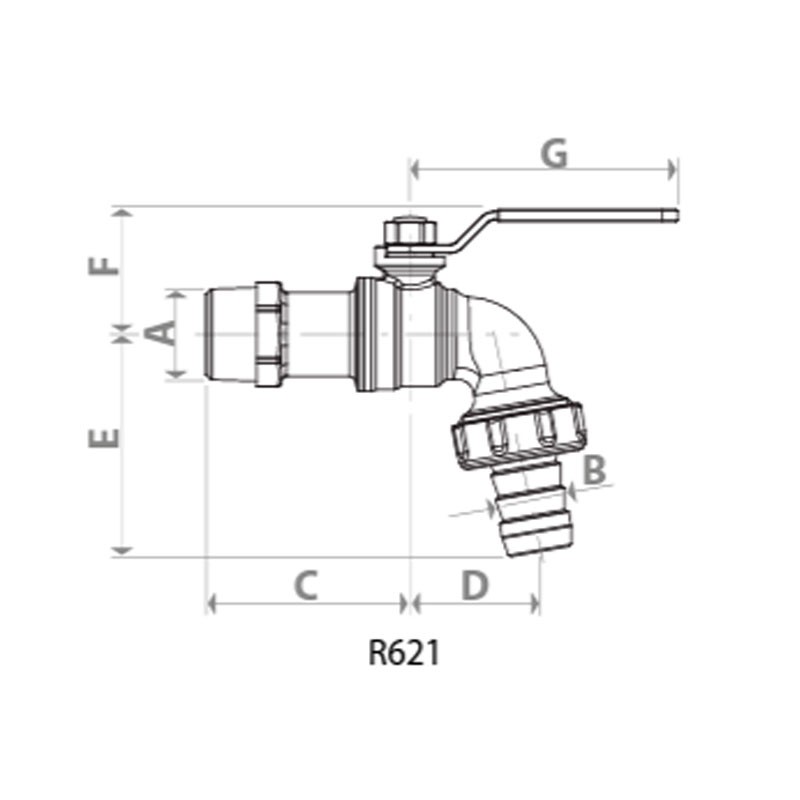

Dimensions:
- DN 15
- A 3/4 "M mm
- B Ø 20 mm
- C 58 mm
- D 37 mm
- E 63 mm
- F 38 mm
- G 62 mm
- Kv 12,7
Data sheet
- Type: Outdoor faucets
- Connection: M
- System: Water
- Connections: 1 inch
3/4 inches
