Urmet Bif video intercom kit with Mikra2 and handset monitor Mìro 1784/762
UTD 1784/762
8021156068098

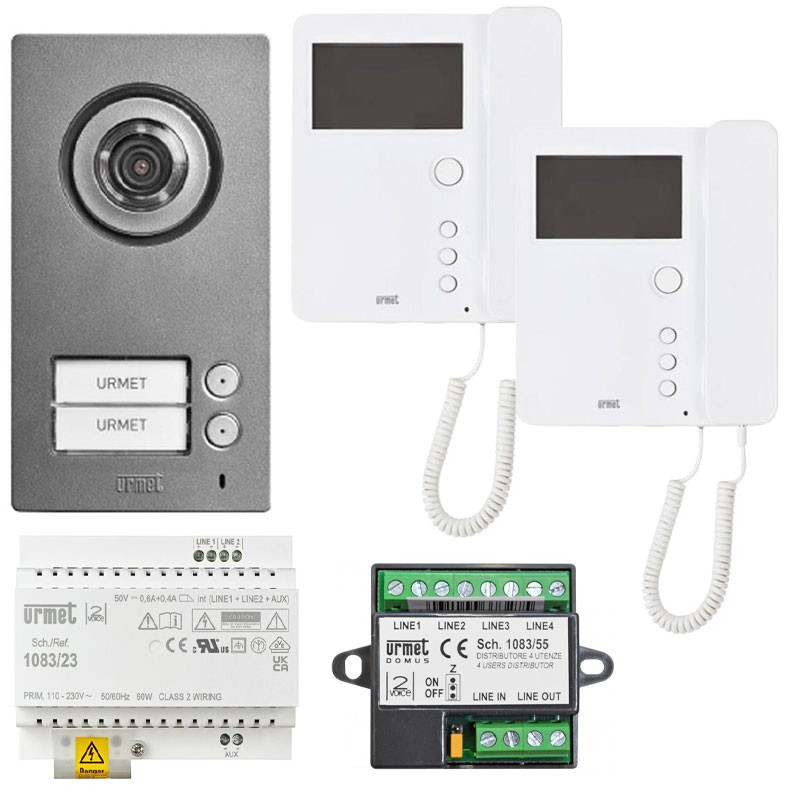

Urmet Two-Family Video intercom Kit Consisting of:
- 1 two-family Video doorbell, Mikra2, 2Voice system code 1784/2
- 2 Mìro handset video intercoms, 4.3-inch display 2Voice system code 1750/1
- 1 2 voice column feeder code 1083/23
- 1 4-user dispenser, 2Voice system code 1083/55
Features:
- 2Voice system
- Intercom calling, floor calling and call repeating
- Up to 4 monitors in parallel
- Up to 6 external push-button panels
- Dual pedestrian and driveway lock management
- Up to 400 meters between door station and indoor station
- CallMe ready function: Allows a video door phone call to be forwarded to smartphones and tablets through The CallMe app with the addition of the 1083/58A device to be purchased separately.
- Option to also add 2 Voice Confort intercom code 1183/5
€674.63
Items Available: 18
: 2
Frequently bought together
Features:
- The kit is fully 2-wire (2 Voice) in every part
- The MIKRA2 handset boasts an IP55 degree of protection against external agents
- The kit can be expanded with other devices from the 2VOICE line

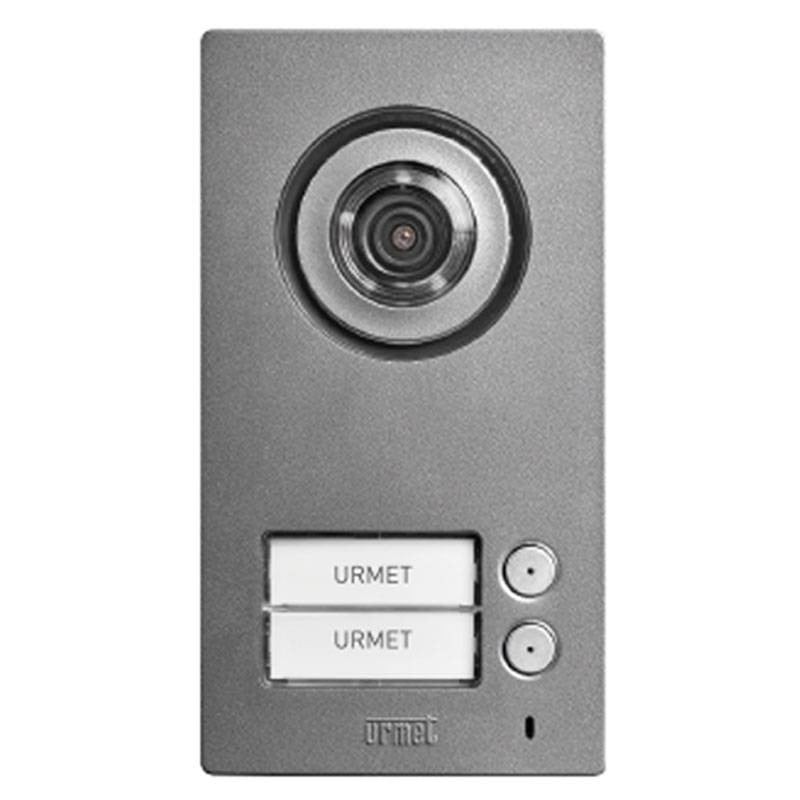

Features Mikra2 pushbutton panel code 1784/2:
- Vandal-proof with zamak front panel and wide-angle camera

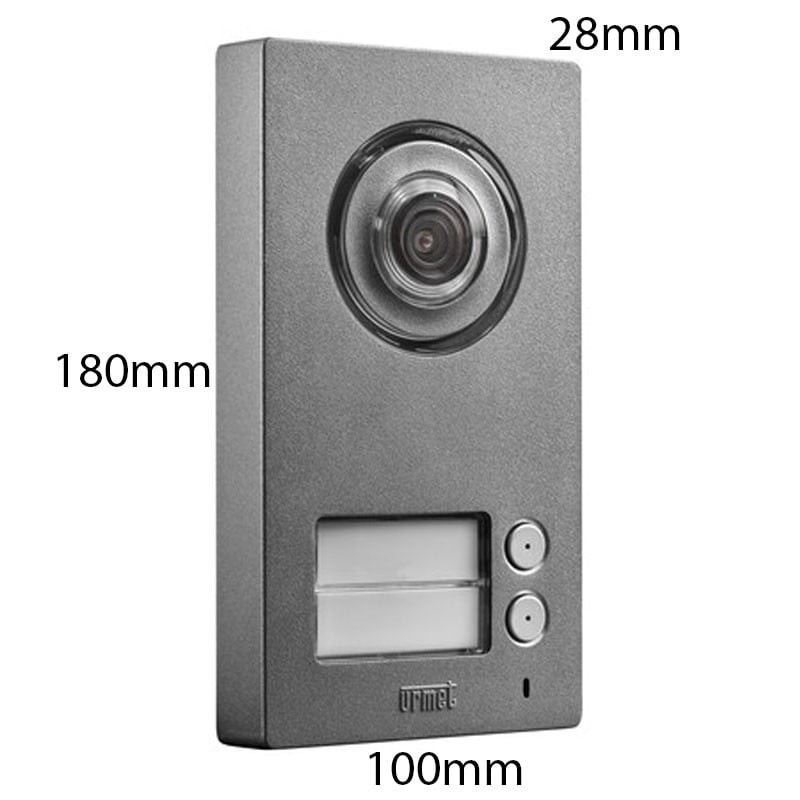

- Dimensions (H x W x D) 180 x 100 x 28 mm
- Camera with wide viewing angle 110° horizontal - 92° vertical
- Control for 2 entrances (pedestrian and driveway)
- IP55 degree of protection
- Backlit icons for signaling system status

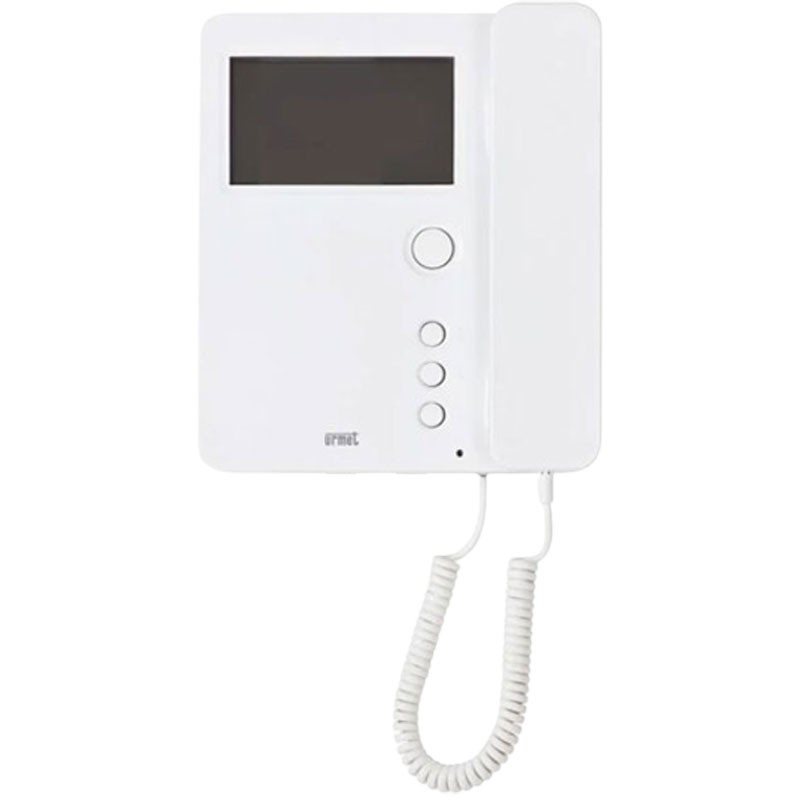

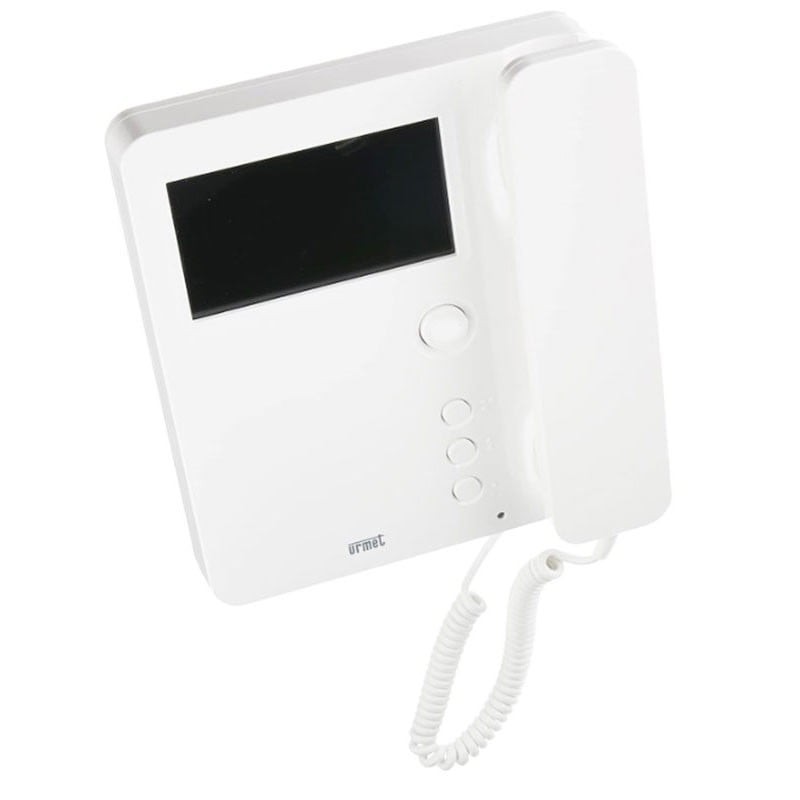

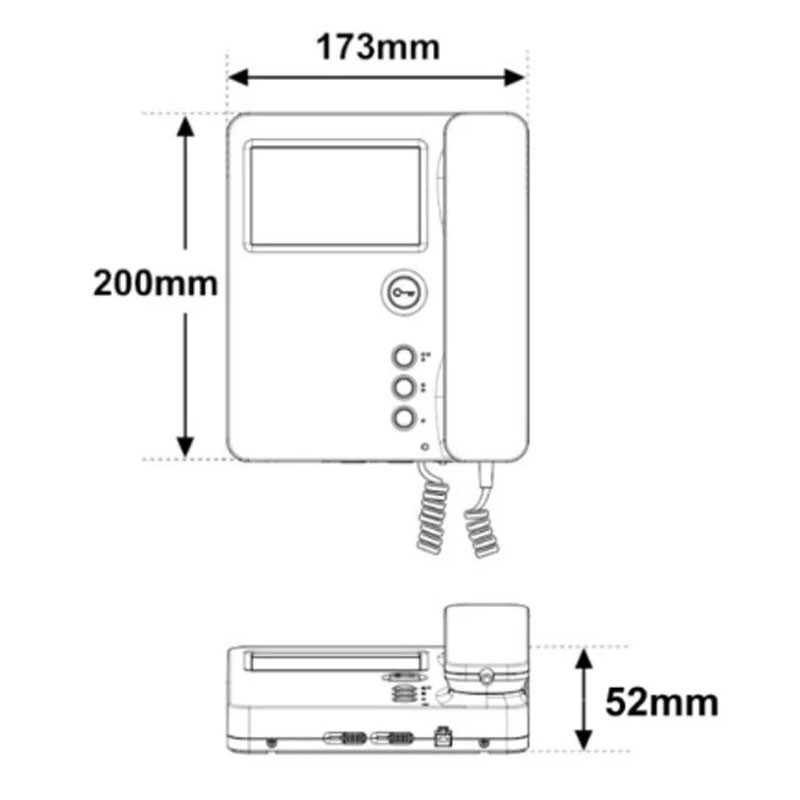

Features Video intercom code 1750/1:
- Glossy white color
- Display 4.3 16:9 format
- Input for floor call signaling
- Output for call repetition on external device (ringer, flashing, etc.)
- Ringer adjustment button
Colour video intercom with door opener button (backlit) and 3 additional buttons for additional functions (opening second driveway entrance, turning on stair lights, call to switchboard, intercom call, etc.). LEDs for signaling various functions: call active, MUTE function active, door open, automatic door opener active. The device allows you to choose from 5 different types of ring tones for signaling incoming calls and floor call; different cadence will allow you to clearly identify where the call is coming from.Please refer to the 2VOICE system manual for detailed installation and configuration information.

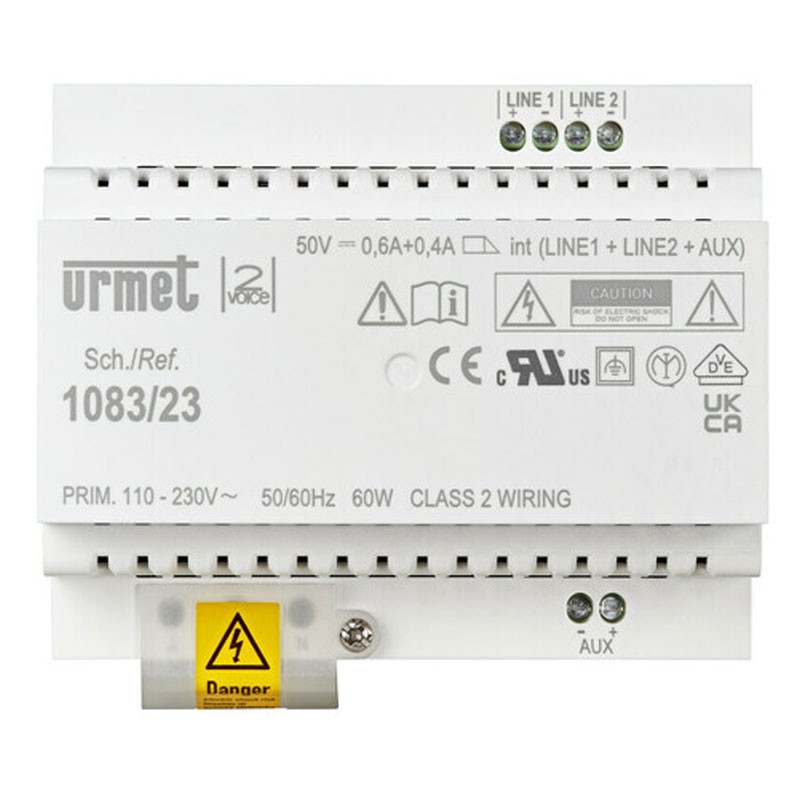

Technical specifications 2 voice column feeder 1083/23:
- Power supply: 110-230 Vac 50 / 60 Hz
- Power: 60 Watts
- Operating temperature: - 10 ÷ + 50 °C
- Dimensions: 108 x 60 x 90 mm (6 DIN modules)
- Compact model for 2Voice system
- DIN rail mounting (6 modules)

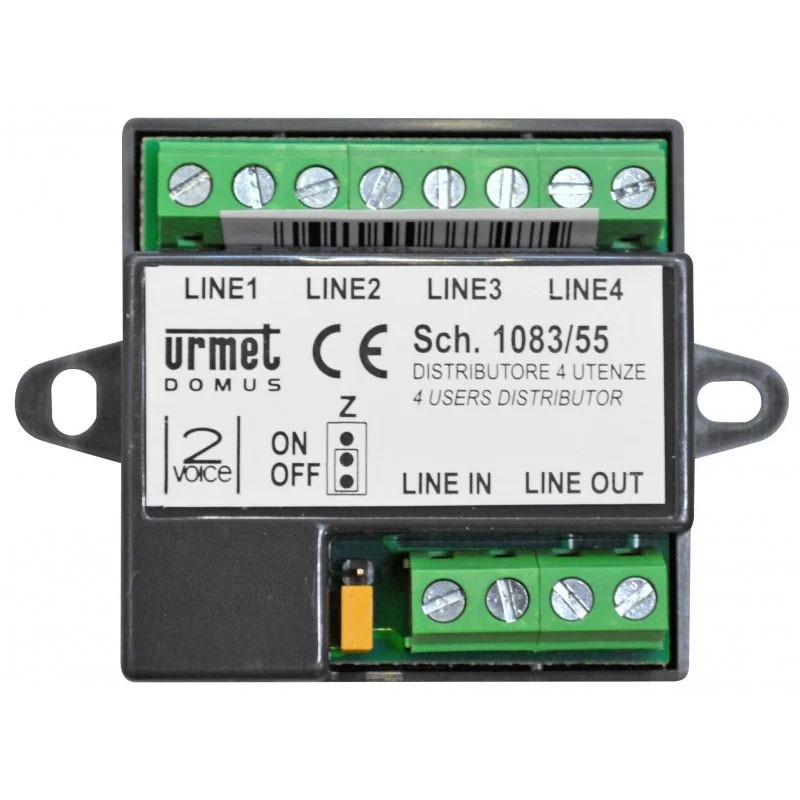

1 4-user distributor, 2Voice system code 1083/55: Connection for input bus, output bus and 4 apartment branches. Equipped with short-circuit protection on outputs. Dimensions 45 x 45 x 16 mm (WxHxD).
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2 Voice Urmet
Two-family house
