The two basic pushbuttons can be integrated with other pushbutton modules and with the 1083/17 expansion to make up pushbutton panels with up to 64 pushbuttons. Frame and recessed box not included. They will have to be added in relation to the final dimensions of the pushbutton panel. Sinthesi S2 aesthetics. 2-module size.

Kit component specifications:

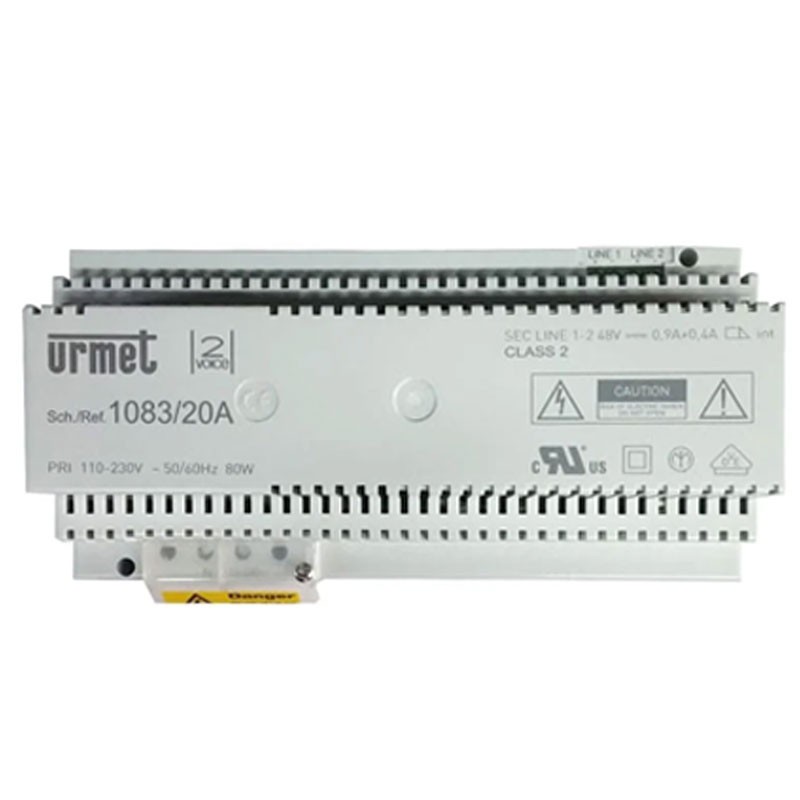

1 piece 2Voice system power supply (code 1083/20A):

• Voltage: 110- 230 Vac
• Output voltage: 48V
• Frequency 50/60 Hz
• 10 Din modules
• Protection class 2
• For the 2VOICE system

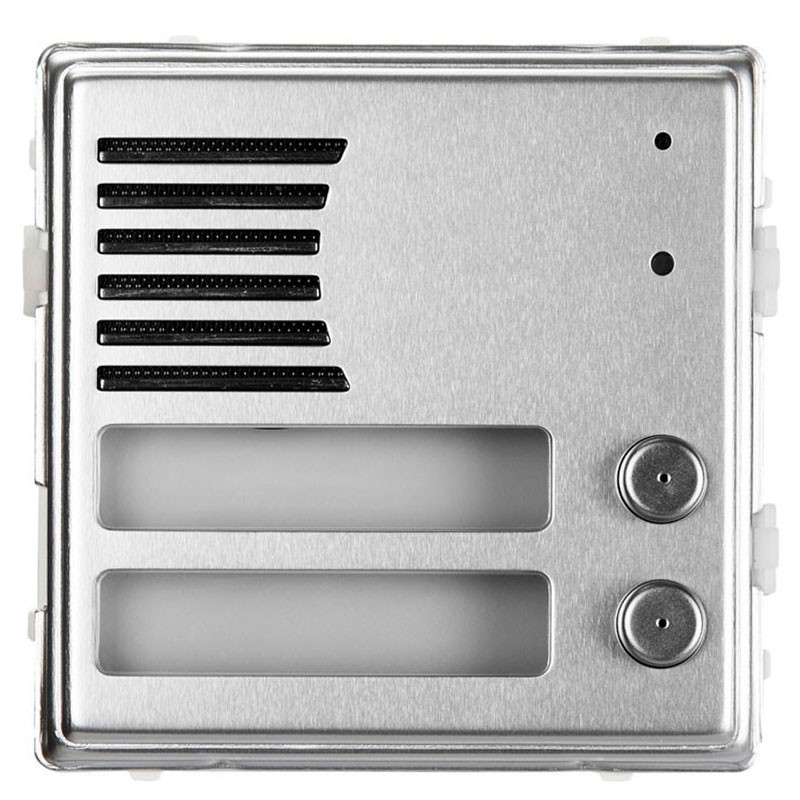

1 piece 2Voice Sinthesi S2 audio module with 2 buttons (code 1083/74): On a Sinthesi S2 module, it is equipped with speaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening a second driveway entrance. Input for local door opening button. Second input for open door detection contact. Dip switch for configuration of module address, door opening mode from 2VOICE extensions (free or after call). Possibility of programming door opening time. Prepared for ILA hearing aid module and voice and visual signaling module.

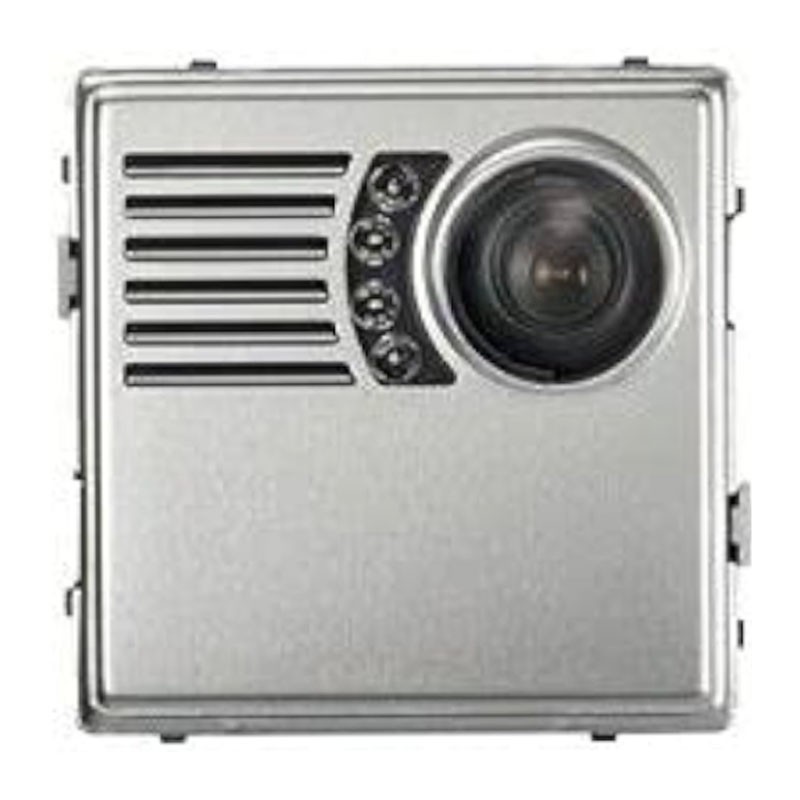

1 piece 2Voice Sinthesi S2 color camera module (code 1748/83): Equipped with color camera with LED lighting. Selection jumper for 50-60 Hz operation. For use with 1083/74 for video installations.
