Urmet Sinthesi Steel Two-Family Intercom Kit 1183/603
UTD 1183/603
8021156062454

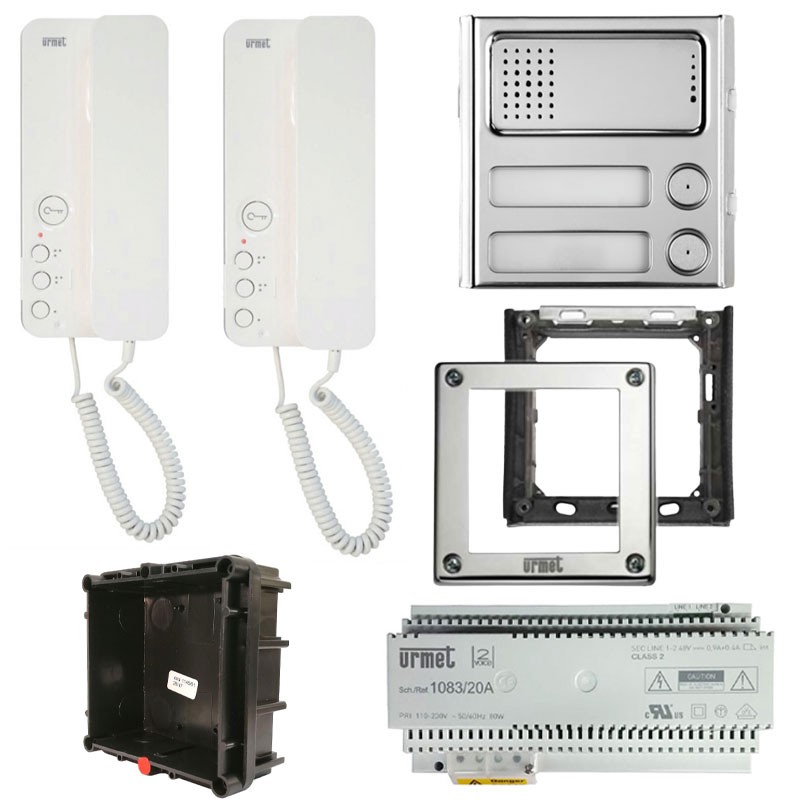

Urmet Sinthesi Steel duplex intercom kit with 2 Voice system consisting of:
- 1 Sithesi Steel audio door station with 2 buttons code 1083/64
- 1 2Voice power supply unit code 1083/20A
- 2 Miro intercoms for 2Voice system code 1183/5

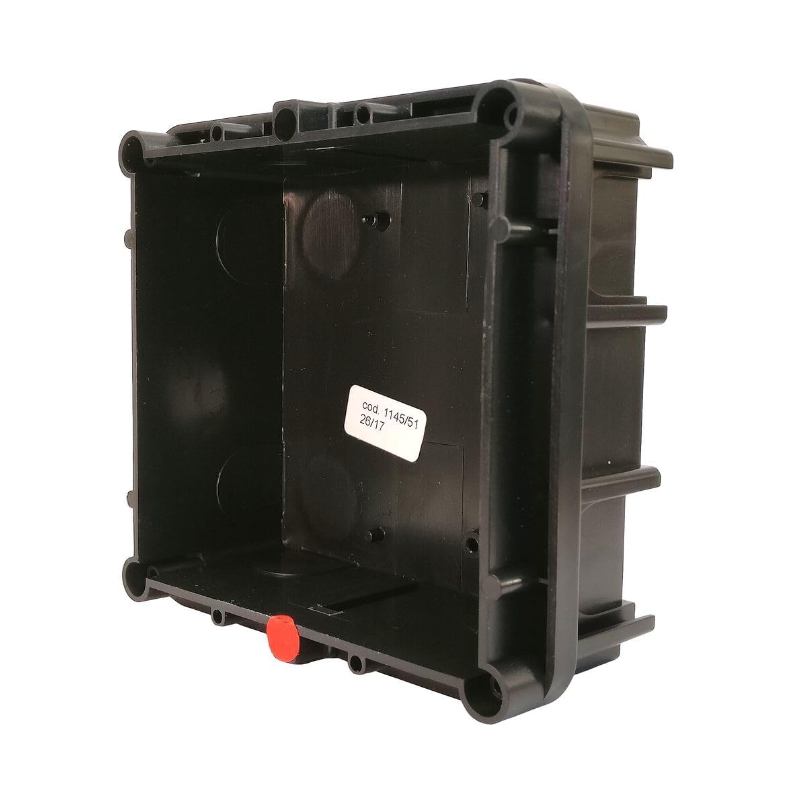

- 1 Black plastic recessed box for 1 module code 1145/51
- 1 Module holder frame with frame for 1 push-button panel module code 1158/61
€424.55
Items Available: 6
Technical specifications of kit parts:

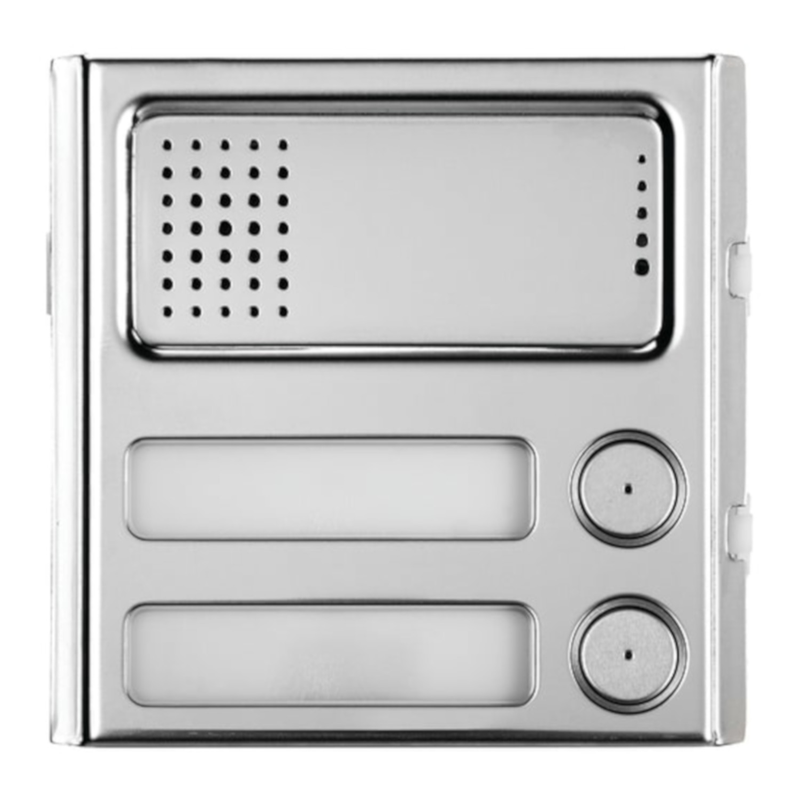

1 Sithesi Steel audio door station with 2 buttons code 1083/64: On a Sinthesi Steel module, it is equipped with speaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening a second driveway entrance. Input for local door opening button. Second input for open door detection contact. Dip switch for configuring module address, door opening mode from 2Voice extensions (free or after call). Possibility to program door opening time. Prepared for ILA hearing aid module and for voice and visual signaling module
- Speaker, microphone and 2 call buttons
- Ability to program door opening time
- Prepared for ILA hearing aid module and voice and visual signaling module

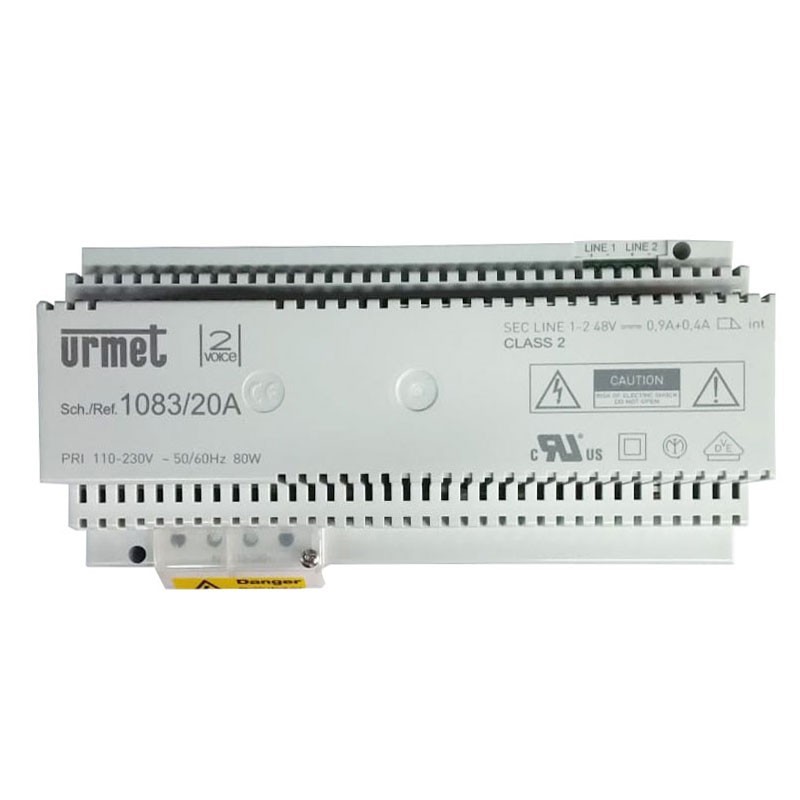

1 2Voice power supply unit code 1083/20A:
- Voltage: 110- 230 Vac
- Output voltage: 48V
- Frequency 50/60 Hz
- 10 Din modules
- Protection class 2
- For 2VOICE system

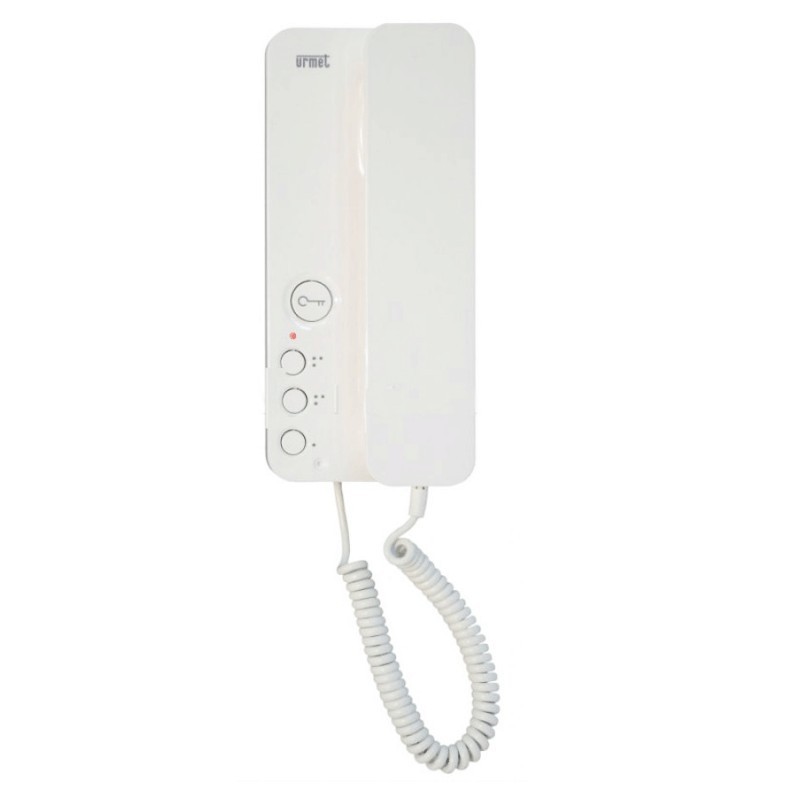

2 Miro intercoms for 2Voice system code 1183/5: Equipped with door opener button (backlit) and 3 additional buttons for additional functions (opening second driveway entrance, turning on stair lights, call to switchboard, intercom call, etc.). LEDs for signaling various functions: call active, MUTE function active, door open, automatic door opener active. It is equipped with an input for floor call signaling and an output for call repetition on external device (ringer, flashing light, etc.) The device allows you to choose from 5 different types of ringer for signaling incoming calls and for floor call; different cadence will allow you to clearly identify the origin of the call itself. It also allows you to adjust the loudness of the ringer volume and to enter the MUTE function to eliminate it momentarily. Size: (W x H x D): 90 x 220x 50 mm, Glossy white color.
Data sheet
- KIT: Intercom Kits
- Model: Two-family house
- System: 2 Voice Urmet
