Urmet Alpha System 2 Voice Audio/Video Basic Kit 1783/733
UTD 1783/733
8021156066285

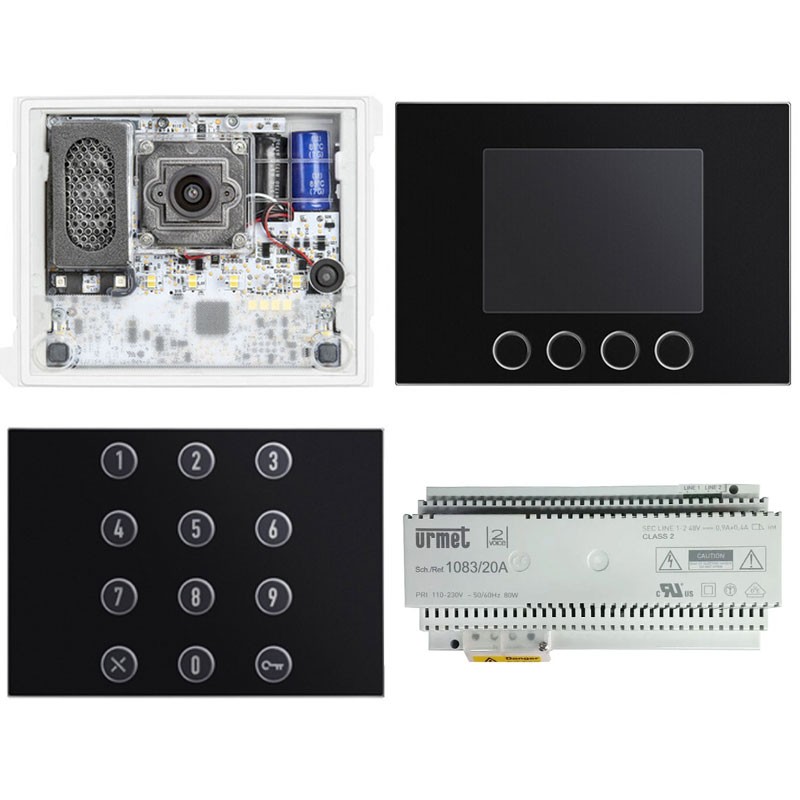

Urmet Alpha 2 Voice System Audio/Video Base Kit consisting of:
- 1 piece Audio/Video door station equipped with wide-angle camera, loudspeaker and microphone code 1083/48
- 1 piece Display module, Alpha, colour black code 1168/1
- 1 piece Door release module, Alpha, colour black code 1168/46
- 1 piece Power supply unit for 2Voice system code 1083/20A
This system is used for complex apartment block installations with numerous users, avoiding numerous modules with call buttons and too much masonry work.
€672.78
€672.78
Items Available: 78
€672.78
Buy it within and receive it from Friday, 19 December
Frequently bought together
Technical specifications of kit parts:

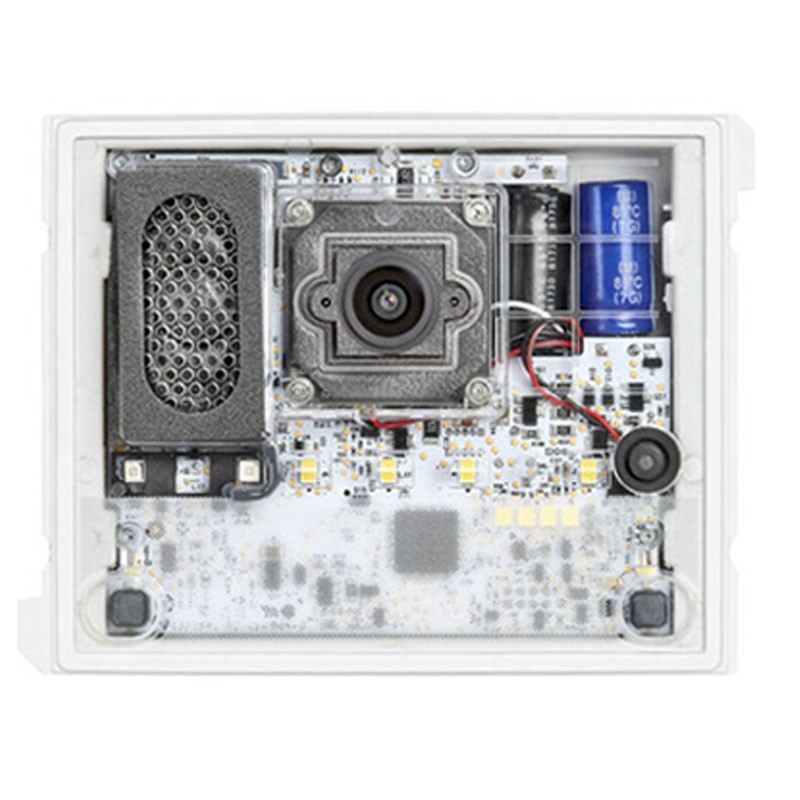

1 piece Audio/Video door station equipped with wide-angle camera, loudspeaker and microphone (code 1083/48):
- Light sensor for name tag illumination
- To be completed with faceplate (not supplied)
- Equipped with 2 call buttons
- Input for hall button for door opening and input for door open sensor
- Size: 1 module
- Audio video unit on Alpha button panel for 2Voice system is equipped with camera, loudspeaker and microphone
- System status signalling via 3 LEDs. Local programming or via smartphone/tablet/PC
- Management of 2 electric locks: pedestrian and driveway

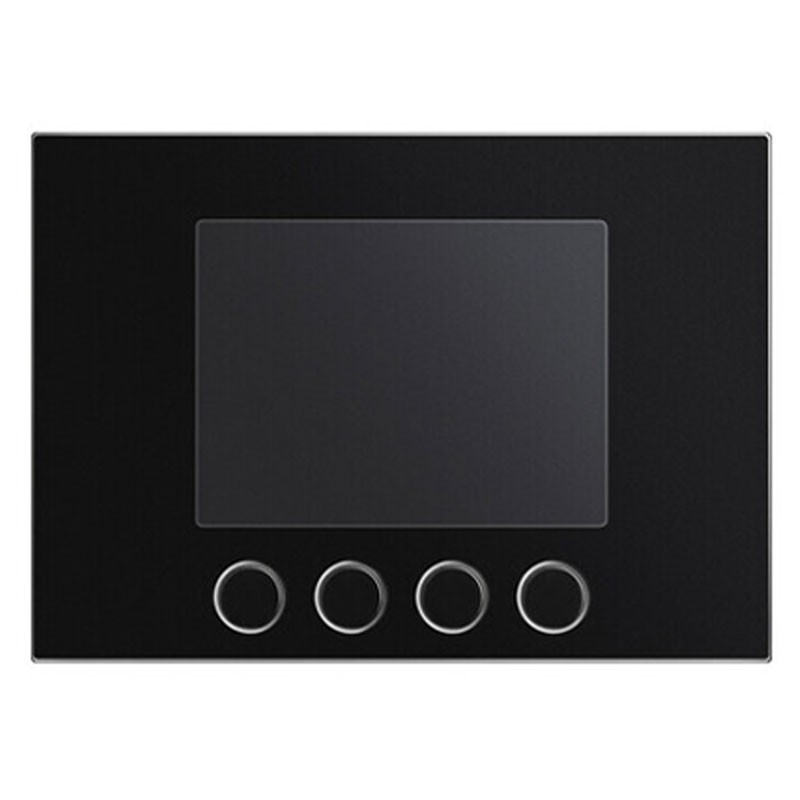

1 piece Display module, Alpha, colour black code 1168/1:
- 3.5 inch colour display, 320 x 240 pixels
- Three function keys with RGB backlighting
- Connection via flat cable supplied with frames
- With black thermoplastic front panel
- Dimensions 124/90 mm
- It is equipped with 4 selection buttons. Used together with numeric keypad module 1168/46 and an audio or audio/video door station to make up a digital call button panel
- Connection to other modules via supplied flat cable

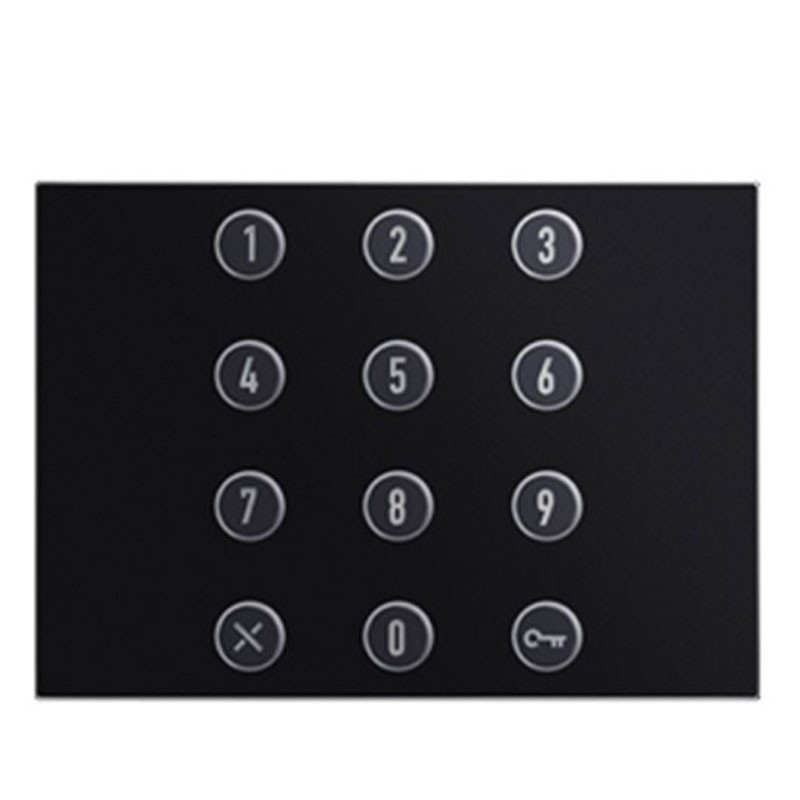

1 piece Alpha numeric keypad door opener module, colour black code 1168/46:
- Complete with screen-printed thermoplastic front panel
- The keys are equipped with LEDs for backlighting
- Dimensions 124 x 90 mm
- Used together with display module 1168/1 and an audio or audio/video door station to make up a digital call button panel
- Connection to other modules via supplied flat cable

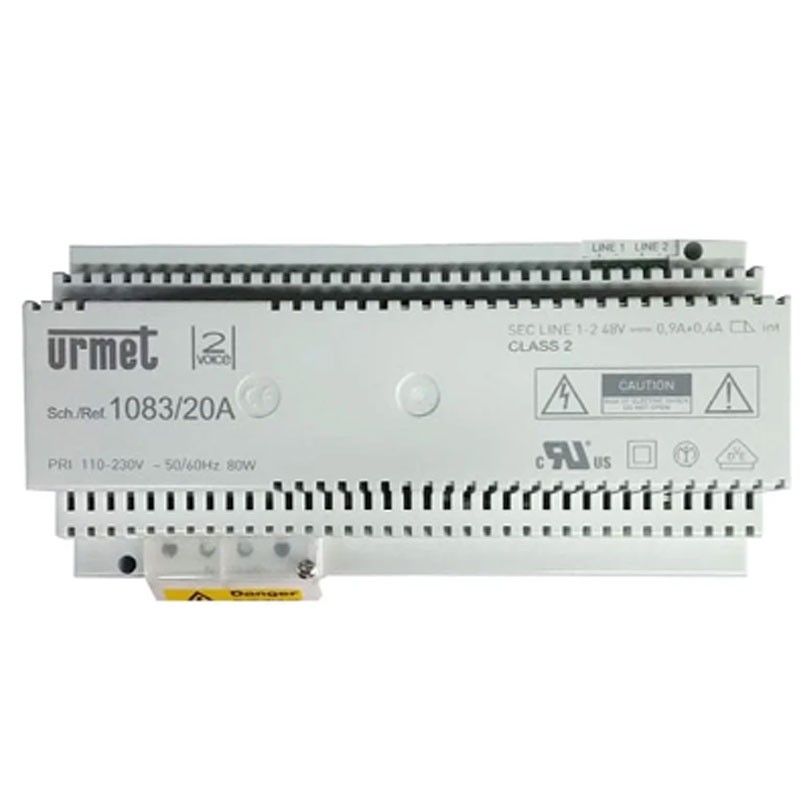

1 piece power supply unit for 2Voice system code 1083/20A:
- Voltage: 110- 230 Vac
- Output voltage: 48V
- Frequency 50/60 Hz
- 10 Din modules
- Protection class 2
- For 2VOICE system
Data sheet
- KIT: Video Intercom Basic Kits
- System: 2 Voice Urmet
