Urmet Alpha Audio System Base Kit 2 Voice 1783/723

Urmet
UTD 1783/723 8021156066261

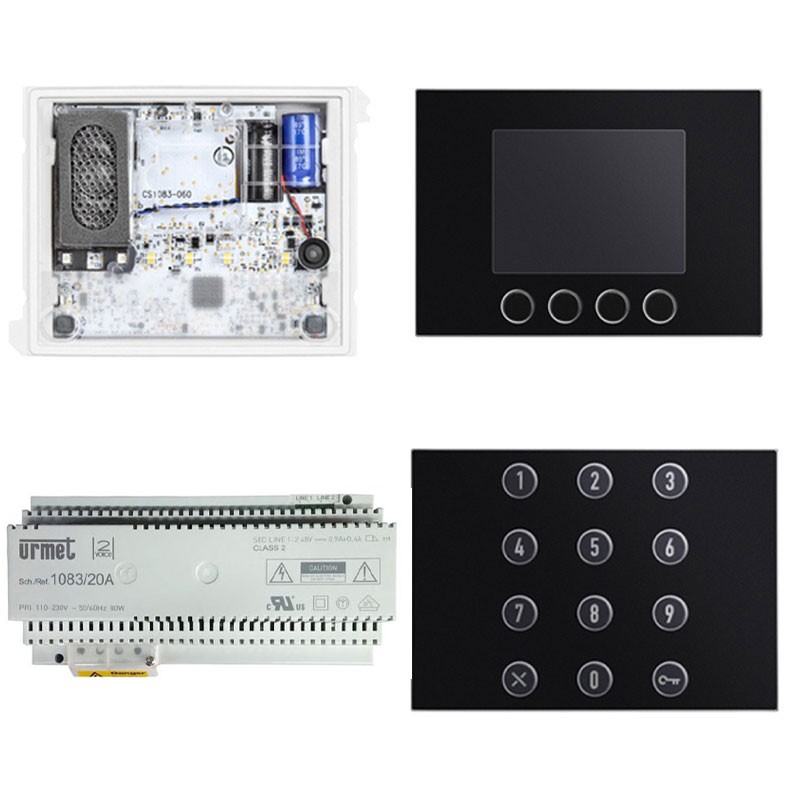

Urmet Alpha digital audio system basic kit composed of:



  • 1 piece audio-only intercom outdoor station (code 1083/38) equipped with speaker and microphone
  • 1 piece colour display module for digital repertory (user list) (code 1168/1)
  • 1 piece numeric keypad module (code 1168/46)
  • 1 piece 2Voice system power supply unit (code 1083/20A)



This system is used for complex condominium installations with numerous users, also avoids numerous modules with call buttons and too much masonry work. Expandable with additional accessory modules, recessed boxes, and frames to complete 2Voice common parts.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Urmet Alpha Audio System Base Kit 2 Voice 1783/723
€584.58
€584.58

€584.58
Tax included
Calculate shipping cost

€584.58

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Technical specifications of kit components:

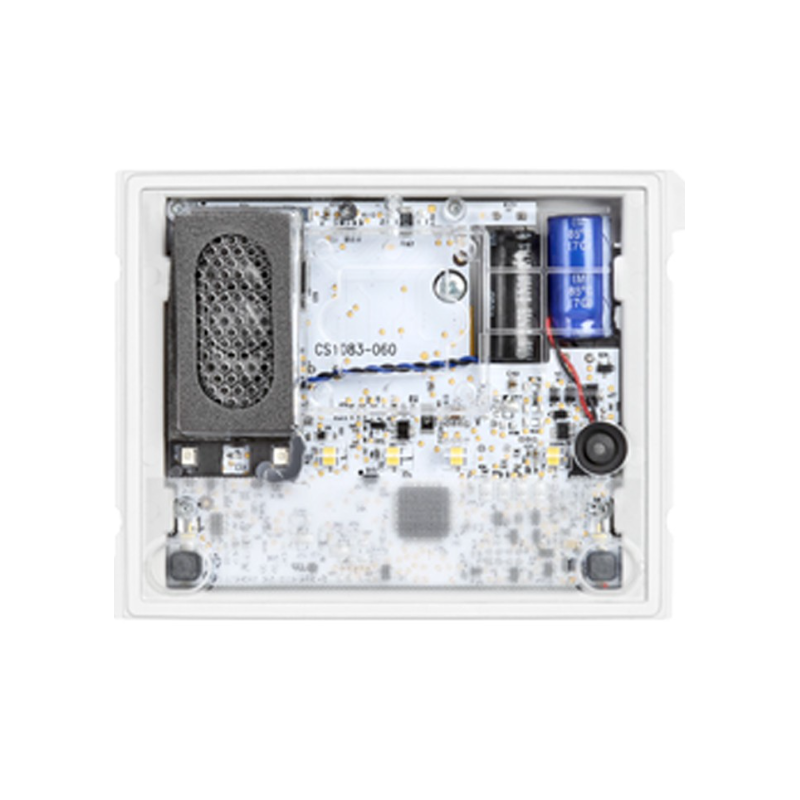

1 piece audio-only intercom outdoor station (code 1083/38) equipped with speaker and microphone:



  • Brightness sensor for name tag lighting.
  • To be completed with faceplate
  • Prepared for 2 call buttons
  • Input for hallway button for door opening
  • Size: 1 Alpha module
  • Equipped with loudspeaker and microphone
  • System status signaling via 3 LEDs
  • Local programming or via smartphone/tablet/PC
  • Management of 2 electric locks: pedestrian and driveway
  • System status signaling (DDA)

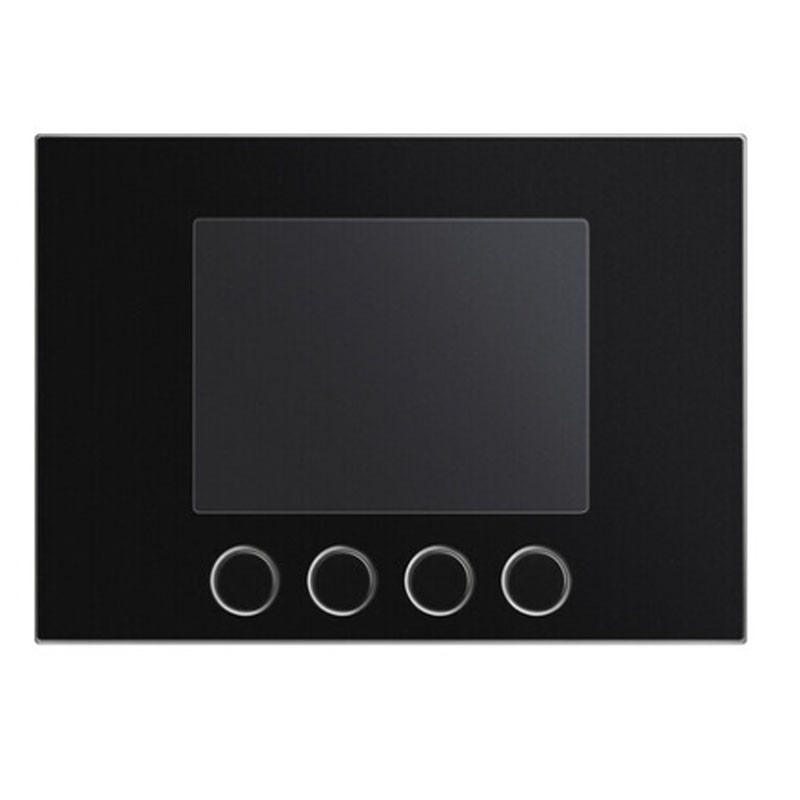

1 piece colour display module for digital directory (user list) (code 1168/1): Alpha module with color display for electronic directory of name book. Equipped with 4 selection buttons. It is used together with the 1168/46 numeric keypad module and an audio or audio/video door station to dial a digital call button panel.



  • Size 1 Alpha module
  • Black color
  • With 4 selection buttons

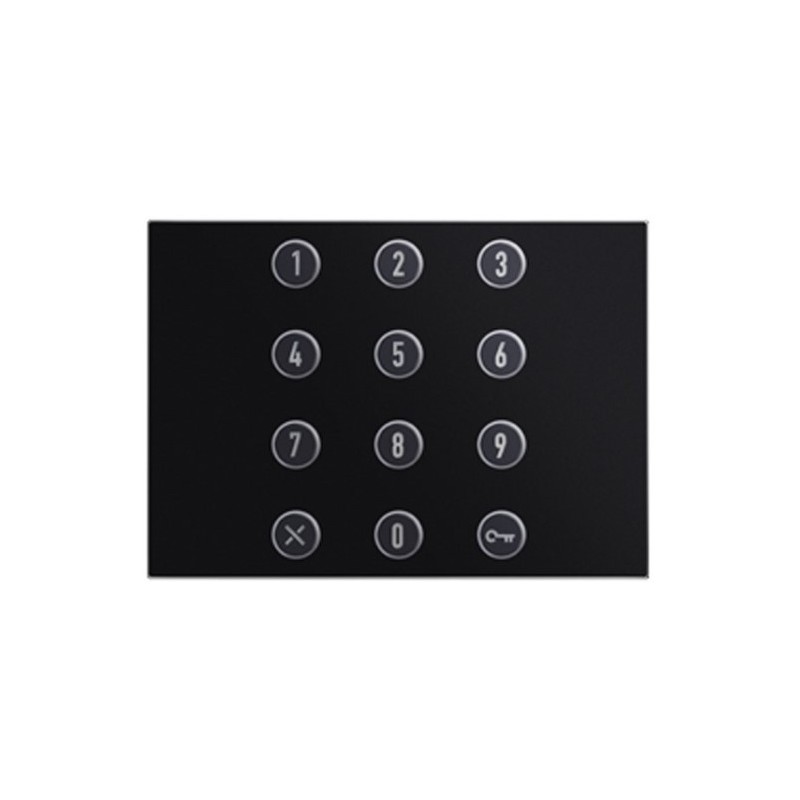

1 piece numeric keypad module (code 1168/46): Alpha numeric keypad module. It is used together with the 1168/1 display module and an audio or audio/video door station to dial a digital call button panel.



  • Size 1 Alpha module
  • Black color

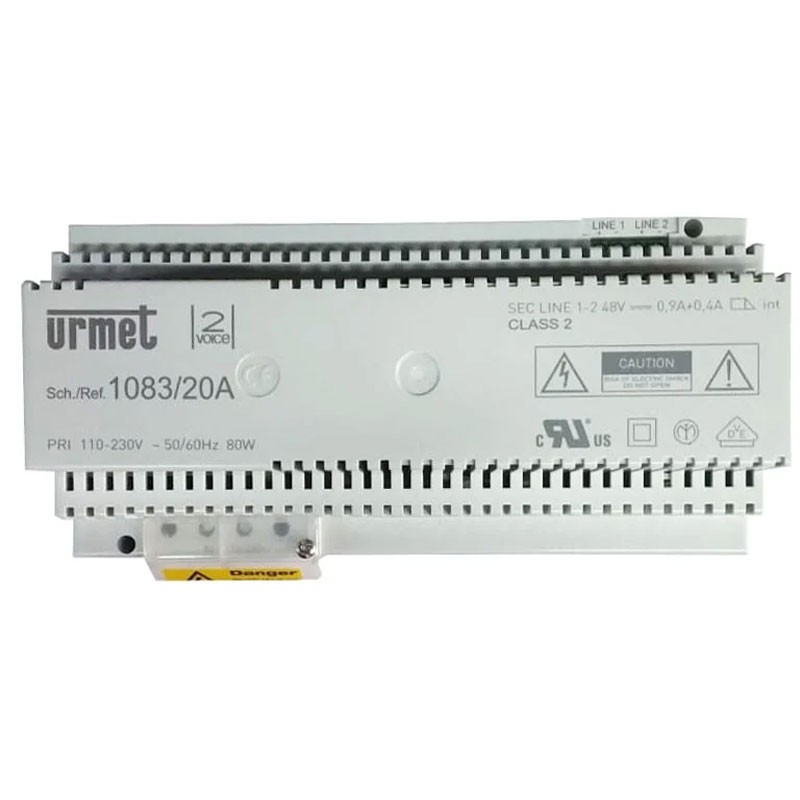

1 piece 2Voice system power supply (code 1083/20A):

  • Voltage: 110/230 Vac
  • Output voltage: 48V
  • Frequency: 50/60 Hz
  • 10 Din modules
  • Protection class 2
  • For 2VOICE system

Data sheet

KIT:
Intercom Base Kits
System:
2 Voice Urmet
