Urmet Alpha Audio System Base Kit 2 Voice 1183/622

Urmet
Urmet
UTD 1183/622 8021156066315

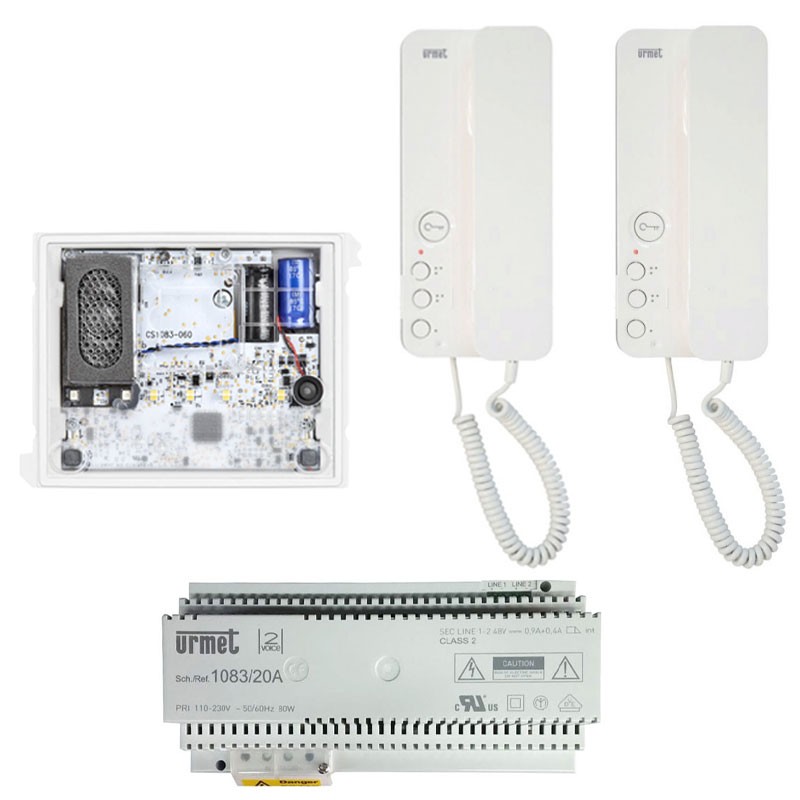

Basic System Kit Urmet Alpha Audio only 2 Voice system composed of:



  • 1 piece audio only door station (code 1083/38) equipped with speaker and microphone
  • 1 piece 2Voice system power supply unit (code 1083/20A)
  • 2 pieces Miro 2Voice intercoms with white handset (code 1183/5)



Allows a secondary Alpha audio push-button panel to be implemented in a 2Voice system.



Expandable with additional button modules and/or accessories, recessed boxes and frames to complete 2Voice common parts.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Urmet Alpha Audio System Base Kit 2 Voice 1183/622
€329.85
€329.85

€329.85
Tax included
Calculate shipping cost
Items Available: 103
Further availability of the manufacturer
€329.85

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Specifications of individual Kit components:

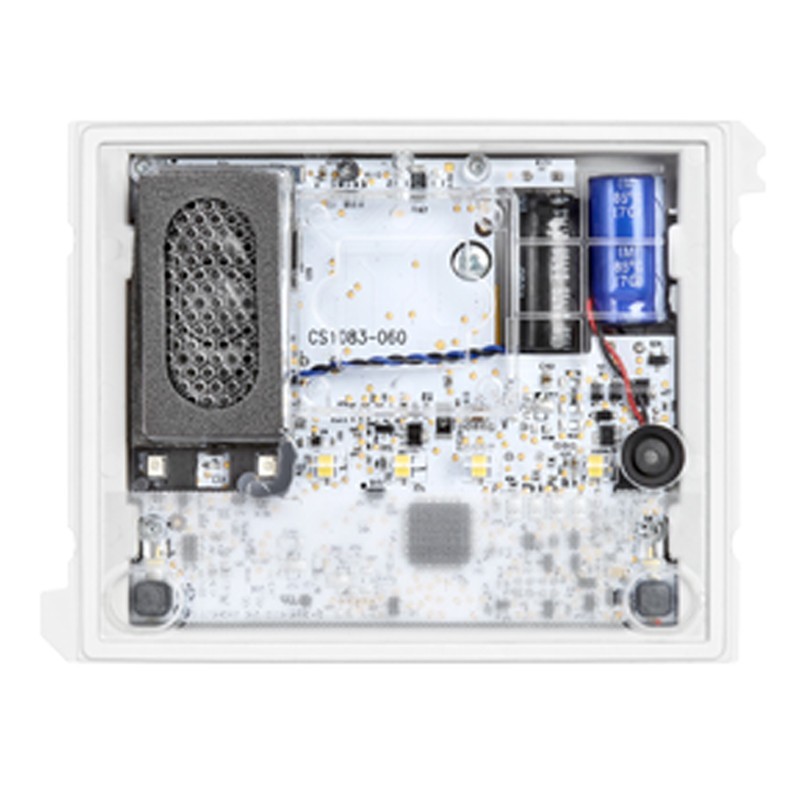

1 piece audio-only door station (code 1083/38) equipped with loudspeaker and microphone: Audio unit on Alpha button panel for 2Voice system. Equipped with loudspeaker and microphone. System status signaling via 3 LEDs. Local programming or via smartphone/tablet/PC. Management of 2 electric locks: pedestrian and driveway.



  • Light sensor for tag lighting.
  • To be completed with faceplate
  • Prepared for 2 call buttons
  • Input for hallway button for door opening
  • Size: 1 Alpha module

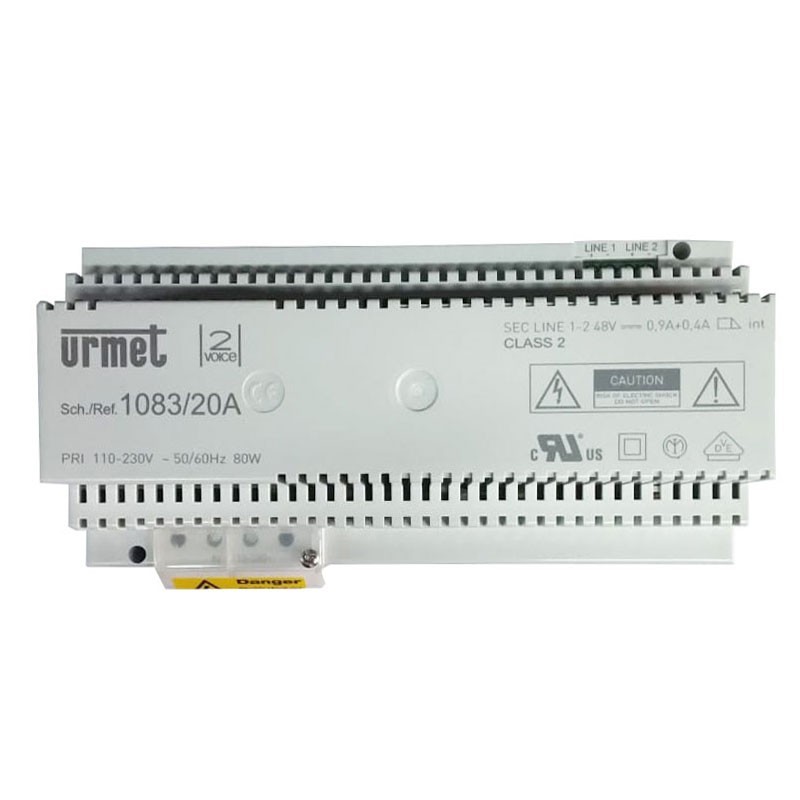

1 piece 2Voice system power supply (code 1083/20A):

  • Voltage: 110/230 Vac
  • Output voltage: 48V
  • Frequency 50/60 Hz
  • 10 Din modules
  • Protection class 2
  • For the 2VOICE system

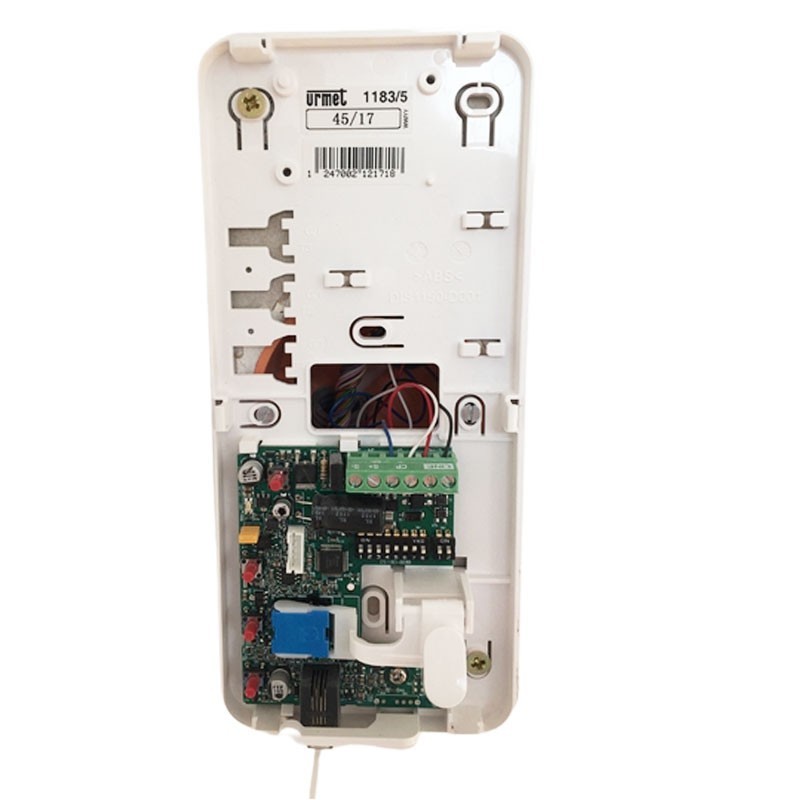

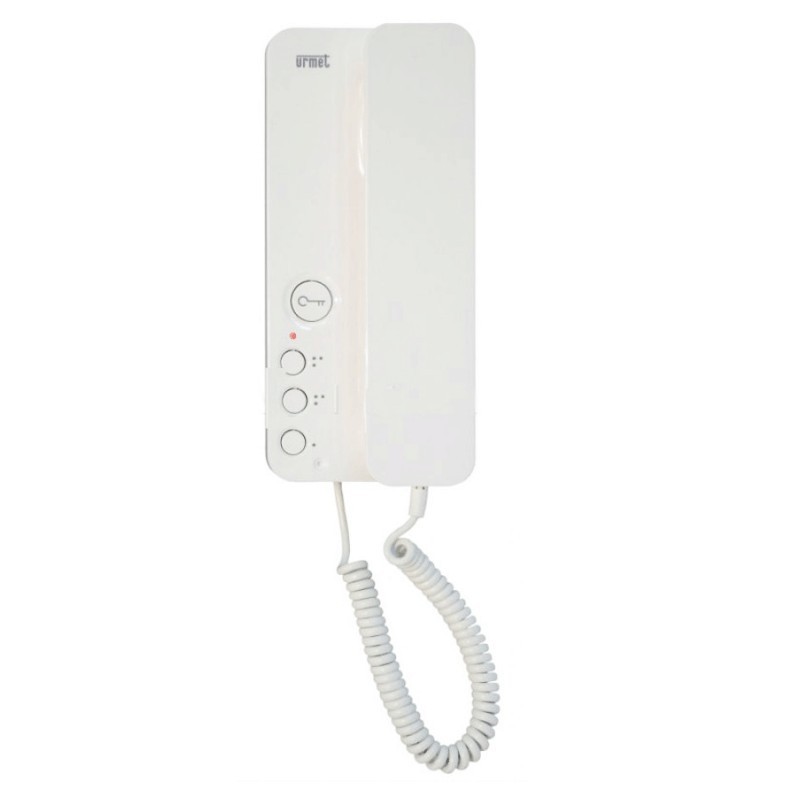

2-piece Miro 2Voice intercoms with white handset (code 1183/5): Equipped with door opener button (backlit) and 3 additional buttons for additional functions (open second driveway entrance, turn on stair lights, call to switchboard, intercom call, etc.). LEDs for signaling various functions: call active, MUTE function active, door open, automatic door opener active. It is equipped with an input for floor call signaling and an output for call repetition on external device (ringer, flashing light, etc.) The device allows you to choose from 5 different types of ringer for signaling incoming calls and for floor call; different cadence will allow you to clearly identify the origin of the call itself. It also allows you to adjust the loudness of the ringer volume and to enter the MUTE function to eliminate it momentarily.



  • Size: (W x H x D): 90 x 220 x 50 mm
  • Color: glossy white
  • System: 2Voice

There are no reviews

Data sheet

KIT:
Intercom Base Kits
Model:
Intercom function
System:
2 Voice Urmet
