Urmet 2VOICE two-family intercom kit with Mirò and Sinthesi 1183/602
UTD 1183/602
8021156057252

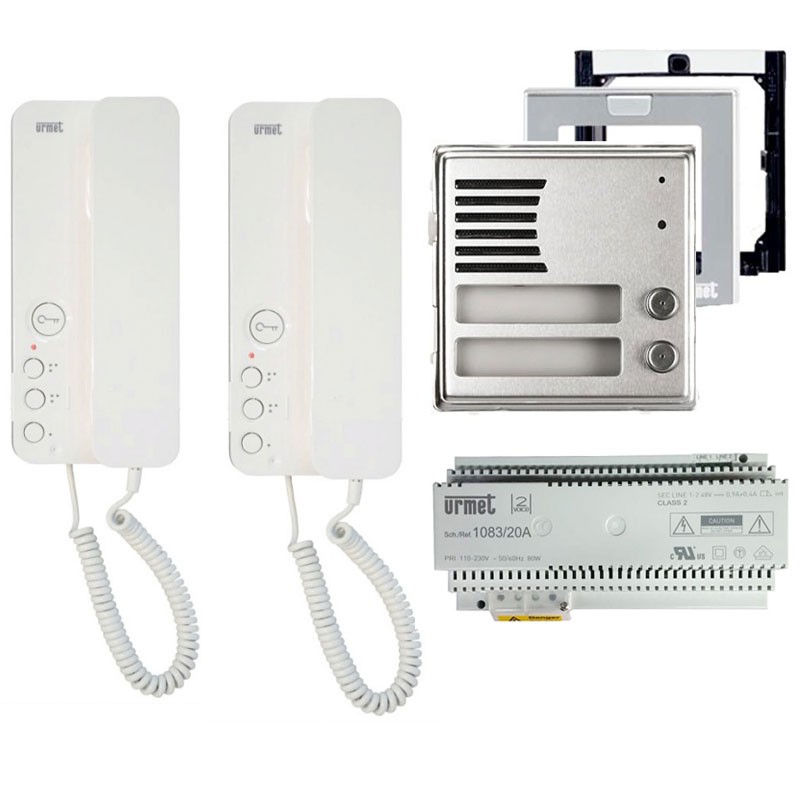

Urmet two-family intercom kit comprising:
- 1 Sinthesi S2 door entry panel including frame and one-module flush-mounting box code 1083/74
- 2 Mirò intercoms for 2 Voice system code 1183/5
- 1 2-wire 2voice system power supply unit code 1083/20A
€471.05
Items Available: 9
: 1
Frequently bought together
Technical specifications of kit parts:

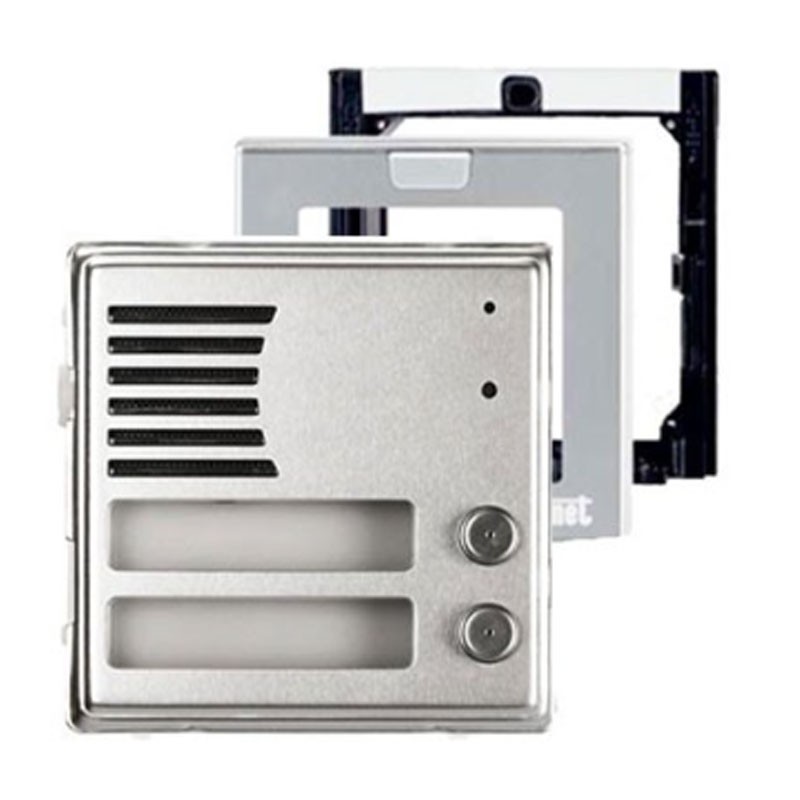

1x Sinthesi S2 external call button panel including frame and one-module flush-mounted box: On one Sinthesi S2 module, it is equipped with loudspeaker, microphone and 2 call buttons. Output for door opening; second output with relay contact for opening a second driveway entrance. Input for local door open button. Second input for open door detection contact. Dip switch for configuration of module address, door opening mode from 2VOICE extensions (free or after call). Possibility of programming door opening time. Prepared for ILA hearing aid module and for voice and visual signalling module. Dedicated to the 2Voice system. It is built on a 1-module Sinthesi S2 mechanism and features 2 call buttons.

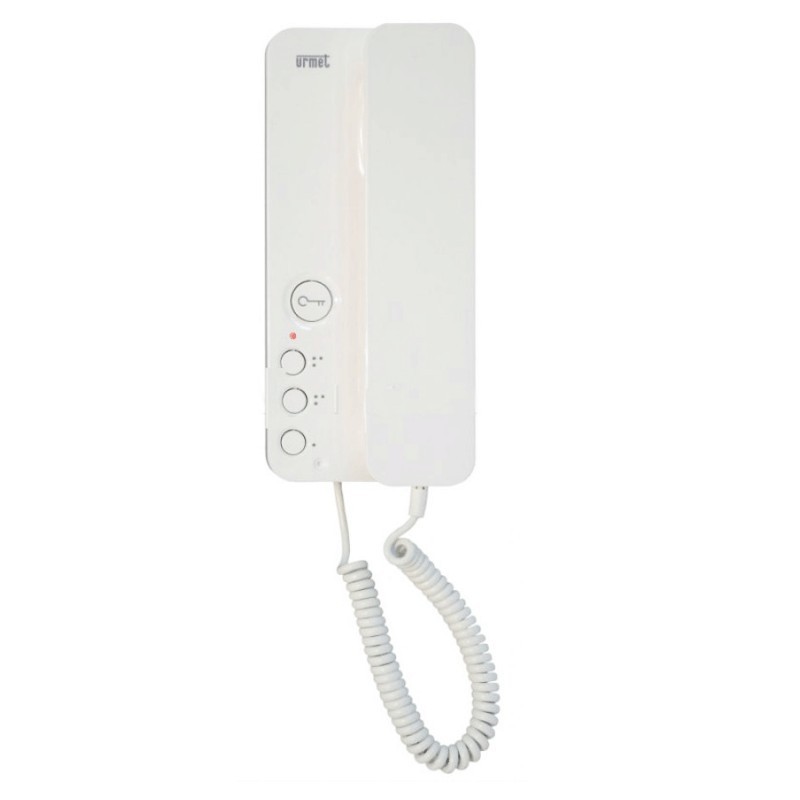

2x Mirò door phones 1183/5: Equipped with door opener button (backlit) and 3 additional buttons for additional functions (opening of second entrance driveway, switching on stair lights, call to switchboard, intercom call, etc). LEDs for signalling the various functions: call active, MUTE function active, door open, automatic door opener active. It is equipped with an input for floor call signalling and an output for call repetition on an external device (ringtone, flashing light, etc.) The device allows a choice of 5 different types of ringtone for signalling incoming calls and for the floor call; a different cadence will allow the origin of the call to be clearly identified. It also allows you to adjust the loudness of the ringer volume and to activate the MUTE function to delete the ringer momentarily. Dimensions: (W x H x D): 90 x 220 x 50 mm, Colour: glossy white, System: 2Voice.

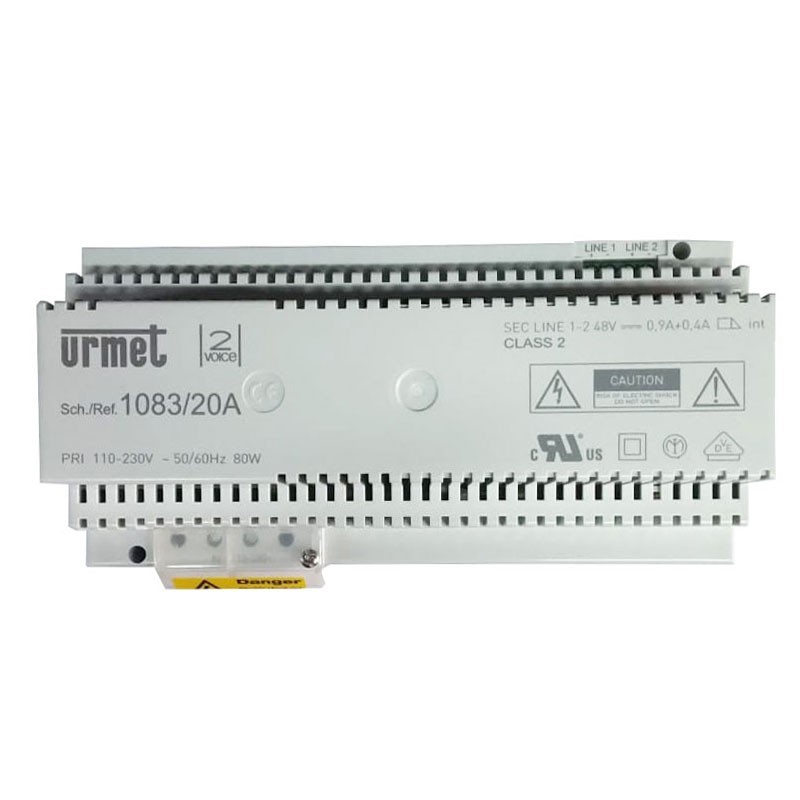

1x 2-wire system power supply (2voice) code 1083/20A:
- Voltage: 110/230 Vac
- Output voltage: 48V
- Frequency: 50/60 Hz
- 10-module DIN rail mounting
- Protection class 2
- For 2VOICE system
There are no reviews
Data sheet
- KIT: Intercom Kits
- Model: Two-family house
- System: 2 Voice Urmet
