Urmet single family intercom kit 2-wire Utopia and Mikra 1122/31
UTD 1122/31
8021156043569

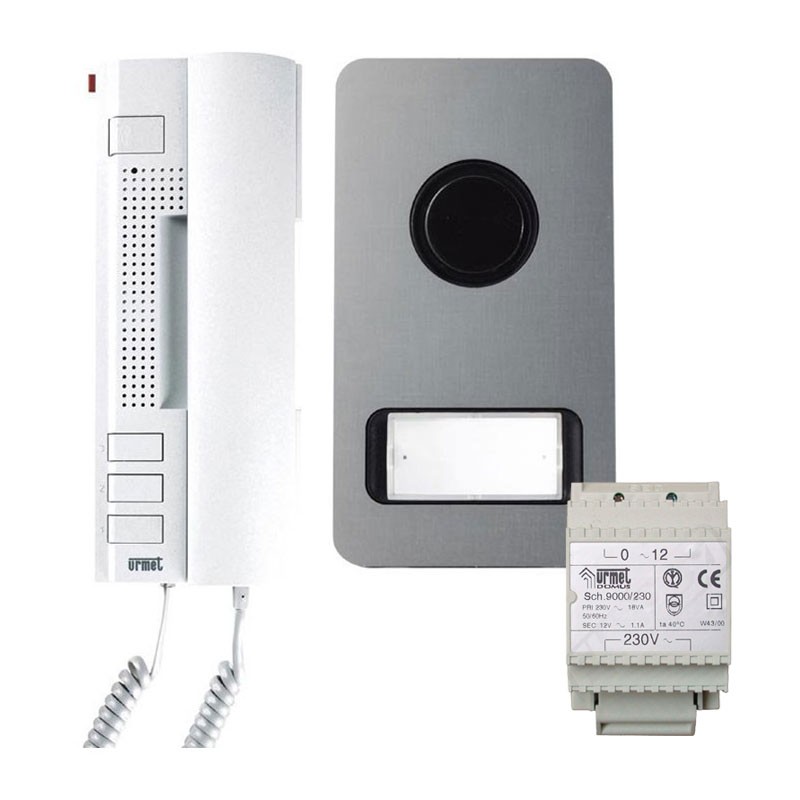

Single-family intercom kit, 2-wire system and composed of:

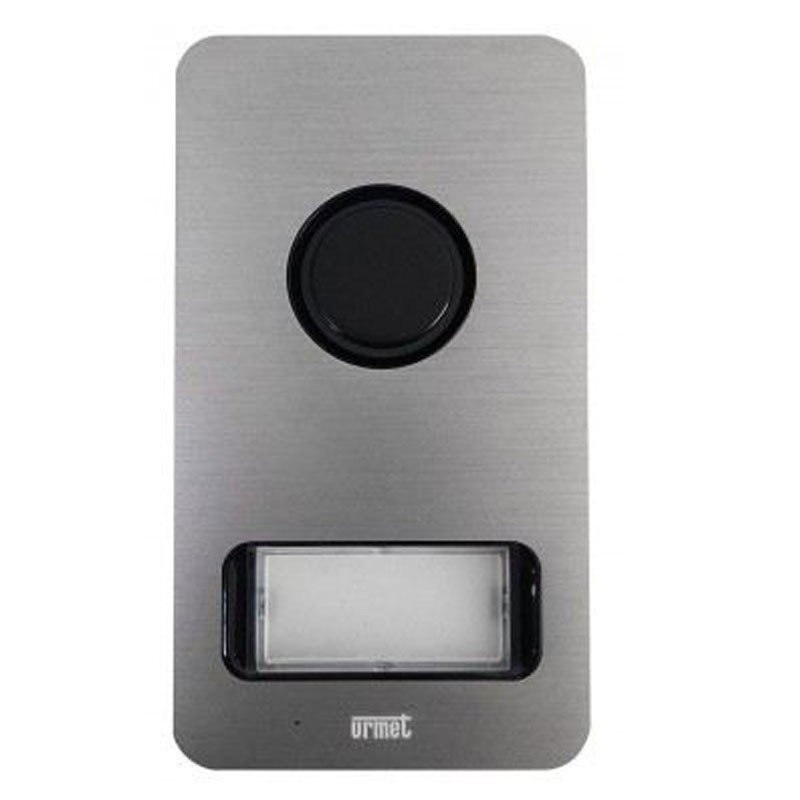

- 1 MIKRA 1 Pushbutton panel

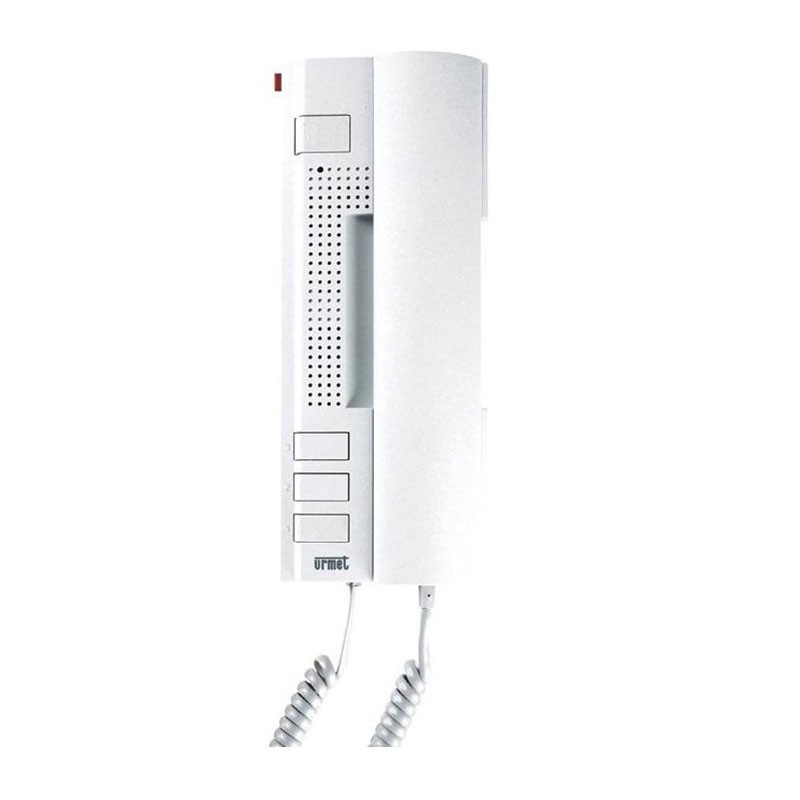

- 1 Utopia 1134 handset intercom with call volume adjustment and Mute

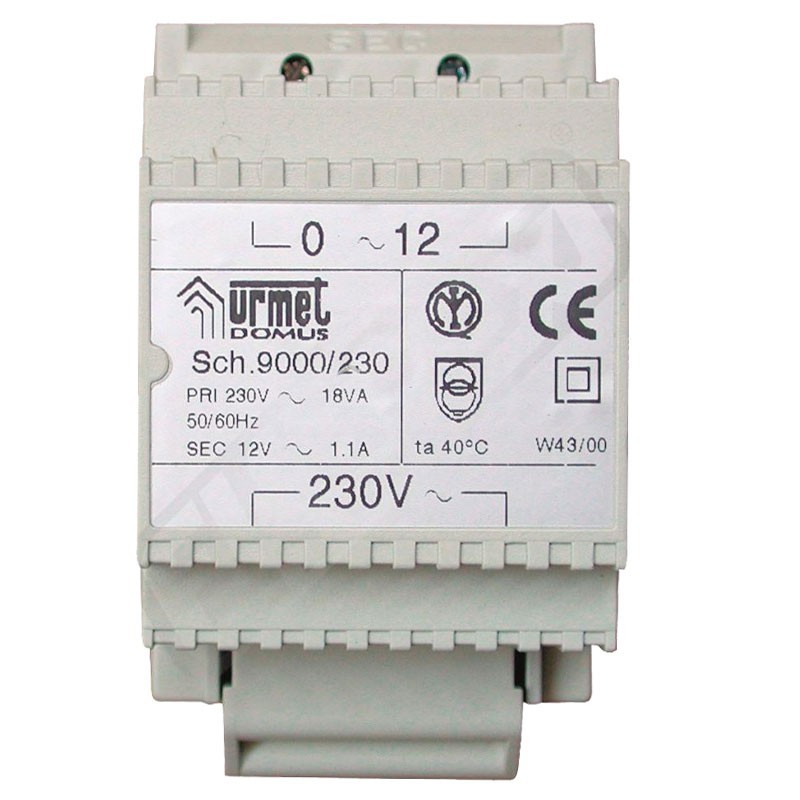

- 1 Transformer 12V 230V -12V 9000/230
Features:
- Ability to control a second electric gate without adding wires
- Possibility to choose the call melody
- Possibility to choose the conversation mode: hands-free or key pressed
- Full-duplex conversation
- Possibility to connect up to 5 intercoms in parallel (5 wires)
- Call volume adjustment with mute function
- Distance ma x 110 meters
- 12 Vac power supply
€106.68
Items Available: 99
: 16
Frequently bought together
The kit allows to control the opening of a second automatic gate, without adding anything, thanks to a relay contact on the outside operated by a second additional button on the intercom. Possibility to connect up to 4 intercoms in parallel.
The intercom is equipped with jumper to select one of the 2 available call melodies.
Features:
- Max distance between door station and intercom: 110 m
- System power supply: 12V AC
- Mains power supply: 230Vac 50Hz
- Hand control panel size: (H x W x D) 185 x 99 x 22 mm
- Name tag size. (H x W) 26 x 55mm
- Degree of protection: IP44
Data sheet
- KIT: Intercom Kits
- Model: Intercom function
- System: 2-Wire
Single-family house
