Urmet Two-Family Video Intercom Kit with MIKRA2 and 2 VOG5W 2Voice WI-FI White 1784/726
UTD 1784/726
8021156074440
Urmet video intercom two-family kit 2 Voice system consisting of:
- 1 Piece code 1784/2 two-family Video handset, Mikra2
- 2 Pieces code 1760/16 Wi-Fi hands-free video intercom VOG5W, white, 5" display
- 1 Piece code 1083/55 4-user 2Voice dispenser
- 1 Piece part number 1083/23 2Voice column power supply 6 DIN modules
- Works with Alexa
- Allows you to take advantage of all the features and accessories of the 2Voice system
- Ability to have up to 4 video door phones with simultaneous calling and make intercom calls to other video door phones
- Kit provides call forwarding feature to smartphone via Wi-Fi on board the video door phone
- 2Voice System
- Up to 4 monitors in parallel
- Up to 6 external push-button panels
- Voice and gesture commands
- Dual pedestrian and driveway lock management
- Up to 400 meters between indoor and outdoor station
- Possibility also to add Urmet Comfort 2 voice intercom 1183/5
With the kit you save compared to individually purchased items
€923.79
Items Available: 7
Frequently bought together
Specifications of kit parts:

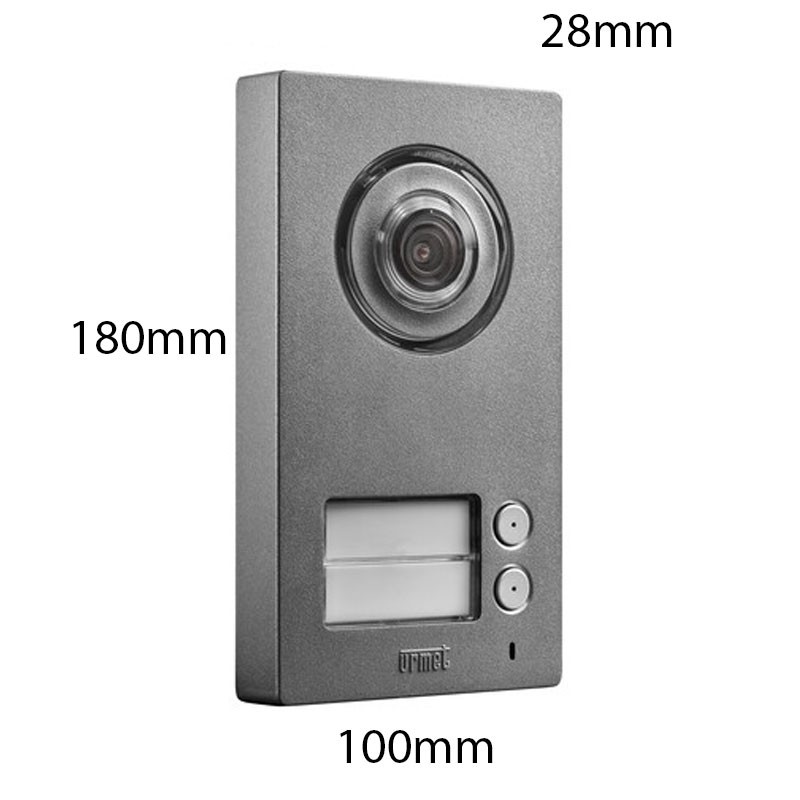

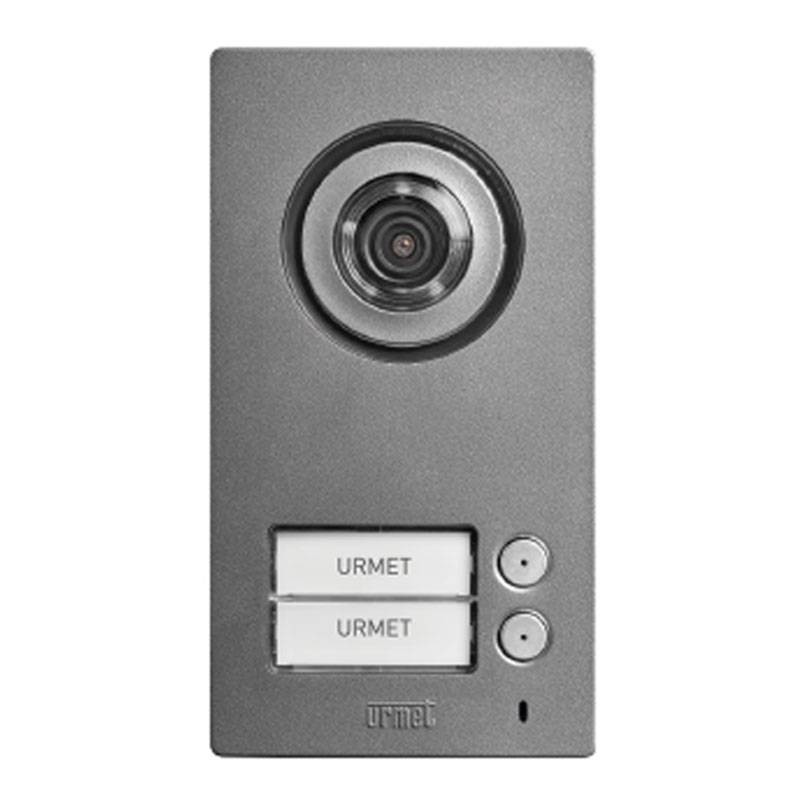

Urmet Mikra 2 Voice 2-Key Pushbutton Panel for 1784/2 two-family kit:
- Monolithic Zamak handset with two call buttons
- IP55 degree of protection
- Surface wall mounting with the possibility of flush mounting with accessory 1723/50
- Dimensions (H x W x D) 180 x 100 x 28 mm
- Camera with wide viewing angle 110° horizontal - 92° vertical
- Control for 2 entrances (pedestrian and driveway).

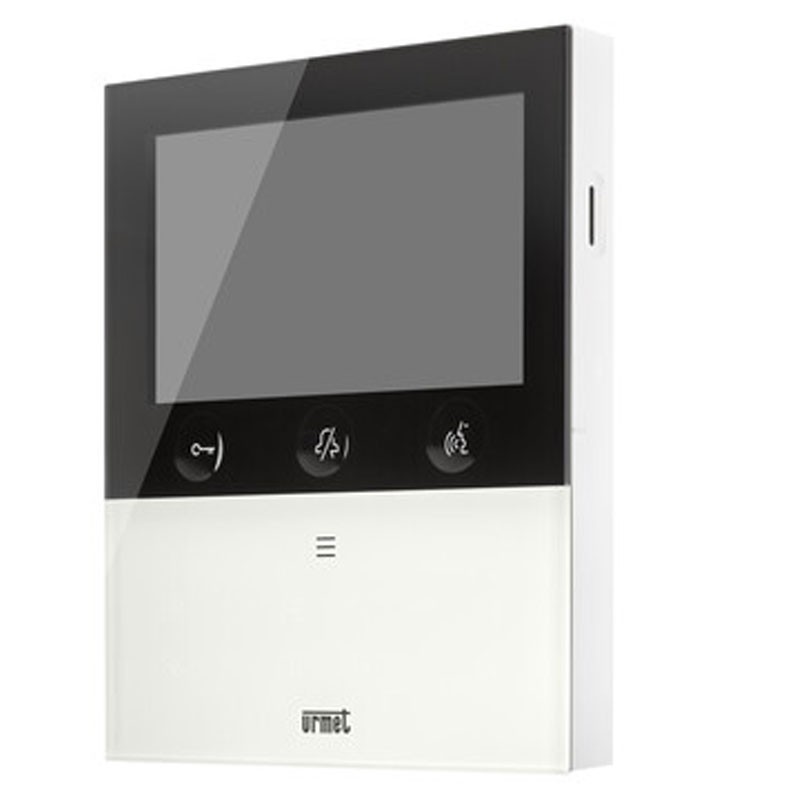

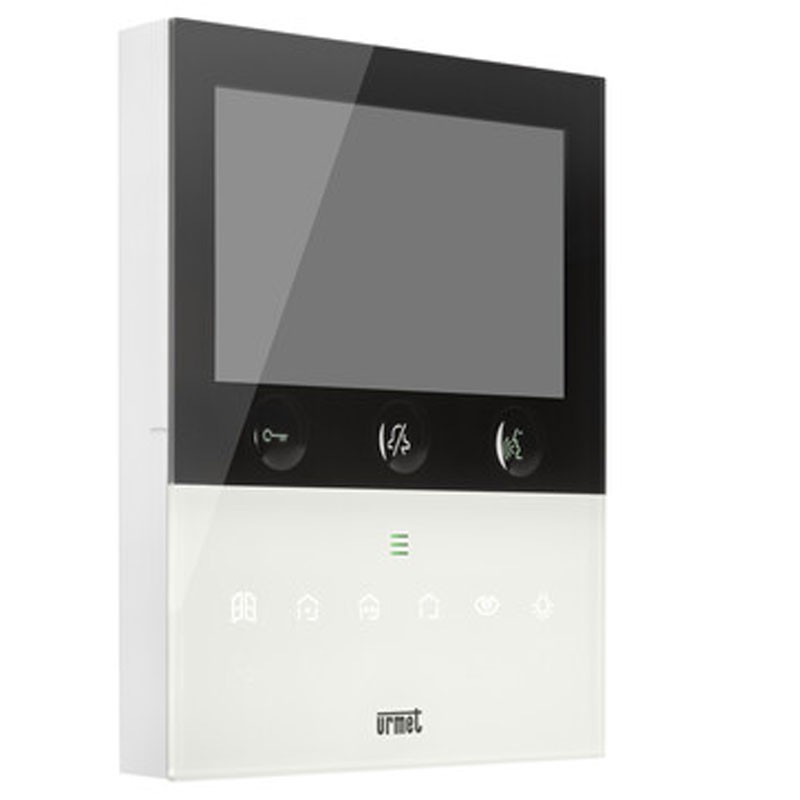

Handsfree video Intercom Urmet VOG5W WIFI 5 Inch 2Voice White 1760/16:
- Wall-mounted or table-top
- Display 5 - 800 x 480 px resolution
- Soft touch buttons with dynamic management
- IR sensor for control through gestures
- Voice commands32 intercom calls32 additional activations8 Yokis radio commands
- Emergency call on switchboard and Urmet CallMe app
Advantages:
- Hands-free videophone with 5" color display in 16:9 format and glass front panel
- Equipped with Wi-Fi for call transfer to smartphone
- Soft touch buttons with contextual appearance
- Equipped with IR sensor for touchless mode commands using hand swipe
- Allows voice commands for most functions
- Compatible with Alexa voice assistant
- For voice commands, both proprietary and using Alexa, an internet connection via Wi-Fi is required
- In case of emergency, panic call can also be transferred to smartphone and enable two-way audio conversation with the person who sent the call for help
- On-board Yokis radio transmitter for smart home management: up to 8 commands, 2 of which can be activated directly using the appropriate buttons
- Door openers programmable on a daily/weekly basis
- Input for panic call on switchboard or smartphone
- In case of absence, video memory can be activated for received video intercom calls
- Embossed reference mark for visually impaired persons on the side of the monitor
- MUTE function with both traditional and 8-hour pre-set self-reset and ON-OFF programming on a daily basis
- Allows for 32 intercom calls to other apartment stations and 32 additional activations of auxiliary services
- Allows for auto insertion on the outdoor button panel and display of other control cameras on the 2Voice system
- Automatic door opener on call (doctor function) with daily programming
- Call buttons to switchboard and staircase lights on
- Yokis 8-channel on-board radio transmitter for as many home automation commands or scenarios
- Ringtones selectable from 5 possible
- Floor call input, output for call repeat on an external ringer, and two outputs for as many activations
- Tactile recognition for the blind for answer and door opening buttons
- Equipped with aid for the hearing impaired
- Glass front panel. White color
Features:
- 5" TFT display 800 x 480 pixel resolution
- Power consumption at rest: 3 mA
- Max consumption: 160 mA
- Max switchable current and voltage on outputs 50 mA 24Vdc/Ac
- Wi-Fi 2.4 GHz
- 3 operation modes
- Mounting on 503 or round 60mm diameter box
- Operating temperature: -5° +50° C

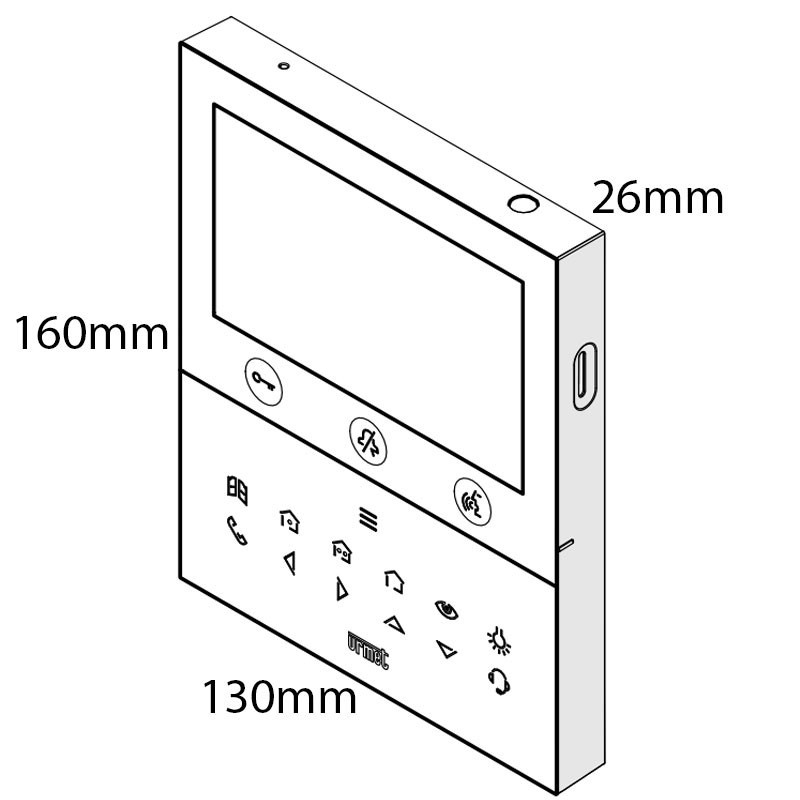

- Dimensions: 160 x 130 x 26 mm

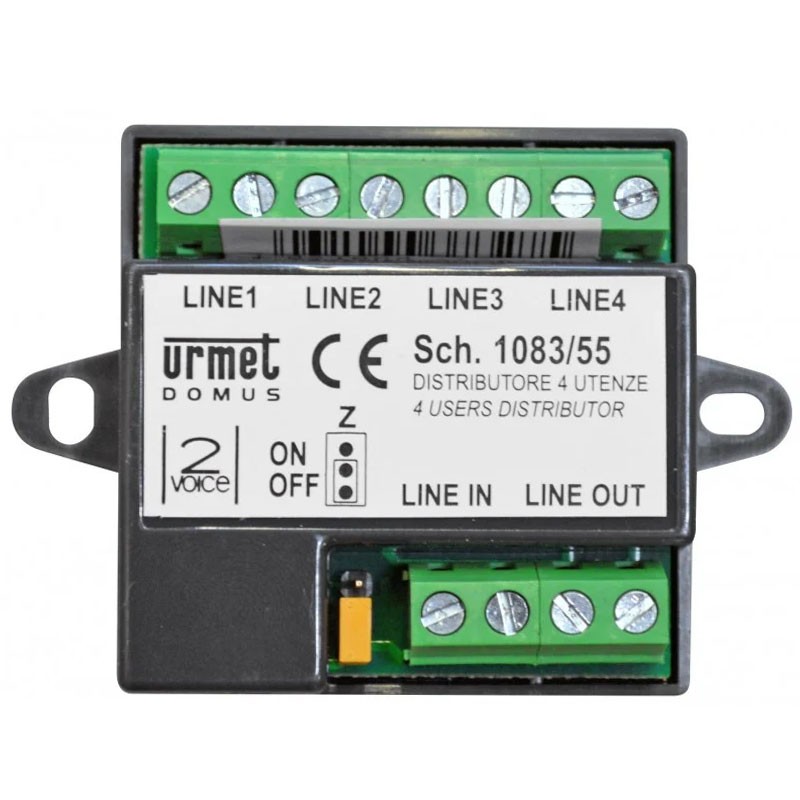

Urmet 2VOICE 4-user distributor 1083/55:
- Urmet 2VOICE 4-user distributor. Connection for input bus, output bus and 4 apartment branches. Equipped with short-circuit protection on outputs. Dimensions 45 x 45 x 16 mm (WxHxD).

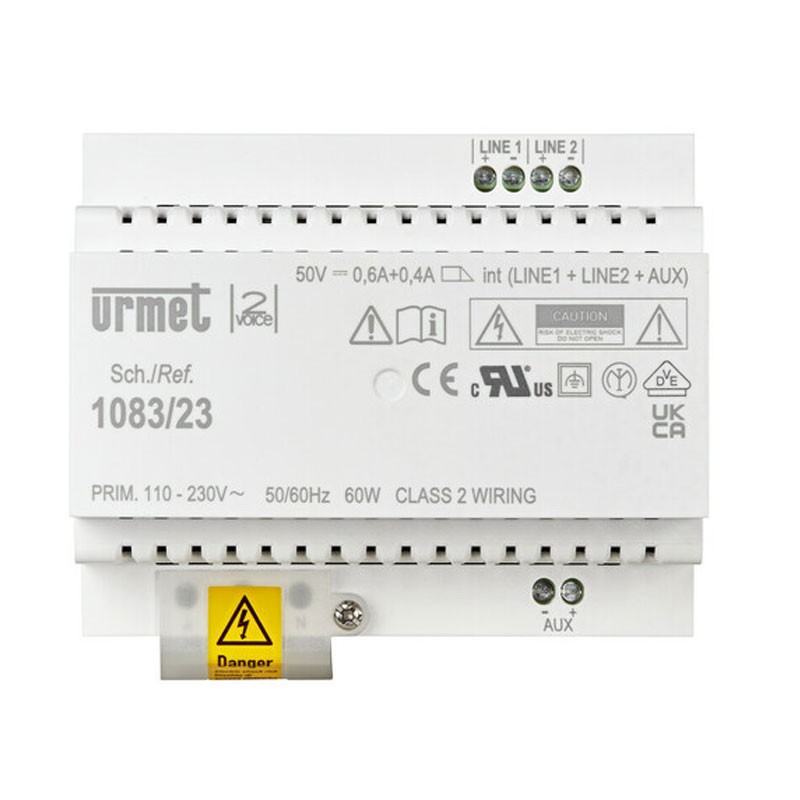

Compact column feeder for 2Voice 1083/23 system:
- Column power supply for 2Voice systems.
- DIN rail mounting (4 modules)
- Power supply: 110-230 Vac 50-60Hz
- Output: 48 Vdc
- Dimensions: 108 x 90 x 60 mm
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2 Voice Urmet
- WIFI: Yes
Two-family house
