Urmet Two-Family Video Kit with MIKRA2 and 2 VOG5 2Voice white 1784/782

Urmet
Urmet
UTD 1784/782 8021156073733

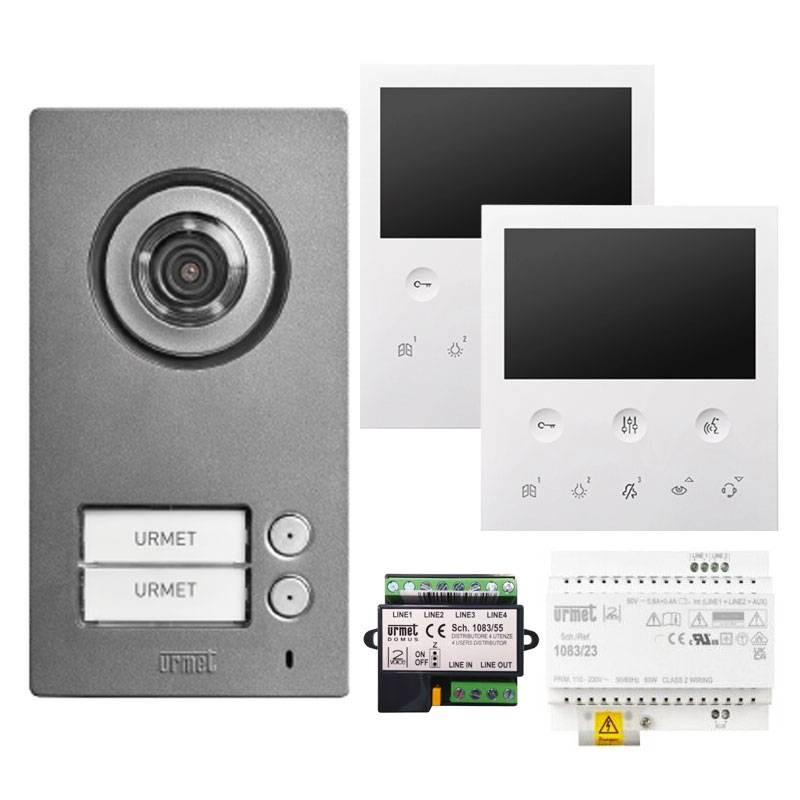

Urmet Two-Family Video Kit consisting of:



  • 1 Piece code 1784/2 Video duplex handset, Mikra2
  • 2 Pieces code 1760/6 Hands-free video intercom VOG5, white, 5" display
  • 1 Piece part no. 1083/55 4-user 2Voice dispenser
  • 1 Piece part number 1083/23 2Voice column power supply 6 DIN modules




Features:

  • 2Voice system
  • Intercom calling, floor calling and call repeating
  • Up to 4 monitors in parallel
  • Up to 6 external push-button panels
  • Dual pedestrian and driveway lock management
  • Up to 400 meters between door station and indoor station
  • CallMe ready function: Allows a video door phone call to be forwarded to smartphones and tablets through The CallMe app with the addition of the 1083/58A device to be purchased separately.
  • Possibility to also add intercom 2 Voice Confort code 1183/5
  • The VOG5 monitor allows you to control 2 scenarios thanks to the integrated Yokis technology
With the kit you save compared to individually purchased items
Do you have questions about this product or did you not find what you were looking for? Ask us!
Urmet Two-Family Video Kit with MIKRA2 and 2 VOG5 2Voice white 1784/782
€728.39
€728.39

€728.39
Tax included
Calculate shipping cost
Items Available: 12
Further availability of the manufacturer
€728.39

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Specifications of individual kit components:

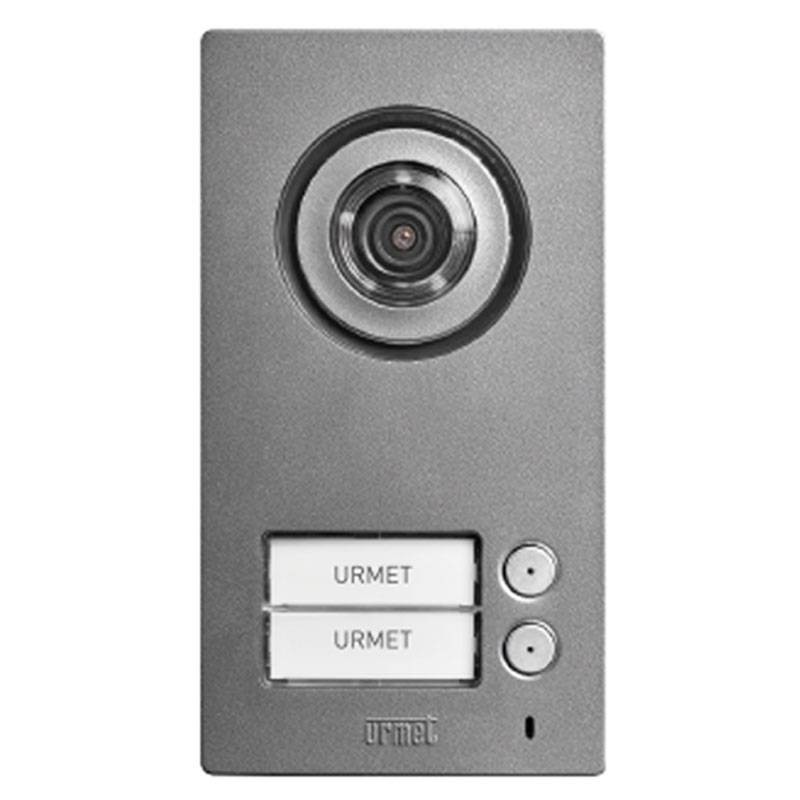

Urmet Mikra 2 Voice 2-Key Pushbutton Panel for 1784/2 duplex kit:

  • Monolithic Zamak handset with two call buttons
  • IP55 degree of protection
  • Surface wall mounting with the possibility of flush mounting with accessory 1723/50

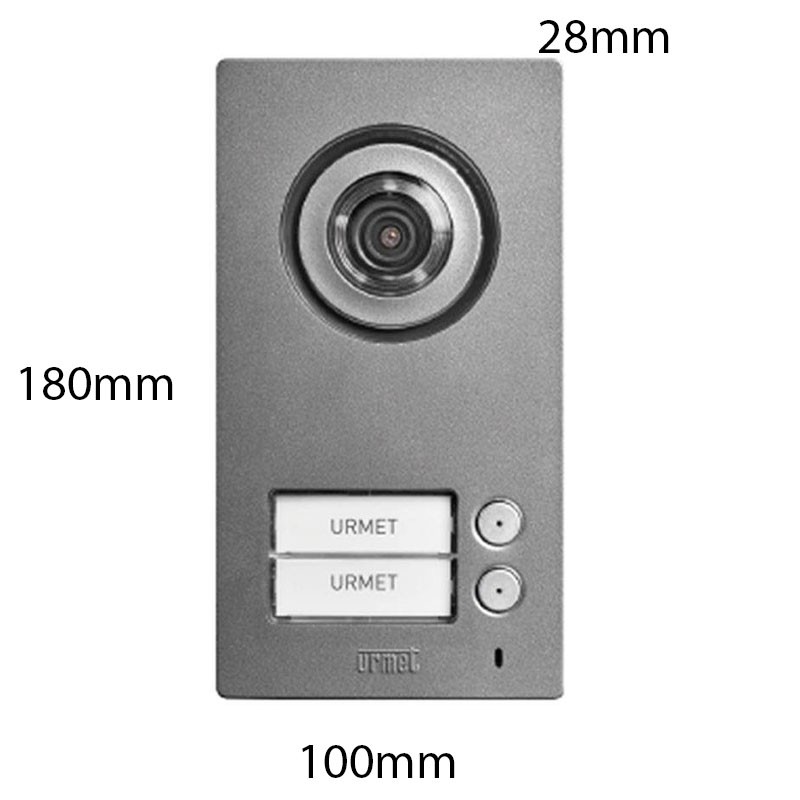

  • Dimensions (H x W x D) 180 x 100 x 28 mm
  • Camera with wide viewing angle 110° horizontal - 92° vertical
  • Control for 2 entrances (pedestrian and driveway)

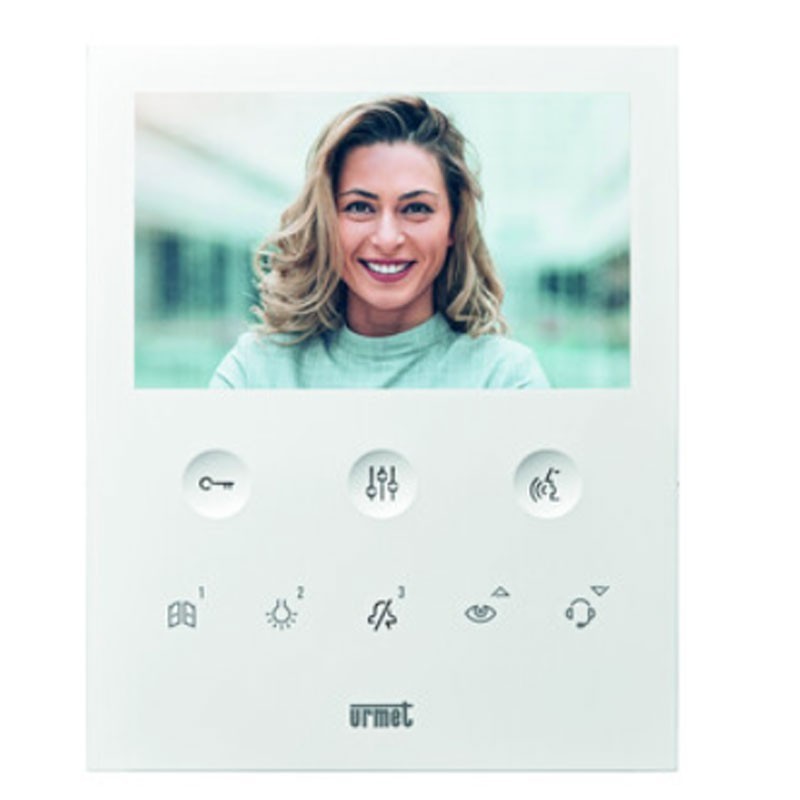

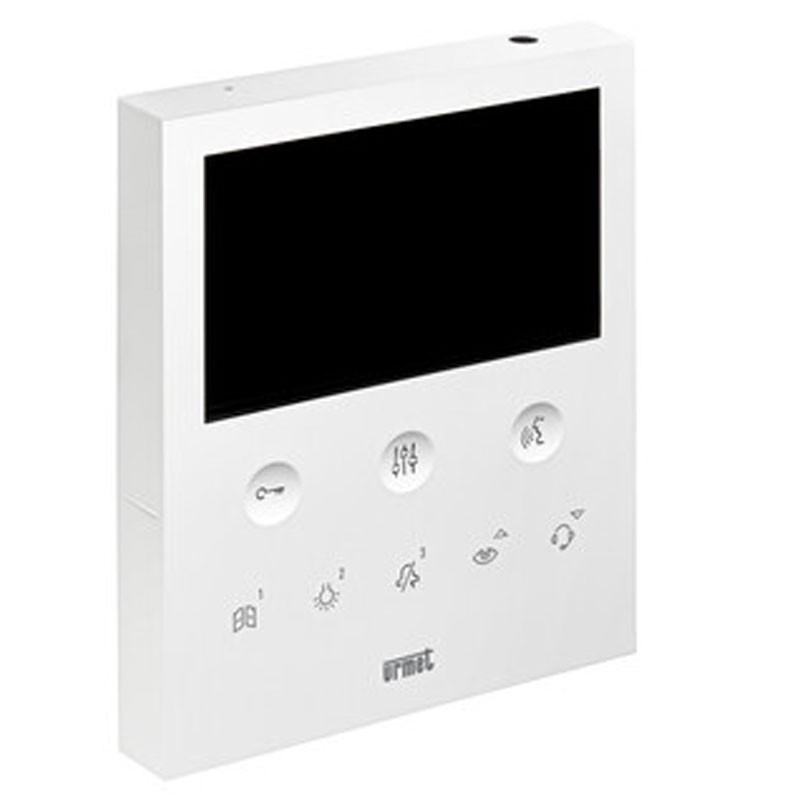

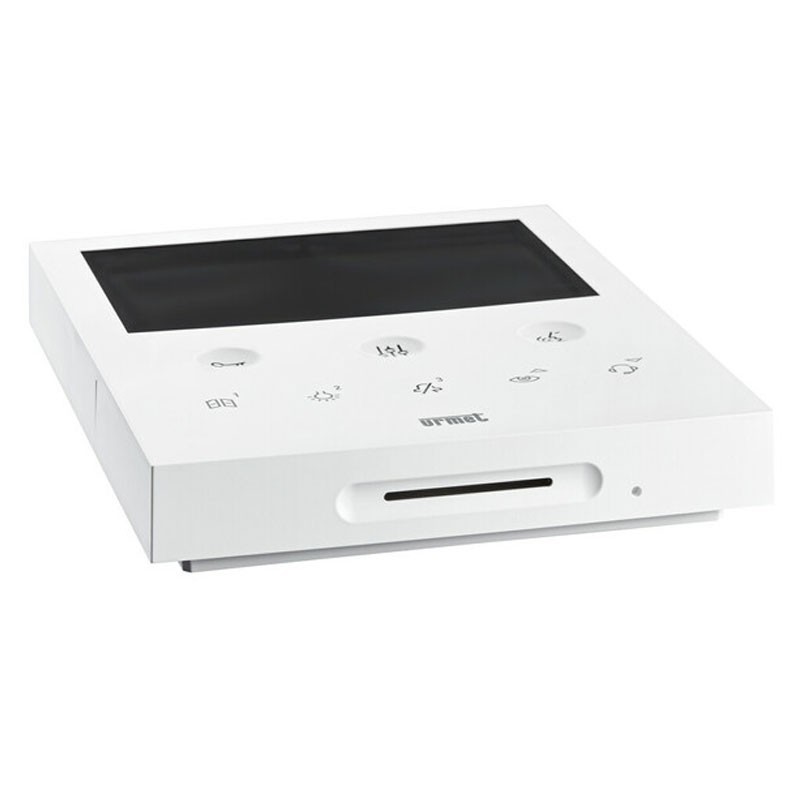

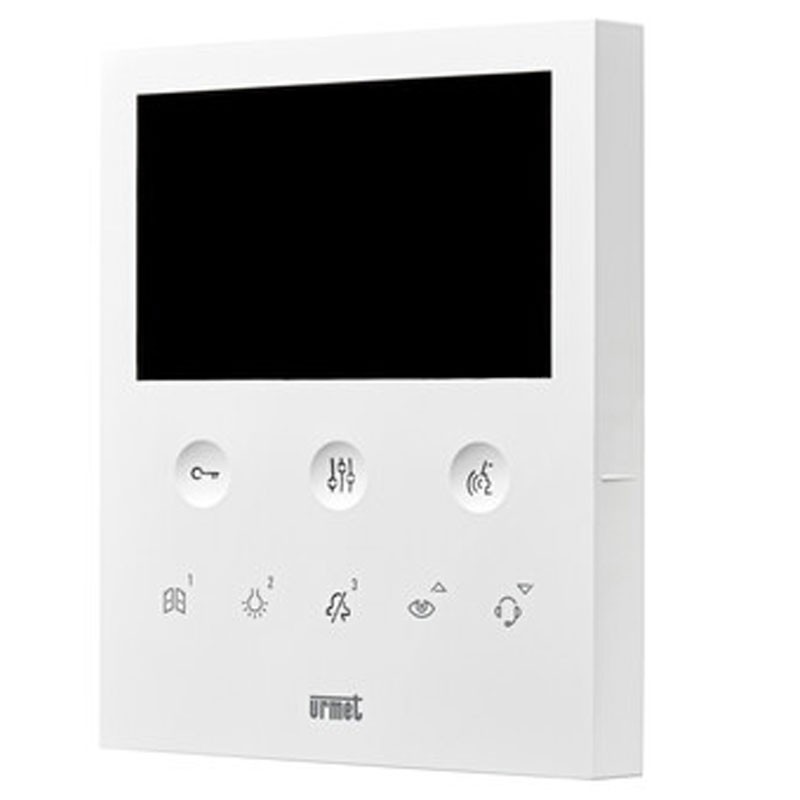

Urmet VOG5 hands-free video intercom:

  • 2Voice system
  • Color White
  • Wall or table-top mounting
  • Display 5 - 800 x 480 px resolution
  • Soft touch buttons
  • IR sensor for control through gestures
  • Power consumption at rest: 3 mA
  • Max. consumption: 160 mA
  • Mounting on 503 box or 60mm diameter round box
  • Operating temperature: -5° +50° C

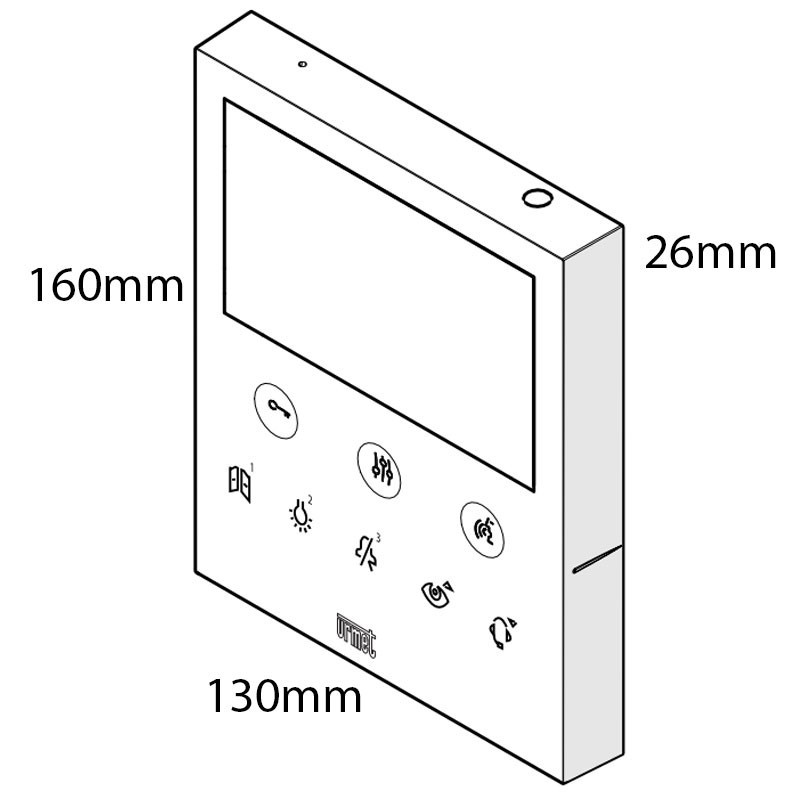

  • Dimensions: 160 x 130 x 26 mm



Advantages:

  • Hands-free videophone with 5" color display in 16:9 format
  • Soft touch buttons
  • Equipped with IR sensor for touch-free operation using hand-over-hand operation
  • MUTE function both traditional and with 8-hour pre-set self-reset
  • Allows 3 intercom calls to other indoor stations
  • Allows for auto insertion on external button panel and display of other control cameras on 2Voice system
  • Automatic door opener function on call (doctor function)
  • Call buttons to switchboard and staircase lights on
  • Ringtones selectable from 5 possible
  • Floor call input and output for call repeat on an external ringtone
  • Tactile recognition for the blind for answer and door opening buttons
  • Equipped with aid for the hearing impaired
  • Plastic front panel in white color

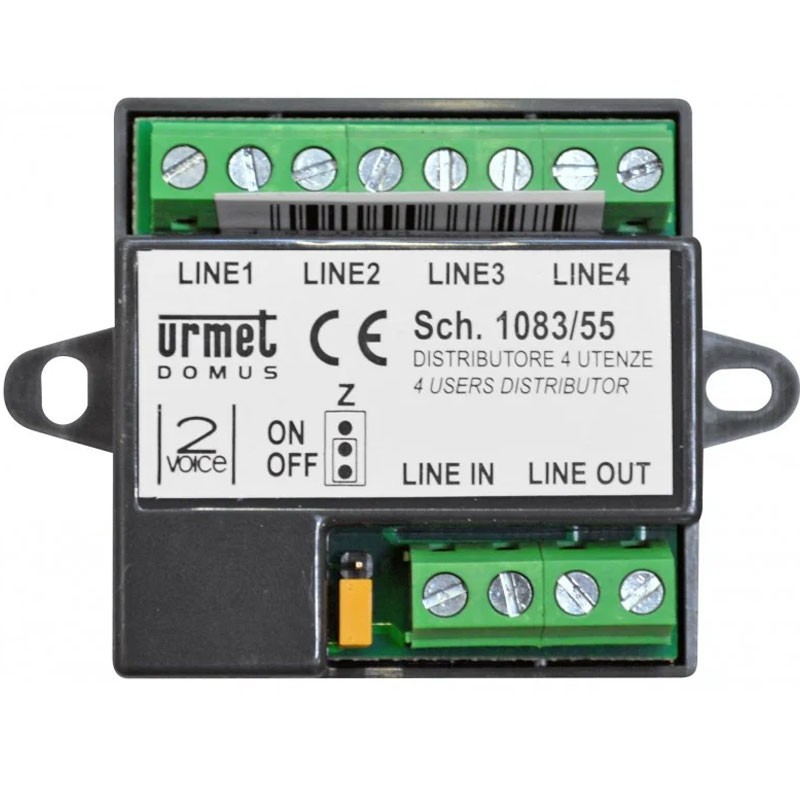

Urmet 2VOICE 4-user distributor 1083/55:

  • Urmet 2VOICE 4-user distributor. Connection for input bus, output bus and 4 apartment branches. Equipped with short-circuit protection on outputs. Dimensions 45 x 45 x 16 mm (WxHxD).

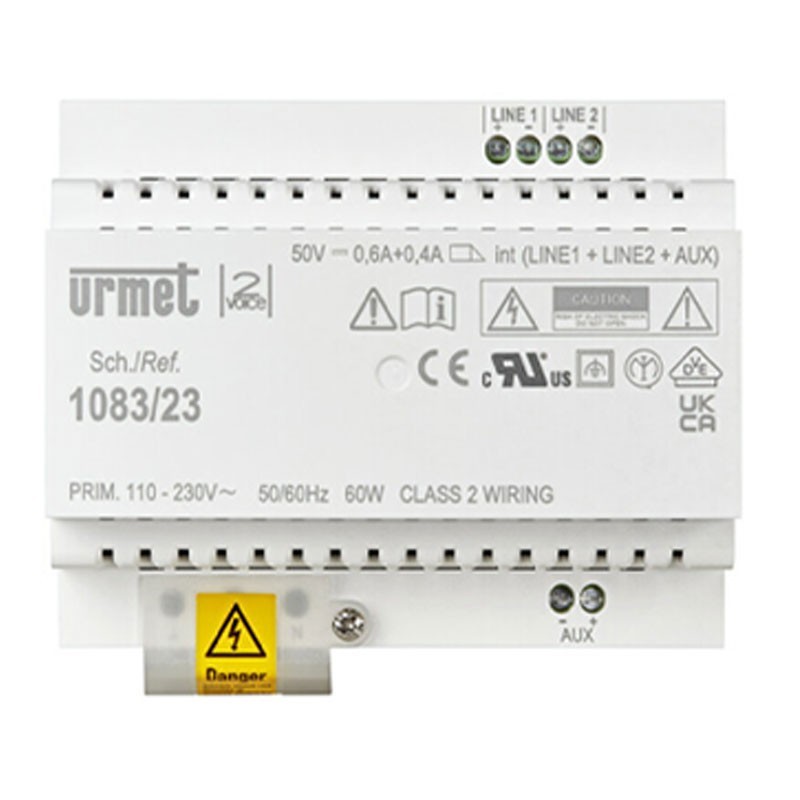

Compact column feeder for 2Voice 1083/23 system:

  • Column power supply for 2Voice systems.
  • DIN rail mounting (4 modules)
  • Power supply: 110-230 Vac 50-60Hz
  • Output: 48 Vdc
  • Dimensions: 108 x 90 x 60 mm

There are no reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
Two-family house
System:
2 Voice Urmet
WIFI:
No
