Urmet Note2 Video Intercom Kit WIFI Single-Family 1723/95
UTD 1723/95
8021156070404
Urmet Note2 single-family video intercom kit with 2-wire system consisting of:
- 1 code 1723/11 Single-family video entry panel, Mikra2, wall-mounted
- 1 code 1723/98 Video intercom vModo for 2-wire kit range 1723, display 7, touchscreen, WiFi
- 1 code 1723/112 Audio/video inductor, for 1723 kit
- 1 code 1723/20 Power supply for 1723 kit

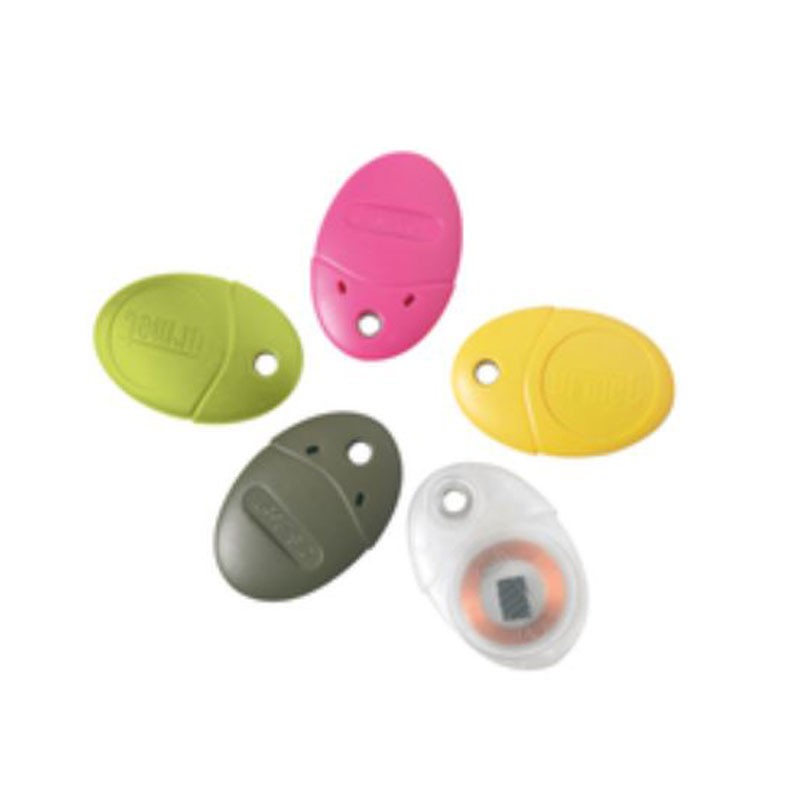

- 5 proximity keys for door opening
- Has advanced home automation functions and call referral to integrated CallMe smartphone
- Version without handset, connects with 2 non-polarized wires
- Possibility to have up to 4 video door phones in simultaneous call and intercom between video door phones
- Maximum number of outdoor buttons 2
- Up to 250 meters between indoor station and outdoor station
- Dual pedestrian and driveway lock management
- Door opening with proximity keys
- Activation and scenario control in radio mode (with Yokis components not included)
- Integration to video surveillance and home automation
- Input for temperature sensor and boiler on/off management
- Internal intercoms cannot be added to the kit.
With the kit you save compared to individually purchased items
€612.88
Items Available: 5
: 2
Frequently bought together
The kit provides integrated management of Yokis radio home automation controls; in addition, it offers the function of video door phone answering service for up to 32 images. The IP55 outdoor push-button panel has an integrated proximity key reader for door opening, wide-angle camera (113° H 92° V) and system status signaling via backlit icons.
The kit also provides the possibility of having up to 4 video door phones in simultaneous calling and intercommunicating calls, and the possibility of adding a second video button panel and a control camera. There is also a call forwarding function to smartphones or tablets.
Advantages:
- The 7" touchscreen video intercom allows easy management of functions
- On-board Yokis radio transmitter for managing 8 home automation scenarios + 6 composites with programmable delay
- 2 programmable local contacts
- Pushbutton panel with door open or hole detection input
- Input for temperature sensor and boiler on/off management
- Electronic POST-IT function
- Timed mute function
- Zamak push button panel equipped with wide-angle camera (113°H - 92°V)
- Up to 4 video intercoms can be connected in simultaneous call
- Allows 8 YOKIS radio commands to be activated with the on-board transmitter plus 4 composite scenarios
- Control camera input, plus 4 external cameras with dedicated switch
- Alarm input with notification sending on Urmet CallMe app
- Equipped with alarm input that can be connected to a sensor or burglar alarm control panel to send alarm indication to smartphone
- Input for a YOKIS temperature probe that can be combined with a YOKIS radio control to be connected to the boiler to perform the thermostat function
- Allows voice messages to be recorded to be left for other members of the household (electronic POST-IT function) and intercom calls to be made between video intercoms in the housing unit
- The outdoor button panel is equipped with 3 LEDs for signaling system status and a proximity key reader with MIFARE technology to open the door (5 keys supplied with the kit)
- As an alternative to call forwarding to a smartphone, it is possible to activate the video door phone answering machine function (32 10-minute messages), which allows you to store short video clips of unanswered calls with date and time stamps
- Possibility of adding a second button panel to the system and 4 control cameras via external accessory viewable from the video door phone
Kit component specifications:

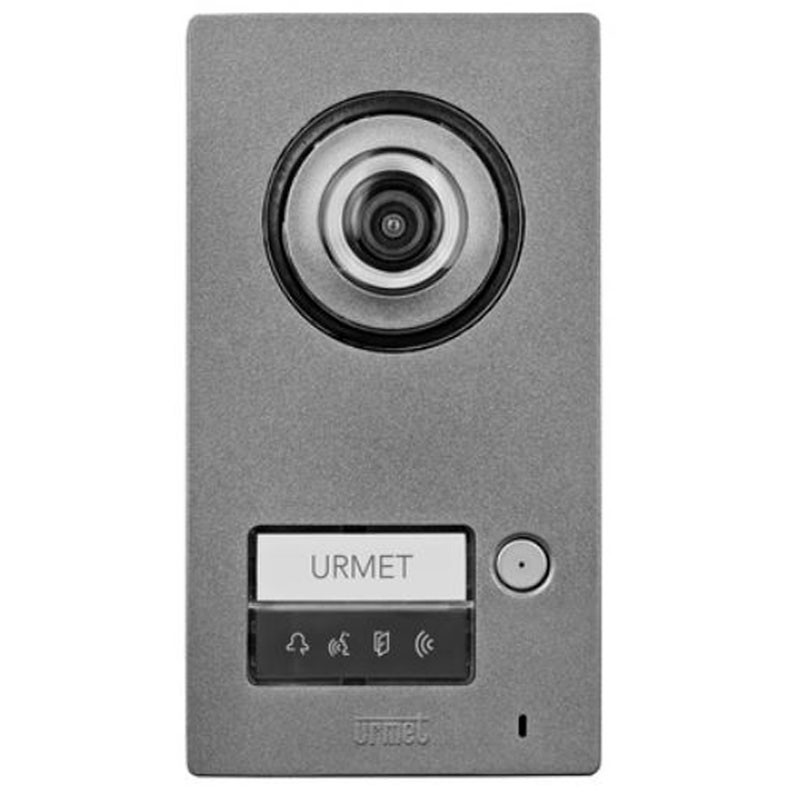

MIKRA2 single-family push-button panel for Kit 1723:
- 1-button video door entry panel in Zamak.
- Equipped with wide-angle camera with LED lighting
- Manages 2 entrances, pedestrian entrance and driveway
- Allows the pedestrian entrance to be opened by proximity key
- Equipped with backlit icons for status indication of video door phone functions
- Connection with 2 wires
- Dimensions (H x W x D) : 180 x 100 x 28 mm
- Surface wall mounting. Can be flush wall mounted with accessory 1723/50
- Degree of protection IP55

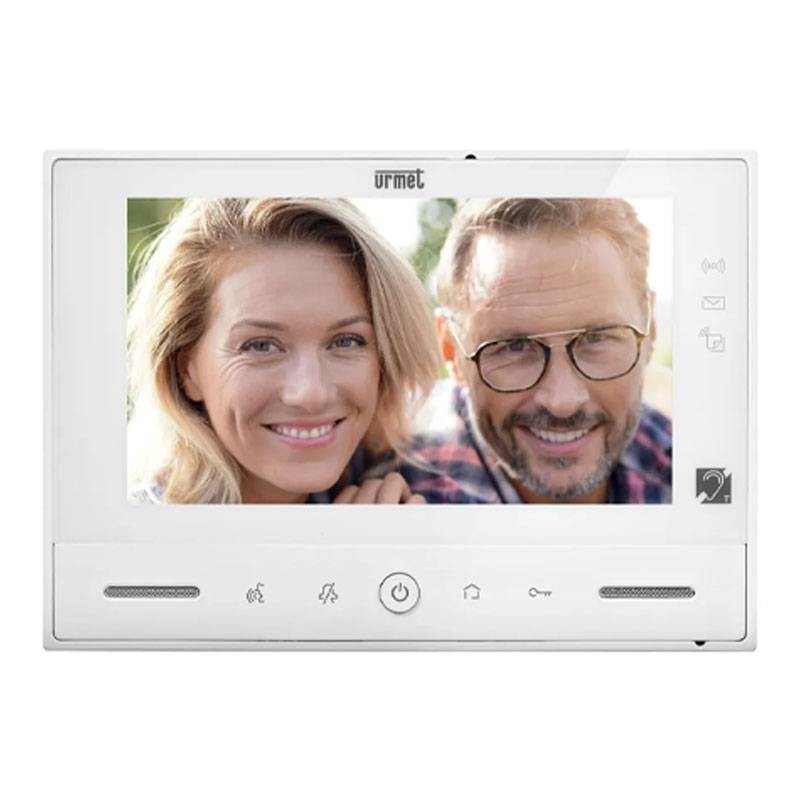

Videointercom Modo 7" touchscreen Wi-Fi for 1723 kit:
- The videophone is to be used as a replacement for the Modo 7" supplied with NOTE2 kits 1723/95 and 1723/96
- MODO color hands-free model in white ABS with glossy finish
- Built-in Wi-Fi to allow calls to be transferred to smartphone with free Callme app
- 7'' (18 cm) color LCD touch screen
- Metal bracket included for wall mounting with verticality adjustment
- Mounting spacing adapted to Ø 60 mm box
- Surface mounting. Flush mounting with optional kit ref. 1723/60
- Menu access to settings and configuration
- Video memory of 32 clips of 10 seconds that can be saved on micro SD
- Audio post-it: recording and listening to an internal message intended for residents
- Ringer level adjustment + mute with light signaling
- Brightness, contrast, color adjustment
- 5 melodies to choose from + 1 user-customizable
- Commands: door opening, motorized gate opening and 8 car radios (outdoor lighting, steering wheels, etc.), 6 customizable scenarios
- Video surveillance to display images of 2 traffic signals and 4 cameras
- Led function: chime released, door open, messages
- Built-in magnetic ring. Compatible with hearing aids
- 1 output for additional ringer or wireless ringer
- 2 dry contact outputs for additional controls
- 1 output 12 Vdc - 250 mA to power a detector or camera
- 1 input for connecting a surveillance camera or 4-camera interface
- 1 input for connecting a presence detector
- 1 input floor bell button
- Dimensions (HxWxD): 142 x 202 x 22 mm
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Image memory
- System: 2-Wire
- WIFI: Yes
Intercom function
RFID function
Single-family house
