Urmet single-family video intercom kit with MIKTA2 and VMODO 1784/773
UTD 1784/773
8021156071289

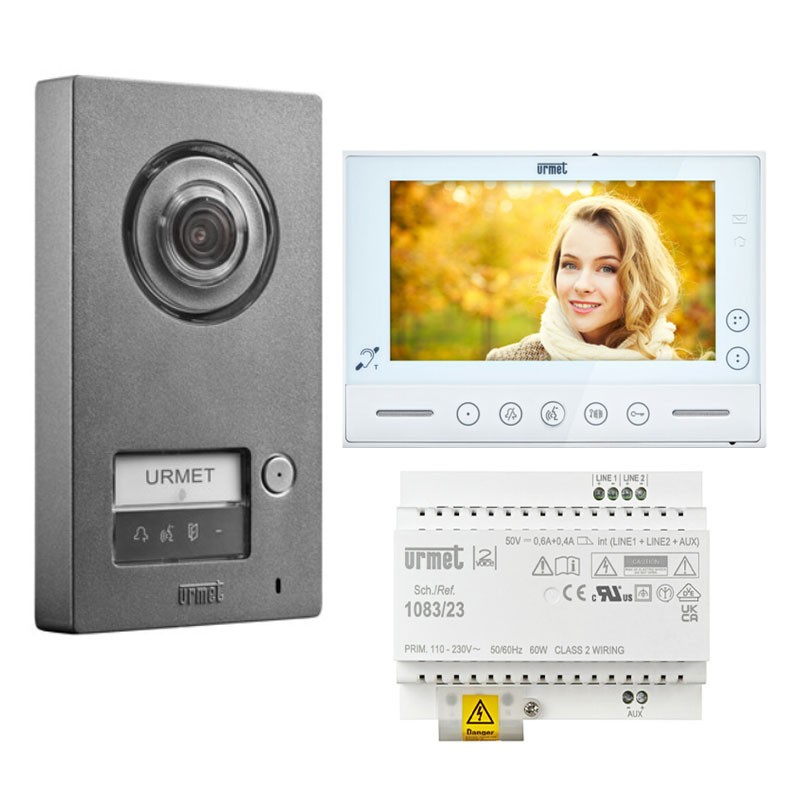

Urmet Single-family 2-wire video intercom kit with 2VOICE si technology consists of:
- 1 piece 1784/1 - Zamak Mikra2 one-button, 1-button, wall-mounted
- 1 piece 1719/1 Video intercom, vModo, 7 inch soft touch
- 1 piece 1083/23 2Voice system power supply unit
Features:
- 2Voice system
- Intercom calling, floor calling and call repeating
- Up to 4 monitors in parallel
- Up to 6 external push button panels
- Dual pedestrian and driveway lock management
- Up to 400 meters between door station and indoor station
- CallMe ready function: Allows a video door phone call to be forwarded to smartphones and tablets through The CallMe app with the addition of the 1083/58A device to be purchased separately.
- Option to also add 2 Voice Confort intercom code 1183/5
€560.30
Items Available: 2
Frequently bought together
Ability to make intercom calls on any other monitors in simultaneous call in the villa.
Integration with YOKIS home automation via 2 buttons on the video intercom capable of sending 2 radio commands to activate 2 scenarios.

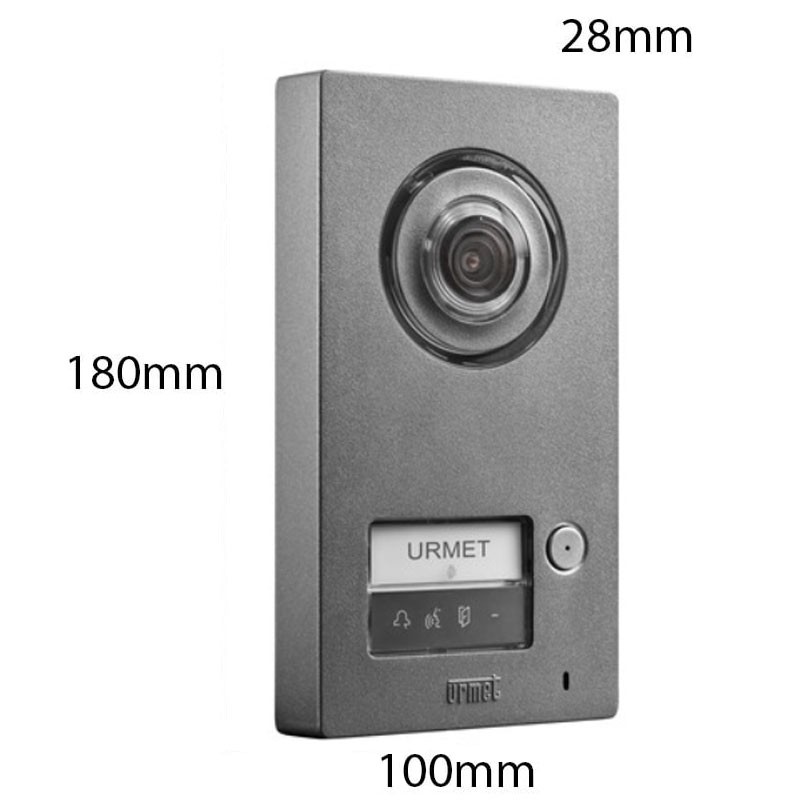

MIKRA2 2VOICE 1-BUTTON PUSHBUTTON PANEL:
- Vandal-resistant pushbutton panel with weatherproof zamak front panel.
- Color push-button panel camera with wide-angle shooting angle and subject illumination by LEDs
- Backlit name tag and call button with white LEDs
- Visual and audible signaling of system status (DDA), a function available only with single-family push-button panel (Ref. 1784/1)
- Provision for connection of dedicated sensor for DOOR STATUS or LETTERBOX function (future implementation)
- Audible acknowledgement of call dispatch
- Provision for speech repeat device for the hearing impaired (ILA Module) Ref. 1723/48

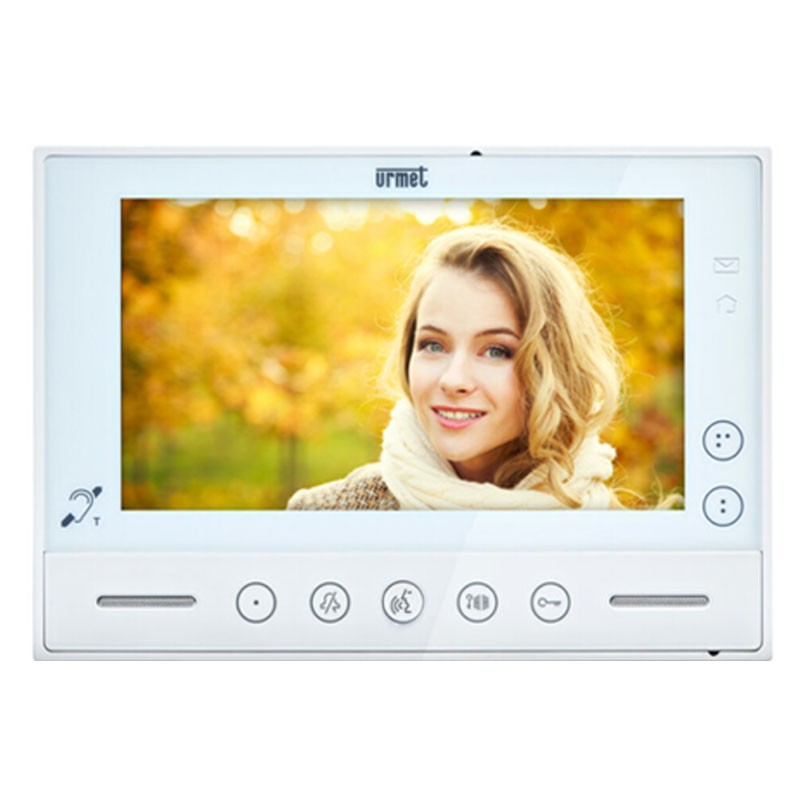

Urmet vModo 7" video intercom Handsfree soft touch System 2 Voice 1719/1:
- 7" color LCD screen (Wide Angle)
- Backlit touch buttons
- Possibility of video adjustment (brightness and color) via OSD menu
- Possibility to change the display ratio In the image from 4:3 to 16:9
- Ability to customize the ringtone by being able to choose from 5 different types
- Possibility to adjust the ringer volume: minimum, medium, maximum
- Possibility to directly activate Yokis radio receiver modules (as the video door phone has a built-in 2-channel Yokis remote control)
- Call repeat function for the deaf with Yokis module
- Hands-free or push-to-talk mode (Push to talk mode): Hands-free: one press of the speech button activates the conversation, and a second press deactivates it
- Push to talk: when the speech button is held down you can talk from the indoor station while when the button is released you can listen.
The monitor has 4 soft touch buttons for door opener, gate opener, mute and a user programmable function (intercom, special activation). Prepared for pairing with Urmet CallMe cell phone call forwarding device. Wall-mounted and arranged for mounting on 503 flush-mounted boxes and 60mm round boxes. Enables control of 2 home automation scenarios with Yokis thanks to on-board radio transmitter and 2 dedicated soft touch buttons. Mute function can also be used in timed mode, automatically deactivating the feature after 8 hours. Equipped with coupling coil for hearing aid wearers, Color White.
Specifications 2 voice 1083/23 column power supply:
- Power supply: 110-230 Vac 50 / 60 Hz
- Power: 60 watts
- Operating temperature: - 10 ÷ + 50 °C
- Dimensions: 108 x 60 x 90 mm (6 DIN modules)
- Compact model for 2Voice system
- DIN rail mounting (6 modules)
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2 Voice Urmet
Single-family house
