KIT Basic Video System Urmet MIKRA PLUS 2VOICE 1784/700
UTD 1784/700
8021156069248

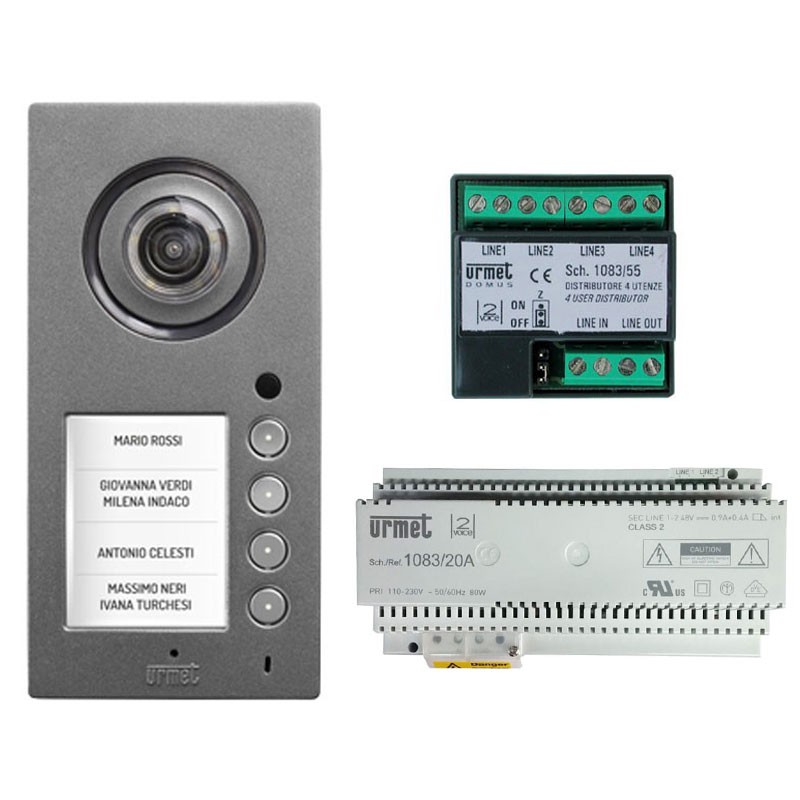

Basic kit Urmet Video System MIKRA2 2VOICE, allows for the realization of systems up to 4 users with a single monolithic 4-button push-button panel and graphic display for displaying names and system status signals consisting of:
- 1 piece 4-button MIKRA PLUS pushbutton panel code 1784/3
- 1 piece 2VOICE system power supply code 1083/20A
- 1 piece 4-user distributor code 1083/55
€372.03
Items Available: 38
: 10
Frequently bought together
Technical specifications of kit parts:

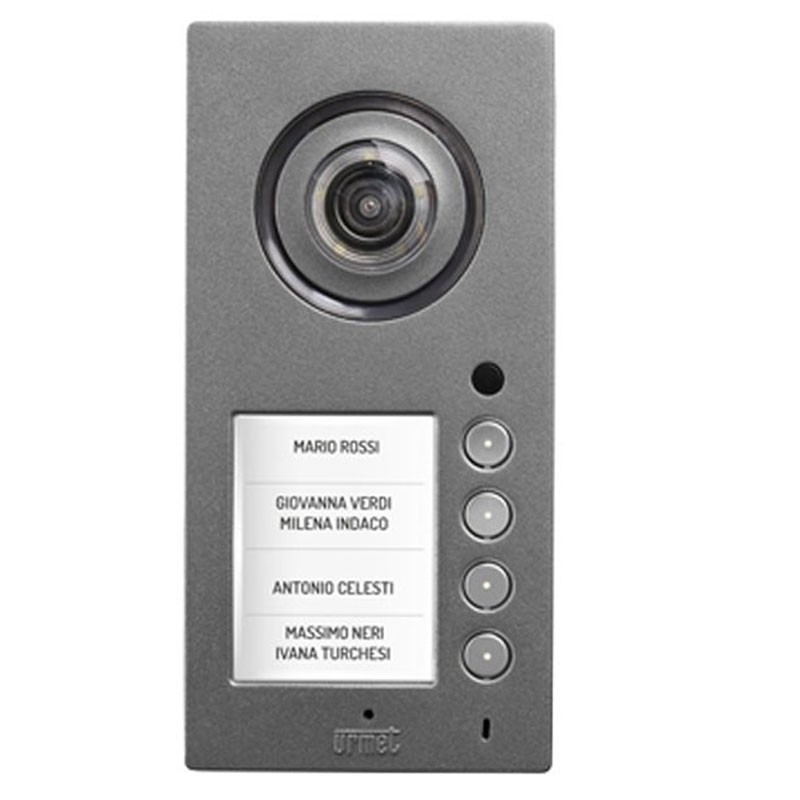

Mikra Pushbutton Pad: Monolithic Zamak 4-button call pad with color display, programmable by smartphone thanks to on-board WiFi direct. Up to 2 lines of text for each call sign.
- IP65 degree of protection.
- System status signaling via icons on display
- Wall-mounted or pillar-mounted
- Zamak body
- 3.5-inch color display
- IP65 degree of protection
- Impact resistance IK07
- Wide-angle camera
- Wall-mounted or pillar-mounted installation
- Programming with WiFi direct via smartphone/tablet/PC without any dedicated application
- Dimensions (W x H x D): 99 x 200 x 26 mm

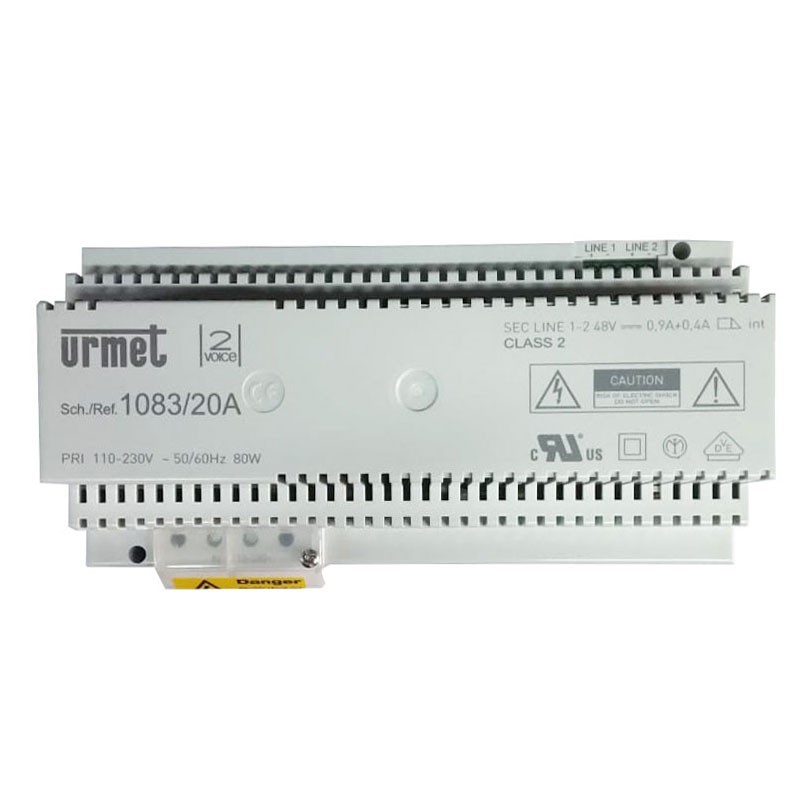

1 piece 2VOICE power supply unit code 1083/20A:
- Voltage: 110/230 Vac
- Output voltage: 48V
- Frequency 50/60 Hz
- 10 Din modules
- Protection class 2
- For 2VOICE system

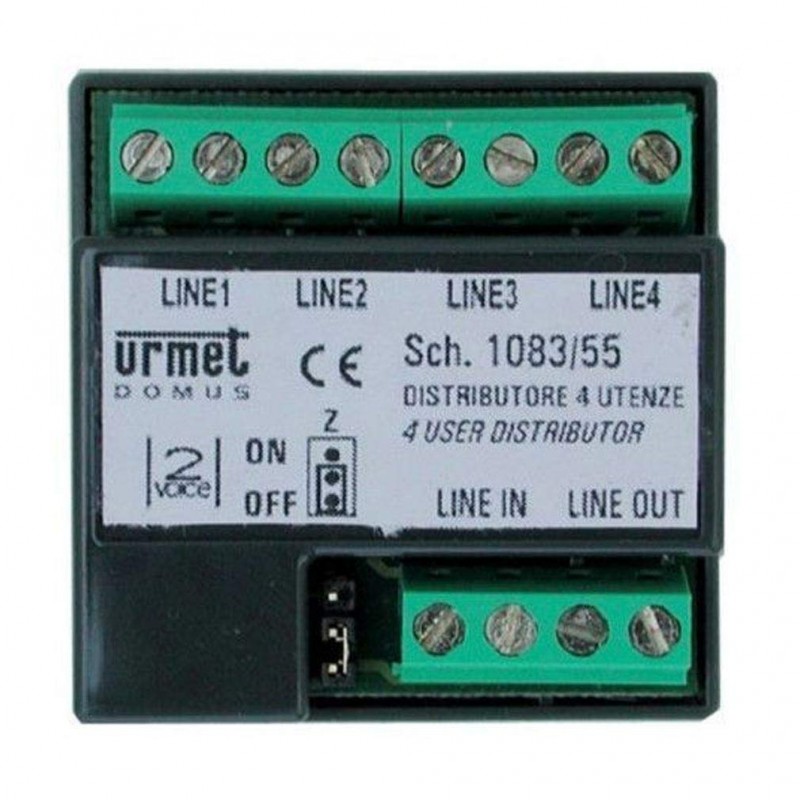

1 piece 4-user distributor code 1083/55: Connection for input bus, output bus and 4 apartment branches. Equipped with short-circuit protection on outputs. Dimensions 45 x 45 x 16 mm (WxHxD).
There are no reviews
Data sheet
- KIT: Video Intercom Basic Kits
- System: 2 Voice Urmet
