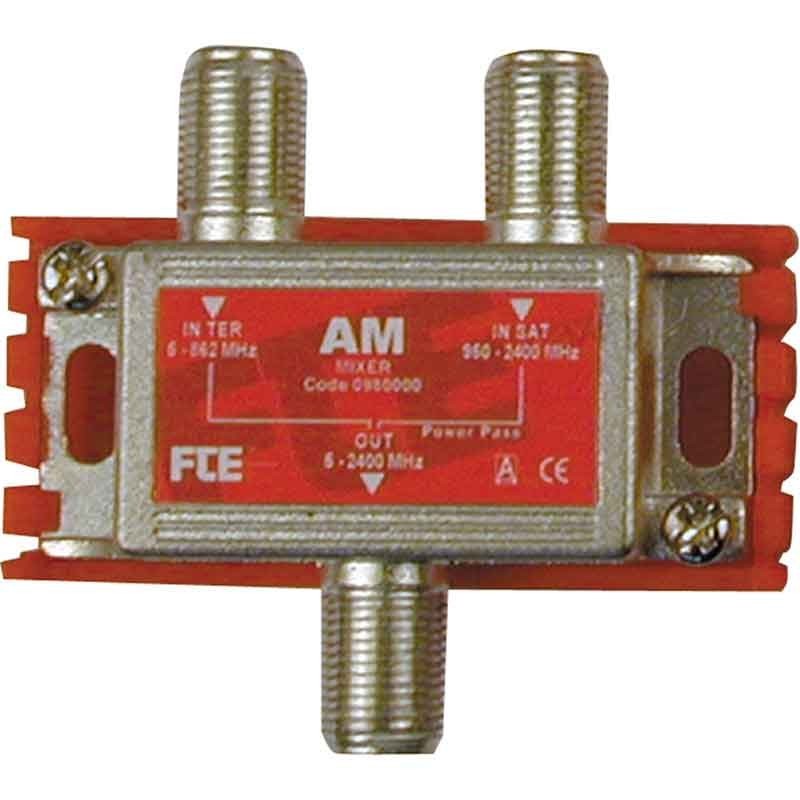

FTE Passive Mixer for terrestrial TV and SAT signals 2 Inputs 1 Output AM
FTE AM
8436018440088
FTE Passive Mixer for terrestrial TV and SAT signals, with current pass-through, low attenuation, and high Class A shielding. Ideal for distributing signals on a single cable or separating TV and SAT at reception, with the following features:
-
2 inputs (TV + SAT) and 1 output
-
Compatible with SCR and dCSS
-
22 kHz tone and current pass-through (for LNB or multiswitch)
-
Class A, high-efficiency shielding
-
Low pass-through loss 1.5 / 2 dB
-
Wall installation (bracket included) or pole (optional EQBOX)
€3.96
Items Available: 6
: 2
FTE Mixer maximum efficiency and signal separation
This passive FTE mixer/demixer is designed to combine or separate terrestrial TV (5 – 862 MHz) and SAT (950 – 2400 MHz) signals on a single coaxial cable. It is particularly useful in installations where simplifying signal distribution is desired by reducing the number of cables without compromising signal quality.
Compatible with advanced systems
Thanks to support for SCR and dCSS protocols, it is also suitable for the latest generation satellite systems, allowing the management of multiple decoders on a single drop. The 22kHz tone and current pass-through allows the powering of LNB and active multiswitches.
Robust construction and Class A shielding
The mixer is built with high-quality materials and offers Class A compliant shielding, protecting against external interference and ensuring signal stability.
Easy installation
The product comes with a wall mounting bracket, while for pole mounting the EQBOX accessory is available (not included). Its compact size makes it ideal even in confined spaces inside panels or junction boxes.
Recommended applications
-
Mixing SAT and TV signals on a single cable
-
Downstream demixing for decoders and TVs
-
Centralized multiservice distributions
-
Compatible with communal and domestic systems
Technical Features FTE TV/SAT Mixer
| Number of inputs | 2 (TV + SAT) |
| Number of outputs | 1 |
| Supported bands | TV: 5 ÷ 862 MHz / SAT: 950 ÷ 2400 MHz |
| Return Loss | 15 dB |
| Pass-through loss | 1.5 / 2 dB |
| Compatibility | SCR / dCSS |
| Current and tone pass-through | Yes (22 kHz + LNB power) |
| Operating temperature | -10 ÷ +55 °C |
| Dimensions (W × H × D) | 57 × 50 × 27 mm |
| Installation | Wall (bracket included) / Pole (EQBOX) |
| Shielding | Class A |
| Compliance | EN 50081-1, EN 50082-1 |
| Connectors | Type F |
There are no reviews
Data sheet
- Type: Mixers
- Version: Tv-Sat
