Fracarro power inserter with F female connector current 3A 287612

Fracarro
Fracarro
FRA 287612 8016978105922

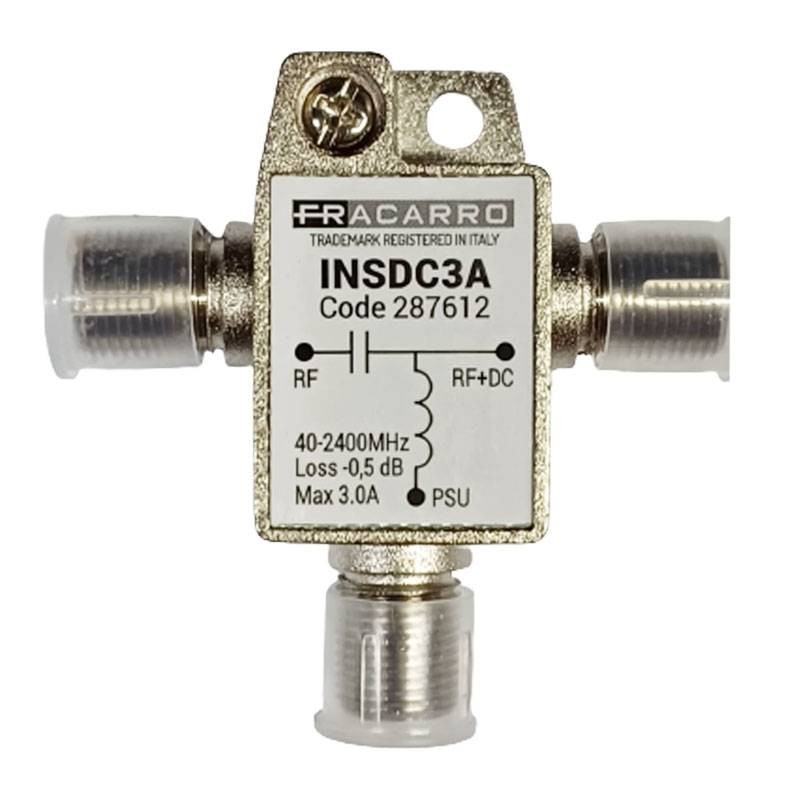

Fracarro INSDC3A power supply inserter with female F connectors and maximum supply current 3A with the following features:

  • Can be used with any type of power supply, such as PSU1430F or PSU1830F
  • Low insertion loss
  • Operation on wide band TV and Satellite (40MHz - 2400MHz)
  • Compact size
Do you have questions about this product or did you not find what you were looking for? Ask us!
Fracarro power inserter with F female connector current 3A 287612
€5.89
€5.89

€5.89
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€5.89

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • It is used to upstream power a series of SCD2 multiswitches in cascade.
  • Passing power between the ports of the multiswitches allows the LNBs to be powered as well
  • Inputs: 1 SAT - TV
  • Outputs: 1 SAT - TV
  • Bandwidth MHz 40-2400
  • Pass-through loss dB -0.5
  • Maximum output current mA 3000
  • Output connector F x3
  • Dimensions: 50X50X17 mm
  • Operating temperature: -10/+55°C

There are no reviews

Data sheet

Type:
Inserters
Version:
3000MA
