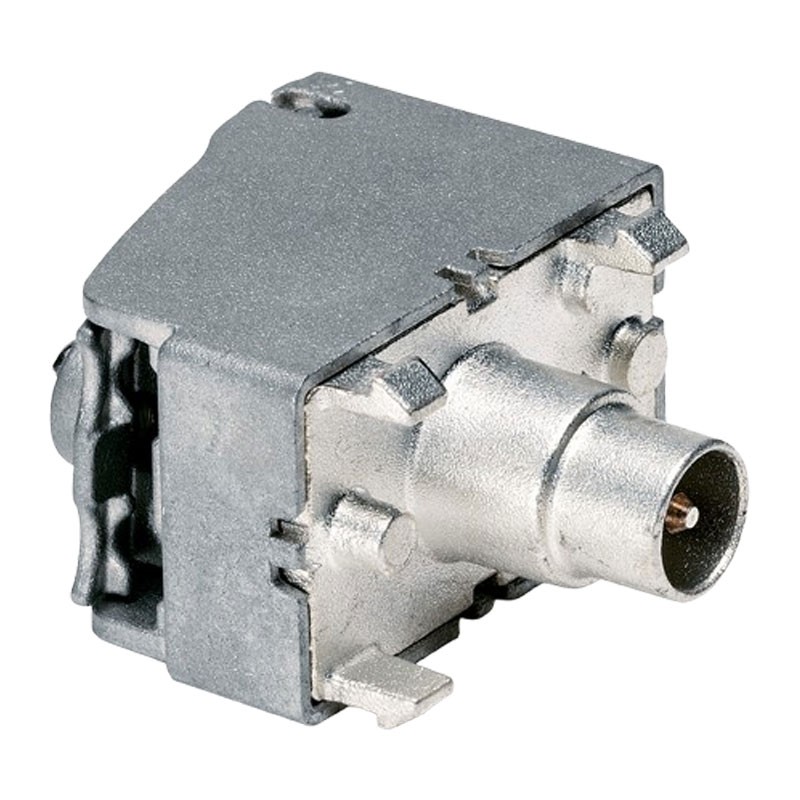

Fracarro SPI00 IEC Male Class A 5dB TV Feed-Through Socket 220712
FRA 220712
8016978067978
Fracarro SPI00 IEC male TV feed-through socket, fully shielded Class A, 5 dB, compatible with all civil series, with the following features:
-
Receptacle type: Feed-through
-
Output connector: IEC male
-
Cable fixing: Self-locking flap (4-7 mm)
-
Frequency supported: 5-2400 MHz
-
Shield class: Class A
-
Recommended mounting: With adapters or drilled false module
€8.09
Items Available: 129
: 17
Professional performance for TV and SAT installations
The SPI00 TV feed-through socket is designed for centralized home installations where a shunt connection with controlled attenuation (5 dB) is required. It supports the entire frequency range from 5 to 2400 MHz, making it perfect for terrestrial and satellite TV signals, with a linear feed-through and shunt loss, optimized for stable performance.
Secure connection and total shielding
The connection system features an innovative self-locking flap, which enables quick attachment of 4 to 7 mm coaxial cables without the use of special tools. Class A shielding effectively protects the signal from electromagnetic interference, making the device reliable even in high electronic density environments.
Universal compatibility
The socket is adaptable to all major civic series using special adapters (not included), making it ideal both for new installations and for maintenance or expansion of existing systems. It can also be mounted with false perforated modules in the absence of the dedicated support.
Compatible with:
-
BTicino: Axolute, Living Light, Living Tech, Living International, Magic, Matix
-
Vimar: Idea, Plana
-
Ave: Noir, Banquise, Blanc
-
Gewiss: System
-
Legrand: Vela Chiara, Vela Scura
Recommended applications
-
Centralized TV/SAT installations
-
Intermediate branches in feed-through systems
-
Multistandard home networks
-
Installations in homes, offices, and hotels
Data sheet
- Type: TV sockets
- Version: Tv
