Toshiba Haori Dual Split Air Conditioner 12000BTU+12000BTU 3.5kW+3.5kW
KIT HAORI22
The Toshiba Haori Dual Split 12000BTU+12000BTU is an innovative and customizable designer air conditioner with energy class A+++/A++, built-in Wi-Fi and compatibility with Google Assistant and Amazon Alexa.
With its interchangeable fabric cover, it blends seamlessly into the décor of any room, becoming a true design element.

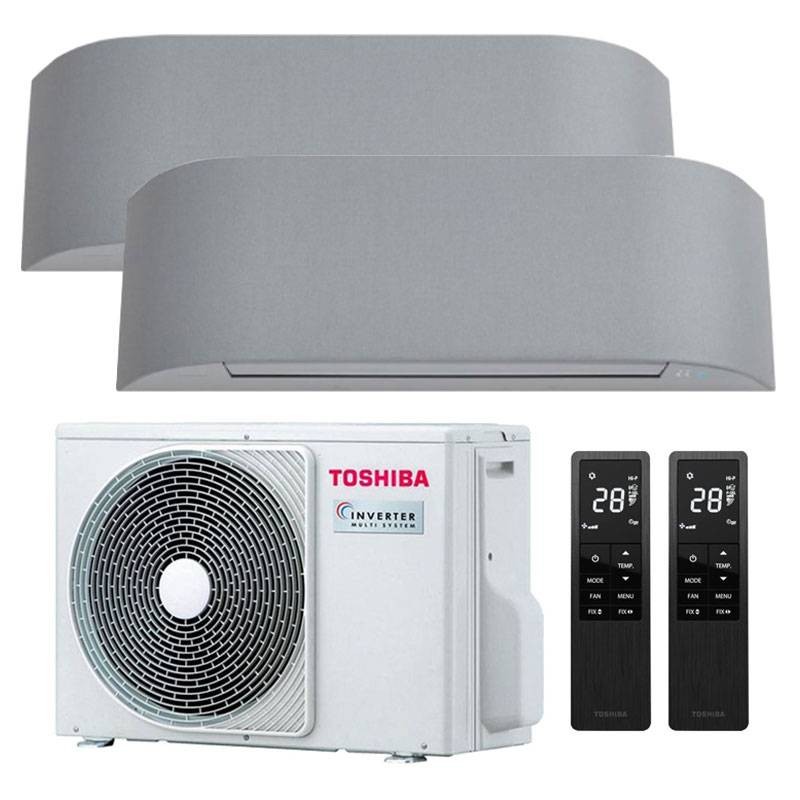

Equipped with advanced technologies for energy efficiency, quietness and air quality, it ensures maximum comfort in every season. The Kit consists of:

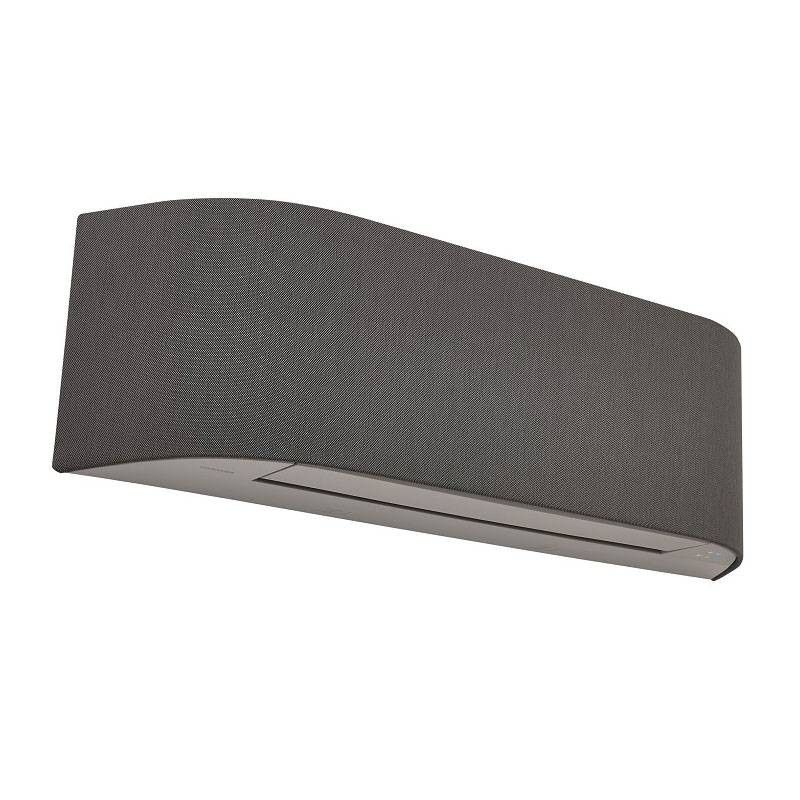

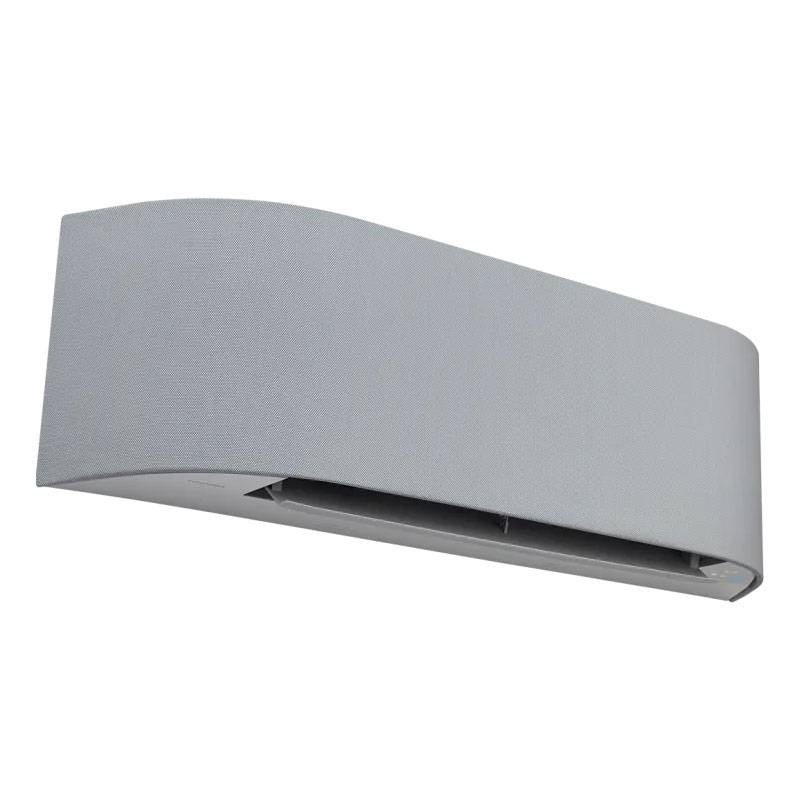

- 2 Indoor units 3.5kW (RASB13N4KVRGE)

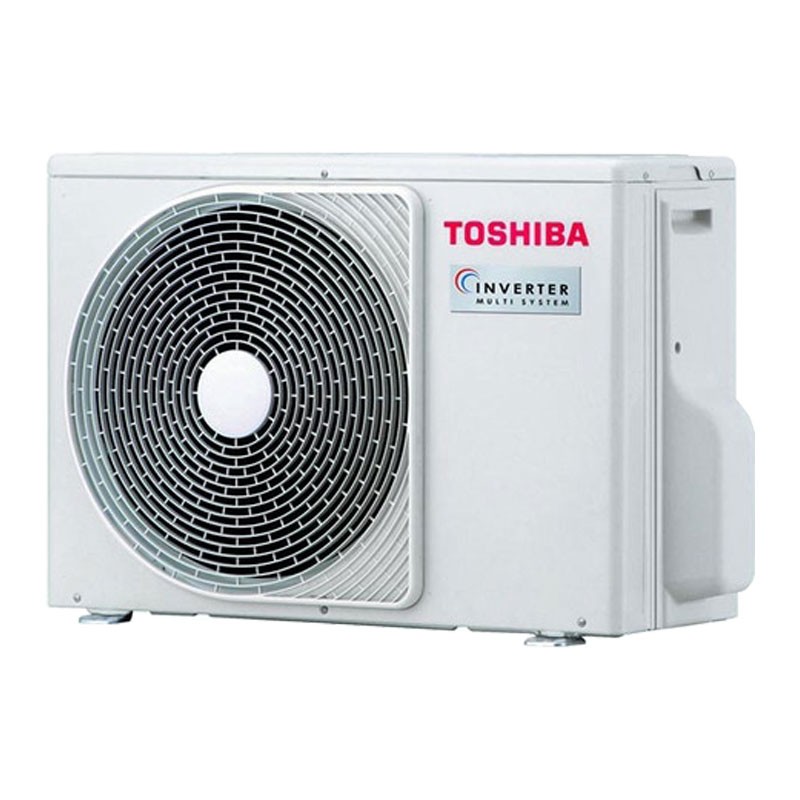

- 1 Outdoor unit with 2 connections 5.0kW (RAS-2M18G3AVG-E)

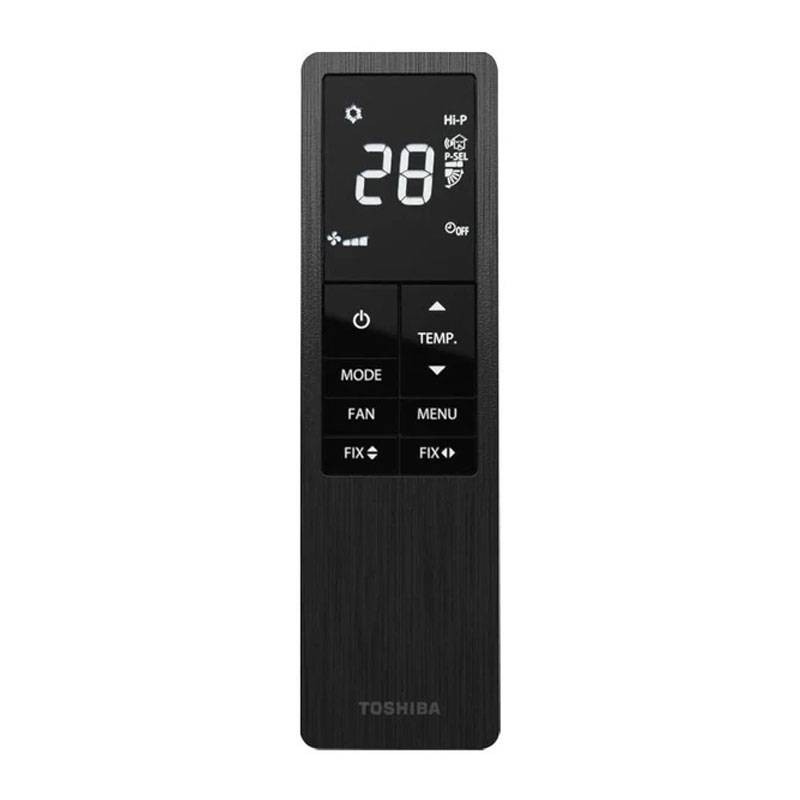

- 2 Remote Controls

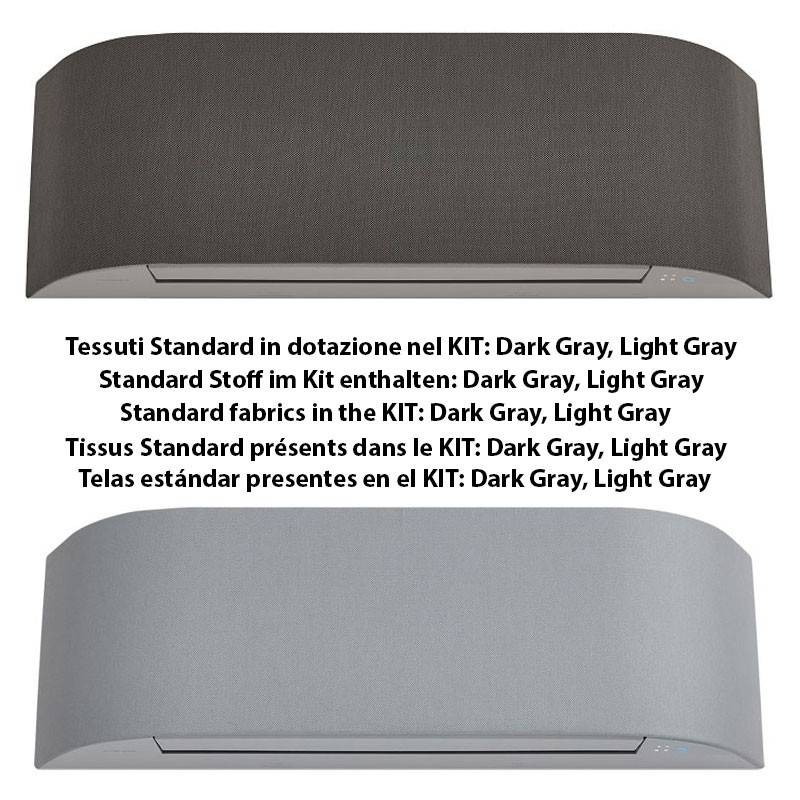

- 2 Fabrics with two different colors as standard: Dark Gray, Light Gray
Simply unroll the fabric in the desired pattern and attach it to the front panel to create a piece of furniture that will become the center of attention.
For two rooms of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
€2,820.97
Items Available: 1
Air conditioners of the same series
Frequently bought together
Toshiba Haori Dual Split Air Conditioner 12000BTU+12000BTU
Attractive and customizable design

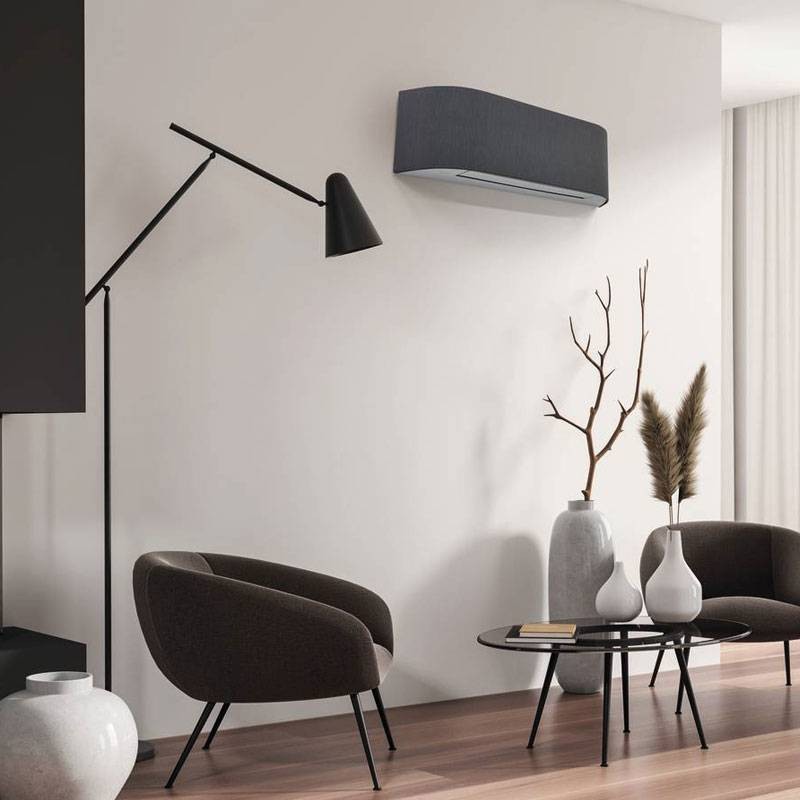

The new HAORI family is an elegant piece of furniture: something no longer to hide but to highlight.
Regardless of the style of the room, whether it´s modern, lively, casual, luxurious, chic or retro, there´s a design of HAORI that makes it even more appealing. With its slim body and unique shape, this innovative air-conditioning unit features fabric upholstery that creates the perfect blend with other fabrics in the room such as those on sofas, rugs, curtains, armchairs and blankets, for a cozy and comfortable atmosphere.
Toshiba´s patented concept makes HAORI easy to dress in the most suitable outfit; simply unroll the fabric in the desired pattern and attach it to the front panel to create a piece of furniture that will become the center of attention. What is appealing about HAORI is its ability to blend nicely into surroundings or even blend in if necessary. Interior designers and homeowners can be inspired by its unique style. Moreover, if the room is renovated, at any time HAORI can also change its outfit. Simply choose or create a new fabric to blend in with the room's new aesthetic.
High-level energy efficiency
Technology with proprietary Rotary compressors with R32 refrigerant and driven by vector inverter allows HAORI to modulate the heating or cooling power to the actual need with minimum consumption thus achieving up to the energy performance class A+++ and with remarkable efficiencies: SEER of 8.6 (seasonal energy efficiency in cooling) and SCOP of 5.1 (seasonal energy efficiency in cooling).
Quietness and air quality
- QUIET function : down to only 19 dB(A), at the limits of audibility, Outdoor unit, 44 dB(A) and down to only 37 dB(A) with the SILENT function, which can be activated by APP or remote control
- Air quality: has two tools to create a healthy environment and reduce exposure to fine atmospheric particles, which can carry bacteria and viruses. The first is the Ultra-Pure PM2.5 Filter, which captures up to 94% of fine particulate matter with a diameter greater than 2.5 micrometers, and the second is the Plasma Ionizer, which captures and neutralizes contaminated micrometer-sized particles (viruses and bacteria)
- "Magic Coil" technology: designed to improve air quality and maintain the efficiency of the unit over time with the self-cleaning internal coil that reduces moisture accumulation on the coil, preventing the deposit of impurities
- Hada Care technology, adjusts the position of the ventilation fins to generate indirect airflow, avoiding direct exposure and diffusing air more gently and evenly. In addition, HADA Care helps maintain the right level of humidity in the environment, preventing dryness typical of the fall months and protecting skin moisture.
Ease of use and remote control
HAORI has built-in Wi-Fi for remote control via the Toshiba Home AC Control app, which enables convenient and intuitive air conditioning management. It is also compatible with voice recognition systems such as Google Assistant and Amazon Alexa, making it even easier to use.
Advanced features for maximum comfort
HAORI offers a range of functions designed to optimize comfort in every situation. The Eco function automatically adjusts the temperature to reduce the unit's load and save energy, while the High Power function speeds up cooling and heating for instant comfort. In addition, the Comfort Sleep mode adjusts the room temperature during the night, ensuring a peaceful sleep.
HAORI's remote control, also an elegant piece of furniture, offers multiple control functions, such as the 3D flow function, which with independently motorized fins makes it easy to direct airflow in any direction.
Advantages of the Toshiba HAORI Air Conditioner
- Integrated WI-FI
- DC Hybrid Inverter (PAM + PWM)
- HADA Care Flow: intelligent airflow
- 3D motorized fins
- Self-Cleaning Magic Coil Exchanger
- Operation mode (cooling/heating) signaled by different color LEDs
- Remote control functions: Quiet, Silent, Comfort Sleep button
- Fireplace function: to spread heat in the room optimally
- Power limiter functions (100% - 75% - 50%)
- Compatible in multi-split combination(B-code version)
- Wide operating range: down to -15°C/+46°C in cooling; down to -15°C/+24°C in heating
- Google Home and Amazon Alexa compatible
Technical Specifications - Indoor Unit 12000 BTU 3.5kW
| Feature | Description |
|---|---|
| Rated Capacity (Cooling) | 3.5 kW |
| Rated Capacity (Heating) | 4.2 kW |
| Air Flow Rate (Cooling-Heating) | 670 - 680 m³/h |
| Sound pressure level (Low-High) (Cooling-Heating) | 19 - 43 dB(A) |
| Sound power level (Cooling-Heating) | 56 - 56 dB(A) |
| Dimensions (H x W x D) | 300 x 987 x 210 mm |
| Weight | 11 kg |
| Flare coupling - Gas | 3/8" |
| Flare coupling - Liquid | 1/4" |
| Power supply | 220-240V / 1ph / 50Hz |
Technical Specifications - Outdoor Unit 2 connections 5.0 kW
| Feature | Description |
|---|---|
| Rated Capacity (Cooling) | 5.20 kW |
| Min - max capacity (Cooling) | 1.60 - 6.50 kW |
| Power input (Cooling) | 1.20 kW |
| Pdesignc | 4.33 W/W |
| SEER | 8,70 |
| Energy efficiency class (Cooling) | A+++ |
| Rated capacity (Heating) | 5.60 kW |
| Min - max capacity (Heating) | 1.30 - 8.20 kW |
| Power consumption (Heating) | 1.14 kW |
| Pdesignh | 4.91 W/W |
| SCOP | 4,80 |
| Energy efficiency class (Heating) | A++ |
| Air Flow Rate (Cooling - Heating) | 2600 - 2600 m³/h |
| Sound pressure level (Cooling - Heating) | 48 - 50 dB(A) |
| Sound power level (Cooling - Heating) | 61 - 63 dB(A) |
| Operating range (Cooling) | -10 / +46 °C |
| Operating range (Heating) | -20 / +24 °C |
| Dimensions (HxWxD) | 630 x 800 x 300 mm |
| Weight | 43 kg |
| Compressor | DC Twin Rotary |
| Refrigerant - Precharge | R32 - 1.20 kg - 0.81 TCO2Eq - GWP 675 |
| Flare coupling - Gas | 3/8" x 2 |
| Flared coupling - Liquid | 1/4" x 2 |
| Maximum piping length (per unit/total) | 20 / 30 m |
| Maximum height difference | 10,00 m |
| Length of piping without additional charge | 30 m |
| Power supply | 220/240 V - 1 Ph - 50 Hz |
It works perfectly, I tested them, they heat properly and the cooling is great, economical, the design is great, it's not like a box, I recommend it. I was going to upload 1 more photo of how the internal unit looks, but they don't allow it, so I think it's better than 1 photo, I recommend it.
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 12+12 BTU
- System: Dualsplit
- Room Size: 35m²+35m²
- Energy class: A+++
- Series: Haori
