Toshiba Dual -Split Ducted Air Conditioner 6+6KW 22000+22000btu
KIT TOSCAN66
6931458503765
The Toshiba 6+6 kW ducted dual air conditioner is the ideal solution for efficient cooling and heating of medium to large rooms. With its ultra-compact design with only 210 mm height, dual 22000 BTU indoor unit, supersilent operation and built-in condensate drain pump, it stands out for comfort, flexibility and ease of installation.
The Set consists of:
- 2 Multisplit Indoor Units 22000BTU RASM22U2DVGE

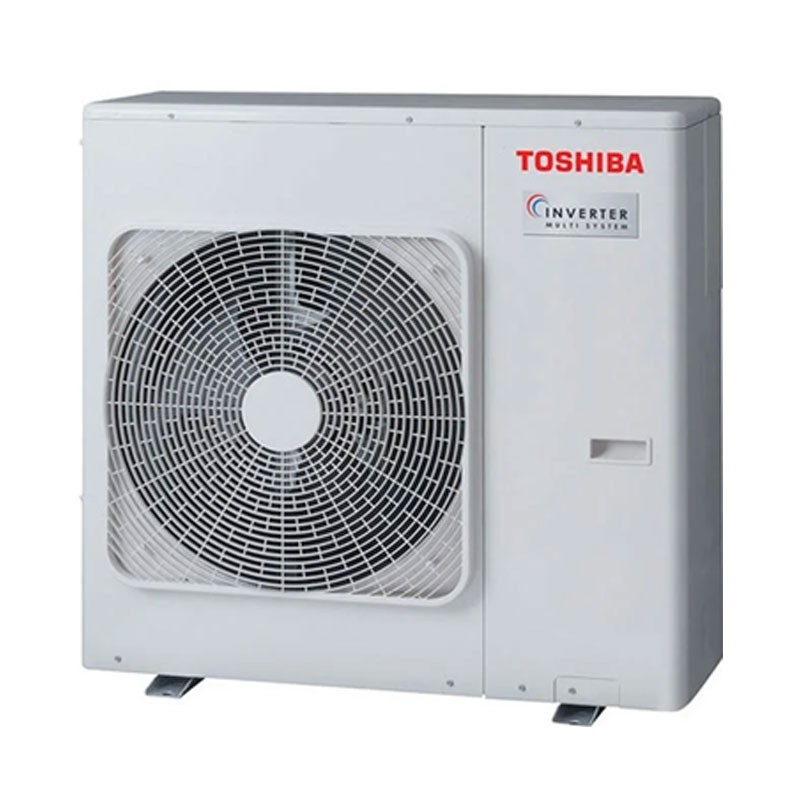

- 1 Outdoor Unit 5 connections 10kW RAS5M34G3AVGE
- Remote controls and infrared receivers included
The air conditioner will be delivered pre-charged with gas R32
For two rooms of 78m² approx.
€5,779.97
Items Available: 1
Frequently bought together
- On sale!
- On sale!
Toshiba low-slung ducted: Efficiency and comfort in a compact design
This ducted air conditioner is perfectly suited for installation in low ceilings or narrow technical rooms, thanks to its low height. The compact frame allows easy installation, either with air intake from the rear (standard) or from below. Ideal for offices, hotels, homes and commercial premises.
Quiet operation and customized air management.
Super quiet operation at 26 dB(A) ensures maximum acoustic comfort, even during night hours. The system is equipped with a 5-speed fan and selectable air head to tailor airflow to the needs of each room.
Smart technology and advanced features
The included infrared remote control allows complete control, with advanced features such as:
- Comfort Sleep: regulates temperature and noise for optimal sleep
- Quiet Mode: further reduces sound level
- Energy Saving: optimizes consumption
- Presets: stores and recalls favorite settings
- Weekly programming based on daily timers
Easy installation and minimal size
The Lowered Ducted Unit stands out for its flexibility; the compact frame, with a height of 210 mm and a depth of 450 mm, easily fits a wide range of projects, regardless of their capacity. In addition, the static pressure can be adjusted up to 50Pa directly on the duct or via a flush control.
Toshiba Ducted Performance
Maximum comfort is provided by a noise level of only 26 dB(A) at low operating speeds, the device offers quiet operation, making it particularly suitable for bedrooms. The presence of a fan with 5 speeds allows excellent adaptability of airflow to ensure optimal comfort.
The design of the unit is intended to simplify the installation process as much as possible. In addition, installation is made even easier by the presence of the condensate drain pump already built into the unit.
Technical specifications of the Toshiba air conditioner
Cooling
| Parameter | Value |
|---|---|
| Rated capacity | 4.00 / 4.00 kW |
| Total capacity Min/Nom/Max | 3.2 / 8.0 / 8.3 kW |
| Power consumption Min/Nom/Max | 700 / 2570 / 2770 W |
| Total rated current | 11,64 A |
| PdesignC | 8,0 |
| SEER | 5,97 |
| Energy class | A+ |
Heating
| Parameter | Value |
|---|---|
| Rated capacity | 4.50 / 4.50 kW |
| Total capacity Min/Nom/Max | 1.5 / 9.0 / 10.6 kW |
| Power consumption Min/Nom/Max | 320 / 2200 / 2590 W |
| Total rated current | 9,96 A |
| PdesignH | 8,0 |
| SCOP | 4,25 |
| Energy class | A+ |
Indoor Units
| Parameter | Value |
|---|---|
| Rated capacity (Cooling) | 6.0 kW |
| Rated capacity (Heating) | 7.0 kW |
| Air Flow Rate (Cooling/Heating) | 1000 / 1000 m³/h |
| Sound pressure level - Cooling (low/high) | 32 / 38 dB(A) |
| Sound power level - Cooling (low / high) | 47 / 53 dB(A) |
| Sound pressure level - Heating (low / high) | 32 / 38 dB(A) |
| Sound power level - Heating (low / high) | 47 / 53 dB(A) |
| Nominal outdoor static head (standard/max) | 10 - 45 |
| Dimensions (H x W x D) | 210 x 1100 x 450 mm |
| Weight | 22 kg |
| Flare coupling - Gas | 1/2" |
| Flare coupling - Liquid | 1/4" |
| Power supply | 220/240-1-50 - 220-1-60 |
External Unit
| Parameter | Value |
|---|---|
| Air flow rate (Cooling / Heating) | 3700 / 4400 m³/h |
| Sound pressure level (Cooling / Heating) | 52 / 56 dB(A) |
| Sound power level (Cooling / Heating) | 65 / 69 dB(A) |
| Operating range - Cooling | -10 ÷ 46 °C |
| Operating range - Heating | -15 ÷ 24 °C |
| Dimensions (H × W × D) | 890 x 900 x 320 mm |
| Weight | 78 kg |
| Compressor | DC Twin Rotary |
| Refrigerant | R32 - 2.39 kg - 1.61 tCO₂ Eq - GWP 675 |
| Flare coupling - Gas | 3/8" × 3 + 1/2" × 2 |
| Flare coupling - Liquid | 1/4" × 5 |
| Maximum piping length (per unit / total) | 25 / 80 meters |
| Maximum height difference | 15 meters |
| Piping length without additional charge | 40 meters |
| Power supply | 220/240-1-50 |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 21000 BTU (6,0 kW)
- System: Dualsplit
- Room Size: 78m²+78m²
- Energy class: A+
