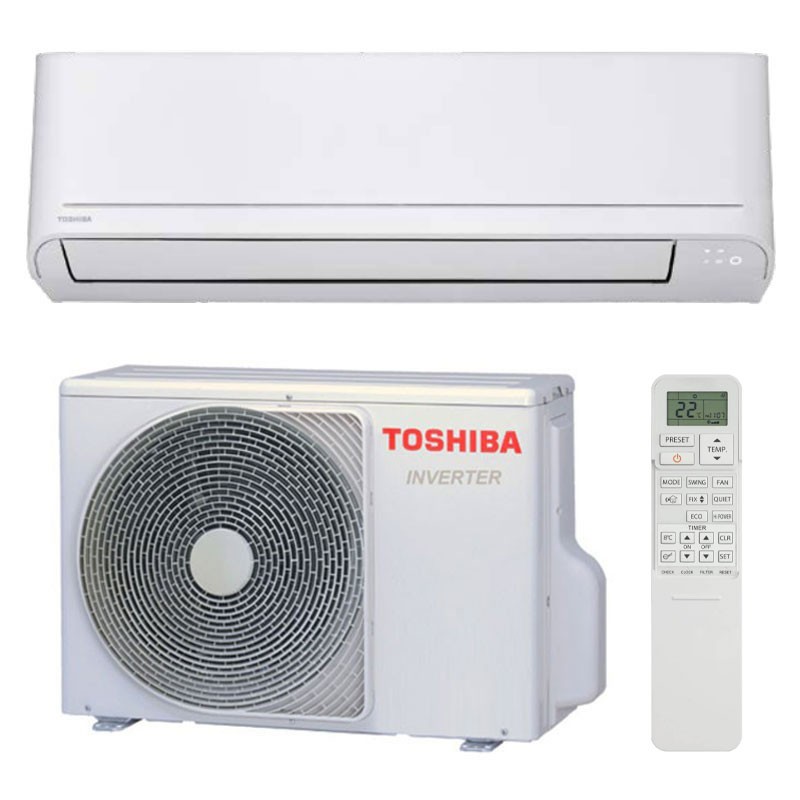

Toshiba Classic 18000 BTU: intelligent comfort in every room
The Toshiba Classic 5.0 kW (18000 BTU) with R32 refrigerant is designed for those seeking a reliable, elegant air conditioner that is easy to integrate into any environment. Its linear and timeless design discreetly matches living rooms, bedrooms, and offices, while the reduced footprint expands installation possibilities: you can even use the limited space above a door, maximizing available surface and keeping the environment tidy. Compatibility with the Toshiba multisplit system also makes it easy to create effective multi-room comfort, managing multiple environments with a practical and coordinated solution.
Flexible installation and clean design
One of the strengths of the CLASSIC series is its ability to adapt to different configurations, especially when space is precious. The invisible marks of the pre-cut pipes contribute to a clean aesthetic result: the unit integrates better into the room, with minimal visual impact and a "professional" appearance even in complex installations.
Magic Coil: self-cleaning coil for consistent performance
The Magic Coil technology is designed to preserve performance over time. Thanks to a self-cleaning internal coil, the system helps eliminate residual condensation and prevent the formation of impurities. The heat exchanger of the indoor unit is treated with Aqua Resin, a surface finish that facilitates the flow of impurities along with the condensate water, keeping the unit cleaner and contributing to healthier air and more stable efficiency season after season.
Quietness, power, and protection: functions for daily well-being
For those who desire maximum acoustic comfort, the Quiet mode minimizes the noise of the indoor unit, while the Silent function reduces that of the outdoor unit to 44 dB(A). When you need to quickly reach the desired temperature, the Hi Power function automatically manages the indoor climate and accelerates cooling and heating. In winter, the Anti-freeze function maintains a minimum temperature, so upon return, the rooms heat up faster. The defrost on demand allows the outdoor unit to defrost itself according to needs, improving operational continuity.
Finally, the self-cleaning keeps the fan active for a defined time after shutdown, removing residual condensation and supporting consistent performance. If you live near the sea, you will appreciate the protection for saline environments: external panels and electronic board are treated to better resist the corrosive action of salt.
| Cooling |
| Nominal capacity |
5.00 kW |
| Min. – max. capacity |
1.10-5.35 kW |
| Power consumption (min-nom-max) |
0.35-1.78-1.90 kW |
| Pdesignc |
5.0 kW |
| SEER |
6.1 |
| Energy efficiency class |
A++ |
| Seasonal energy consumption |
287 kWh/a |
| EER |
2.81 |
| Heating |
| Nominal capacity |
5.4 kW |
| Min. – max. capacity |
1.10-6.00 kW |
| Power consumption (min-nom-max) |
0.27-1.67-1.88 kW |
| Pdesignh |
3.7 kW |
| SCOP |
4.0 |
| Energy efficiency class |
A+ |
| Seasonal energy consumption |
1294 kWh/a |
| COP |
3.23 |
| Indoor unit |
| Airflow (C-H) |
820-850 m³/h |
| Sound pressure level (q-a) (C) |
26-47 dB(A) |
| Sound pressure level (q-a) (H) |
26-48 dB(A) |
| Sound power level (C-H) |
60-61 dB(A) |
| Dimensions (H × W × D) |
293x798x230 mm |
| Weight |
9 Kg |
| Outdoor unit |
| Airflow (C-H) |
2160-2160 m³/h |
| Sound pressure level (C-H) |
52-53 dB(A) |
| "Silent CDU#2" (C-H) |
46-48 dB(A) |
| Sound power level (C-H) |
65-66 dB(A) |
| Sound power level "Silent CDU#2" (C-H) |
59-61 dB(A) |
| Operating range (C) |
-15 ~ 46 °C |
| Operating range (H) |
-15 ~ 24 °C |
| Dimensions (H × W × D) |
550x780x290 mm |
| Weight |
29 Kg |
| Compressor |
DC Rotary |
| Refrigerant-Precharge (Kg-TCO2Eq-GWP) |
R32-0.93-0.628-675 |
| Flare connection Gas (inch-mm) |
1/2"-12.7 |
| Flare connection Liquid (inch-mm) |
1/4"-6.35 |
| Piping length (min-max) |
2-15 m |
| Maximum height difference |
8 m |
| Piping length without additional refrigerant charge |
10 metres |
| Power supply |
220-240/1/50 V/ph/Hz |
