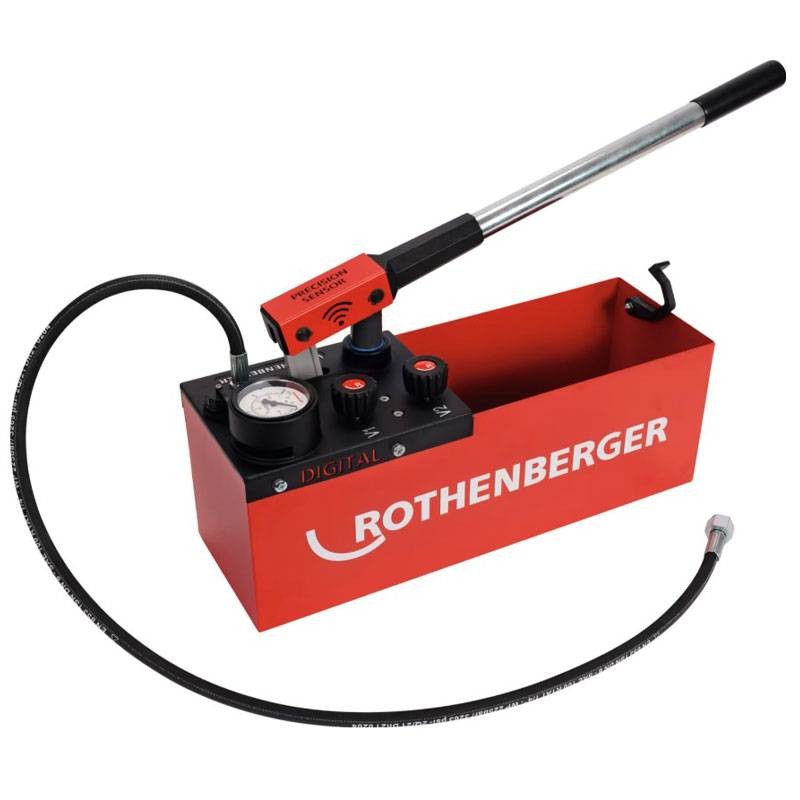

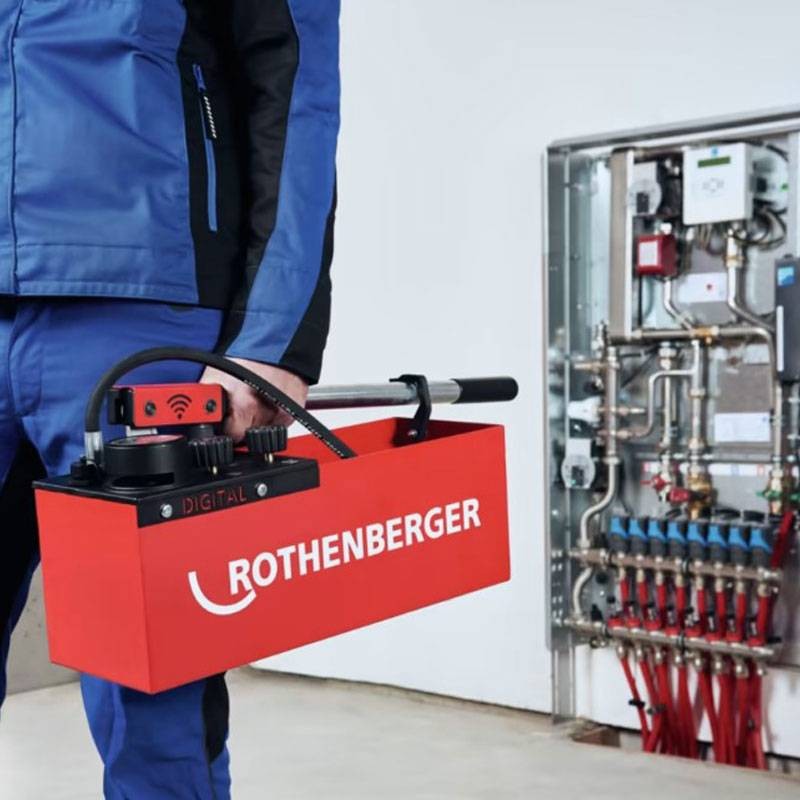

Rothenberger IDR 50 Leak detection device for heating systems 1000004000
ROT 1000004000
4004625549193
Rothenberger IDR 50 3 Ah battery operated Leak detection device with the following features:
- Test area: 0-30 bar
- Battery system: Li-Ion / Li-Po battery (rechargeable)
- Test medium: Glycol, Drinking water
- Pump power (min-max): 45 ml/hub
- Frequency: 50/60 hz
- Contents with units: 12 liters
- Battery capacity: 3 Ah
DURAMANT coating for long service life. For leak testing with water, oil or glycol.
€485.67
Items Available: 4
: 2
A drag indicator displays the pressure so that any loss of pressure in the system can be easily determined in advance. Reliable and accurate results: the dual valve system (Twin Valve) allows self-adjustment and setting of the correct pressure.
Accurate measurement with precision scale (0.1 bar scale) with optional pressure gauge. Test tube with steel handle prevents the generation of errors due to tube expansion during operation.
Technical data:
- Dimensions 720 x 170 x 260 mm
- Weight 8.4 kg
- Container contents 12 liters
- Piston stroke 45 ml
- R1/2" connection
- Test fluid water or glycol mixtures containing water
- Max. temperature 50° C/ 120° F
- Max pressure 30 bar
The test pump was developed and set up for rapid and accurate pressure testing of various piping systems and vessels.
The test pump is distinguished by the following features:
- Double valve system in one-piece construction for rapid filling and control
- Combination system consisting of spherical head valve and one-piece aluminum closure for reducing leaky connections
- Friction-resistant polyamide piston
- Tank made of galvanized steel with DURAMANT coating or stainless steel, corrosion resistant
- Fine-scale pressure gauge with 3 international units of measure and drag pointer

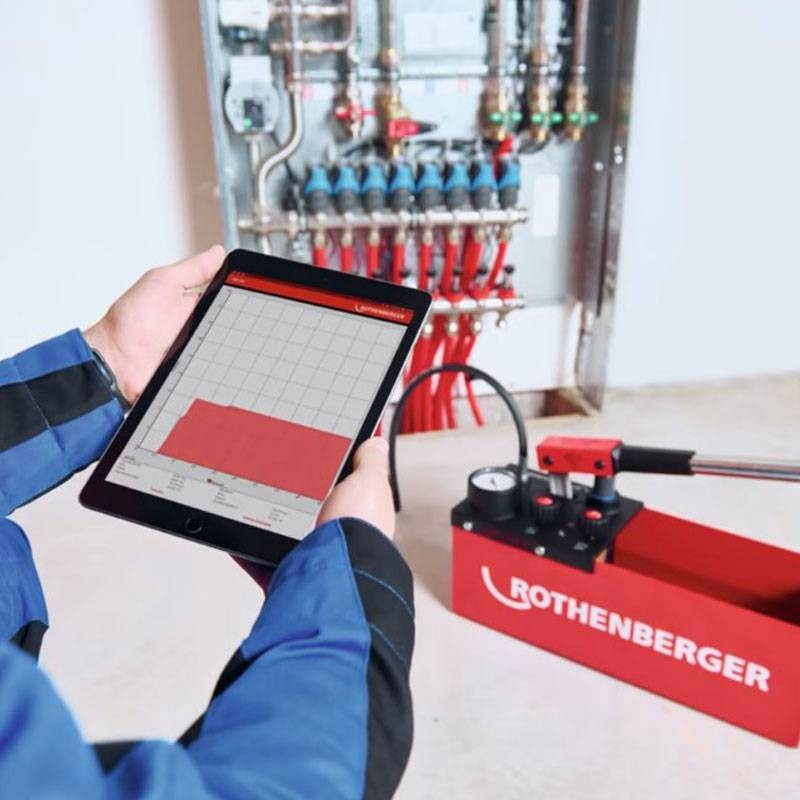

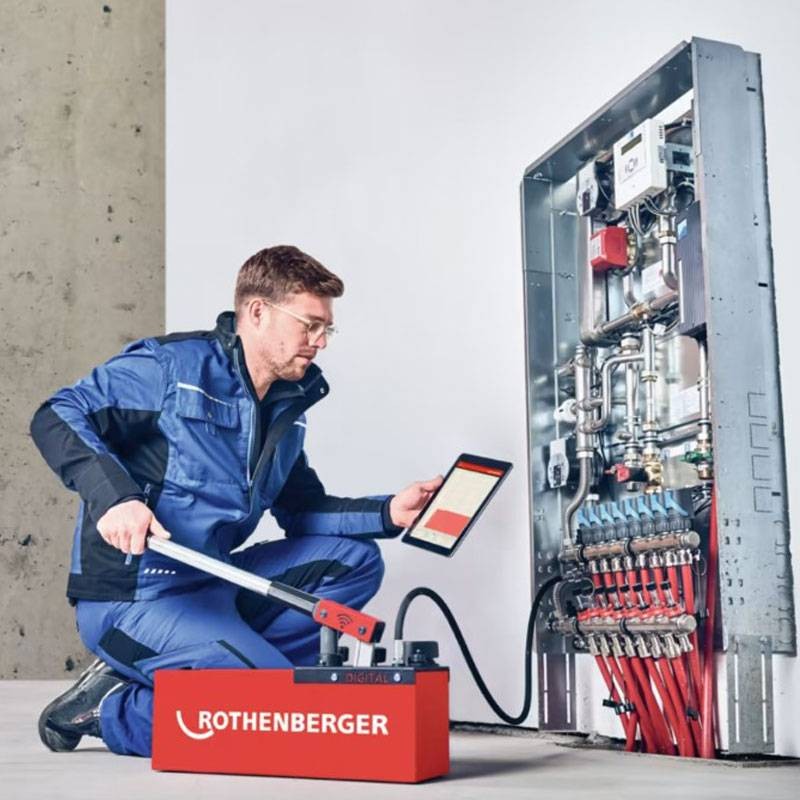

- Electronic pressure sensor with Bluetooth for using the pump with the APP (RP 50 Digital)
- The test pump is used to perform pressure and leakage tests on piping and vessel systems according to national and international guidelines
- The type of installation and materials of the system to be tested are irrelevant in this regard
- Verification fluids and allowable pressures are given in the technical data depending on the test pump used
There are no reviews
Data sheet
- Type: Leak detection devices
