Intercable cable stripping set AMX-AMS-FBS-IMS 1799004
INR 1799004
8014212205025
The Intercable cable stripping set 1799004 is the professional kit for the preparation of MV cables 10/20/30 kV: sheath scoring, semiconductor removal, and insulation stripping with precision, order, and speed.

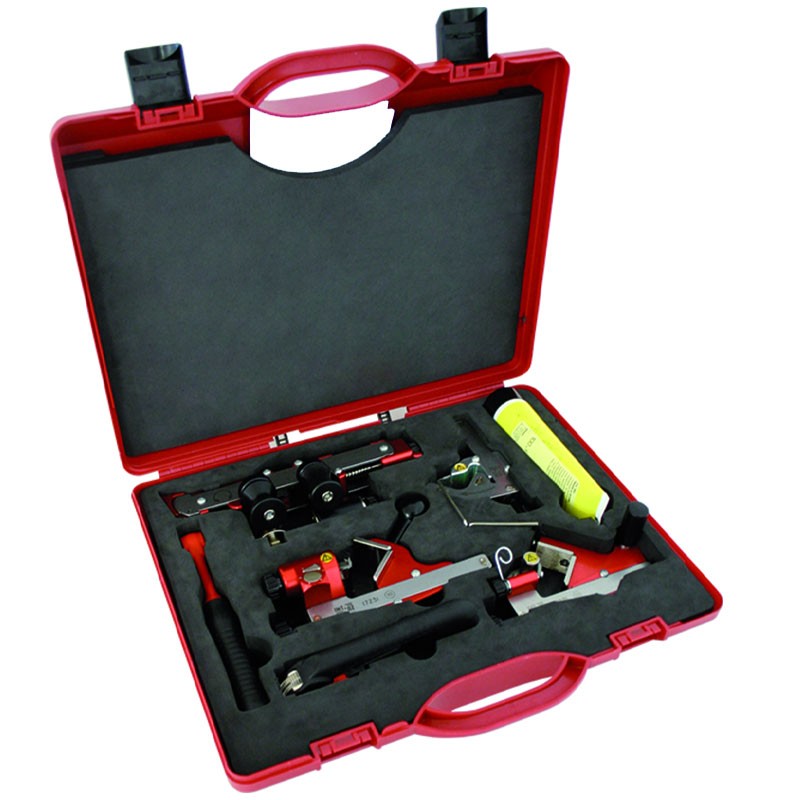

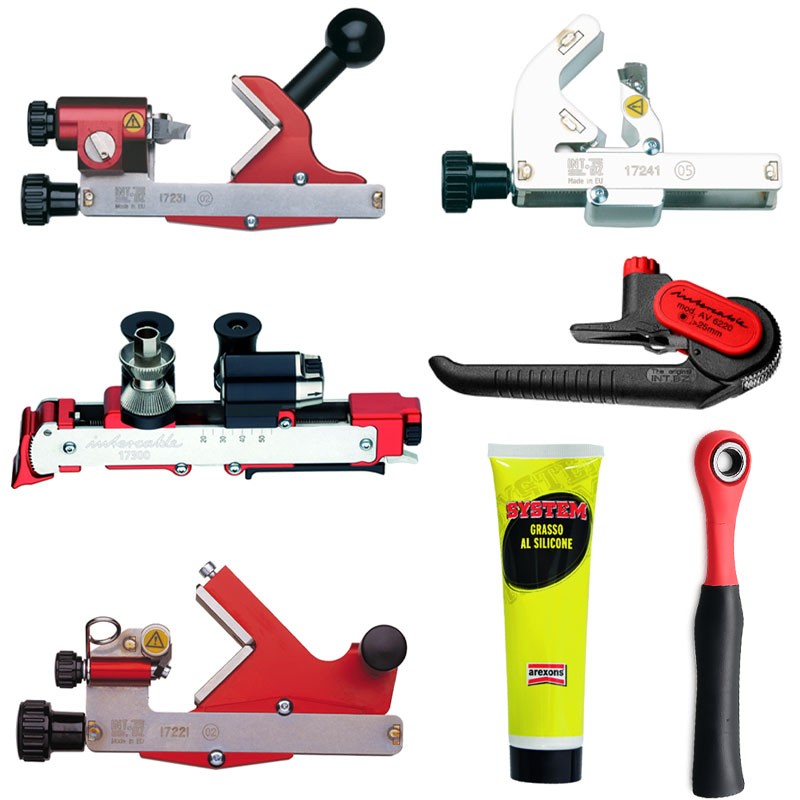

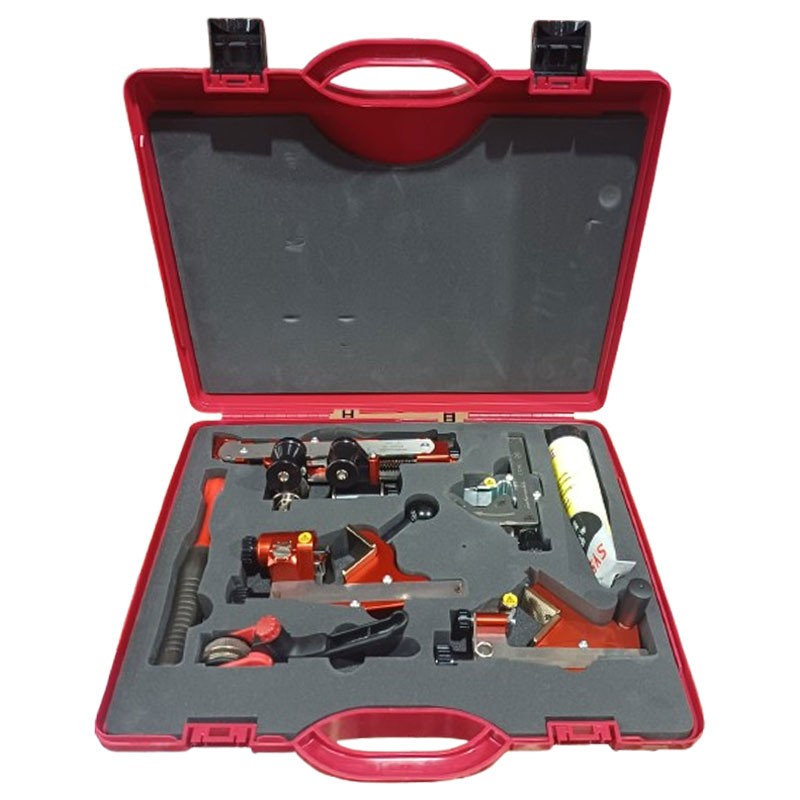

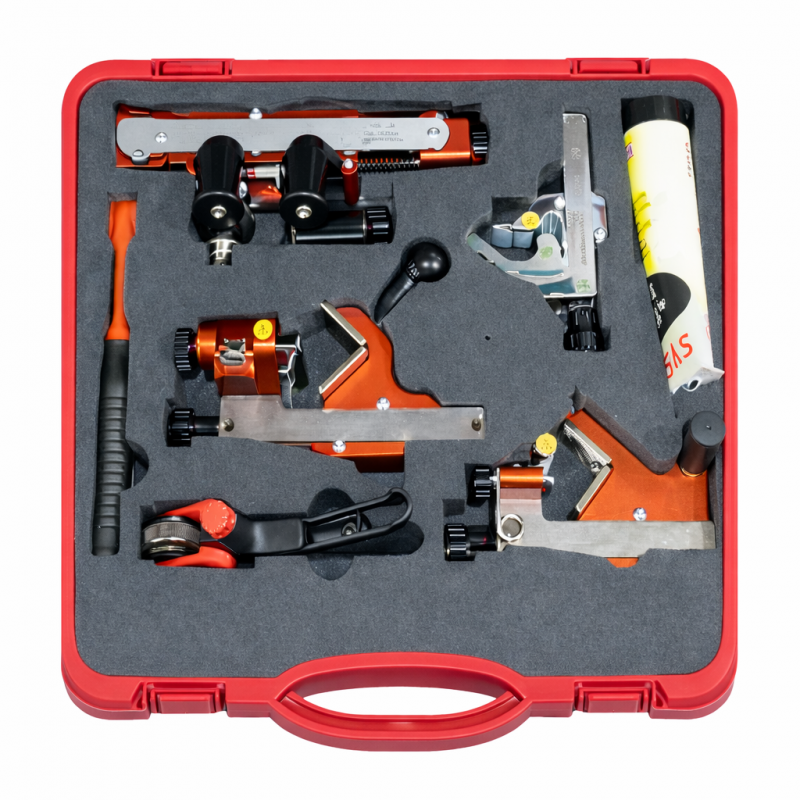

Kit contents:
-
1× cable stripper with quick clamping AMX
-
1× advance lever
-
1× AMS cable stripper (without case)
-
1× FBS cable stripper
-
1× IMS II cable stripper
-
1× universal chamfer cutter UFS
-
1× 100 ml silicone grease tube
-

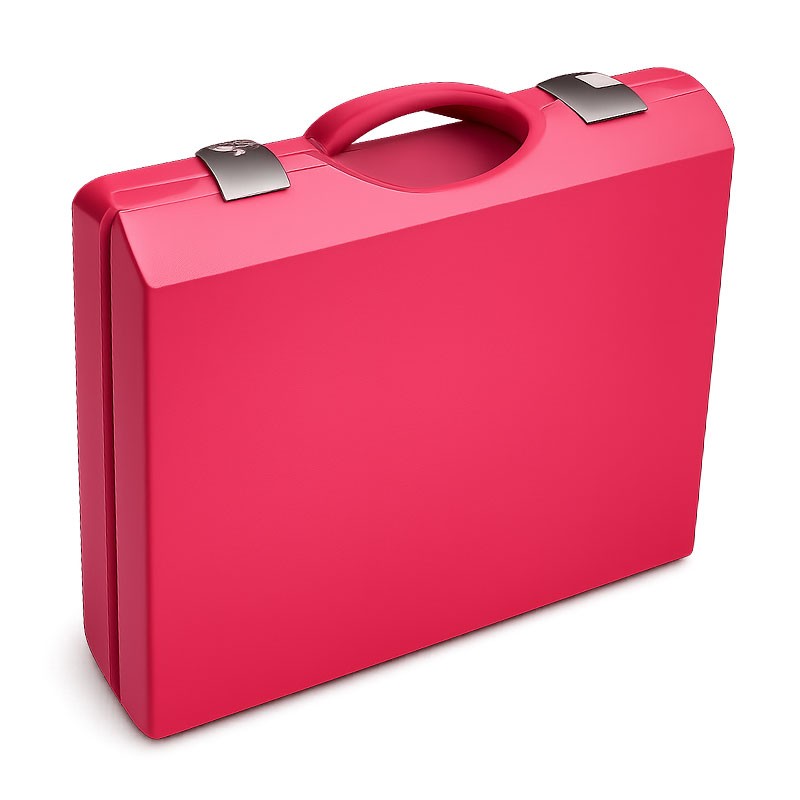

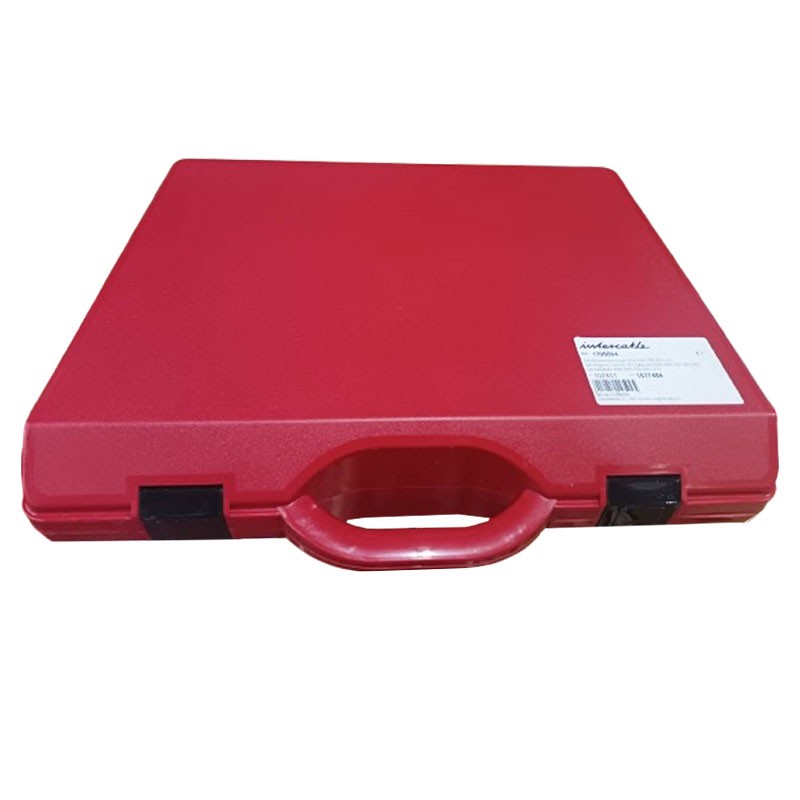

1× case
€2,464.60
Items Available: 1
Intercable cable stripping set 1799004: uncompromised MV cable preparation
The Intercable cable stripping set AMX-AMS-FBS-IMS 1799004 is designed for electricians and jointers working on medium voltage cables 10/20/30 kV, where the quality of cable preparation directly affects the reliability of joints and terminations. Every stage from the processing of the outer sheath to the finishing of the insulation requires control, repeatability, and clean cuts: this kit is designed to ensure professional results, reducing errors, downtime, and rework.
AMX - Cable stripper with quick clamping
Suitable for stripping outer sheaths and aluminium screen with a thickness from 0 to 5 mm of MV cables with a diameter from 16 mm to 54 mm.
-
longitudinal and circular cut
-
beak blade for removing the scored sheath
-
setting on the cable diameter via a knob, referring to the scale on the side of the tool
-
device fixation on the cable with a quick-release elbow lever
-
adjustable cutting depth from 0 - 5 mm, in 0.1 millimetre steps
-
switchable between longitudinal and circular cut
-
indicated for stripping terminal and intermediate sections
-
tool rotation diameter: 300 mm.
KPL advance lever
-
small key opening - 13 mm
-
Length - 195 mm
-
open execution - No
-
ratchet version - Yes
-
with 1000 V protective insulation - Yes.
AMS - Universal cable stripper
Suitable for stripping the outer sheath with a thickness up to 5mm of all LV and MV cables with a minimum outer diameter of 25mm (limitation only for circular cut).
-
longitudinal and circular cut
-
indicated for stripping terminal and intermediate sections
-
cutting depth adjustment from 0 to 5mm
-
stripping without scoring underlying parts
-
interchangeable two-sided blade
-
easy stripping down to - 10°C
-
snap closure of the tool.
FBS - Cable stripper for vulcanized semiconductor
-
activation/deactivation device for axial advance
-
stripping can be done starting from any position on the cable
-
cutting depth adjustment in steps from 0 to 1.4 mm
-
possibility to limit or block the stripping depth
IMS II - Cable stripper for MV/HV cable insulation
Tool for removing the primary insulation of single-core MV/HV cables with various voltage ranges.
-
helical and circular cut
-
snap knob for activation/deactivation of axial advance
-
cutting depth adjustment from 0 to 15 mm
-
unlimited stripping length
UFS - Universal chamfer cutter
For chamfer cutting of medium voltage cable insulation with a diameter of 15 to 60 mm, Features: lightweight and robust shape due to the use of light alloys; anodized surface, for chamfer cutting of the primary insulation layer (2 x 60°), positioning on the cable via a clamping system, the tool is equipped with PTEE plates that allow perfect sliding on the cable making the use of silicone paste unnecessary, interchangeable blades in hardened steel, max. rotation diameter 200 mm, Equipment: UFS cable stripper, 2.5 mm Allen key, reinforced Nylon case.
There are no reviews
Data sheet
- Type: Cable stripper
Set
