Cembre thermal printer for initialing MG4
CEM MG4
8051316045799

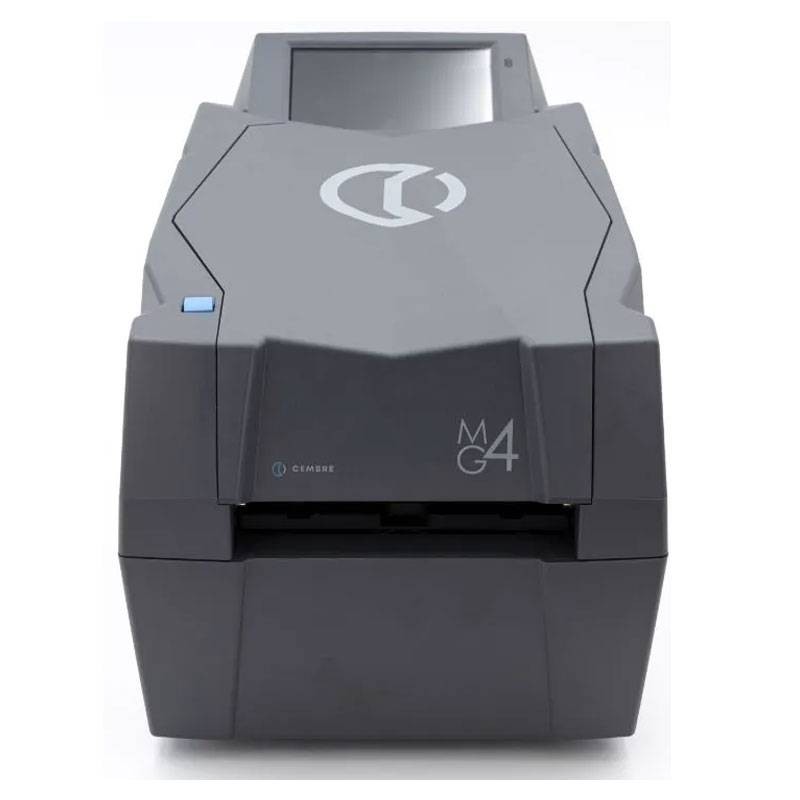

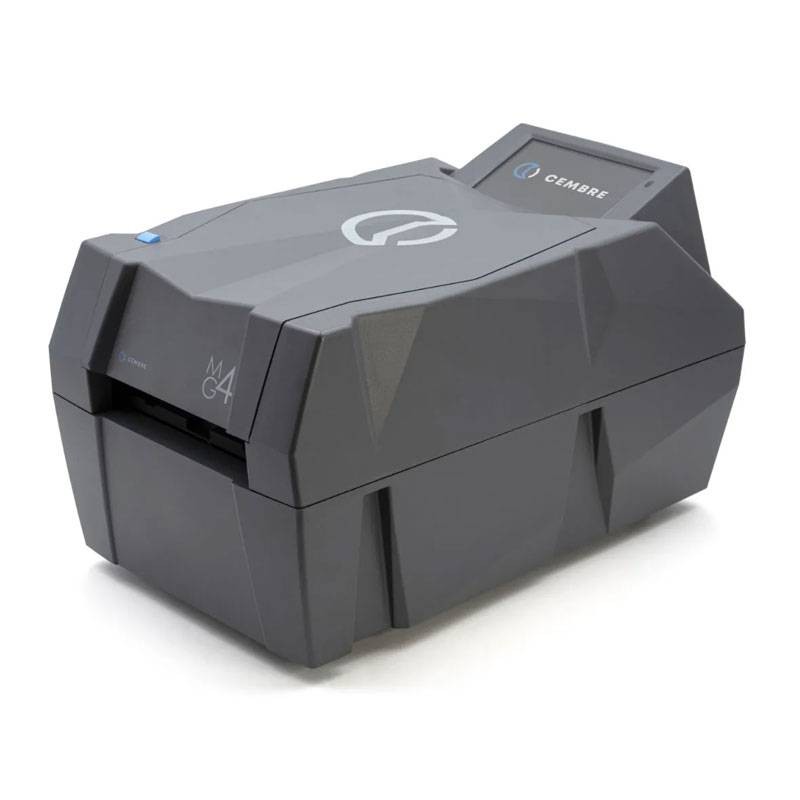

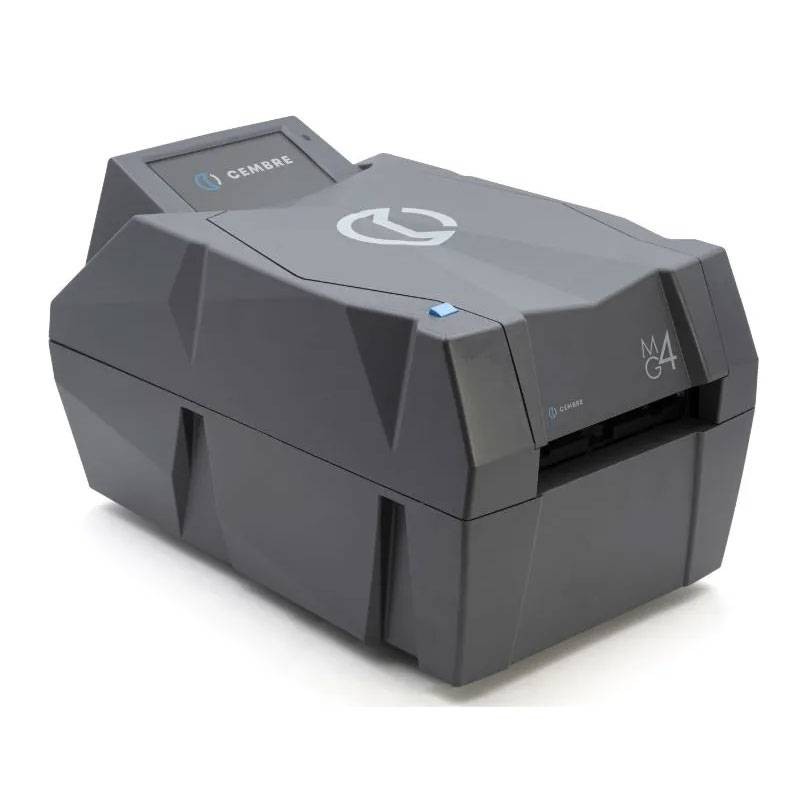

Cembre MG4 Thermal Transfer Printer for Industrial Signing, Touch Display and Wi-Fi Connection.
-
Print technology: thermal transfer
-
Print resolution: 300 x 600 DPI for superior quality
-
Print area: 140 x 110 mm
-
RibbonSave System: optimizes ribbon consumption
-
Connections: USB 2.0, LAN, Wi-Fi (with access point)
-
Supply voltage: 100 ÷ 240 V
-
Power supply frequency: 50 ÷ 60 Hz
-
Power: 90 W
-
Display: large touch screen for easy management
-
Tape autonomy: more than 300,000 MG-TPMF 4x10 mm plates.
€4,693.95
Items Available: 2
Cembre MG4 Thermal Printer: High quality printing for industrial applications

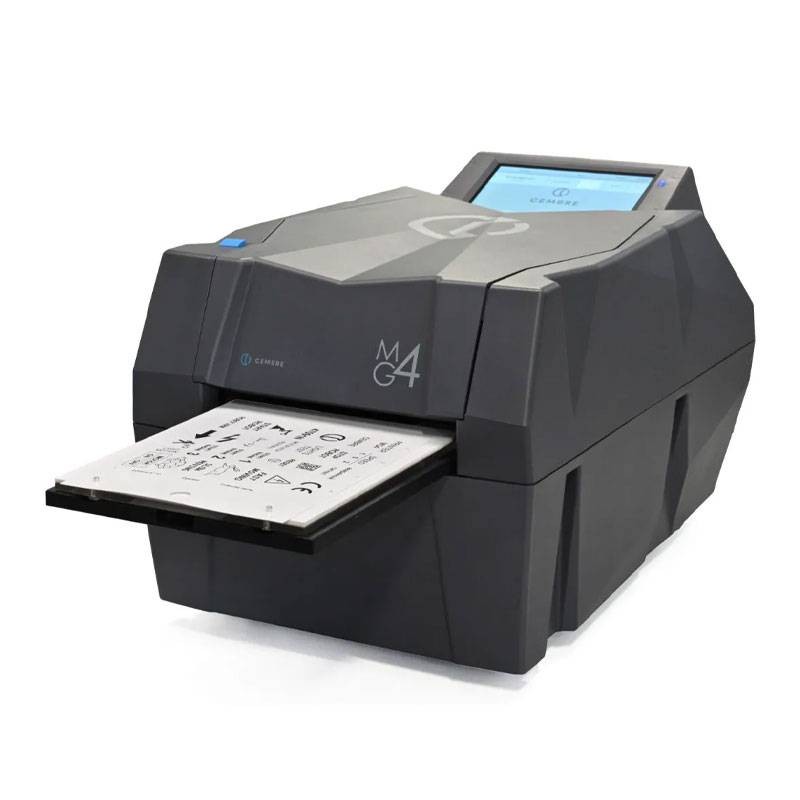

The MG4 is an industrial marking printer designed to offer very high and long-lasting quality printing of text, as well as logos, electrical symbols, QR codes and all kinds of vector images. It is equipped with ribbon save system, a useful feature that allows you to consume only the ribbon needed for printing
Reliability and robustness allow MG4 to be used intensively, making it suitable for all kinds of applications. The large touch screen on board the machine allows quick and easy management of printing projects.
Geniuspro Mobile APP
Projects can be set up and created from a PC with GENIUSPRO software for production job management or, if necessary, via the Geniuspro Mobile APP developed by Cembre for IOS and Android devices for the latest changes on site, at the control panel or on board the machine.
What's in the box
-
MG4 Plug and Play basic printer
-
USB cable
-
EU power cable
-
GST90A24-P1M Power Supply (6971120)
-
USB flash drive "FD-GENIUSPRO" containing the software
-
Interface plates included: MG2-PLT (991002) for sealing plates, labels, tags and FLAT series products
-
MG2-QTB interface plate 991011 for initialing targe sheets type MG-CPM-01-02-03-04-07-11
-
MG2-PWC 991000 interface plate for initialing targe sheets type MG-TPM...
The Cembre MG4 thermal printer is designed to provide superior quality printing for industrial sealing applications. With a resolution of 300 x 600 DPI, it can print text, logos, electrical symbols, QR codes and vector images with exceptional accuracy and durability. Ideal for labeling electrical components, wiring harnesses and other industrial applications, the MG4 meets the demands of high quality and reliability.
Ribbon Save System feature and long autonomy
The Ribbon Save system is an innovative feature that consumes only the ribbon needed for each print job, thus optimizing material consumption and reducing operating costs. Each monochrome ribbon has an autonomy of more than 300,000 4x10 mm MG-TPMF plates, ensuring high productivity without frequent interruptions for ribbon changes.
Intuitive management and connectivity

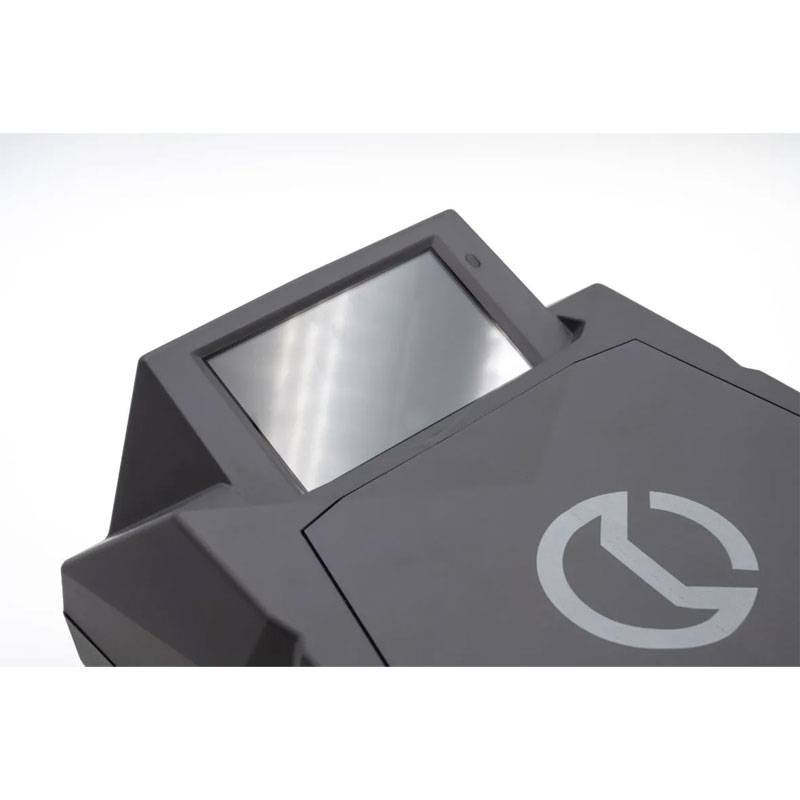

The large and intuitive touch screen makes managing print projects fast and easy, ensuring a smooth and uncomplicated user experience. Advanced connectivity through USB 2.0, LAN and Wi-Fi (with access point) enables easy integration into the enterprise network, enhancing the device's operational efficiency and versatility.
Versatility and robustness for intensive applications
Designed for intensive use, the Cembre MG4 printer offers ruggedness and reliability, making it perfect for industrial environments where extended use is required without compromising print quality.
| Feature | Detail |
|---|---|
| Modes of operation | Thermal transfer |
| Supply voltage | 24V |
| Current | 3,75 A |
| Print time | 9 seconds per full card |
| Maximum resolution | 300 x 600 DPI |
| Maximum printable area | 140 x 110 mm |
| Operating temperature range | +15 to +35 °C |
| Relative humidity (non-condensing) | 30% - 80% |
| Weight | 6.1 kg |
| Minimum software requirements "GENIUSPRO" | - Intel Core i3 4th gen or higher - 4 GB RAM - 2 GB HDD space - 1280x1024 resolution - Windows 7 / 8 / 10 / 11 (32/64 bit) |

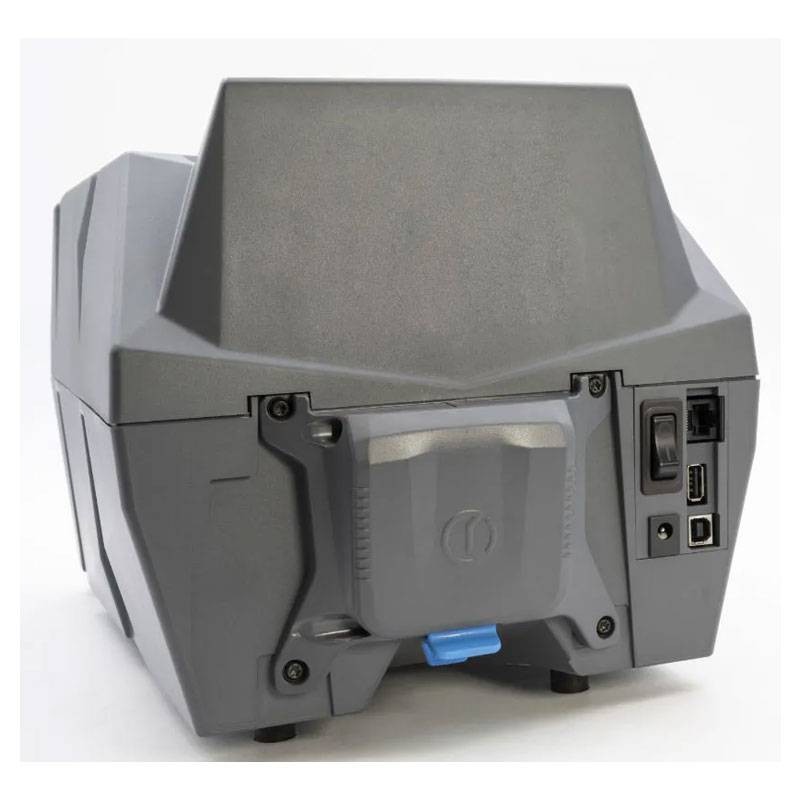

| Connectivity interfaces | - Ethernet 10/100 Base-T - Wi-Fi WLAN 802.11b/g/n 2.4 GHz - USB 2.0 Hi-Speed |
| Interface plates included | MG2-PLT (991002), MG2-QTB (991011), MG2-PWC (991000) |
| Print ribbon | 28 x 53 x 120 mm |
| Wi-Fi module | - Frequency: 2400-2483 MHz - Maximum output power: 100 mW |
| Power consumption | 90W |
| Input power supply | 100-240V |
| Output power supply | 24V / 3.75A max |
There are no reviews
Data sheet
- Type: Label Markers
