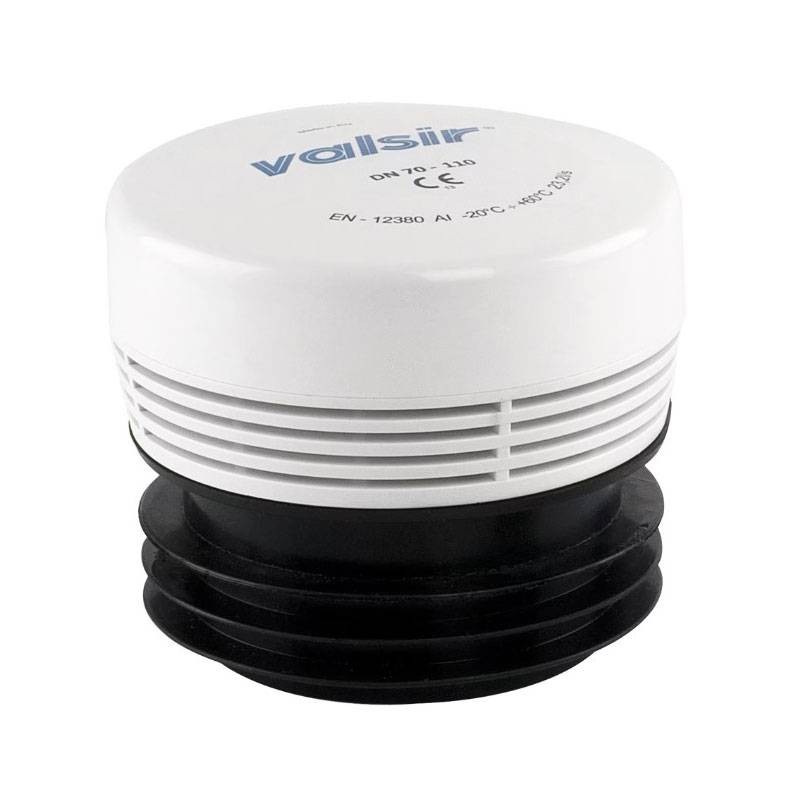

Valsir drain aerator D 70-110 mm with sleeve VS0700405

Valsir
Valsir
VAL VS0700405 8023857464407

Valsir drain aerator with the following features:



  • Compatibility diameters: 70-75-90-100-110 mm
  • Air flow rate: 34.6 l/s

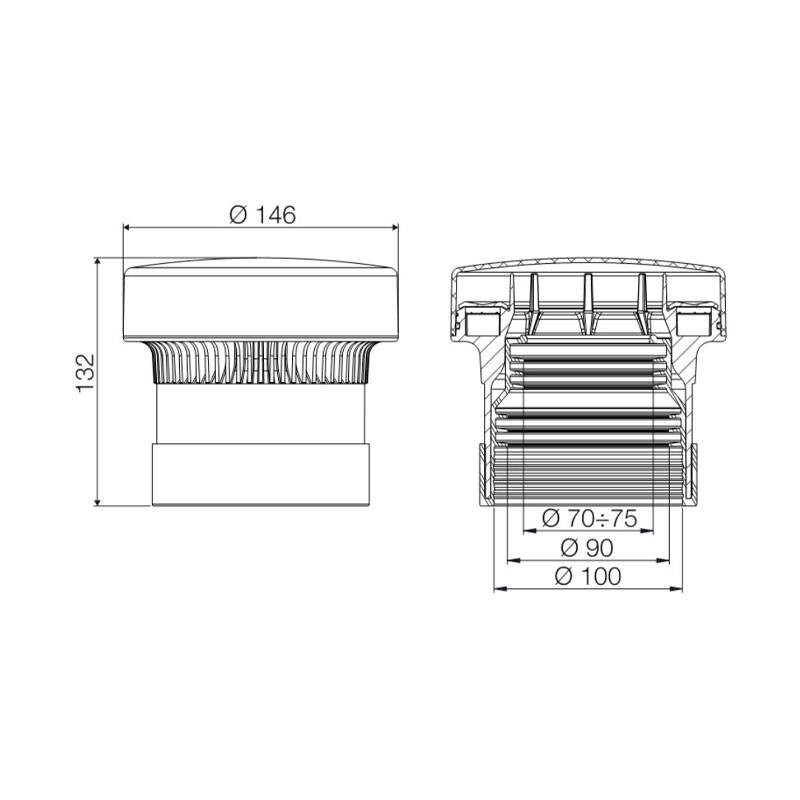

  • Height: 132 mm
  • Diameter: 146 mm
  • Operating temperature: -20/+60 degrees



Aerator with a membrane to balance the depressions (negative pressures) created within the exhaust system due to the passage of fluids within both the horizontal branches and the exhaust column.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Valsir drain aerator D 70-110 mm with sleeve VS0700405
€55.39
€53.73
€53.73

Lowest price in 30 days:
€55.39
Save 3%
€53.73
Tax included
Calculate shipping cost
Offer expires in
Items Available: 74
Further availability of the manufacturer
€53.73

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The Valsir AirVal membrane aerator meets this need even when it is not possible to continue with ventilation to the roof or outside the building. Also useful for solving problems caused by incorrect past installation that causes siphoning, self-siphoning, and return of odors inside the building.



Membrane aerator that allows balancing the depressions (negative pressures) created within the drainage system due to the passage of fluids within both the horizontal branches and the drain column.



Compliant with EN 12380 allows thanks to the Class A classification the possibility of installation below the sanitary flow level. Also thanks to the Class I classification it allows installation with operating temperatures ranging from -20°C to +60°C.



Advantages:

  • Allows ventilation of branches longer than 4 m by avoiding indirect ventilation systems
  • Eliminates the risk of emptying water from siphons due to suction siphoning or self-siphoning in the branch line
  • Due to its small size, it can easily be installed in small spaces (alcoves, false ceilings or under sinks)
  • When installed in habitable terraces, it prevents odors from escaping from the column
  • Plug-in system to simplify installation
  • In areas where snowfall is high, it can be installed before going out to the roof avoiding problems of blockage of the ventilation duct due to the layer of snow on the roof
  • Ideal for solving exhaust problems given by absent or insufficient ventilation in old systems and for eliminating gurgling noises
  • Enables optimization of the exhaust system by lowering installation costs

There are no reviews

Data sheet

Type:
Faucet aerators
