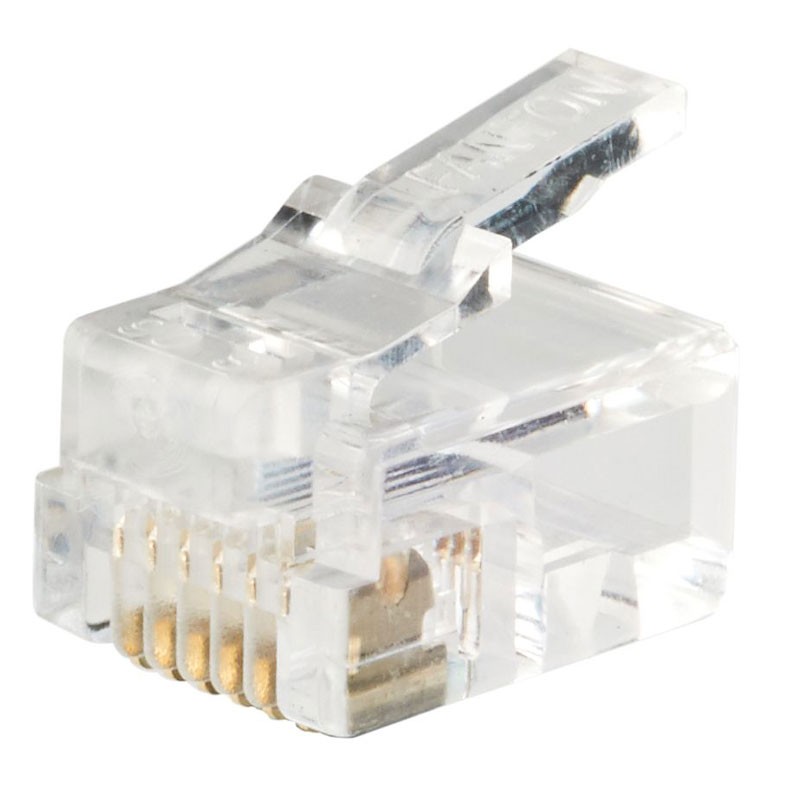

Fanton RJ12 6/6 Transparent Plug 22300
FME 22300
8015450223000
Standard telephone plug/connector PLUG 6/4 RJ12 with gold-plated contacts Fanton, with the following features:
- Fire-retardant plastic
- Transparent polycarbonate
- Phosphor bronze contacts with 6 micron gold plating
- Tensile strength 5 kg (maximum supported)
- Storage and transport temperature: - 40 + 125° C
- Installation temperature: -5 +50° C
- Operating temperature: -40 +125° C
- Contacts: 6/6
- Conductor cross-section (AWG): 24-28
- Maximum current: 1.5 amps
- Dielectric strength: 500 (MOhm)
- Contact resistance: 10 (mohm)
- Usage: Telephone voice cable terminal - Telephone flat cable terminal
€0.34
Items Available: 378
