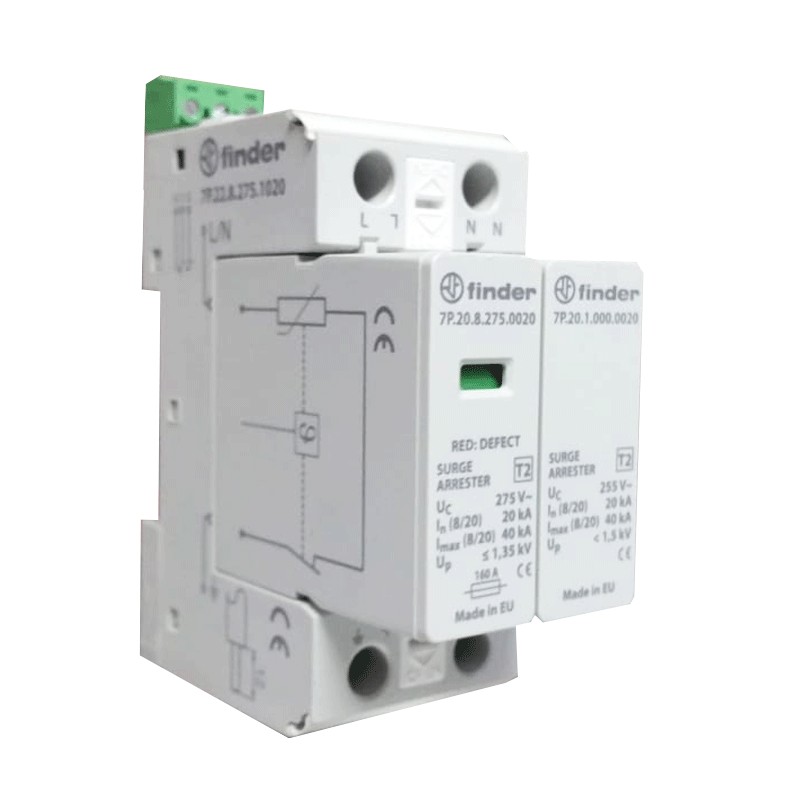

Finder surge arrester SPD 2P 20kA 7P.22.8.275.1020
FIN 7P2282751020
8012823334691
Finder SPD surge arrester with the following features:
- 7P.22 Type 2 surge arrester (1 varistor + 1 gas spark gap).
- For single-phase TT and TN-S systems with neutral
- Rated current: 20 kA,
- AC power supply type
- Rated supply voltage 275 V
- Ambient temperature -40 to +80 °C
Remote indication version: with remote indication contact.
€117.00
Items Available: 2
The surge arrester is a tool that can be mounted inside the electrical panel, thus upstream of the house system. Its use allows the electrical system on which it is installed to be protected.
The surge arrester will protect the entire system from surges, surges and spikes of electricity that may come from the power line operator, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to devices connected to outlets.
An electricity surge can cause a pc hardware to break, or short circuit the boards of smartphones, tablets, and home appliances. In the event that the flow of energy suddenly increases dramatically, human life may even be in danger due to electrocution.
To prevent this from happening, it is therefore advisable to install a surge arrester.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example, in mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. Discharge occurs in 350 microseconds, so excess energy does not reach the system.
In class 2 are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets in the home.
Features:
- Finder Series
- Overvoltage arrester 7P.22 Type 2 (1 varistor + 1 gas spark gap) for single-phase TT and TN-S systems with neutral
- Dimensions 35.8x84.1x65.9 mm
- Varistor protection L-N + gas spark gap N-PE and with replaceable varistor and spark gap modules
- Suitable for AC and DC systems/applications for induced and shunt overvoltage protection
- To be installed at the boundary between LPZ 1 and LPZ 2 zones
- Visual indicator of varistor status - working/to be replaced
- Remote contact indication of varistor status. Connector (07P.01) included in the package (depending on versions)
- Varistor and spark gap modules, replaceable
- Complies with EN 61643-11:2012
- 35 mm bar mounting (EN 60715), 17.5 mm per pole
Data sheet
- Modules: 2
- Poles: 2P
- Maximum current: 20KA
- Version: 2
- Model: AC
- Circuit Protections: Surge protectors
