Eaton Photovoltaic Switchboard IKA-SOL20-X22 EP-501986
EAO EP-501986
9010653063889

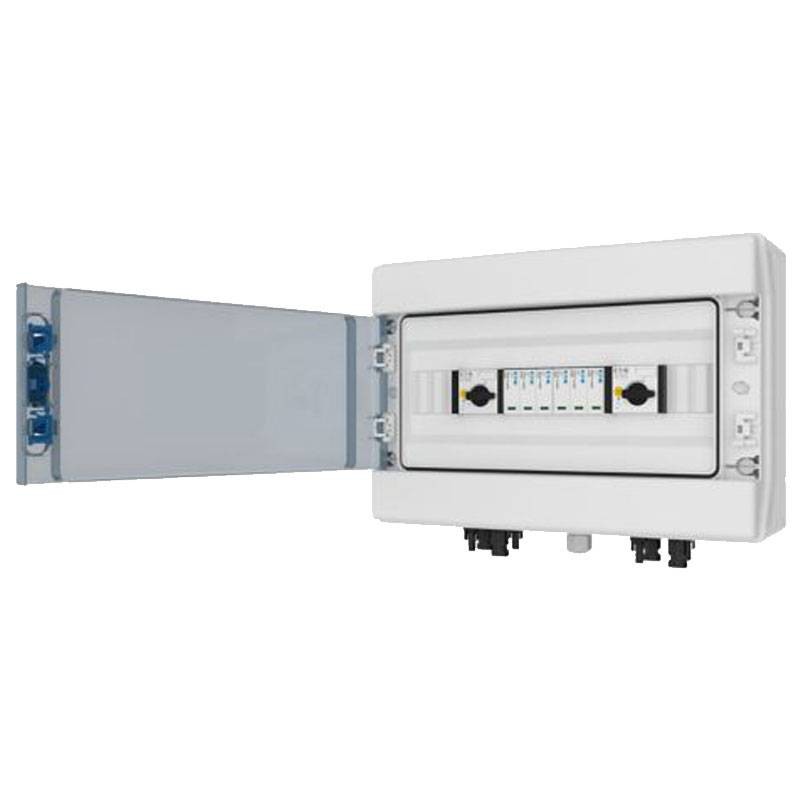

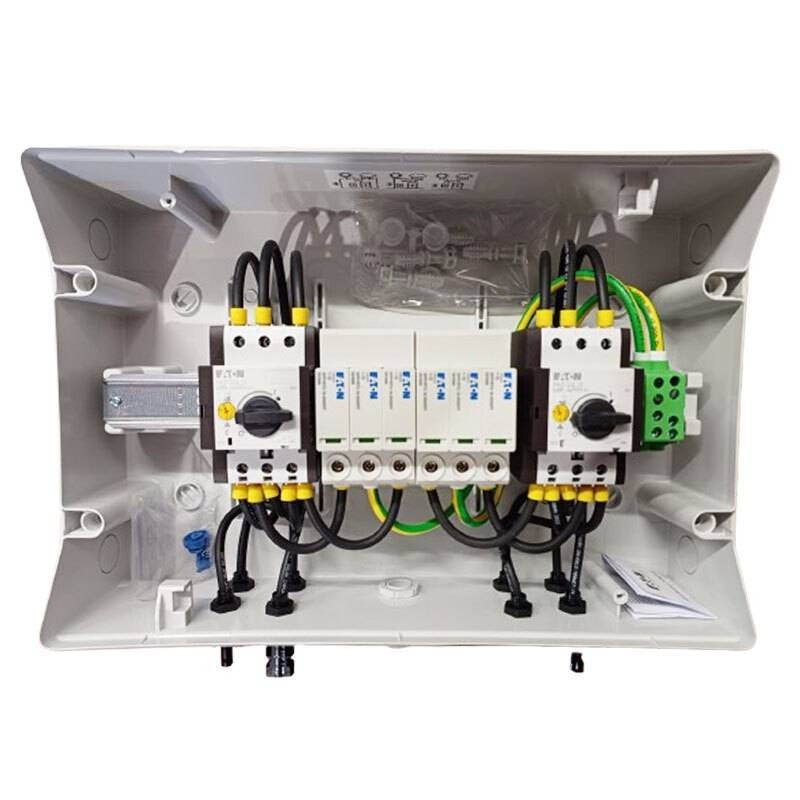

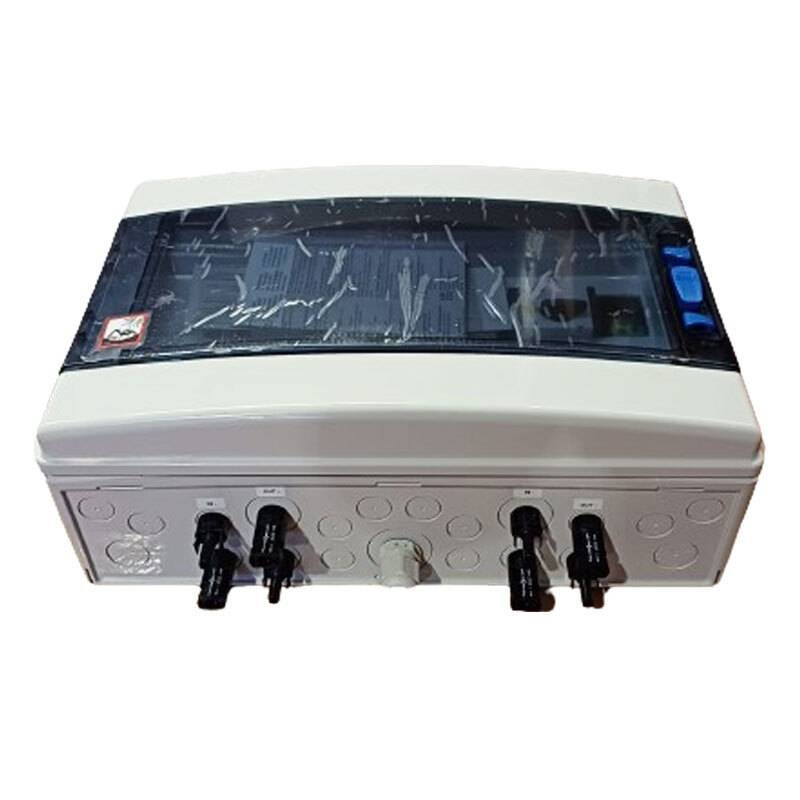

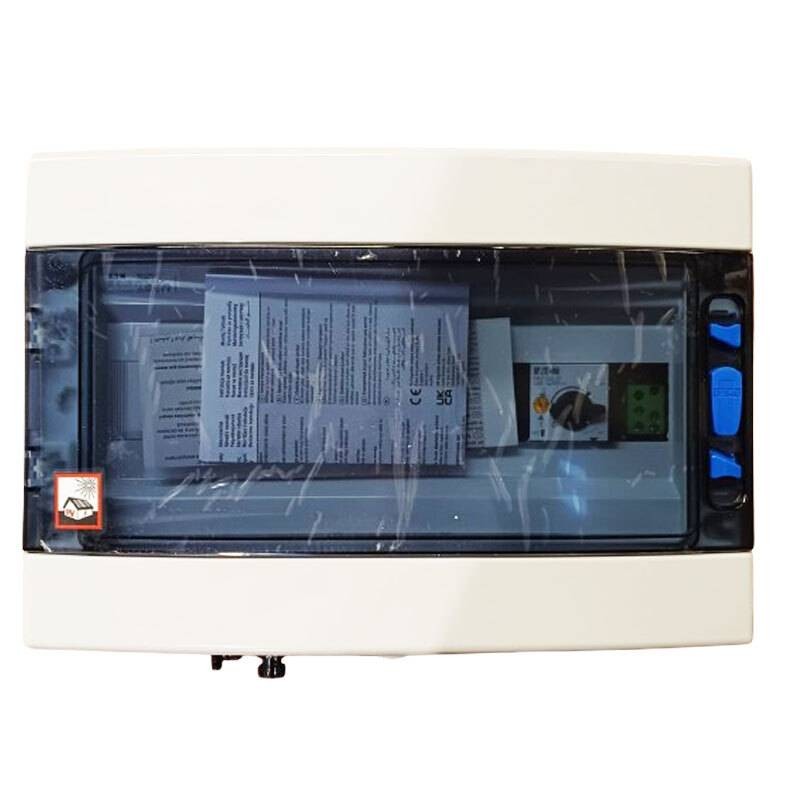

DC string switchboard for photovoltaic system Eaton IKA-SOL20-X22 consisting of:

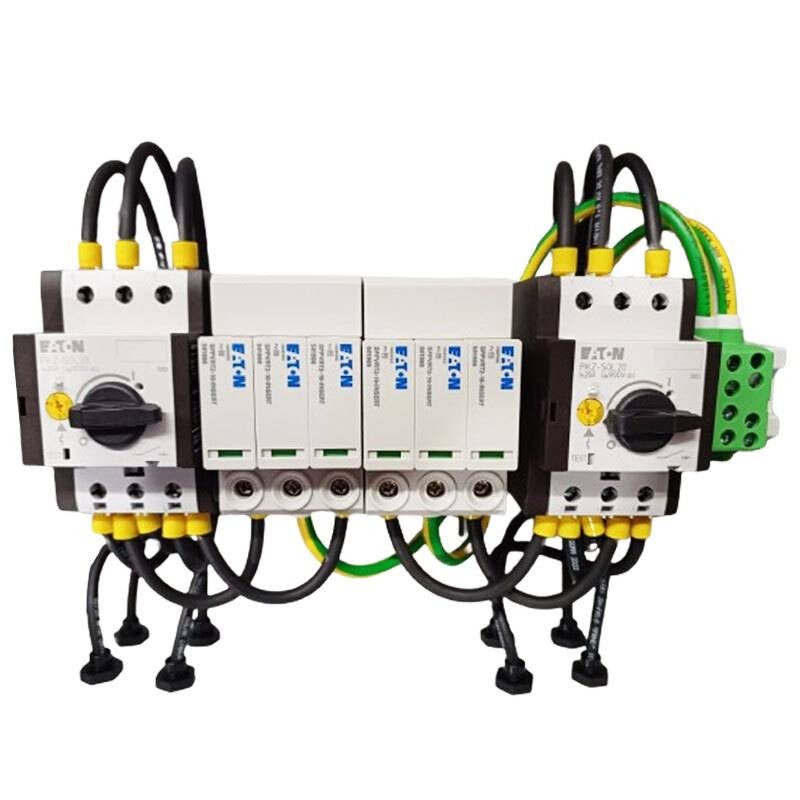

- 2 PKZ-SOL20 2-pole 20A string protection circuit breakers code 120938
- PV string on the input of the inverter 2 x IN + 2 x OUT
- 2 SPPVRT2-10-INSERT Type 2 1000V 3 modules voltage arresters
- Connection on MC4
- 1 IKA-1/18 panel - 18 modules
€480.66
Items Available: 1
Advantages:
- Safety: IKA-SOL Protects inverters and PV modules from both overcurrents and overvoltages on the DC side of the PV system
- IKA SOLAR Protects PV modules and inverters from both overcurrents and overvoltages on the DC side of the PV system
- Eaton certified for you according to IEC/EN 61439-2 Annex DD (PVA)
- IKA-SOL protects PV inverters & modules from short circuits and overvoltages
- String Switchgear Compliant with IEC/EN 61439-2 Annex DD (PVA)
- Designing and testing certified string switchgear (PVA) would be time-consuming for you: Eaton has prepared and certified them for you
- Effective protection is the first step to take. By using SPPVR series SPDs, IKA SOL first and foremost protects against overvoltages.
- The presence of the PKZ-SOL circuit breaker are then guaranteed safe disconnection and c.to c protection
Technical data:
- Voltage protection level 3.8kV
- DC input voltage - max. 900V
- Rated operating voltage (Ue) 900V
- Rated current InA of the circuit breaker assembly 2x20A
- Rated current Inc of one circuit 20A
- Input current per string - max 20A
- Output current - max 20A
- Discharge current In (8/20 µs) 20kA
- Itotal discharge current (8/20 µs) - max 40kA
Technical/mechanical data:
- Housing material ABS (insulating material)
- Housing height 286 mm
- Length/depth of housing 145 mm
- Width of housing 418 mm
- PE conductor cross section: 16 - 25 mm² - min./max.: 6 mm²
- Ambient temperature - min. -5 °C
- Ambient air temperature - max 40 °C
- Ambient temperature (daily average) - max 35 °C
- Thermoplastic switchgear material
- Degree of protection IP65
- Impact resistance IK10
- Protection class Protection class II (total insulation)
- Number of inputs 2
- Number of module step units per row 18
- Number of rows 1
- Number of string inputs 2
- Color transparent cover/door
- MC4 connection type
- DC generator breaker DC-21A
- DC 20A string circuit breaker
- DC surge arrester Type 2
- PV string on inverter input 2 x IN + 2 x OUT
- 2-pole string protection
- PVA circuit breaker assembly
These products comply with the IEC/EN 61439-2 Annex DD (PVA) standard:
- IKA SOLAR string switchgear has passed the rigorous tests required by IEC/EN 61439-2 Annex DD (PVA), including thermal cycling, temperature and solar radiation exposure tests. IKA SOLAR are therefore ready-to-connect
PKZ-SOL20 string protection circuit breaker:
- Eaton's PKZ-SOL Moeller series DC string circuit breaker offers protection against short-circuit currents. To ensure maximum protection, each PKZ-SOL device is installed inside a customer-specific junction box. An auxiliary contact provides information on the switching status, while the documentation contains diagrams illustrating the exact relationship between the tripping current of the protective device and the short-circuit current of the PV modules.
